Honda
>>
2005
>>
Pilot V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>
Keyless Entry Receiver
Keyless Entry Receiver

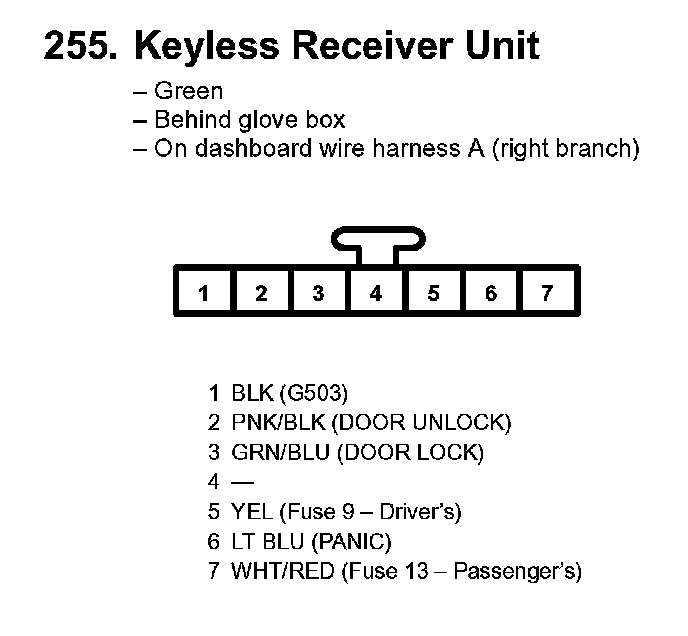

255. Keyless Receiver Unit:
