Entertainment System Control Panel
Entertainment System Control Panel

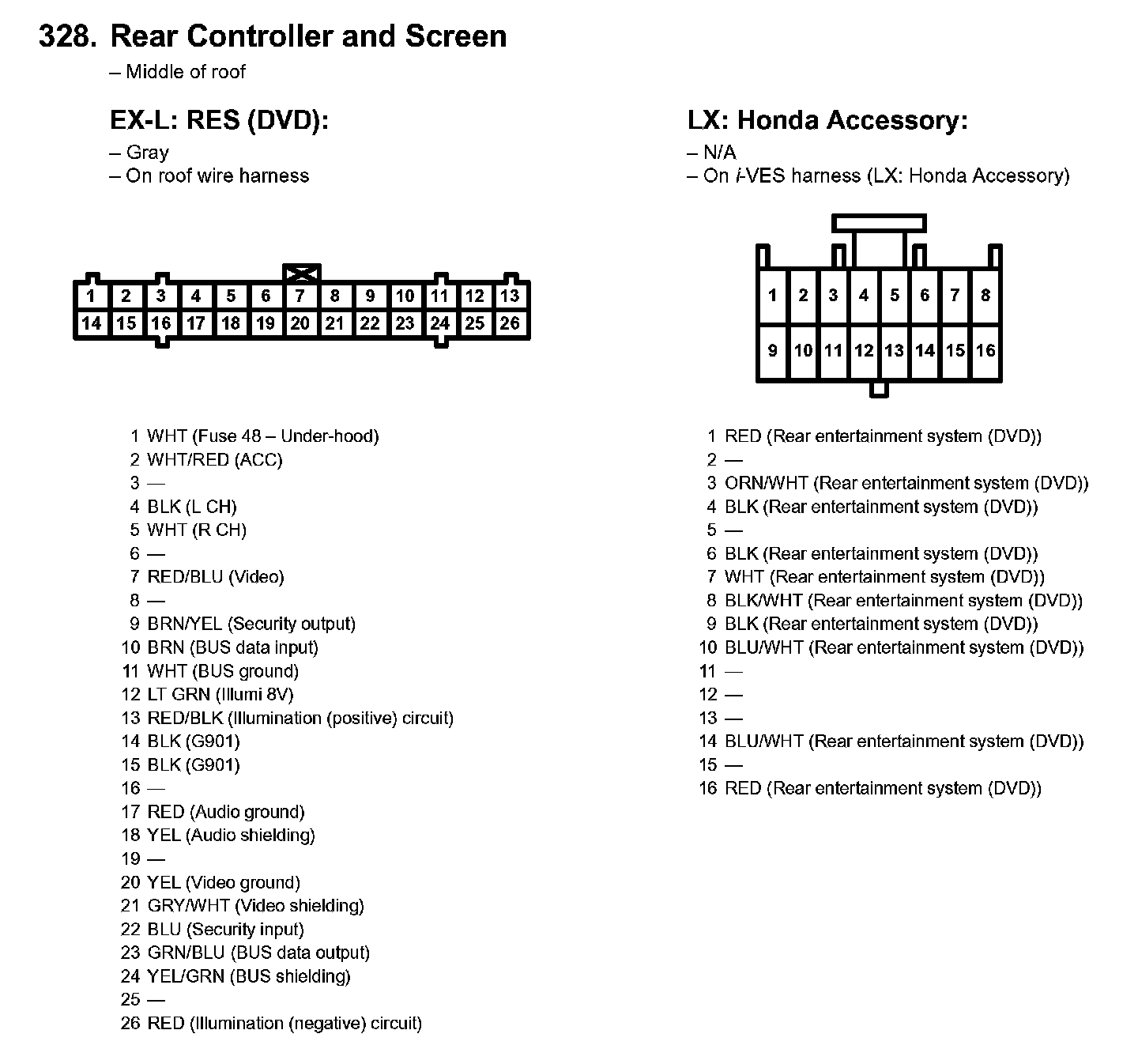

328. Rear Controller And Screen:
