Cruise Control Switch
Cruise Control Switch

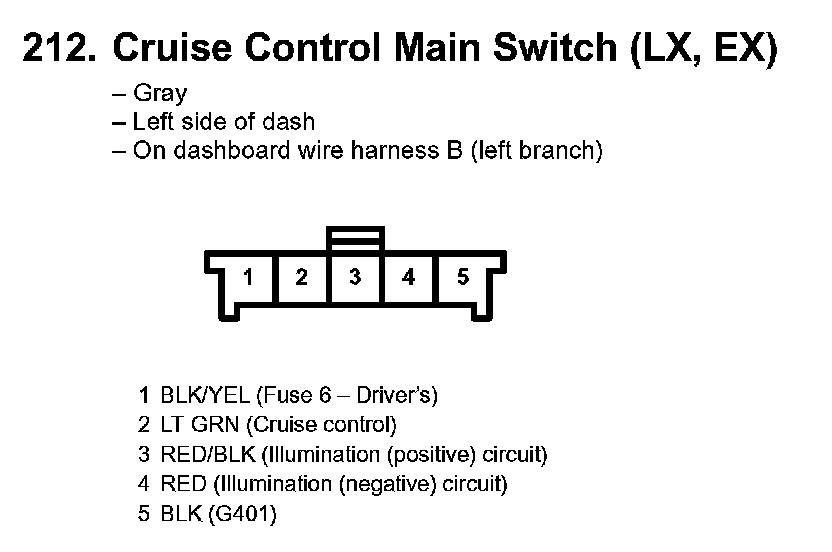

212. Cruise Control Main Switch (LX, EX):

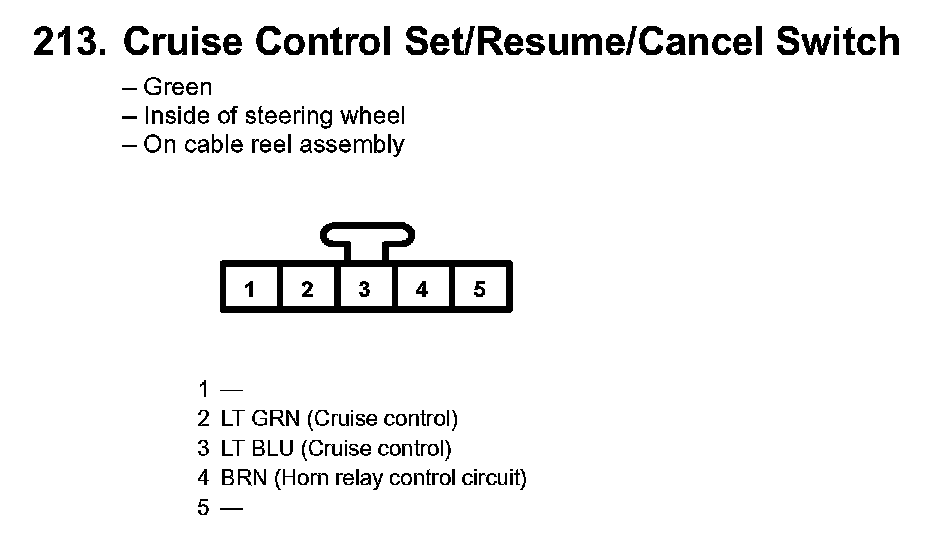

213. Cruise Control Set/Resume/Cancel Switch:

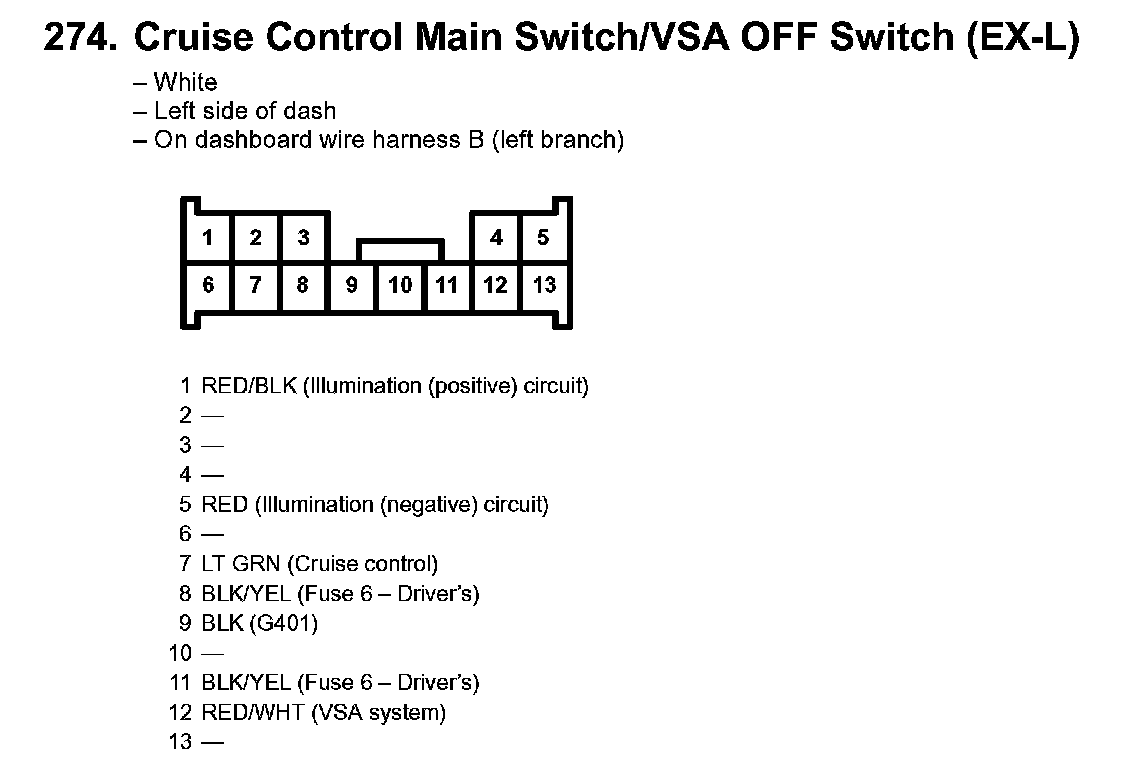

274. Cruise Control Main Switch/VSA OFF Switch (EX-L):
