Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)

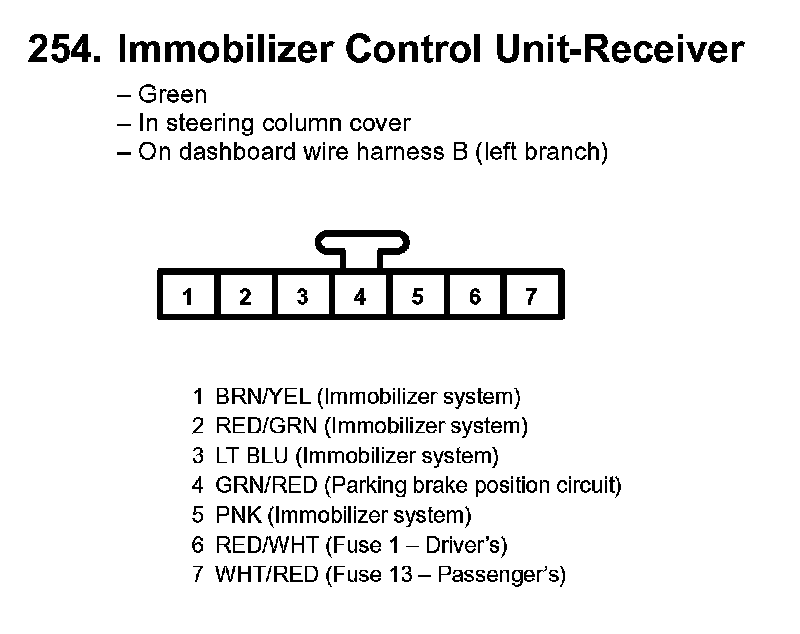

254. Immobilizer Control Unit-Receiver:

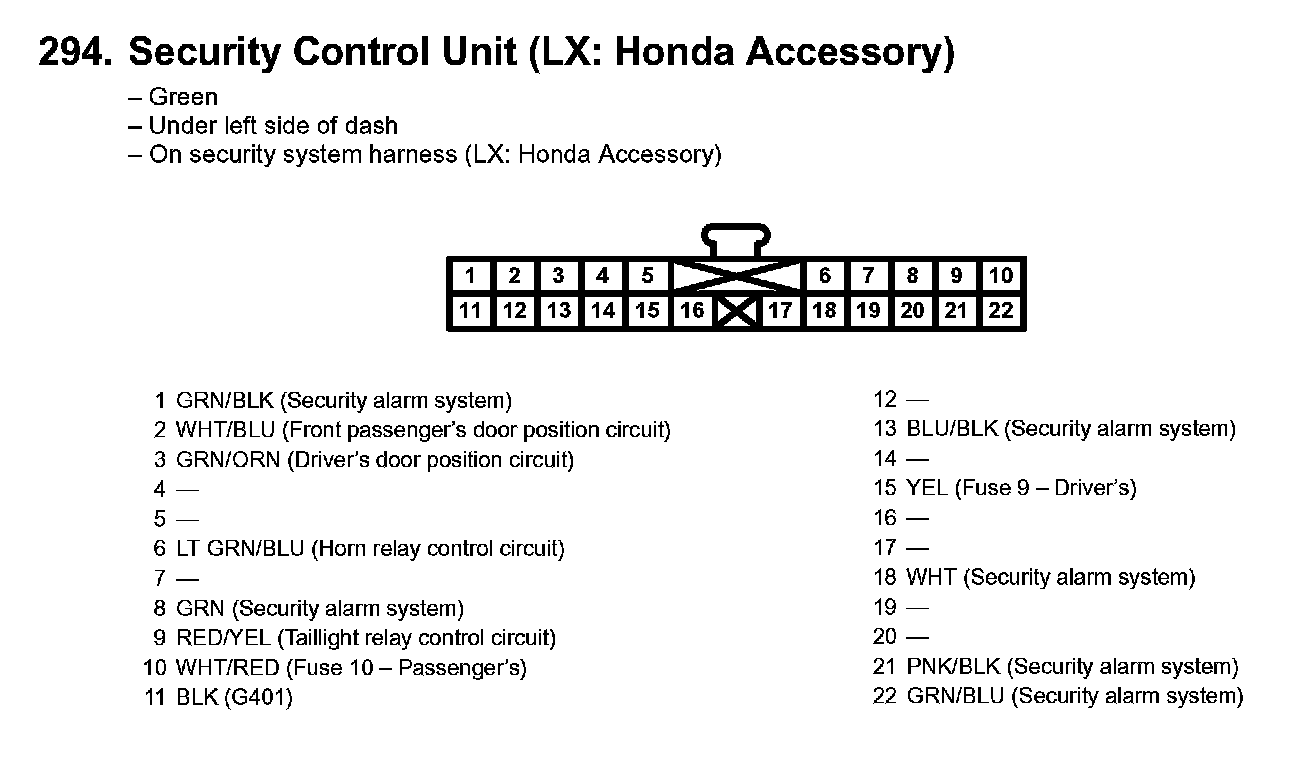

294. Security Control Unit (LX: Honda Accessory):
