Antilock Brakes / Traction Control Systems
>>
Traction Control Module
Traction Control Module

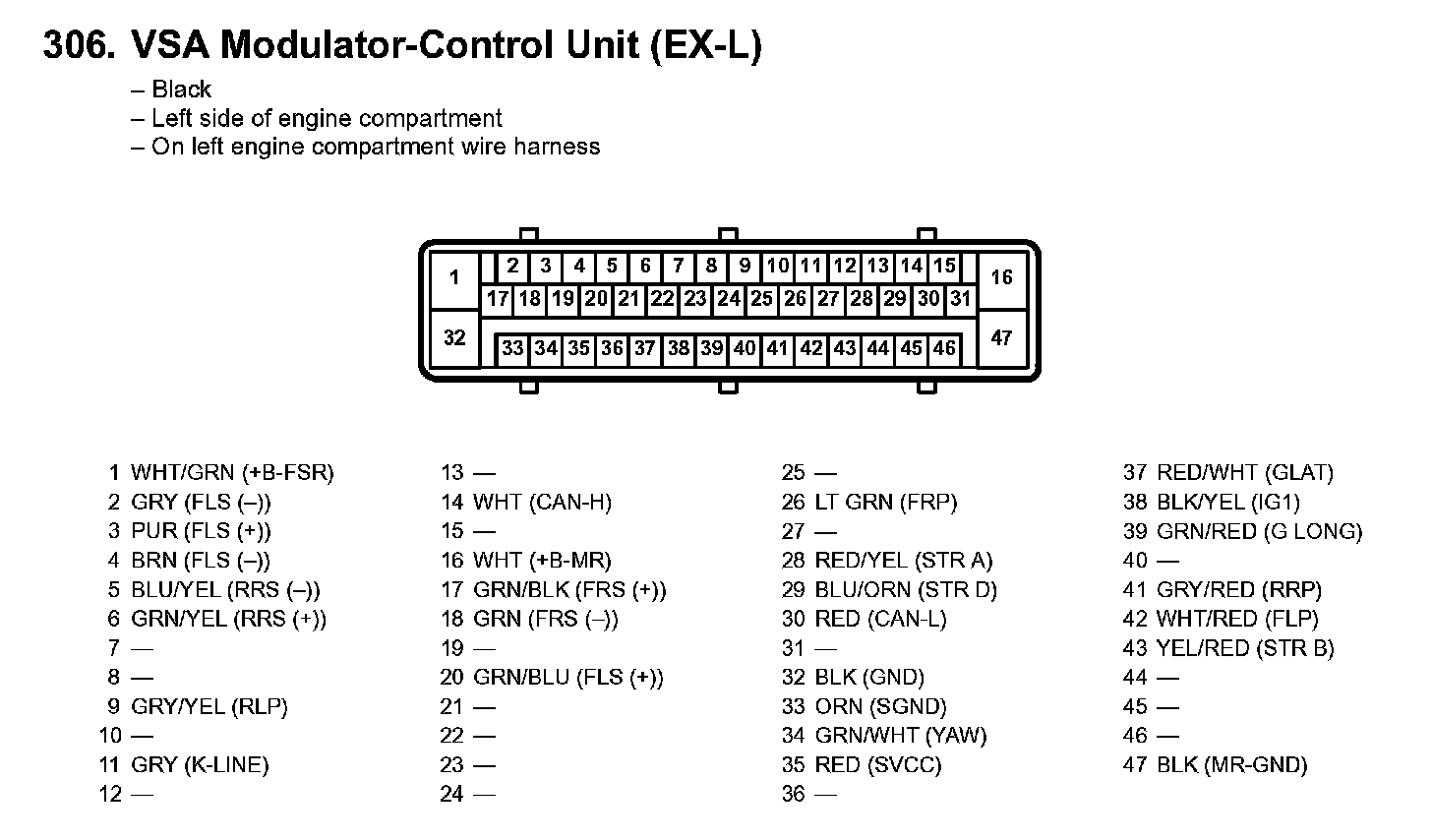

306. VSA Modulator-Control Unit (EX-L):
