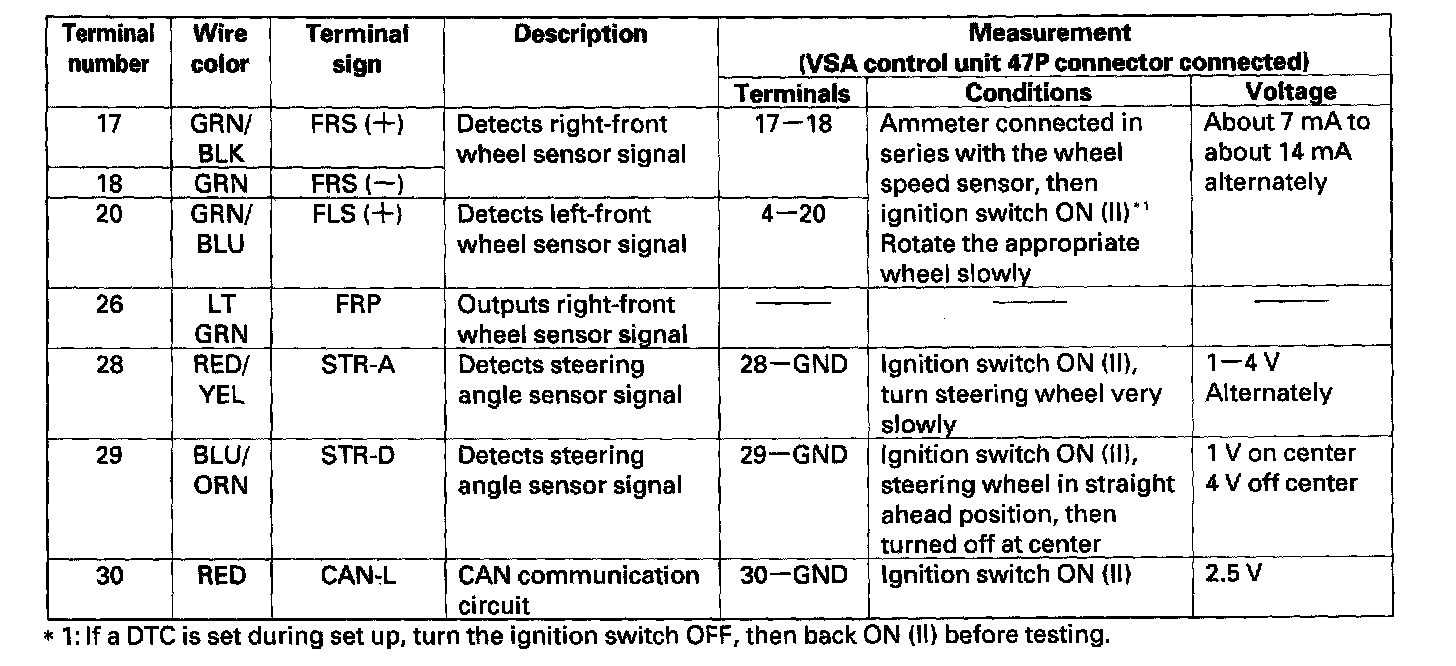

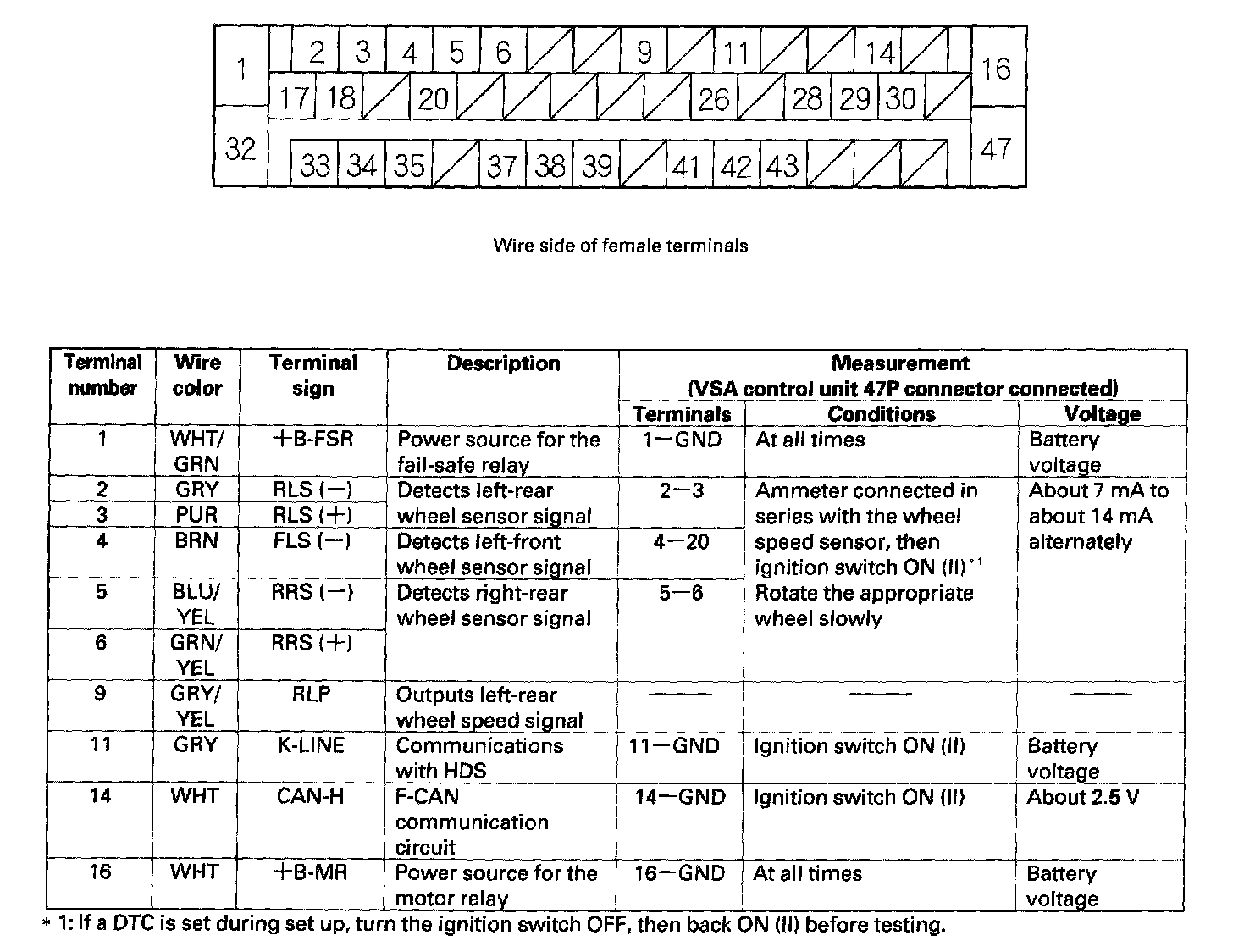

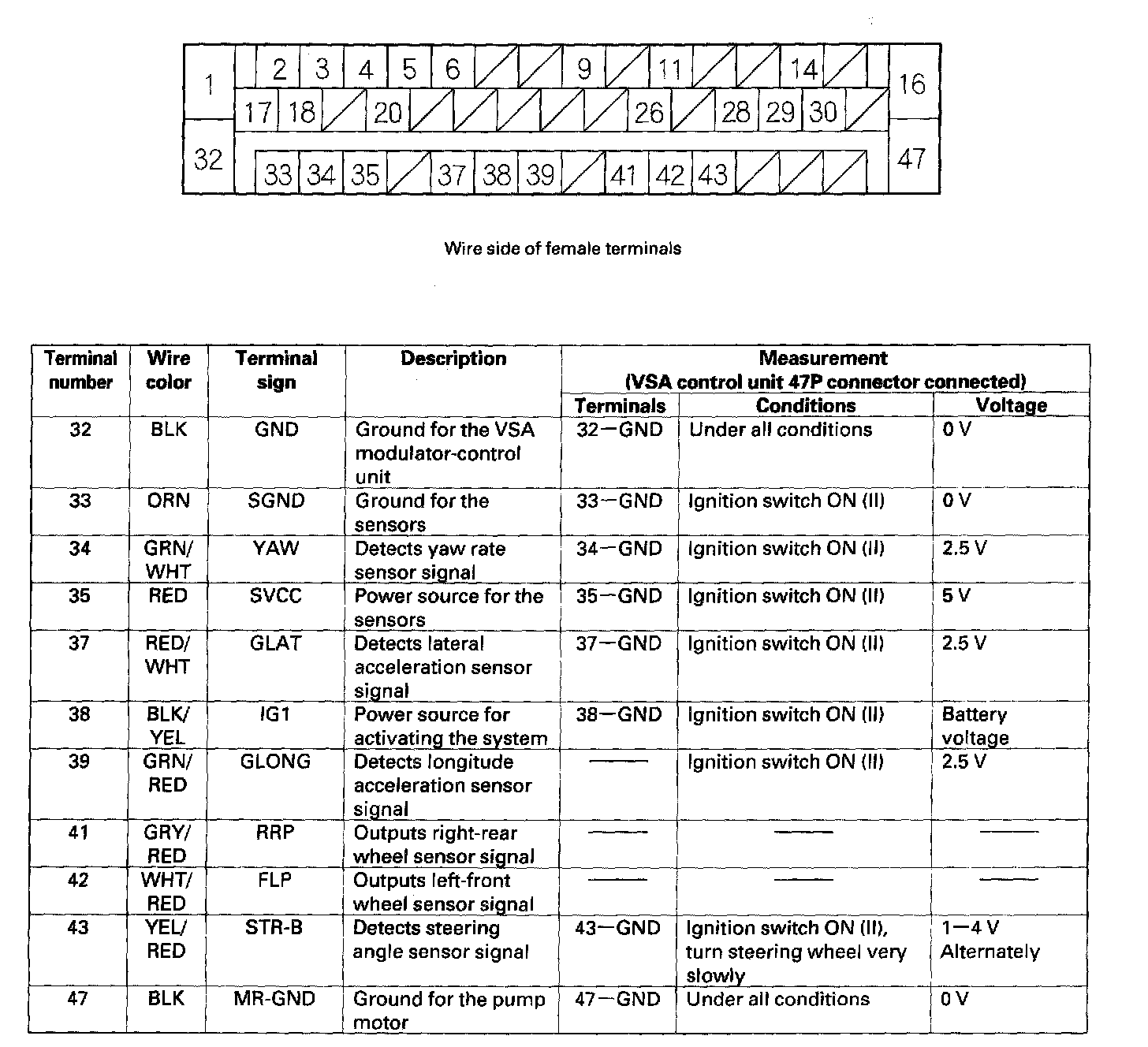

Home >> Honda >> 2005 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Control Module Pinout Values, VSA
