Acceleration Sensor, Suspension Control
Acceleration Sensor, Suspension Control

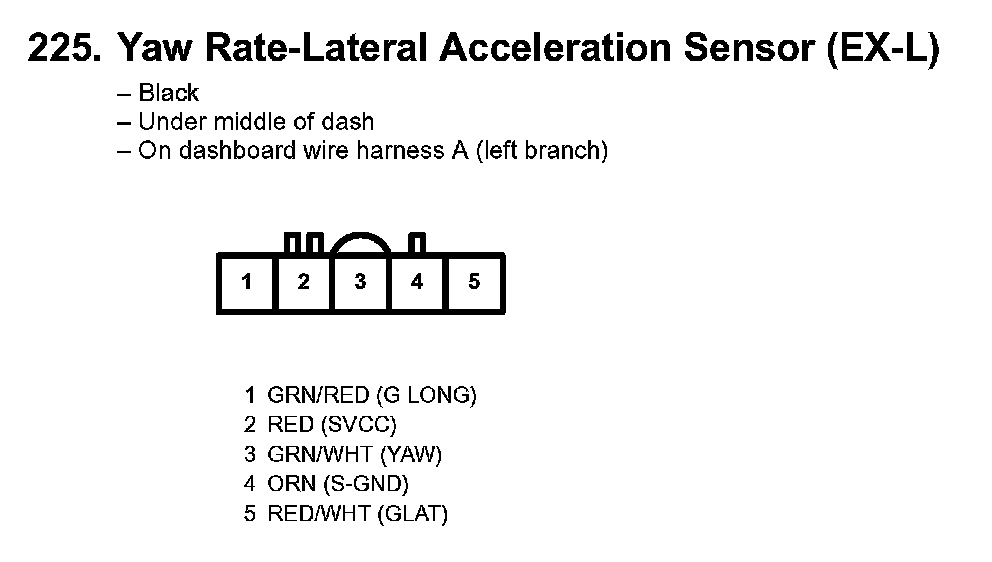

225. Yaw Rate-Lateral Acceleration Sensor (EX-L):
