Multiple Junction Connector
Multiple Junction Connector

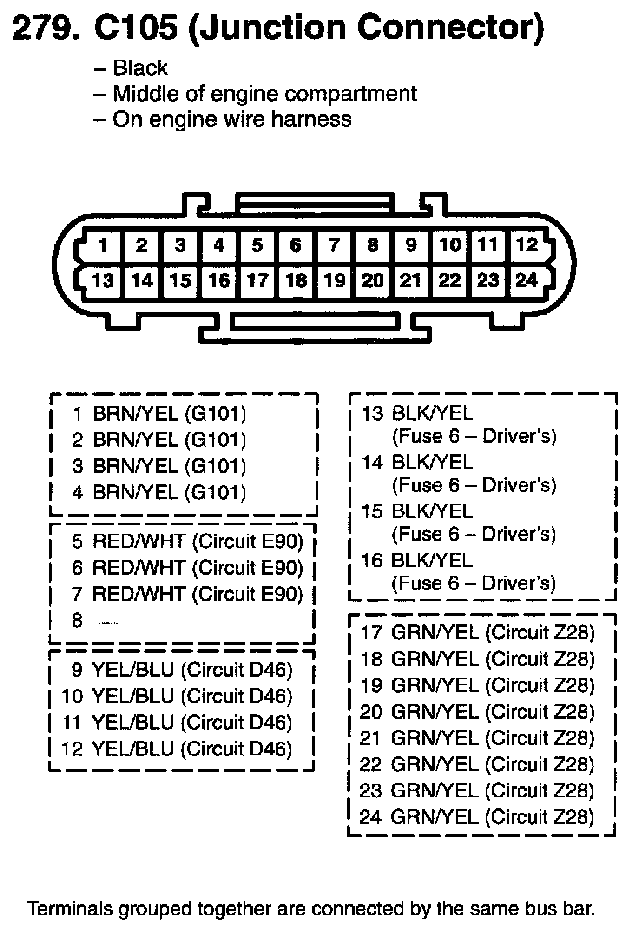

(Junction Connector):

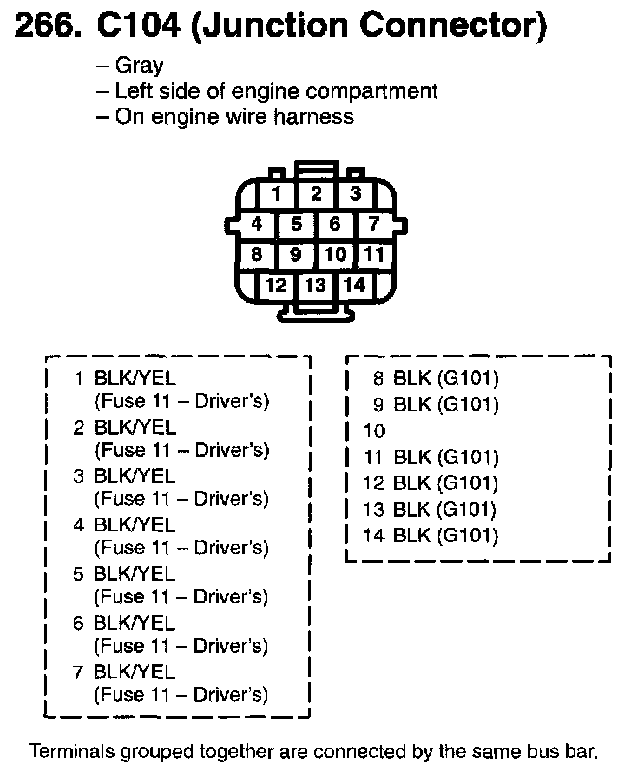

(Junction Connector):

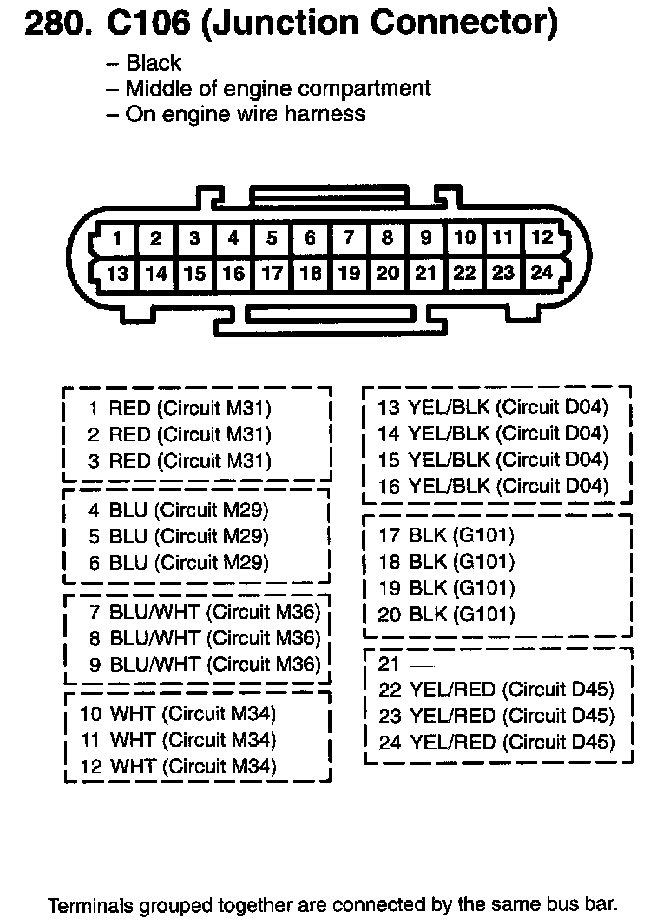

(Junction Connector):

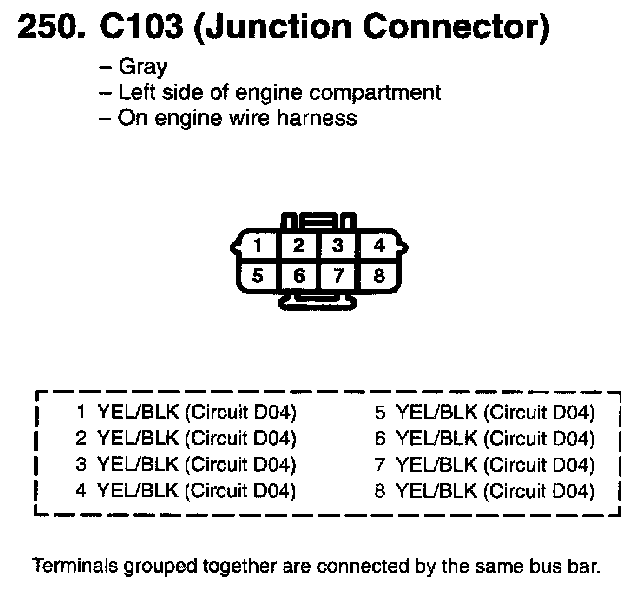

(Junction Connector):

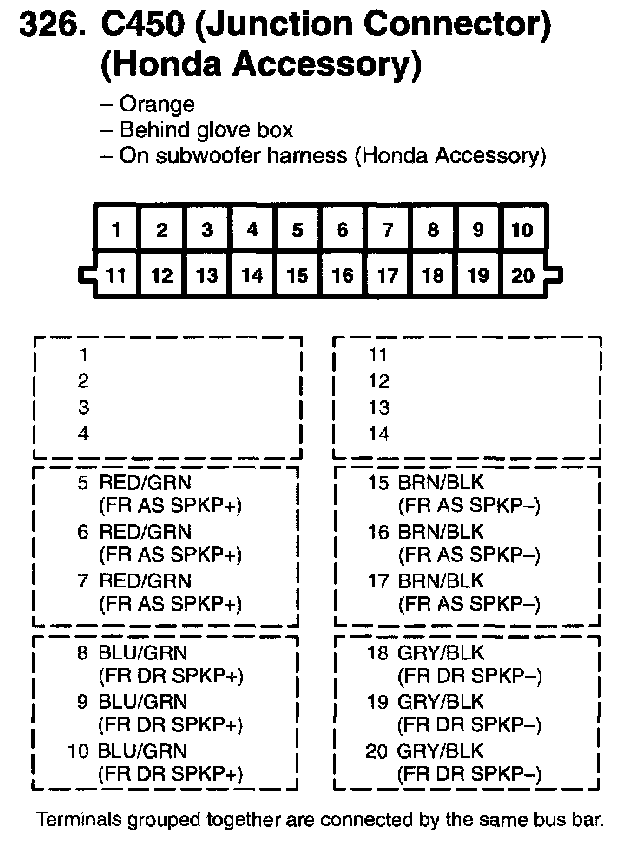

(Junction Connector) (Honda Accessory):
