Keyless Entry
>>
System Diagram
System Diagram

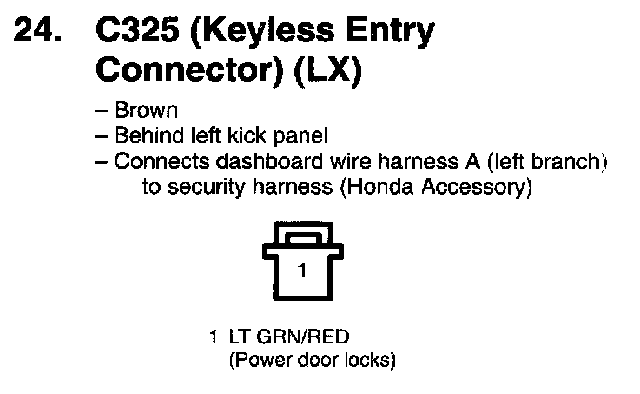

(LX):

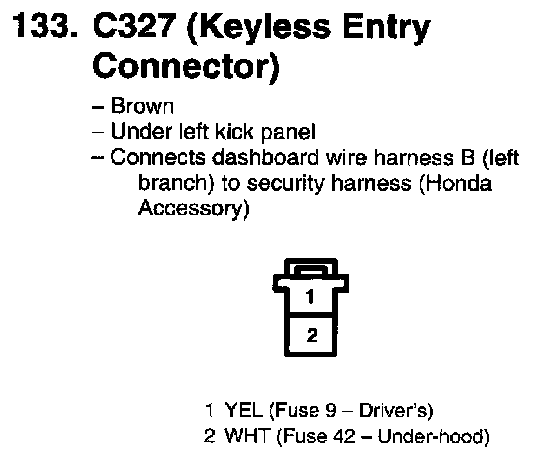

(Keyless Entry Connector):

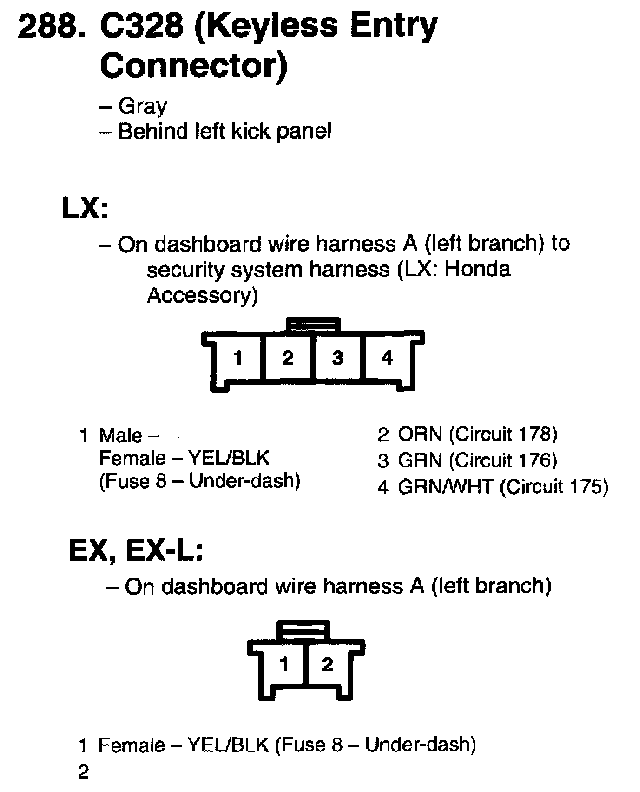

(Keyless Entry Connector):
