Electronic Brake Control Module
Electronic Brake Control Module

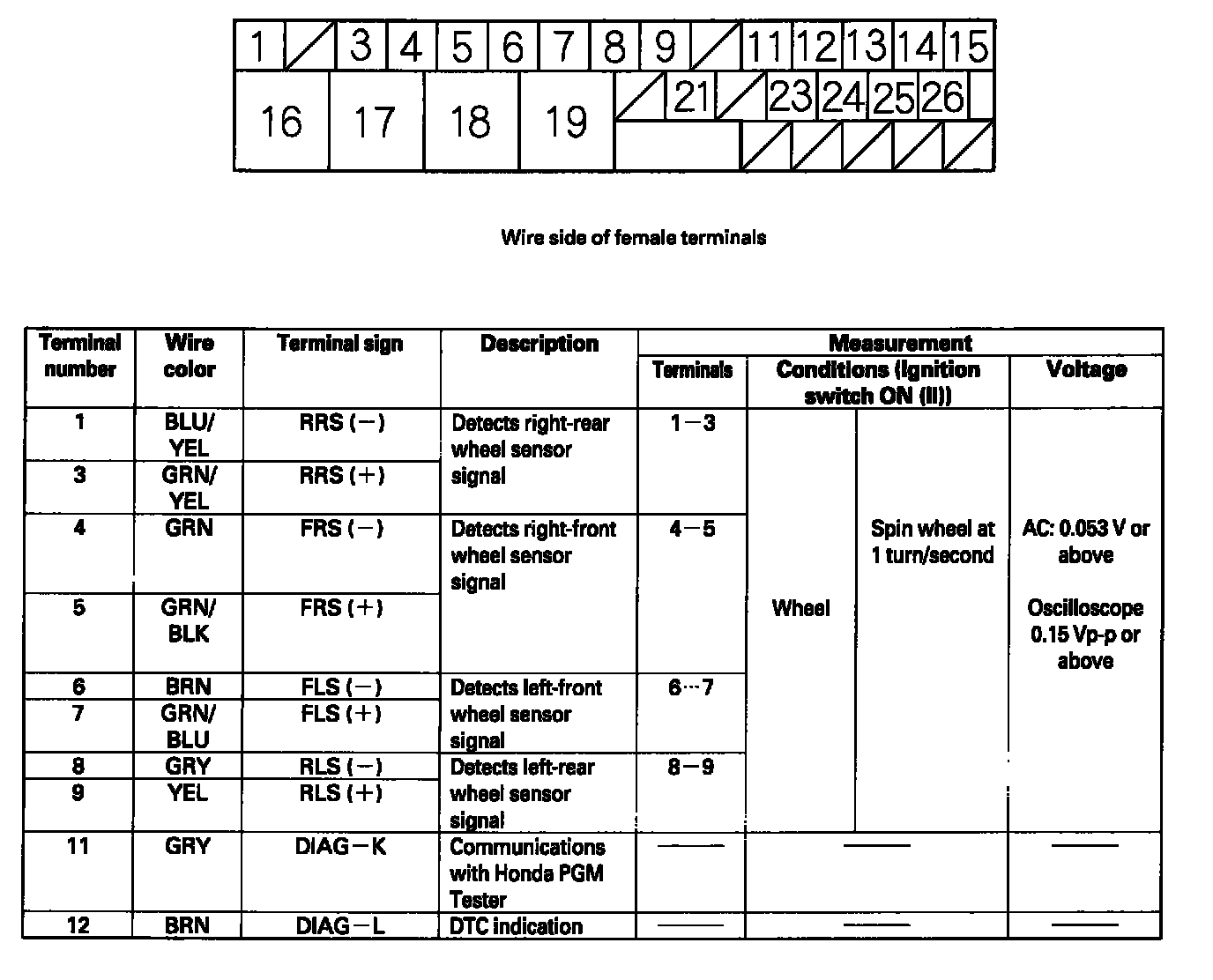

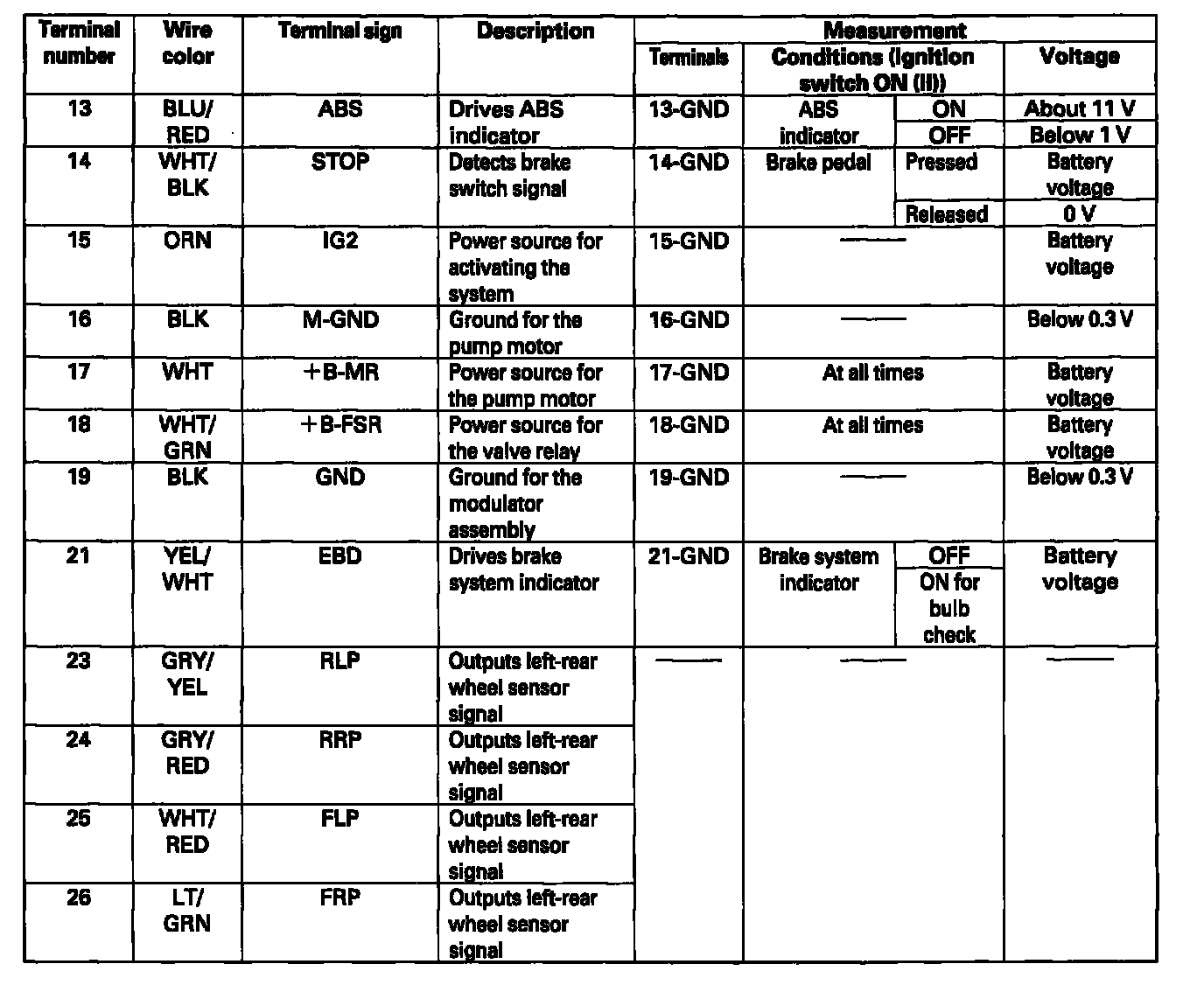

ABS Control Unit Inputs and Outputs for 31P Connector
