Home >> Honda >> 2004 >> Pilot V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC

Control Assembly, HVAC

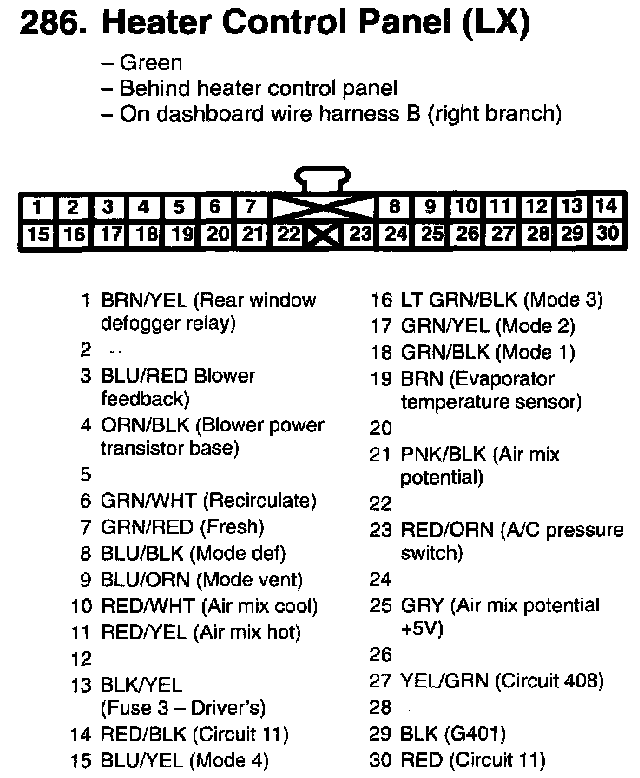

(LX):

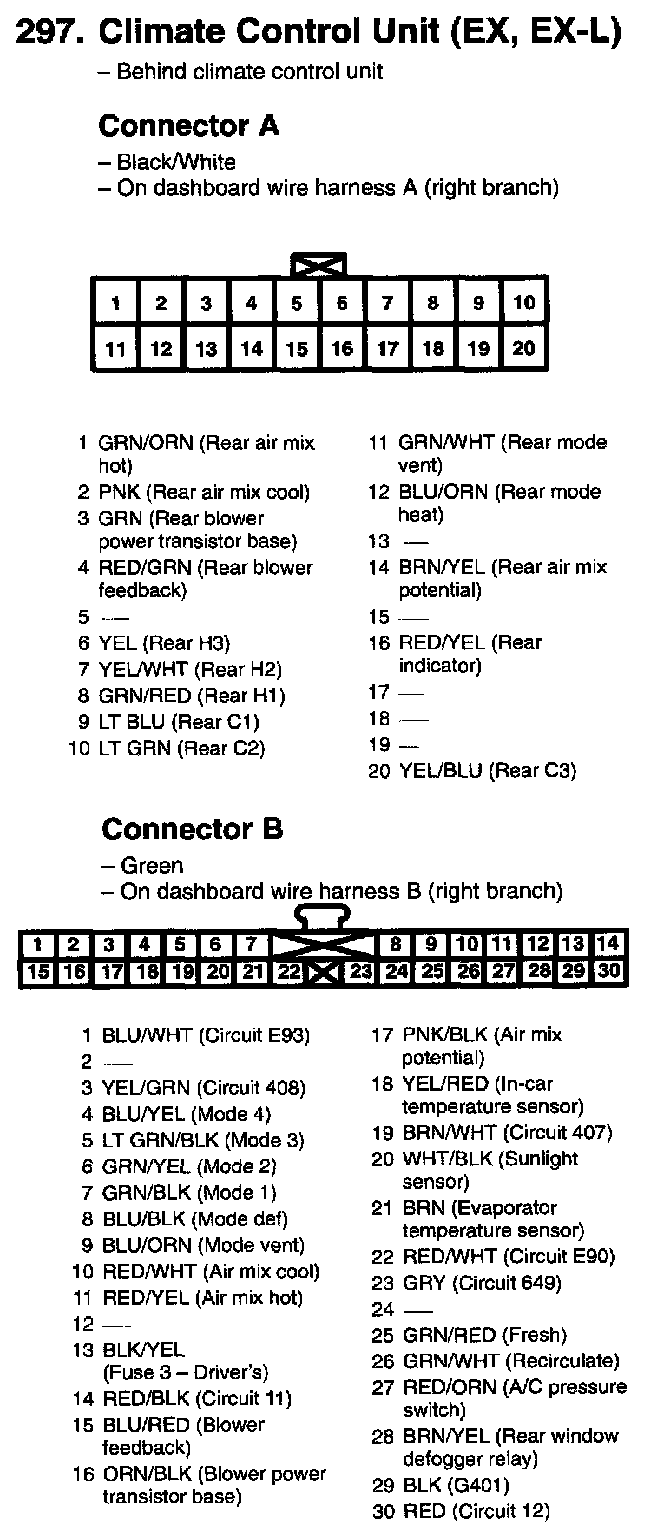

(EX, EX-L):
