Flywheel/Flexplate

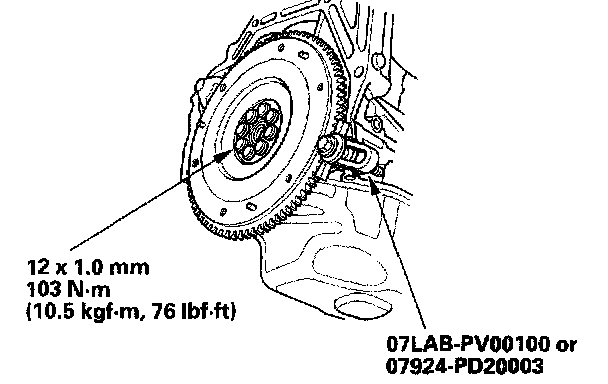

Flywheel






Torque the flywheel mounting bolts in a crisscross pattern in several steps.

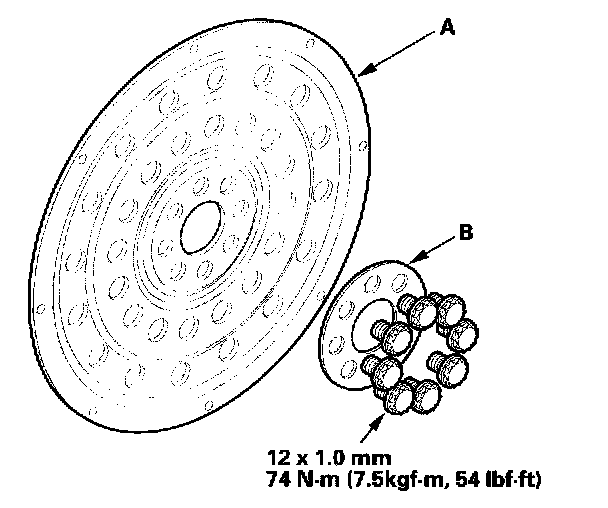

Flex Plate





Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern in two or more steps.
