Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

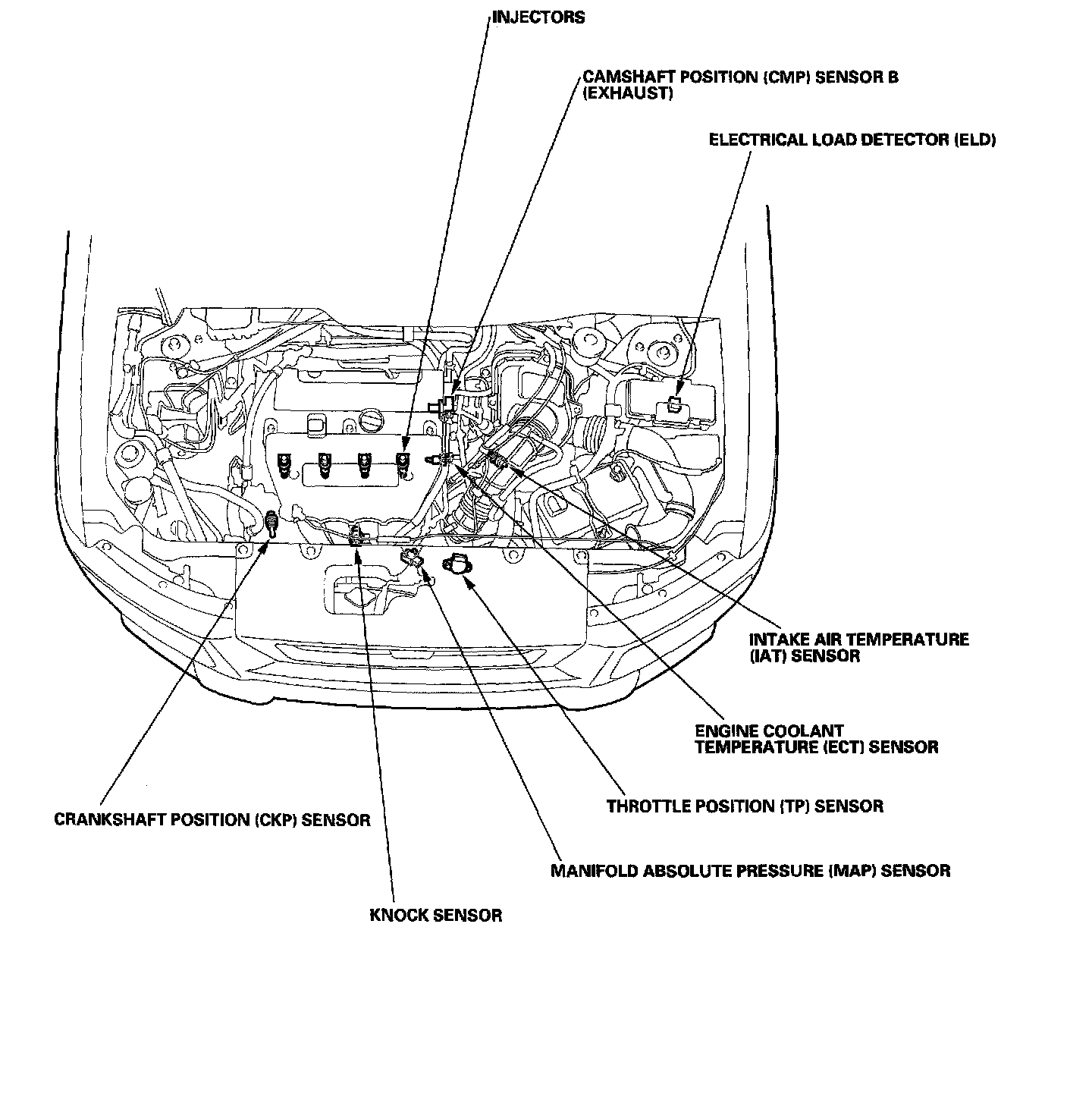

PGI-FI System - Component Location Index:



Relay And Control Unit Locations - Engine Compartment:
