Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Head Assembly

Cylinder Head Assembly

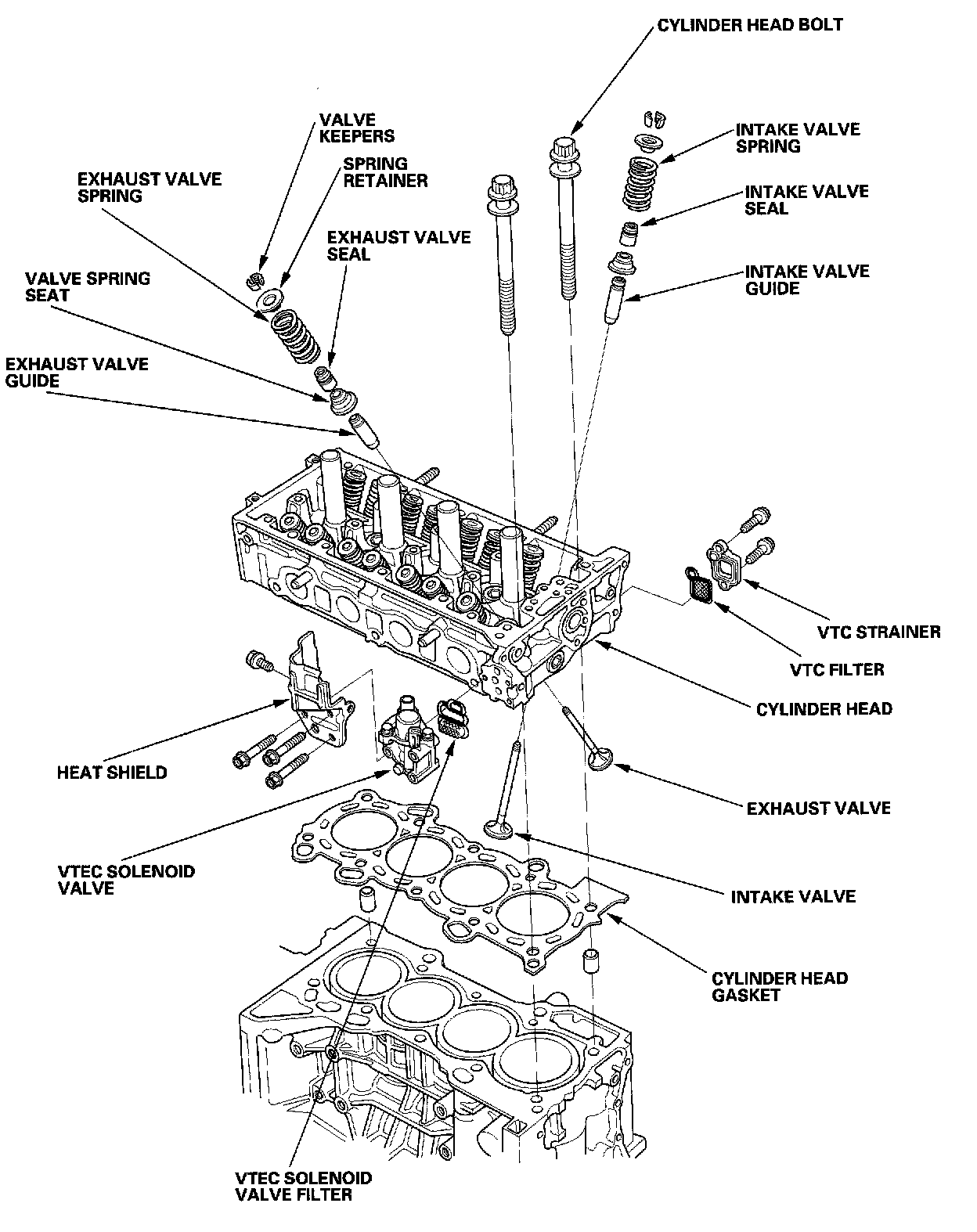

Part 1 Of 3:

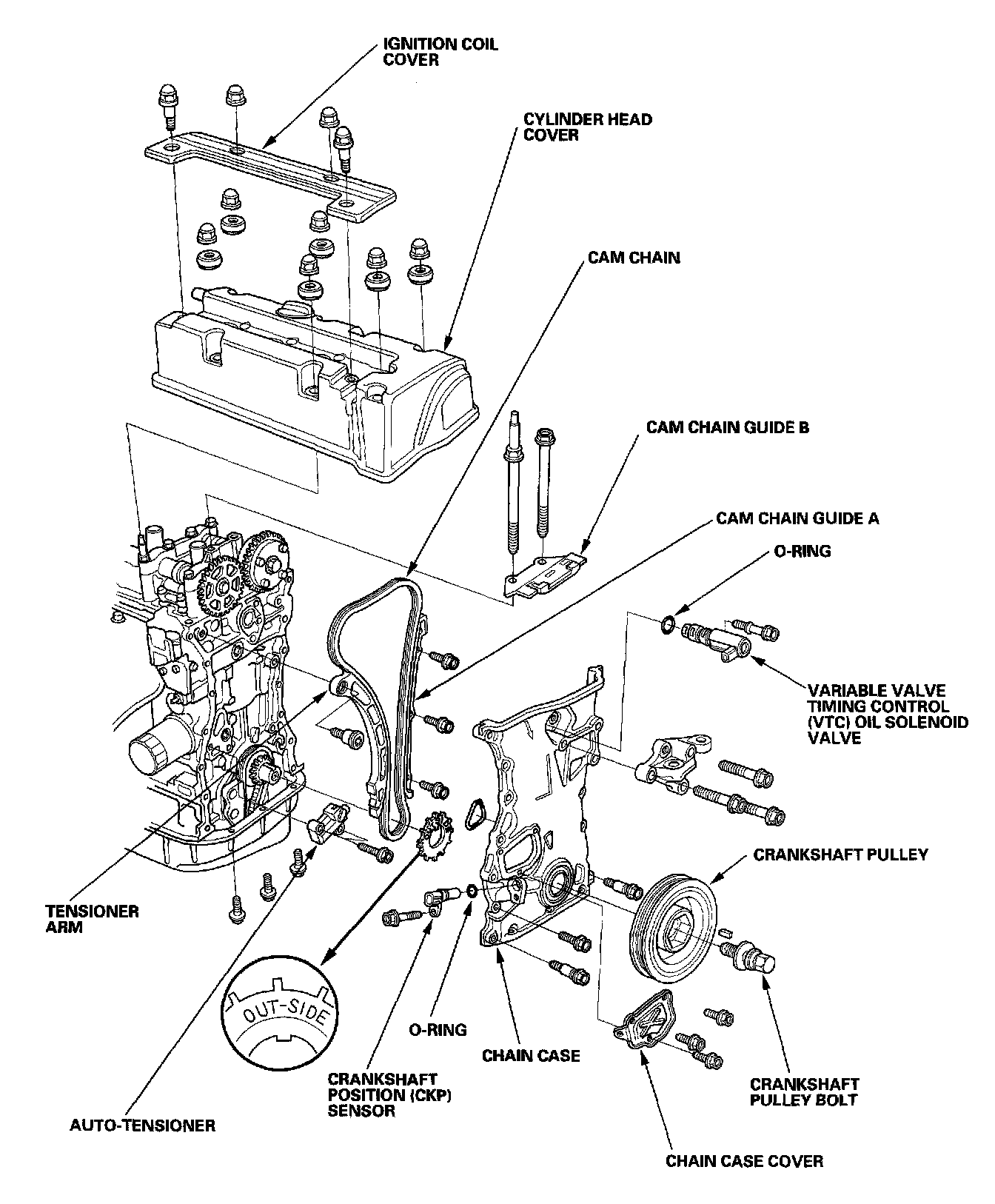

Part 2 Of 3:

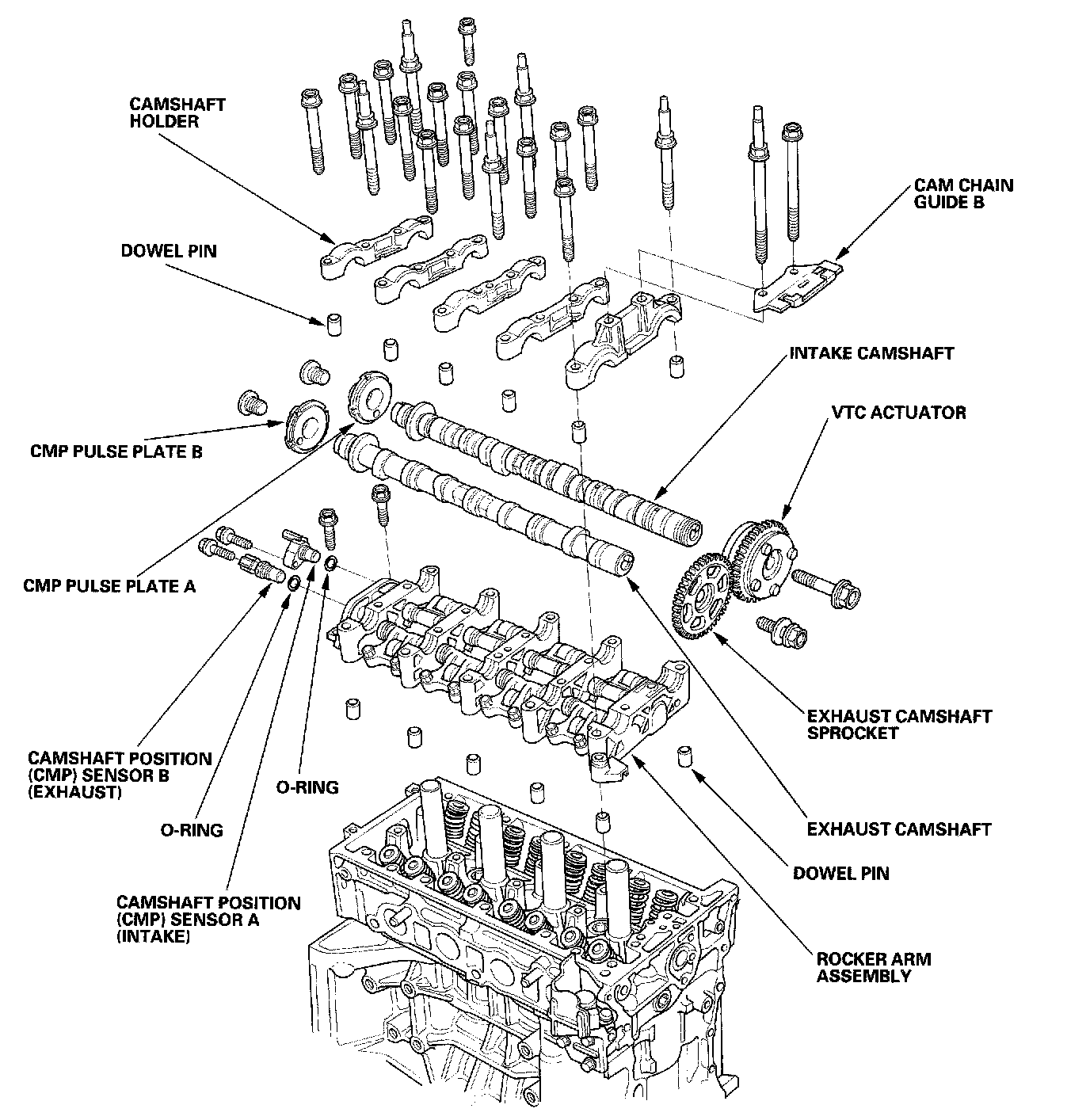

Part 3 Of 3:
