Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Valve Body

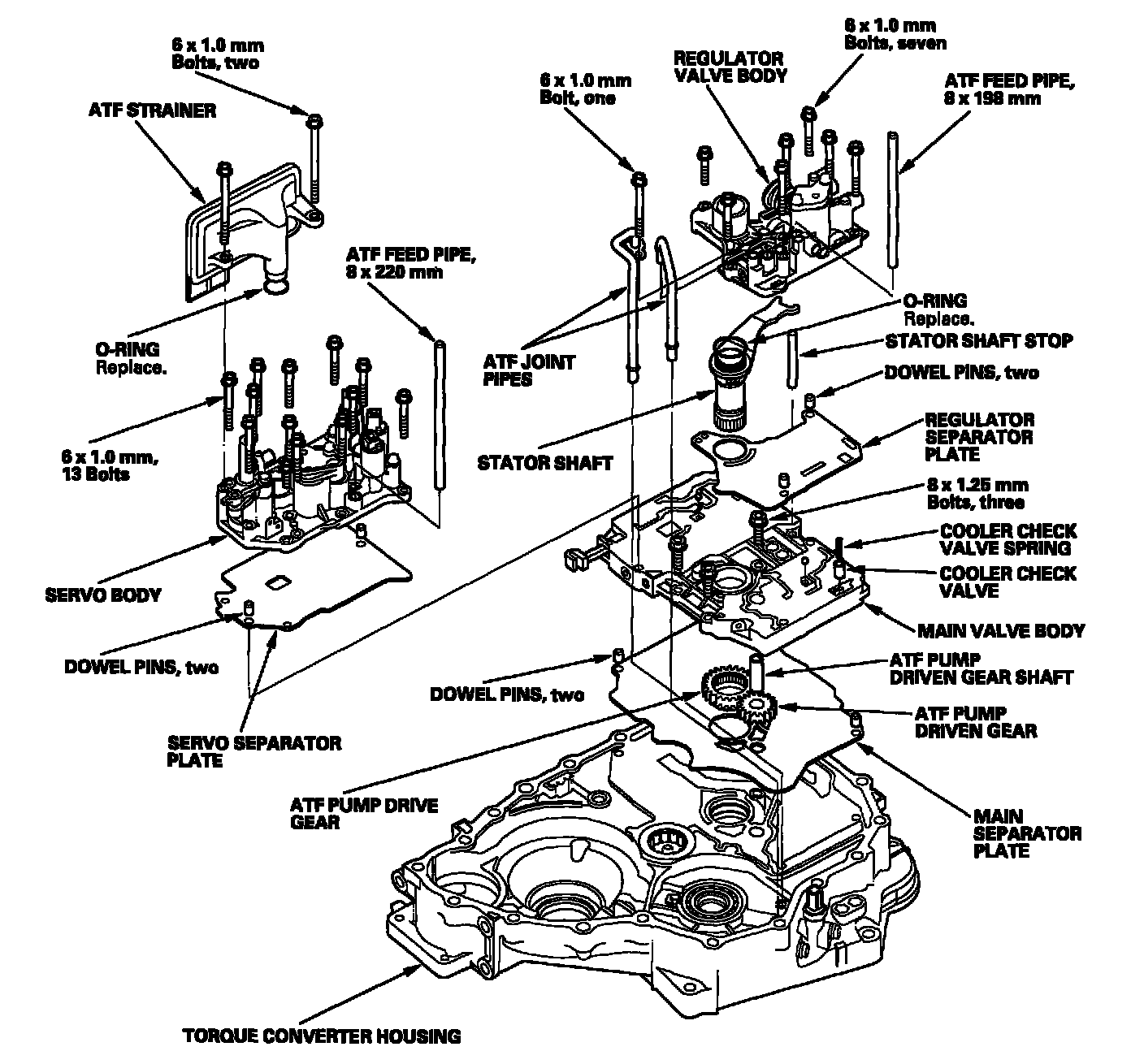

Valve Body

NOTE: The illustration shows the 4WD transmission; the 2WD is similar.
