Multiple Junction Connector
Multiple Junction Connector

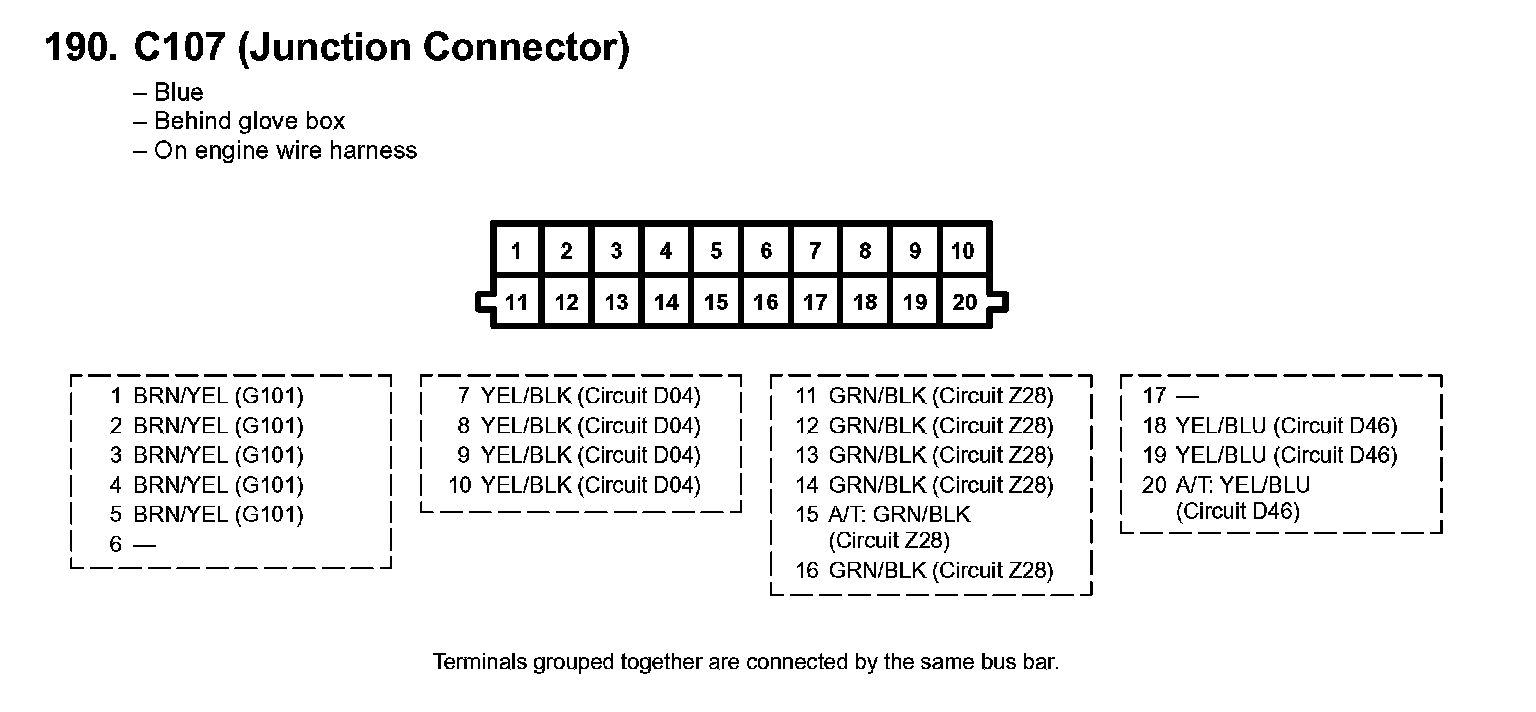

190. C107 (Junction Connector):

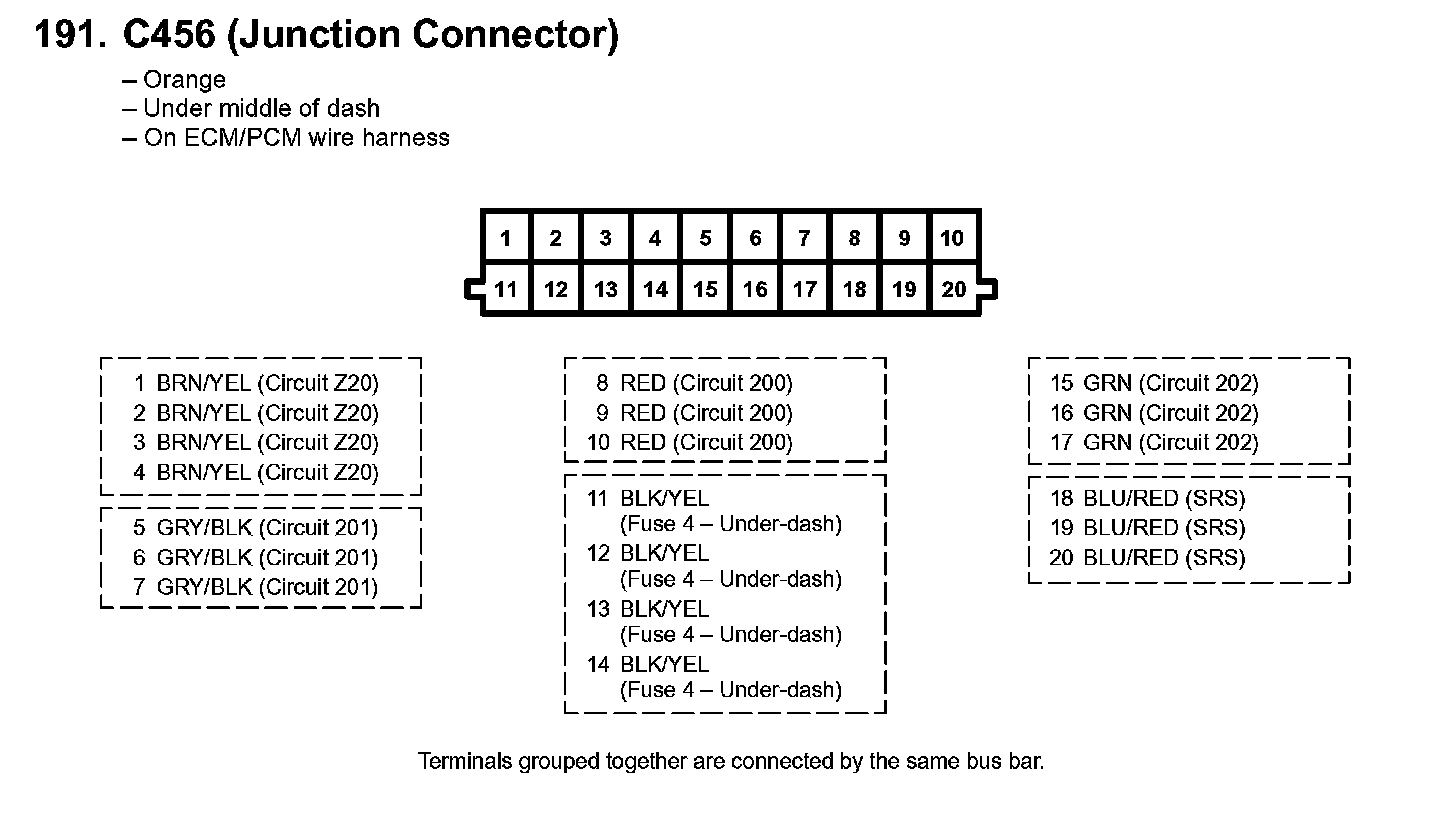

191. C456 (Junction Connector):

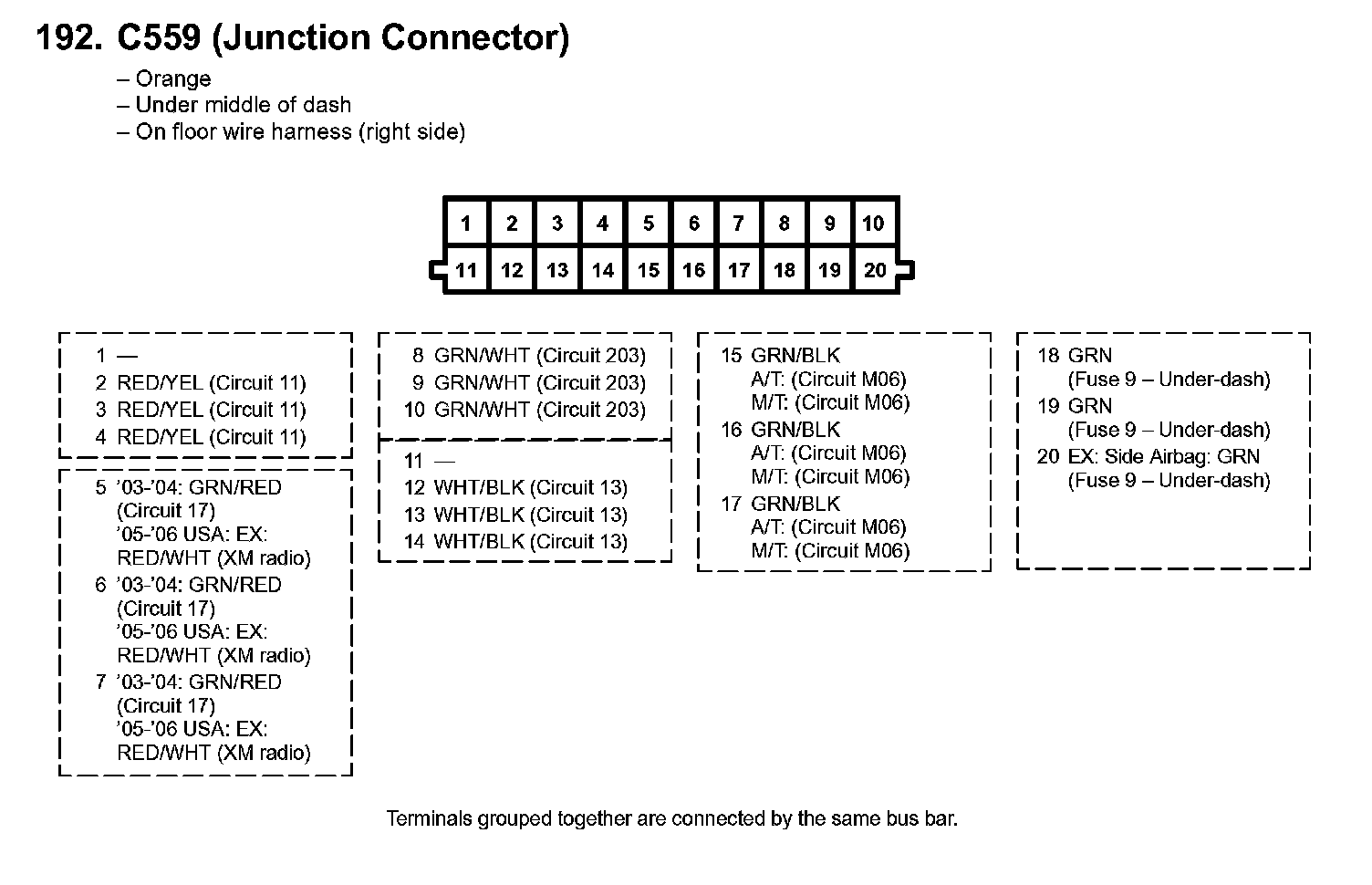

192. C559 (Junction Connector):

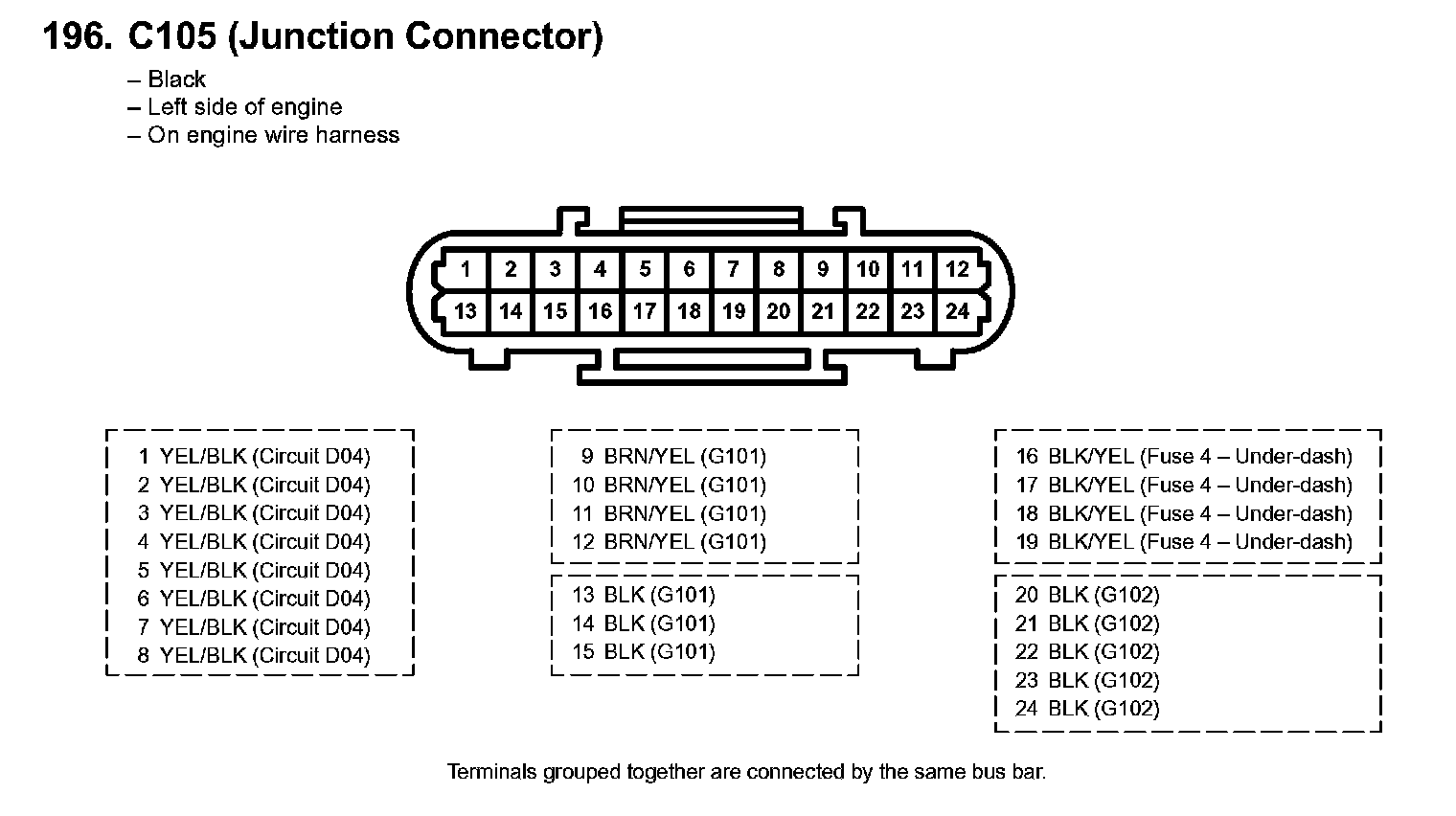

196. C105 (Junction Connector):

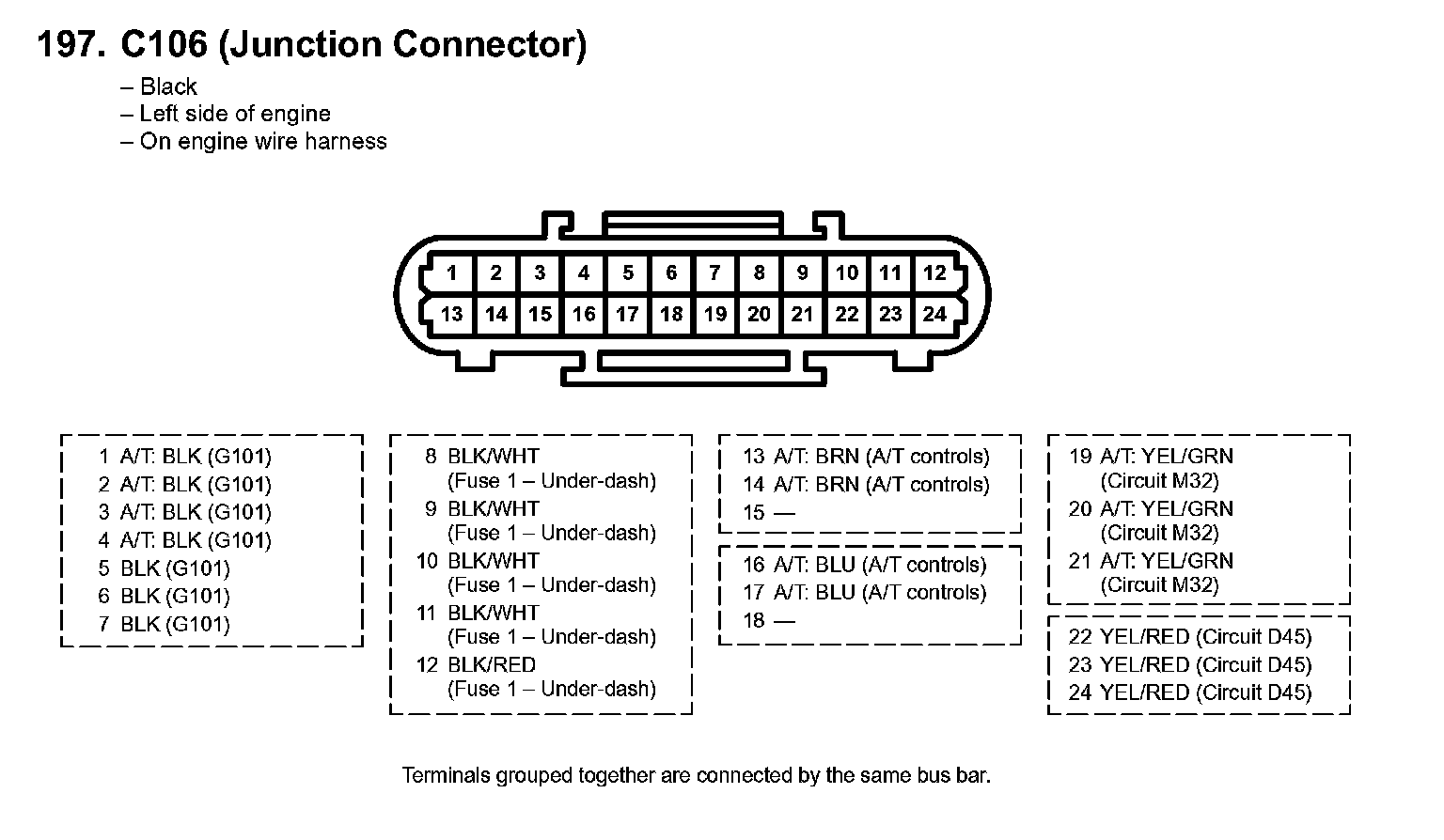

197. C106 (Junction Connector):
