Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

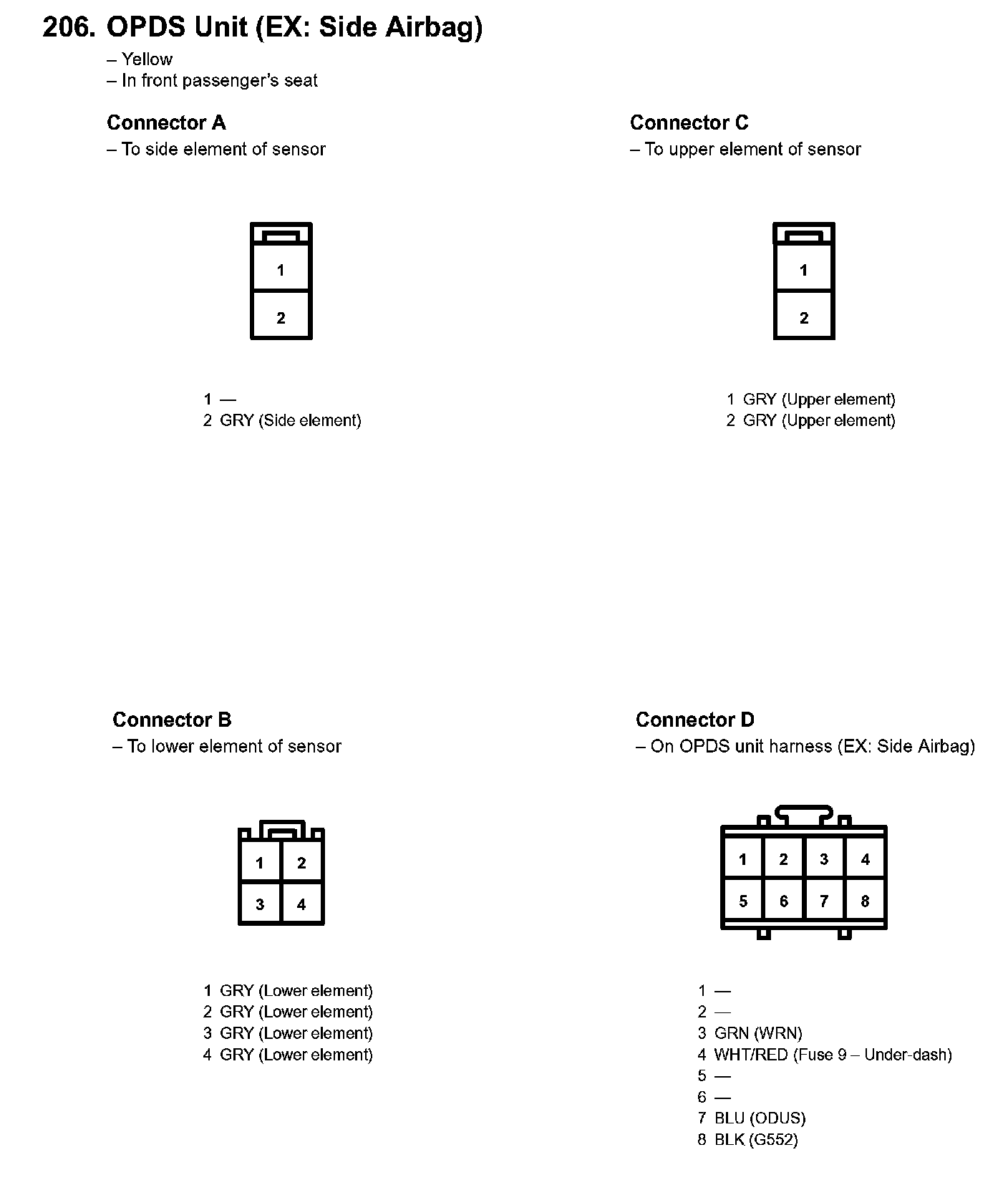

206. OPDS Unit (EX: Side Airbag):

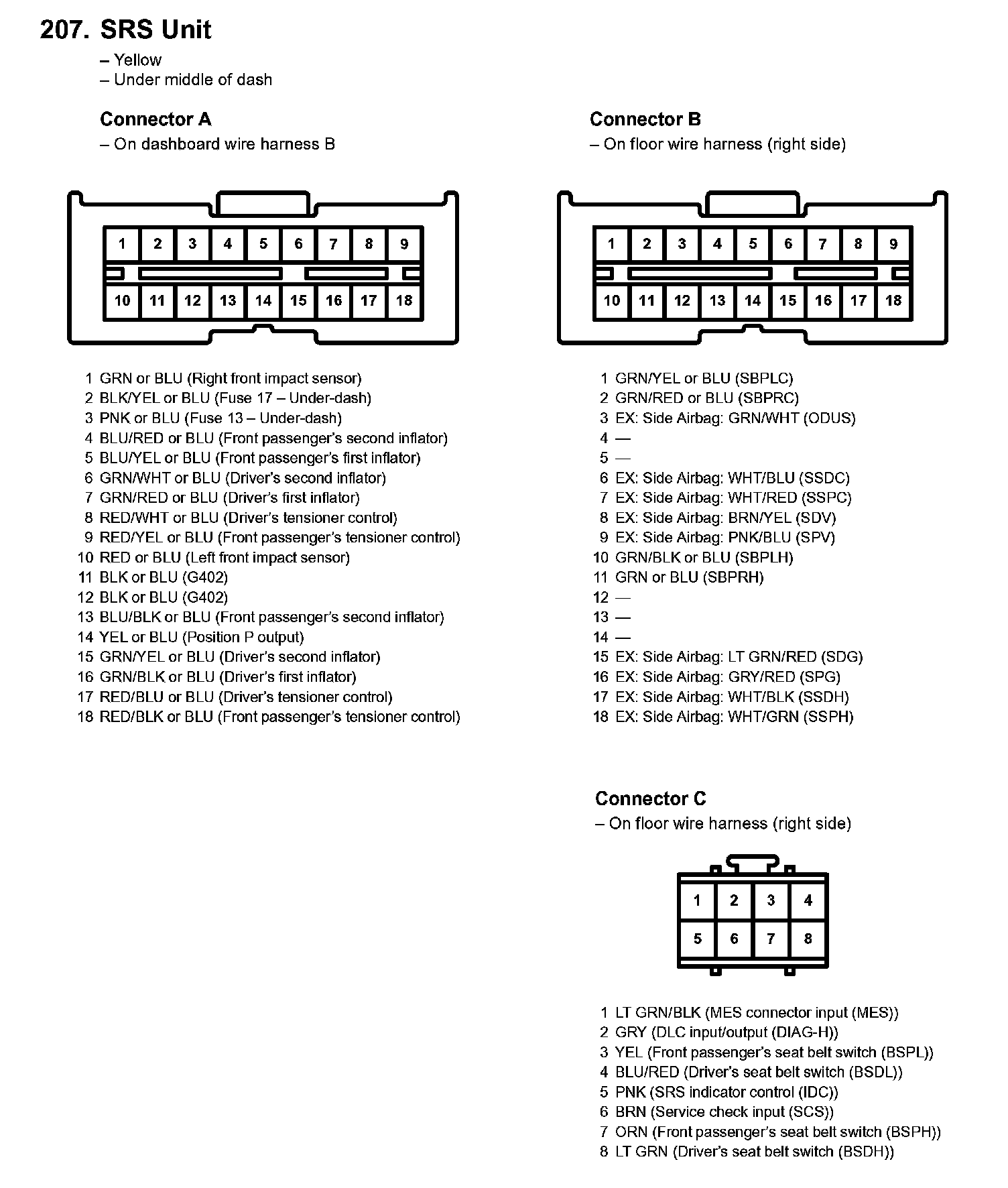

207. SRS Unit:
