Coolant Temperature Sensor/Switch (For Computer)

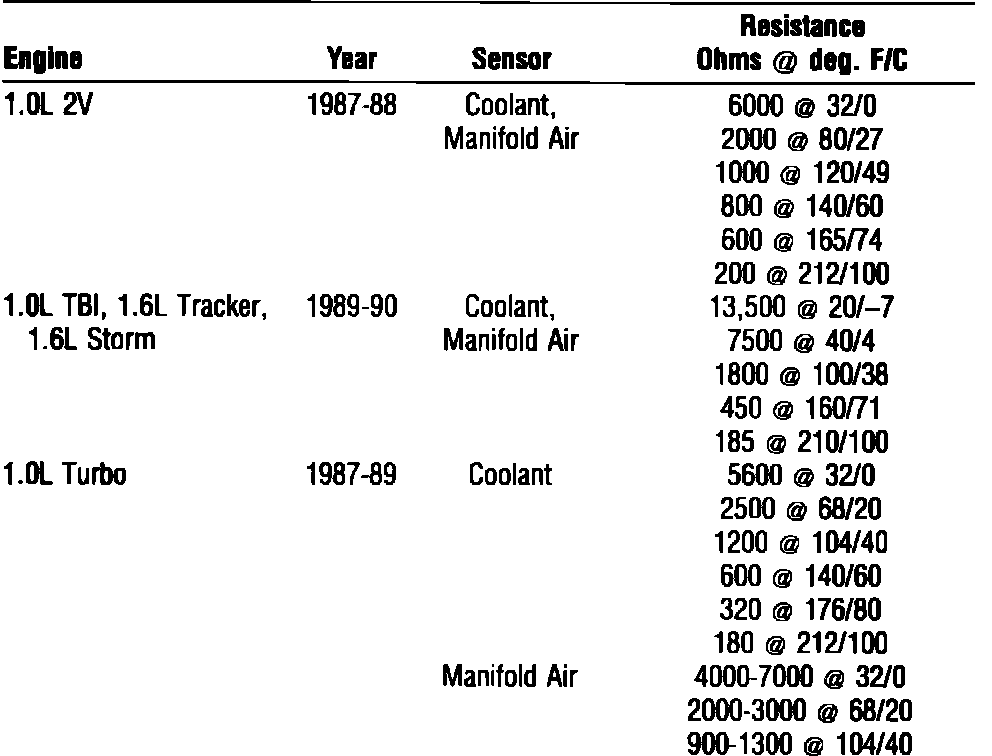

TEMPERATURE SENSORS:

1.0L Turbo:Manifold air temperature sensor measured between terminals 1 & 5 (first and last) of airflow meter.
1.6L Prizm DOHC:Manifold air temperature sensor measured between terminals E2 & THA (first and last) of airflow meter.
