Tracker L4-1590cc 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Pinout Description
Pinout Description

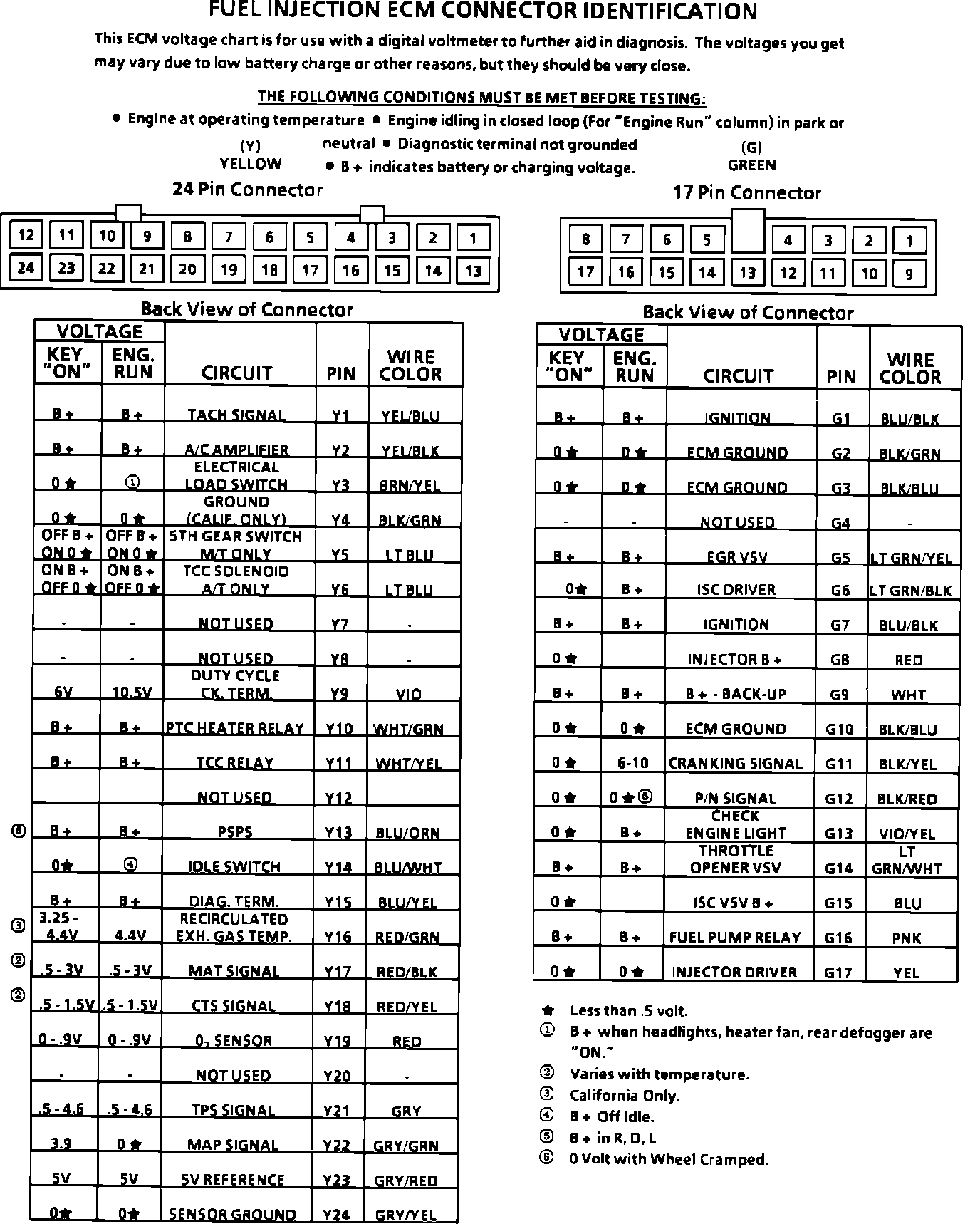

ECM Connector Pin Out:
