Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

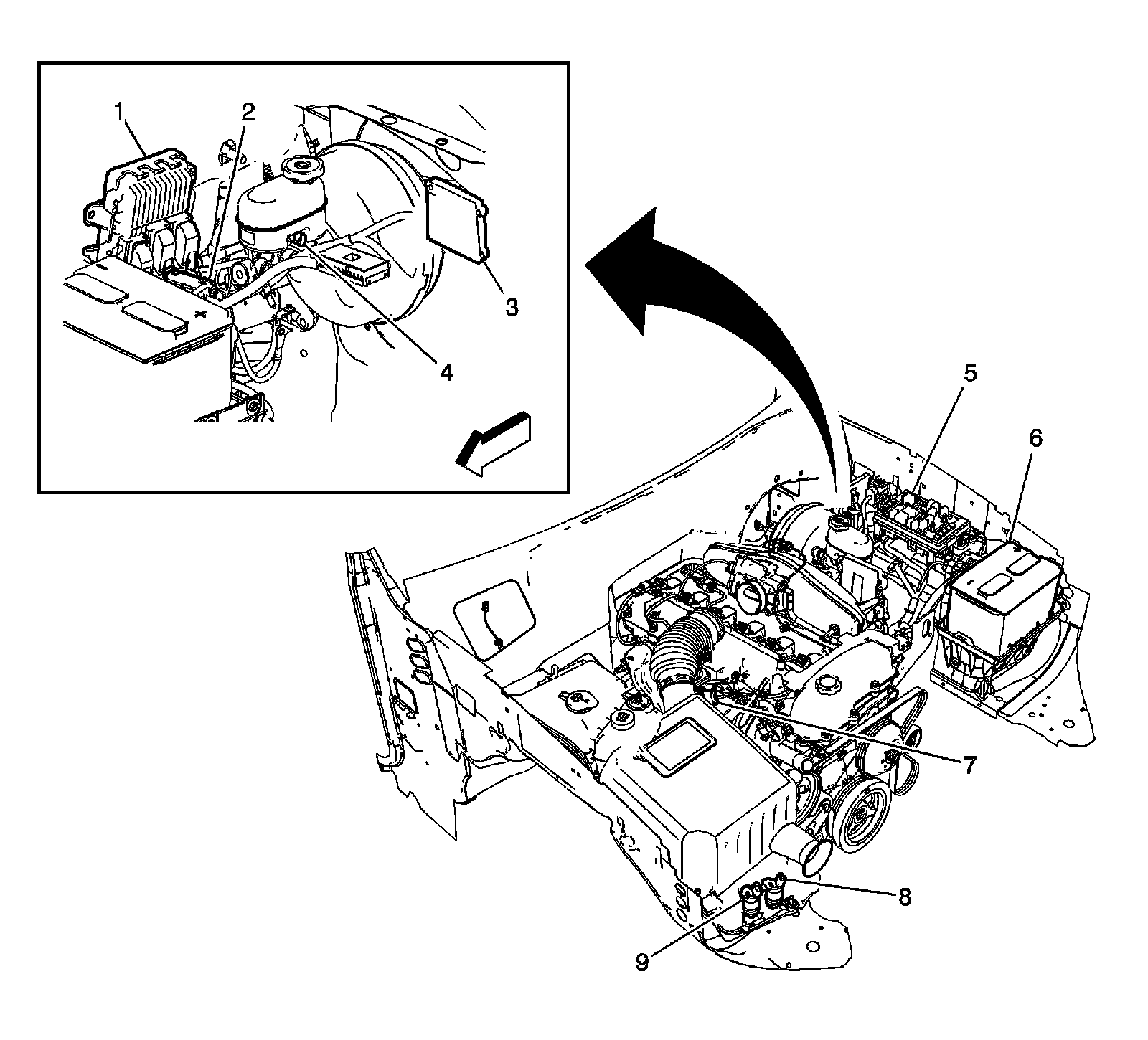

Front of Vehicle (Z88/Z89)

Front Engine Compartment (LL8)




1 - Engine Control Module (ECM)
2 - Regulated Voltage Control Module
3 - Transmission Control Module (TCM)
4 - Brake Fluid Level Switch
5 - Fuse Block - Underhood
6 - Battery
7 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
8 - Windshield Washer Fluid Pump
9 - Rear Window Washer Fluid Pump
