Impact Sensor
Impact Sensor
Component Connector End Views

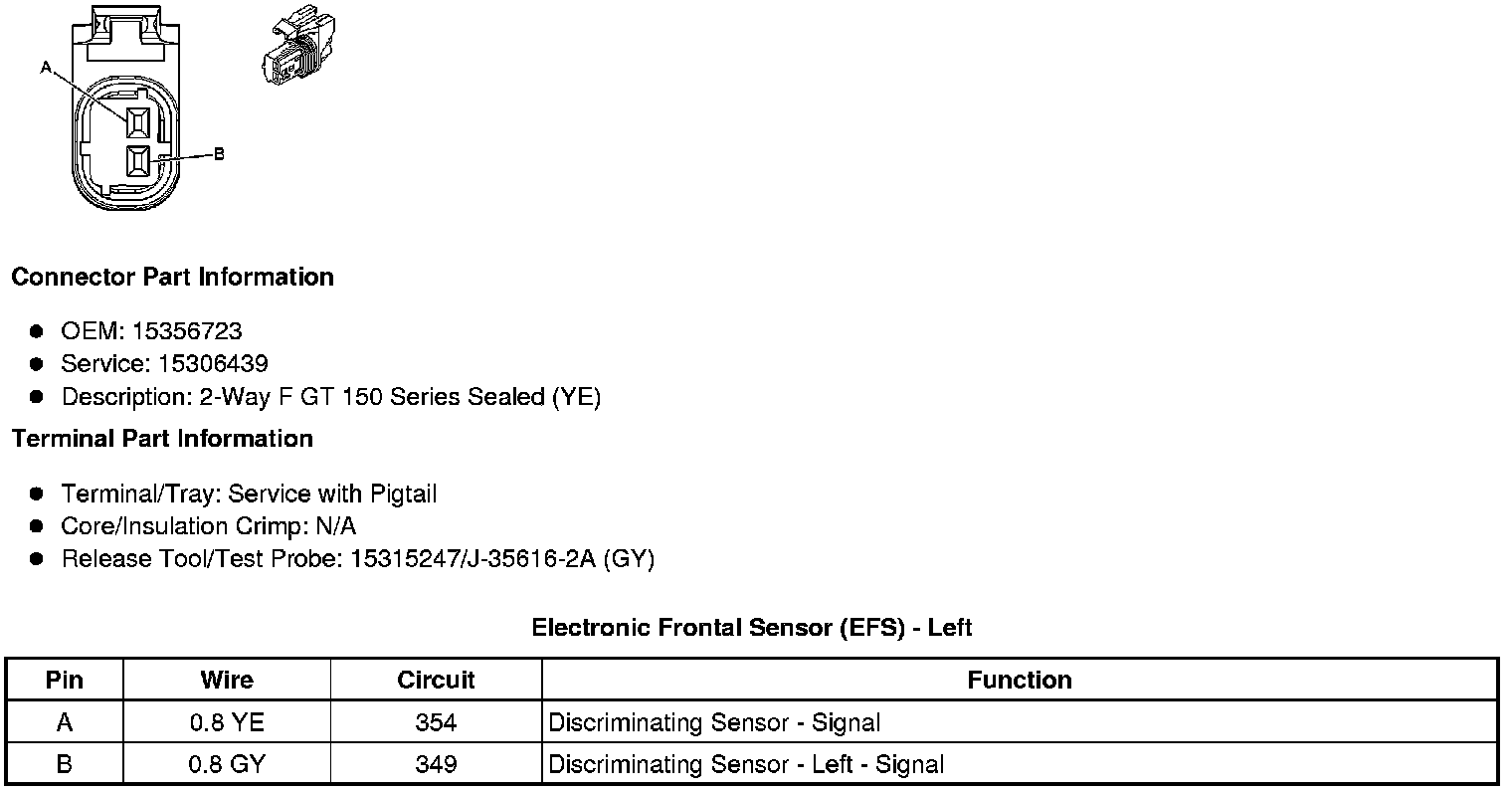

Electronic Frontal Sensor (EFS) - Left

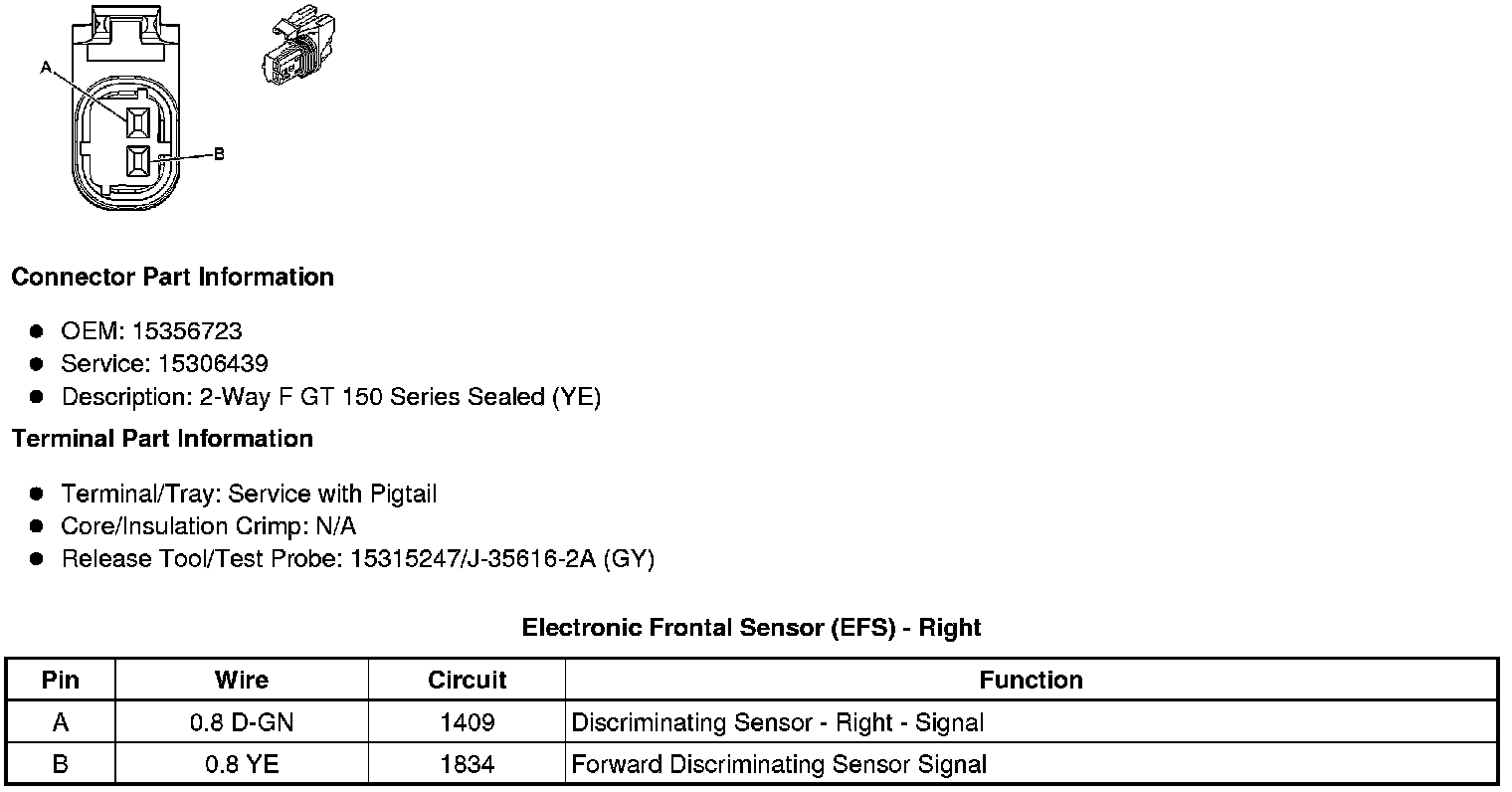

Electronic Frontal Sensor (EFS) - Right
