Map Light
Map Light
Component Connector End Views

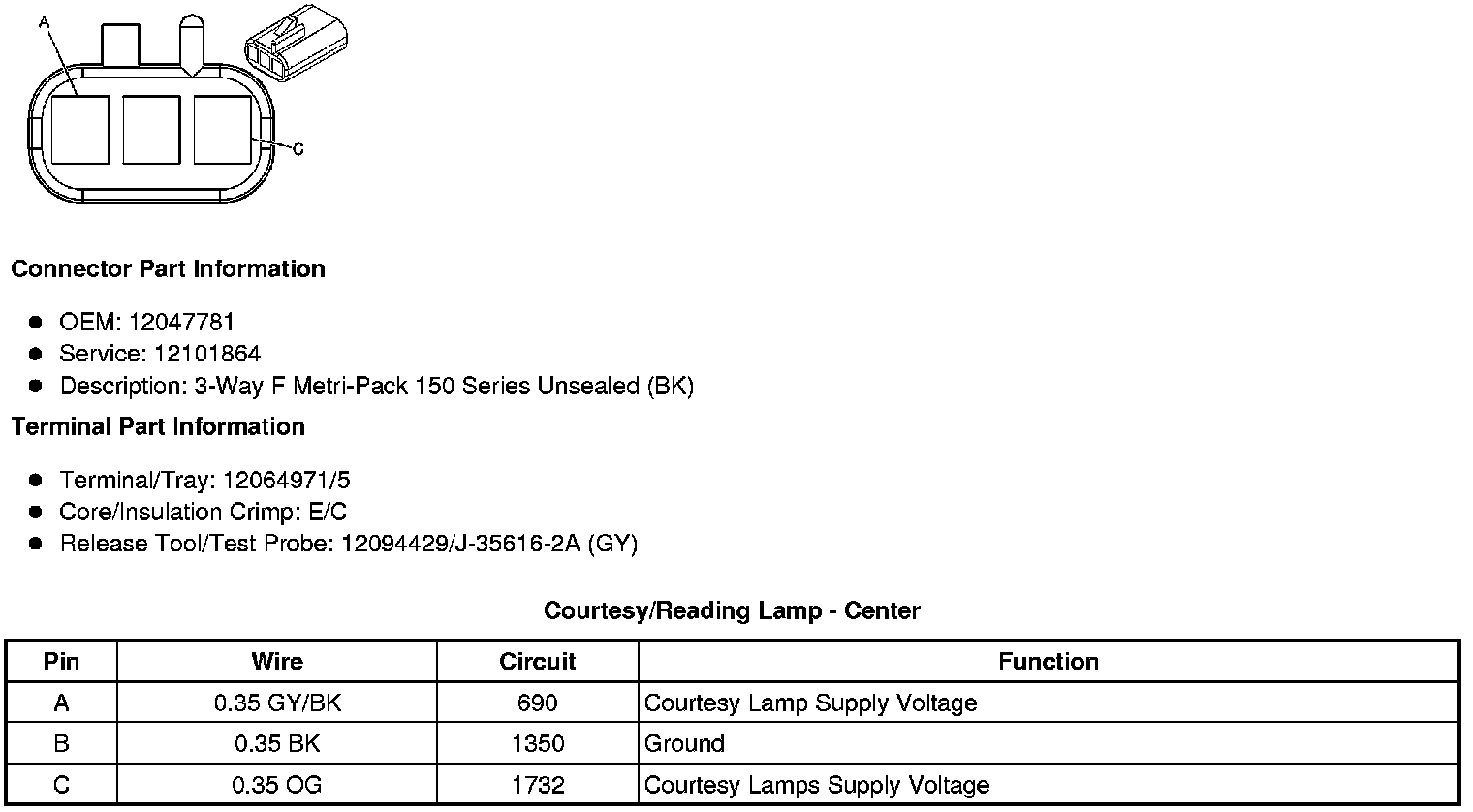

Courtesy/Reading Lamp - Center
Courtesy/Reading Lamp - Front
