Door Module

Component Connector End Views

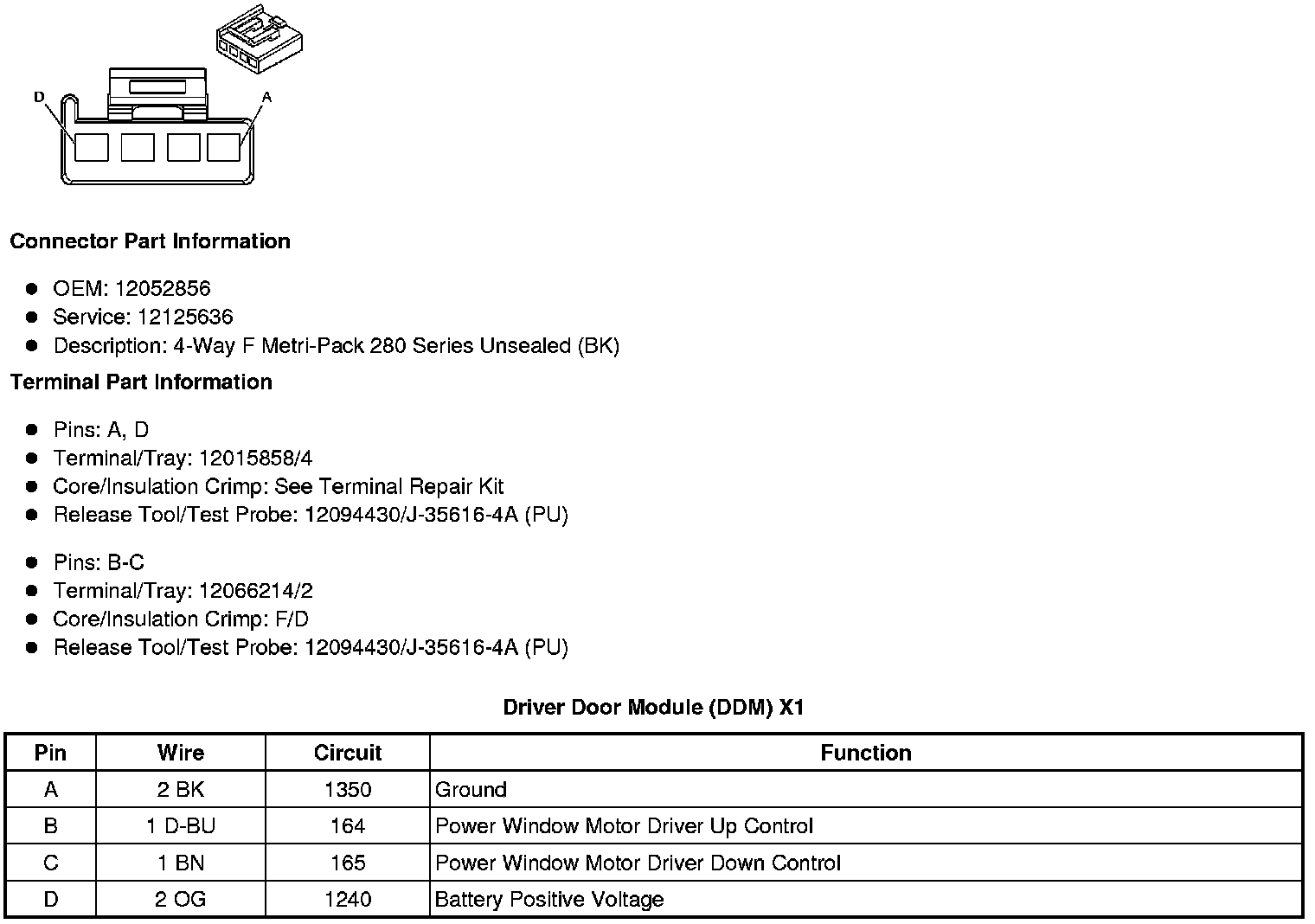

Driver Door Module (DDM) X1

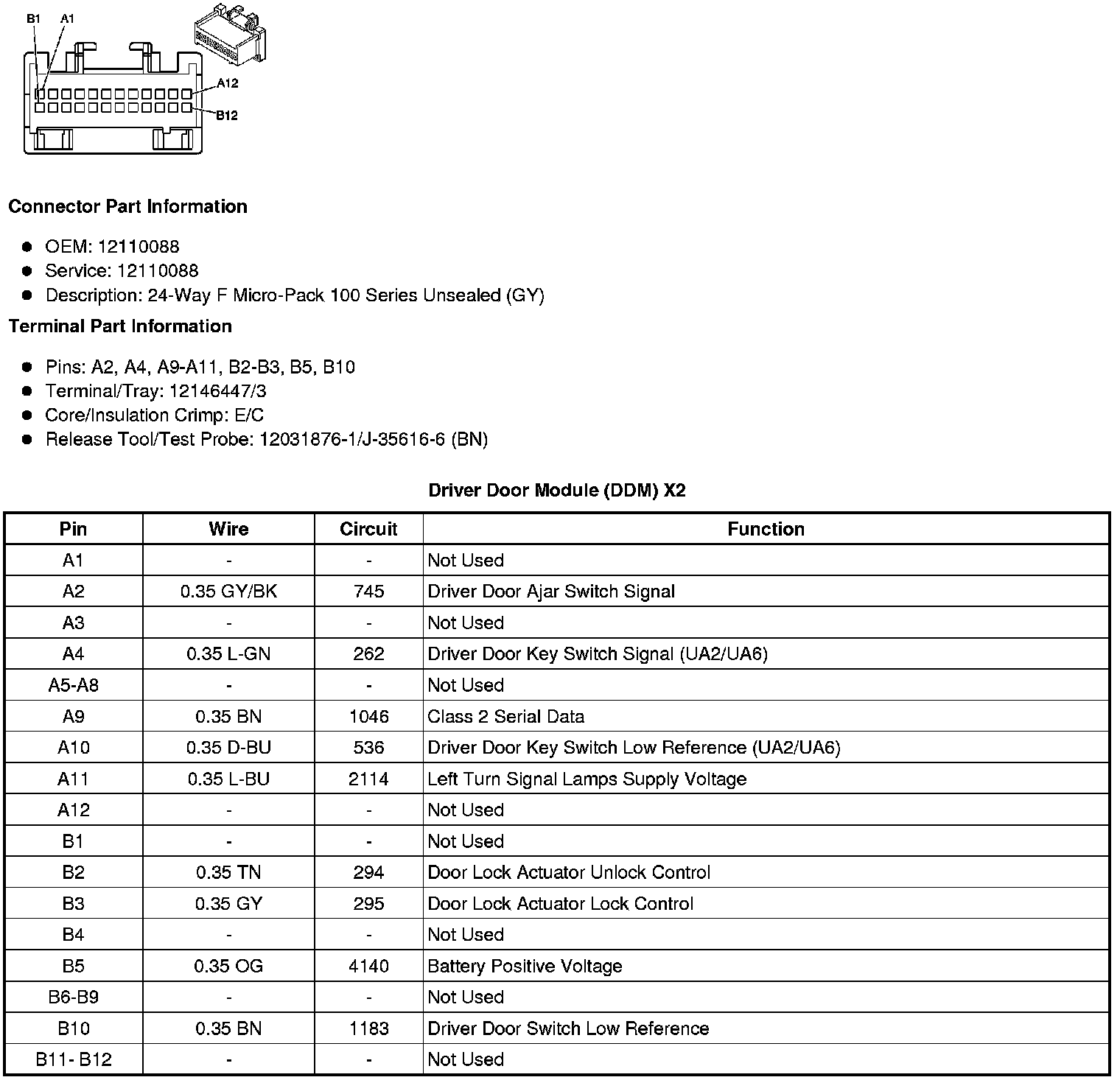

Driver Door Module (DDM) X2

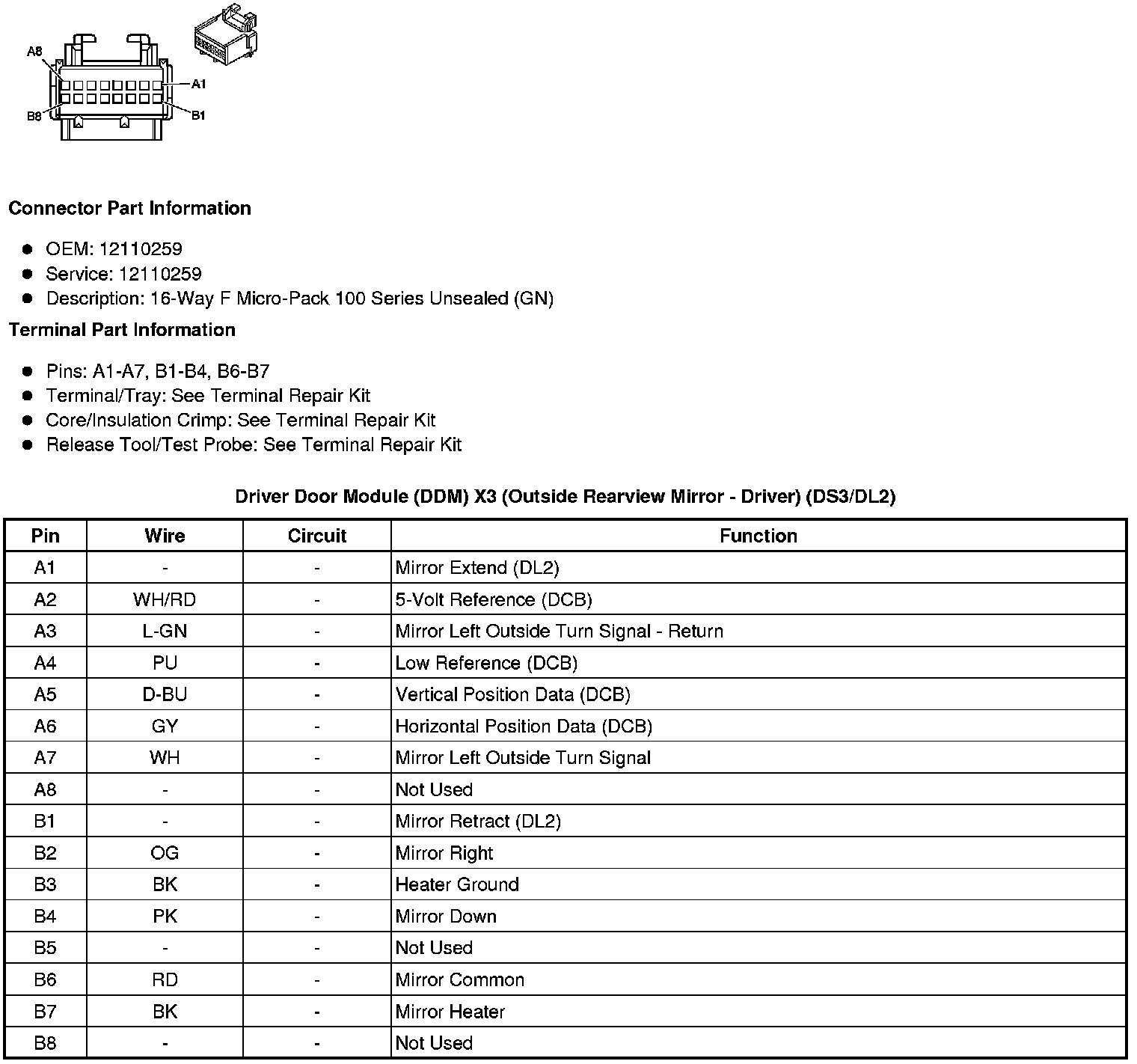

Driver Door Module (DDM) X3 (Outside Rearview Mirror - Driver) (DS3/DL2)

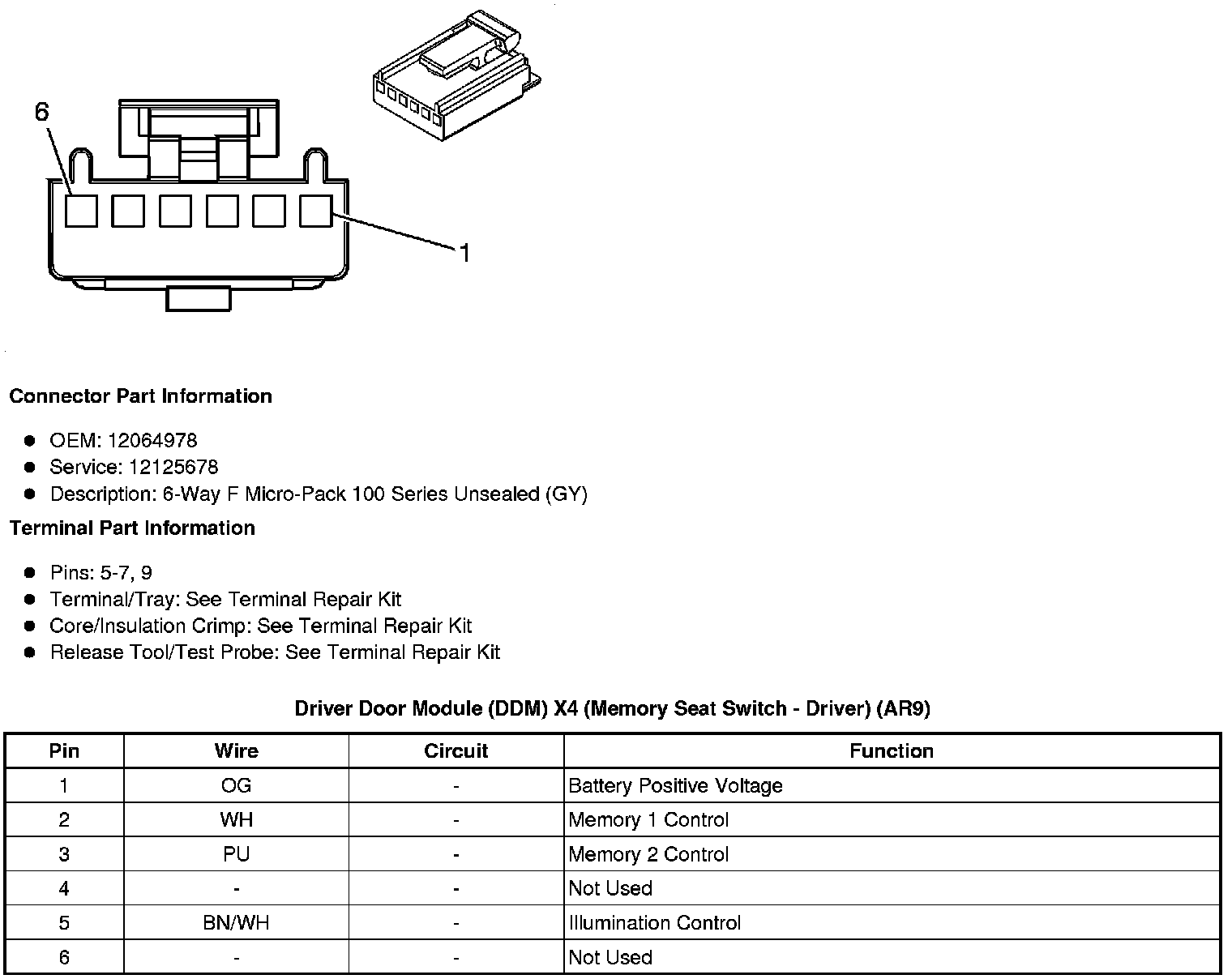

Driver Door Module (DDM) X4 (Memory Seat Switch - Driver) (AR9)

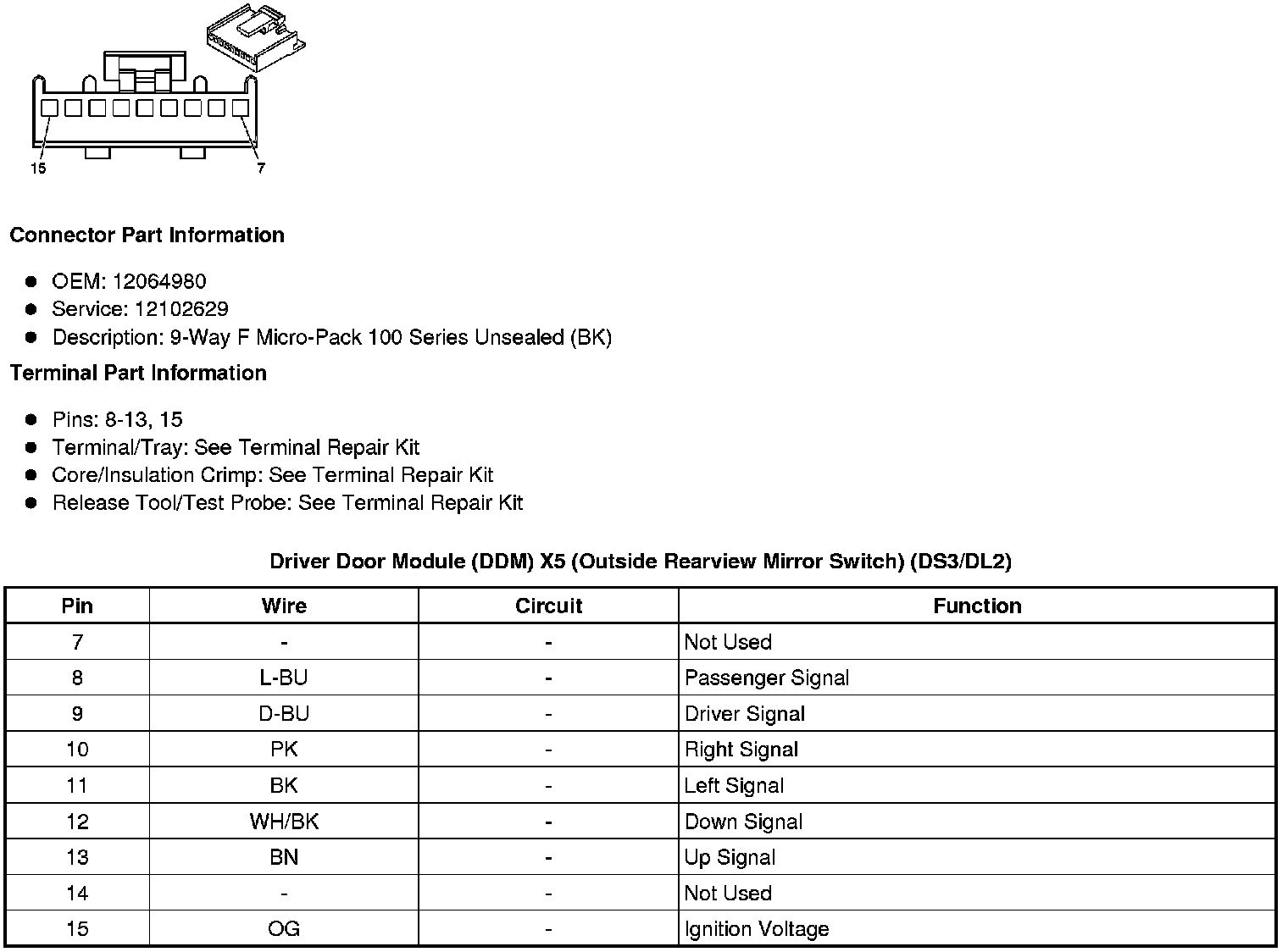

Driver Door Module (DDM) X5 (Outside Rearview Mirror Switch) (DS3/DL2)

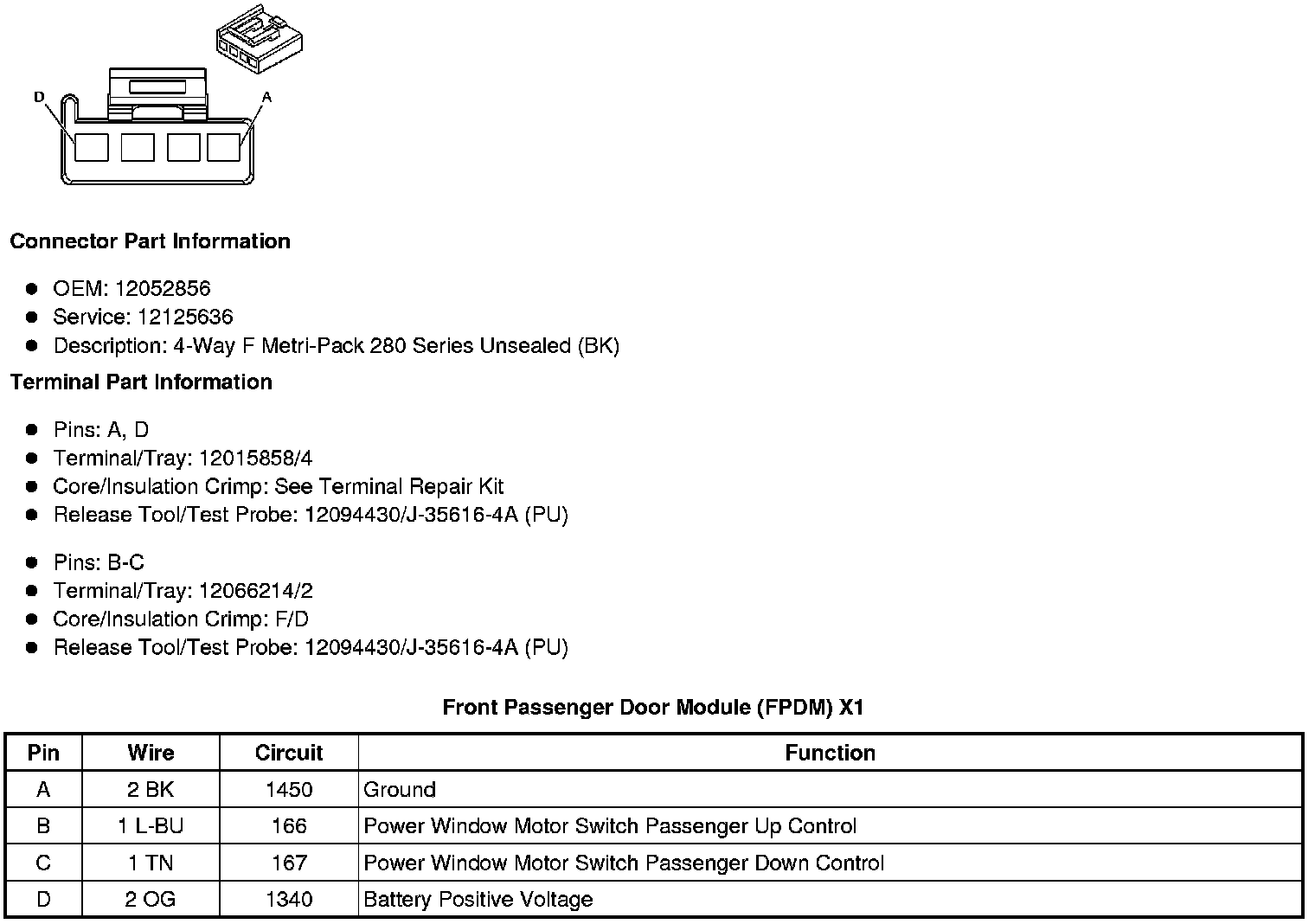

Front Passenger Door Module (FPDM) X1

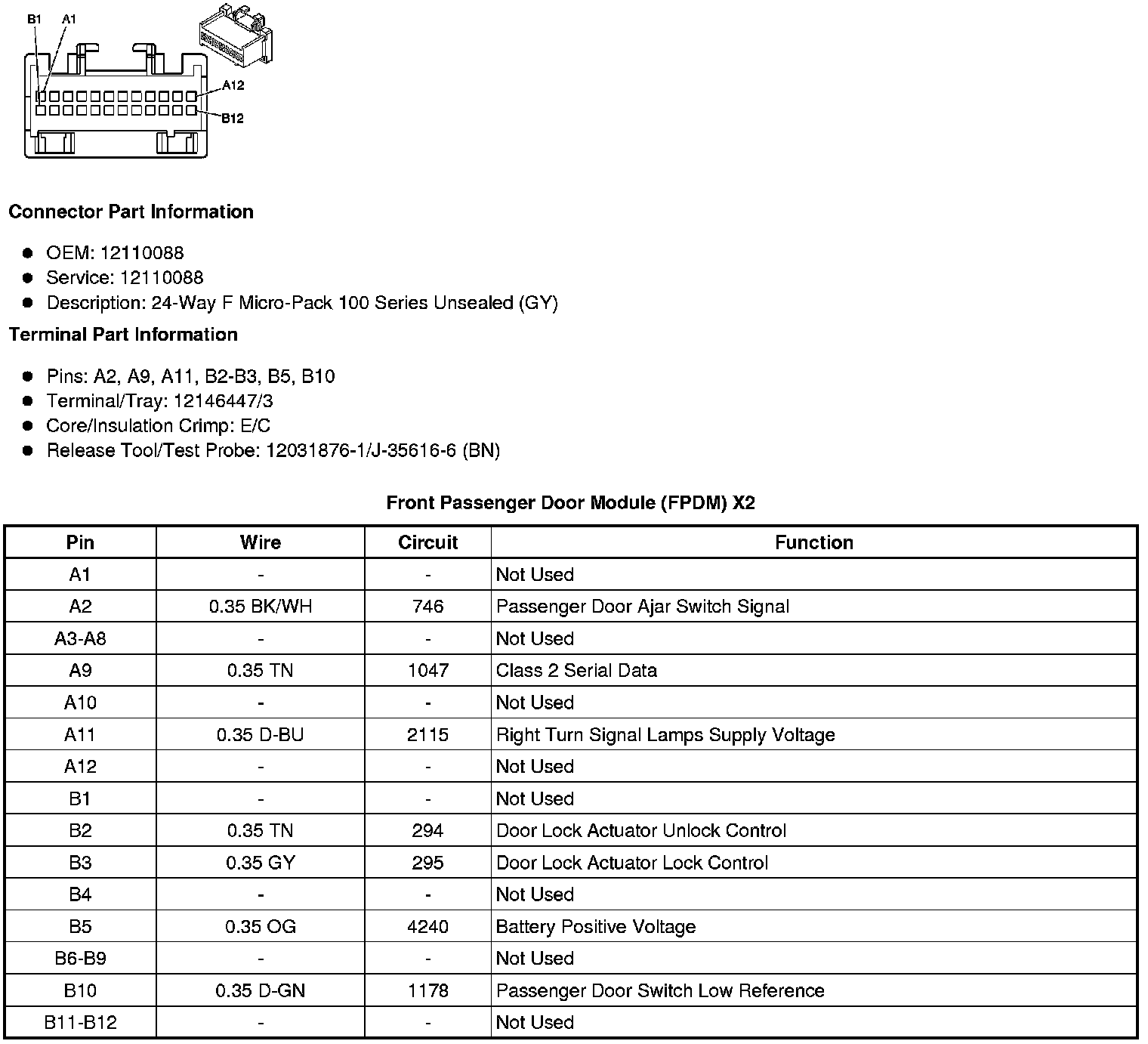

Front Passenger Door Module (FPDM) X2

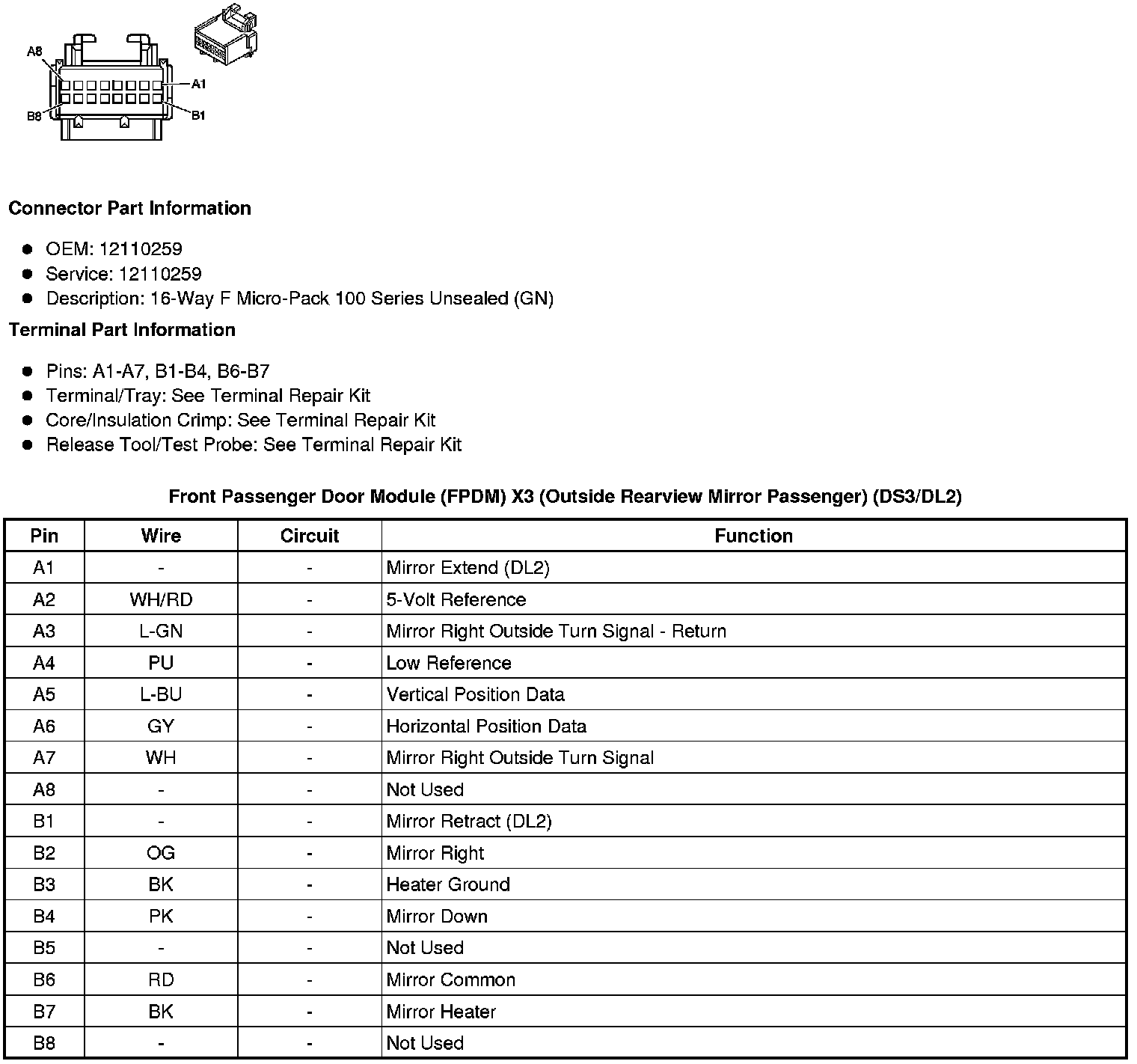

Front Passenger Door Module (FPDM) X3 (Outside Rearview Mirror Passenger) (DS3/DL2)
