Control Assembly, HVAC




Component Connector End Views

HVAC Control Module - Auxiliary (CJ2)

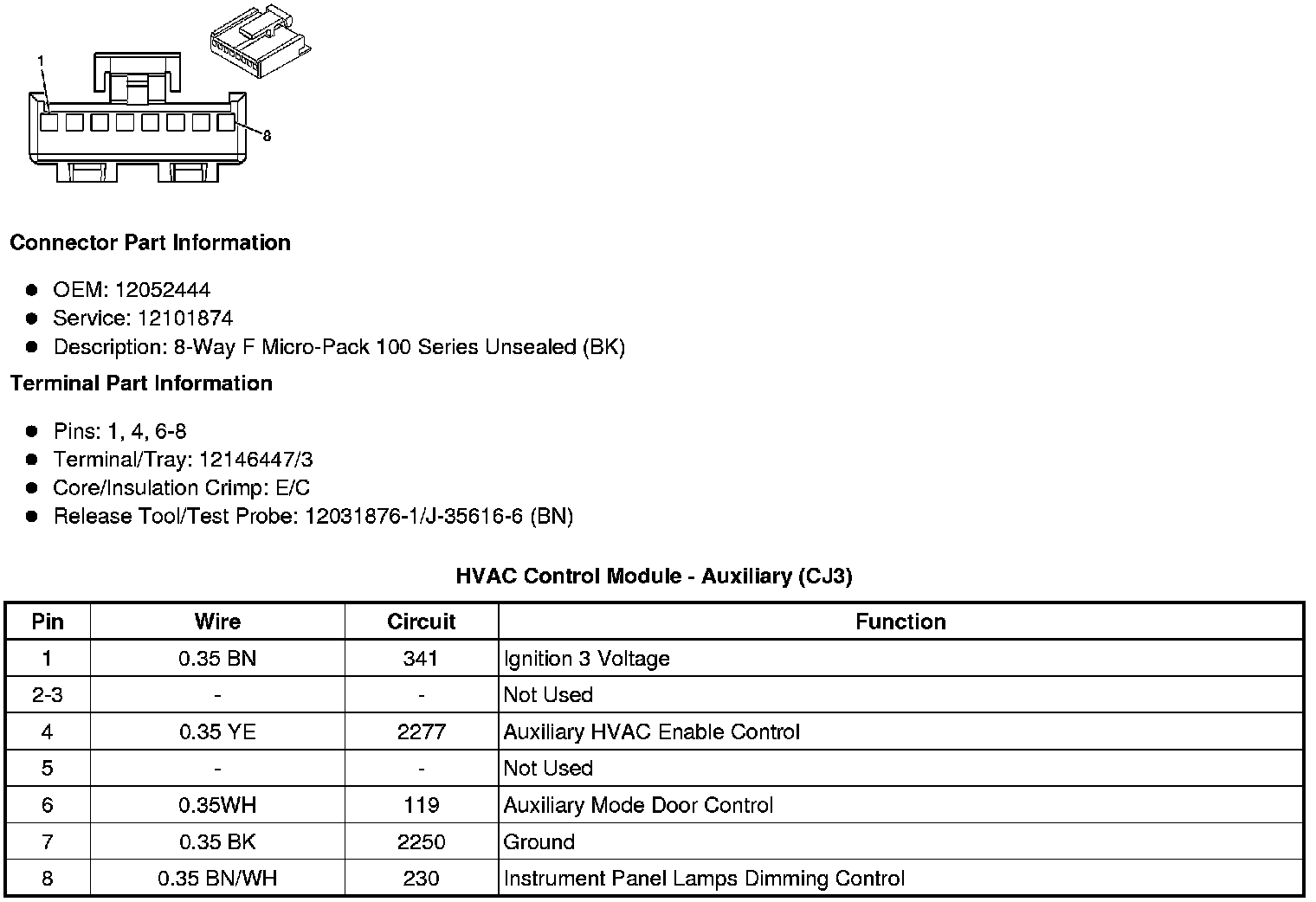

HVAC Control Module - Auxiliary (CJ3)

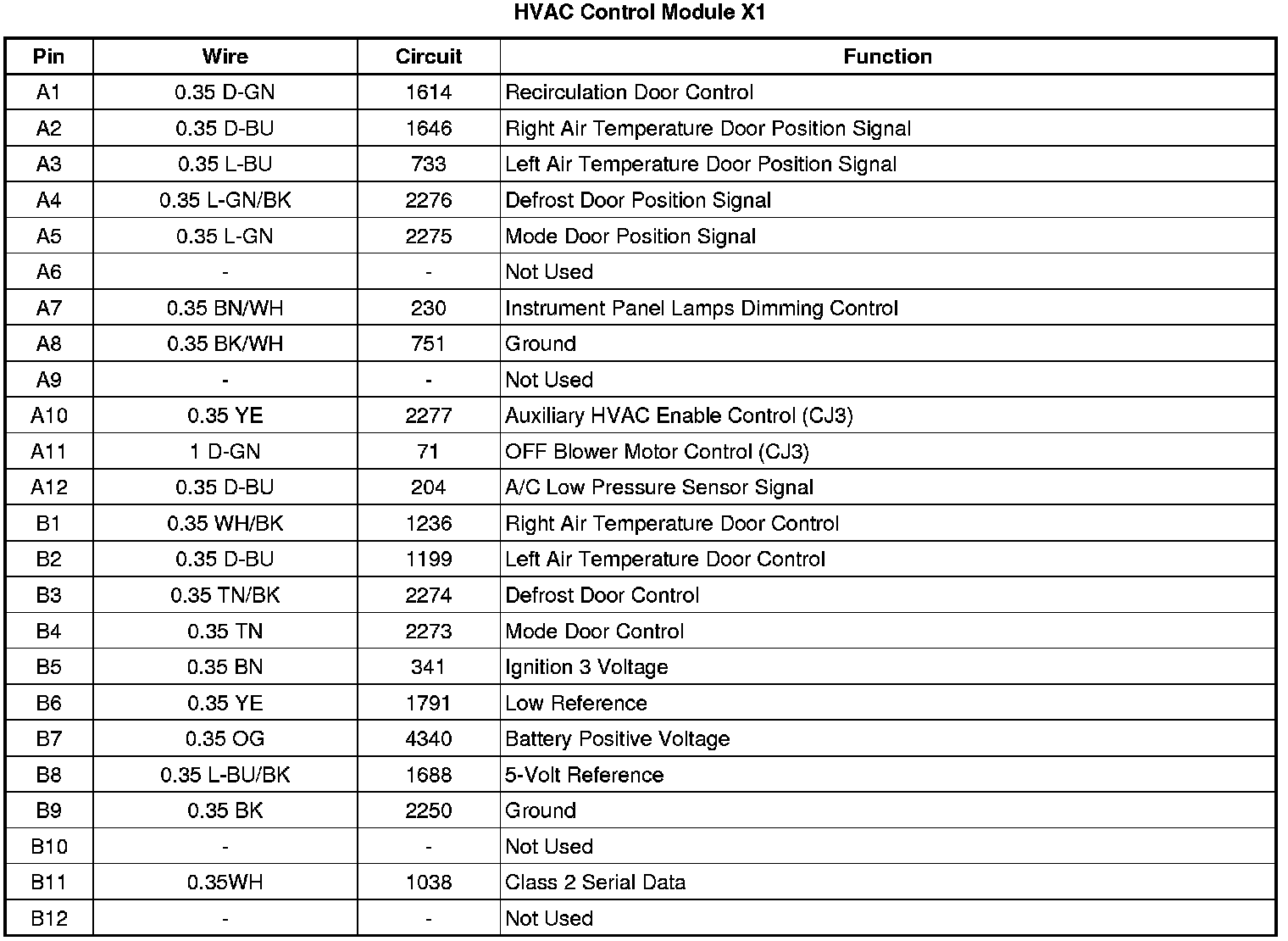

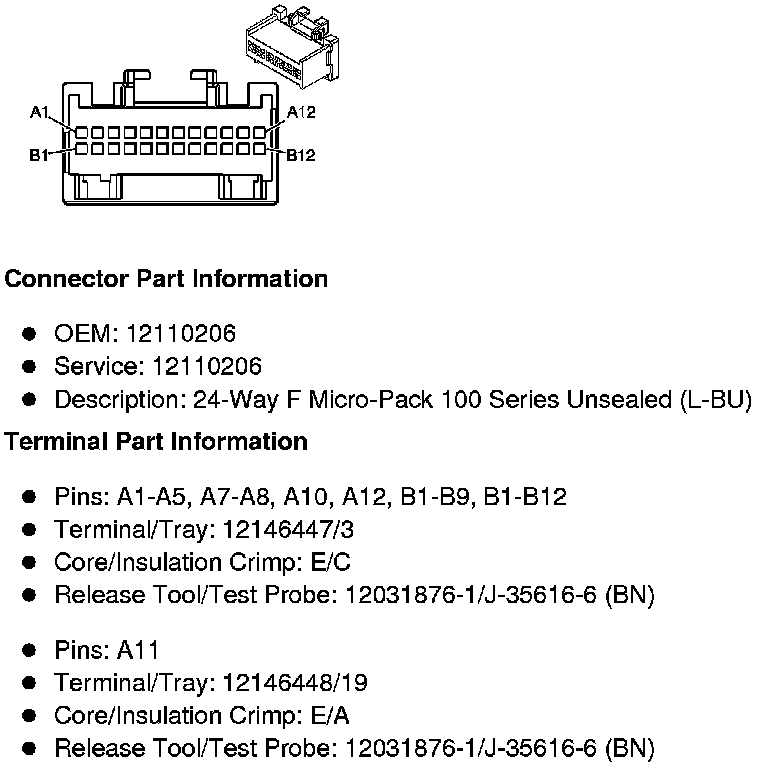

HVAC Control Module X1

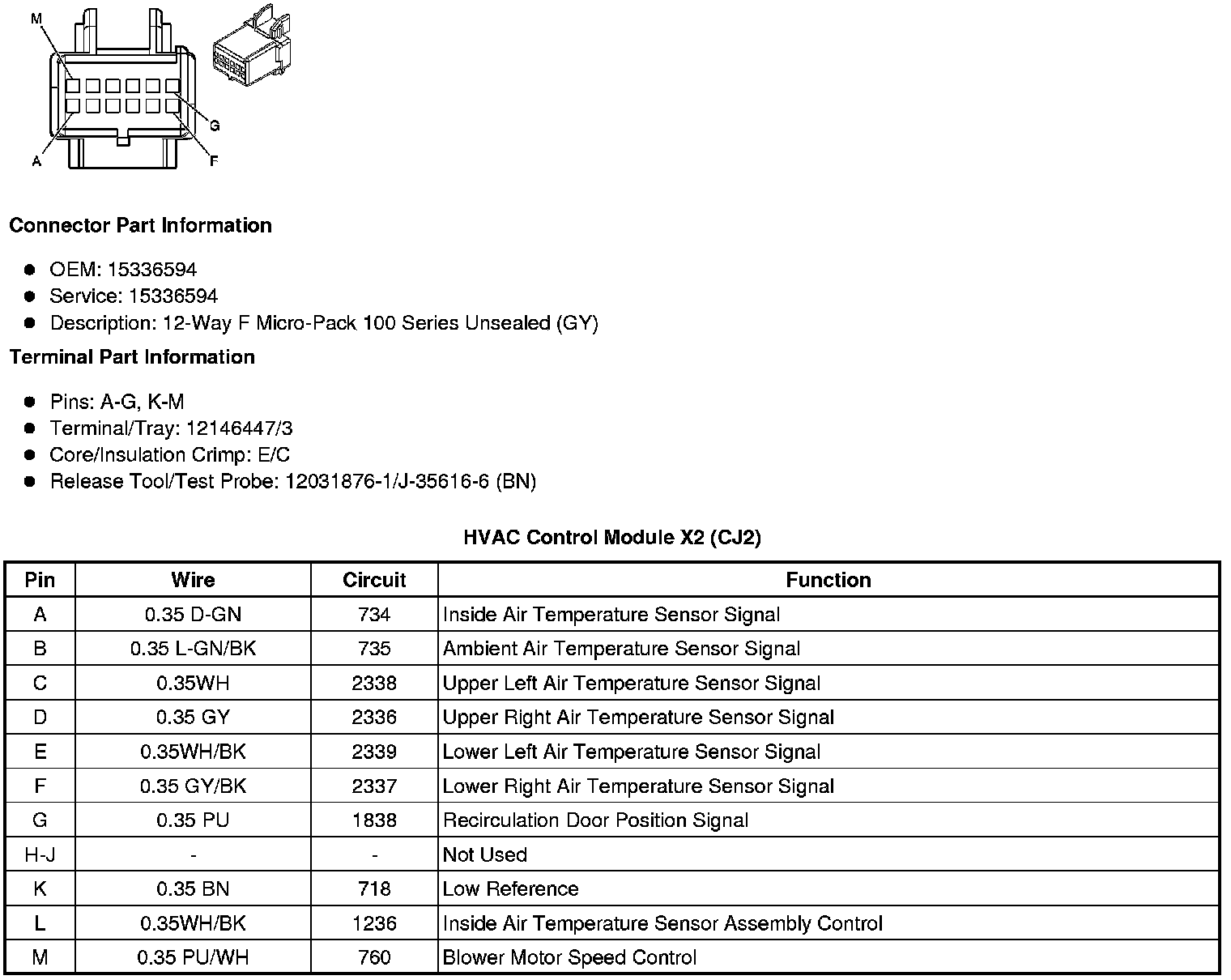

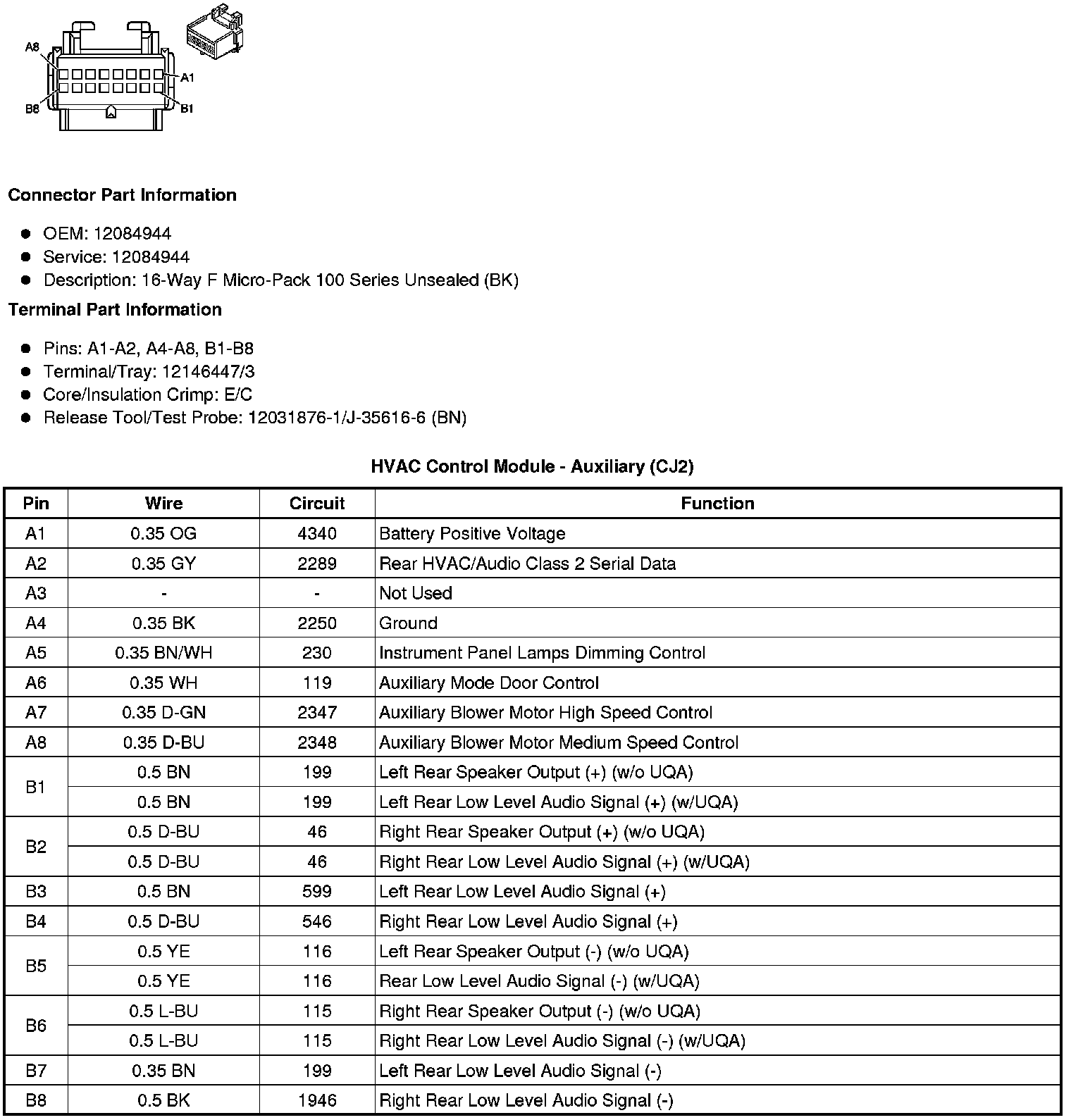

HVAC Control Module X2 (CJ2)

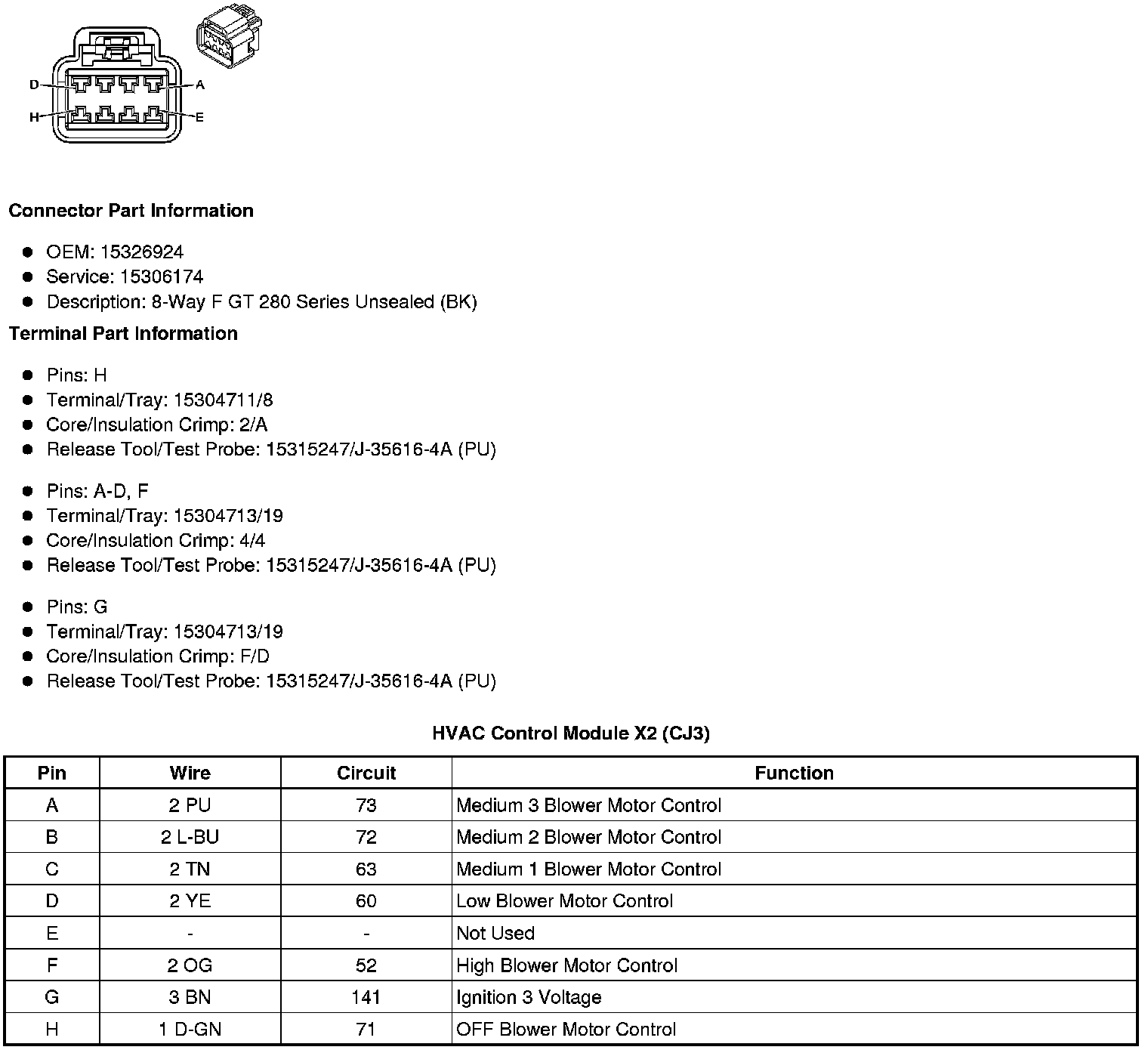

HVAC Control Module X2 (CJ3)
