lemon-mirror
:
Home
>>
GMC
>>
2009
>>
Envoy 2WD L6-4.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

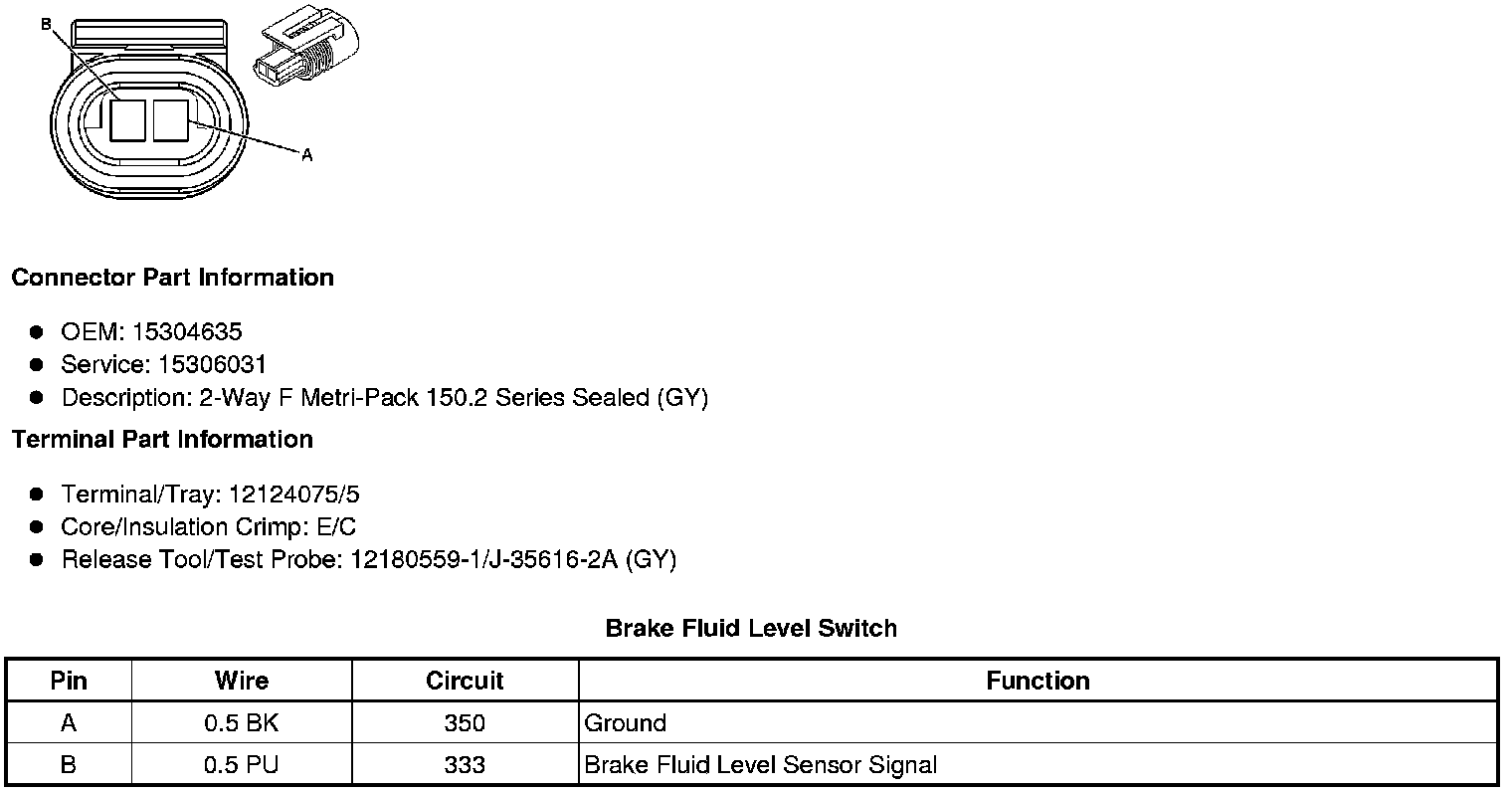

Component Connector End Views
Brake Fluid Level Switch
