Body Control Module




Component Connector End Views

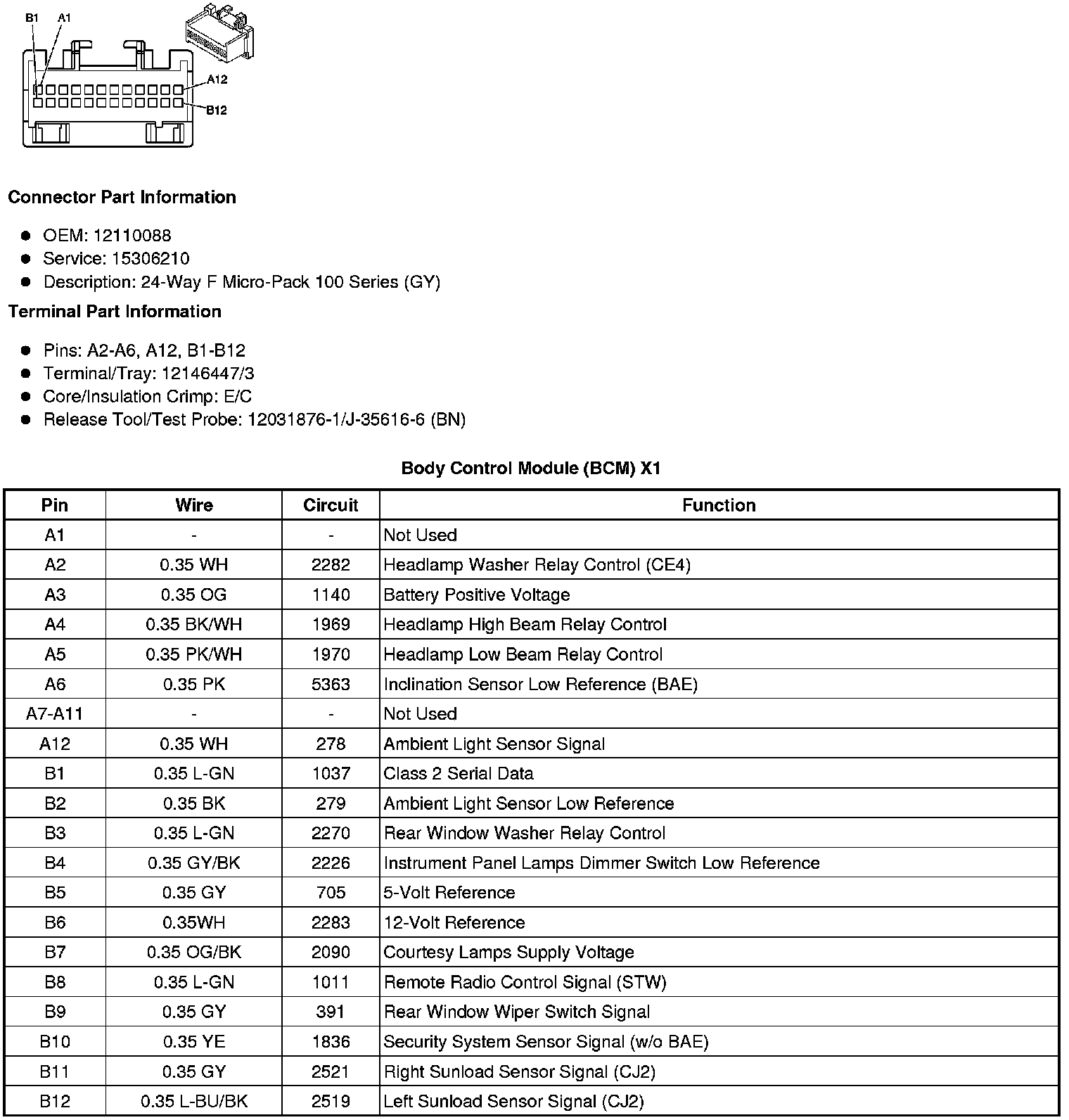

Body Control Module (BCM) X1

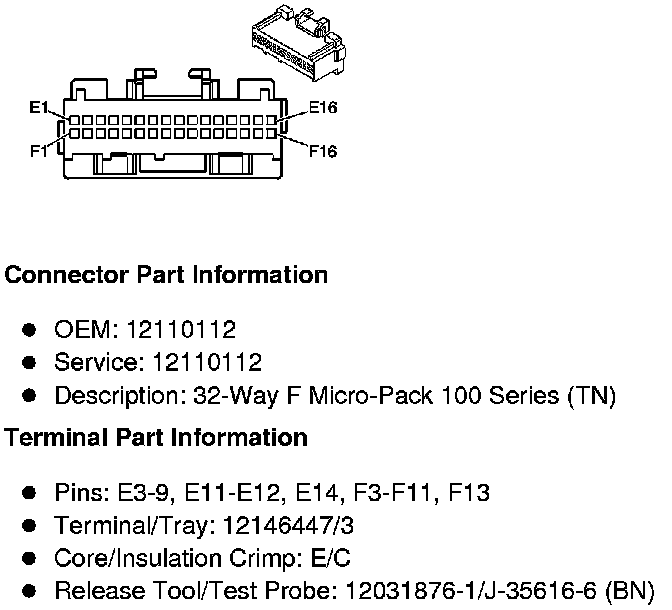

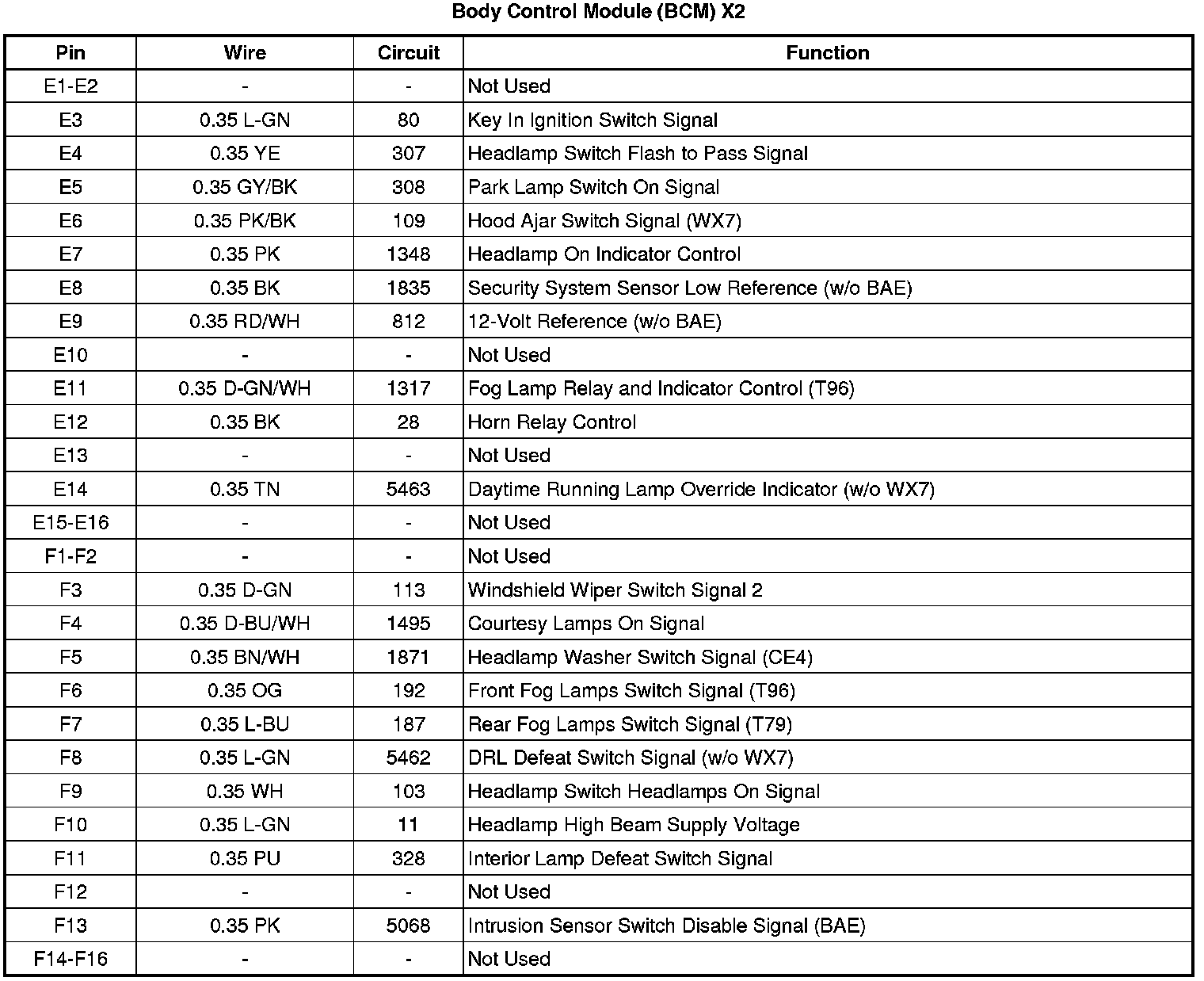

Body Control Module (BCM) X2

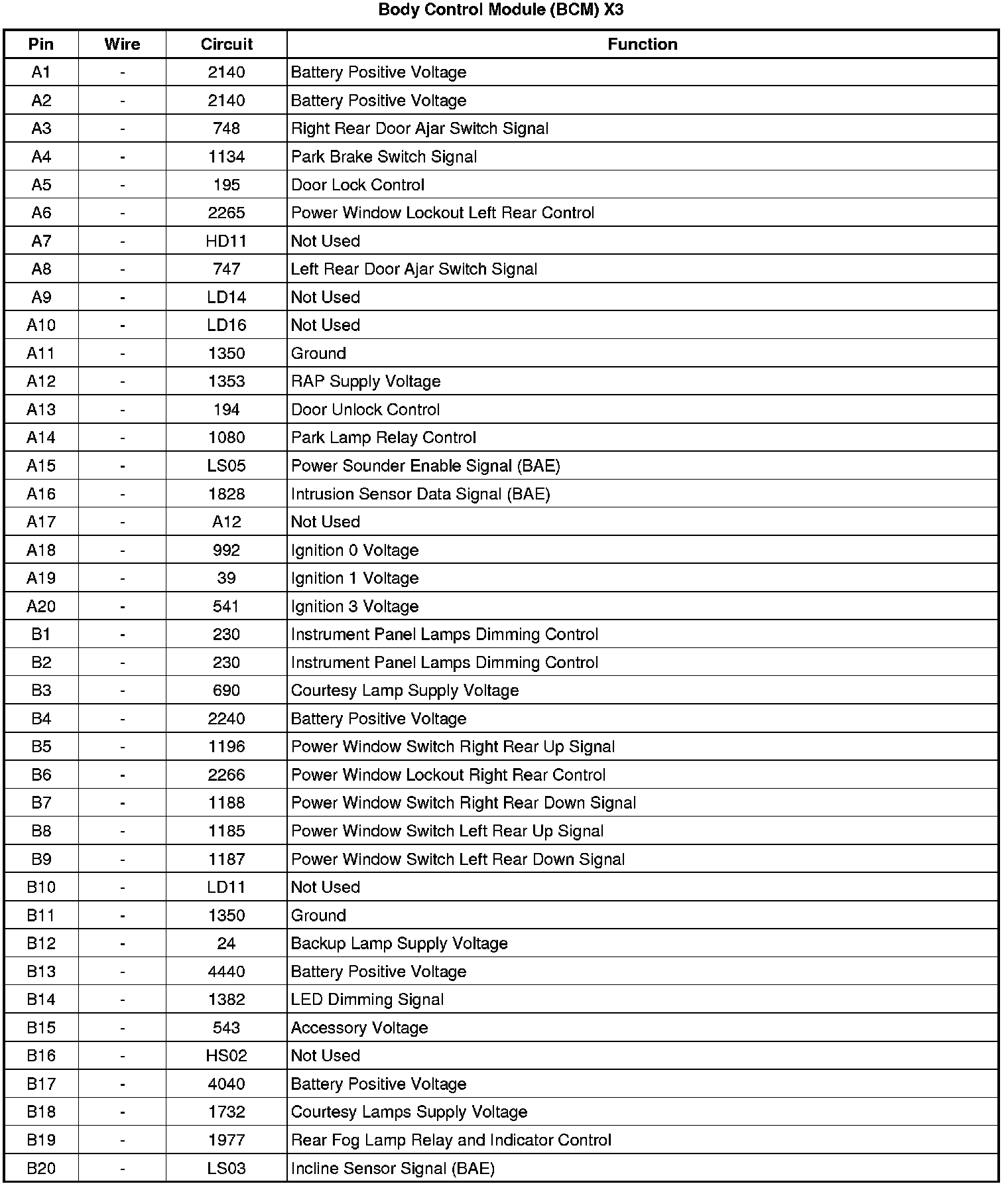

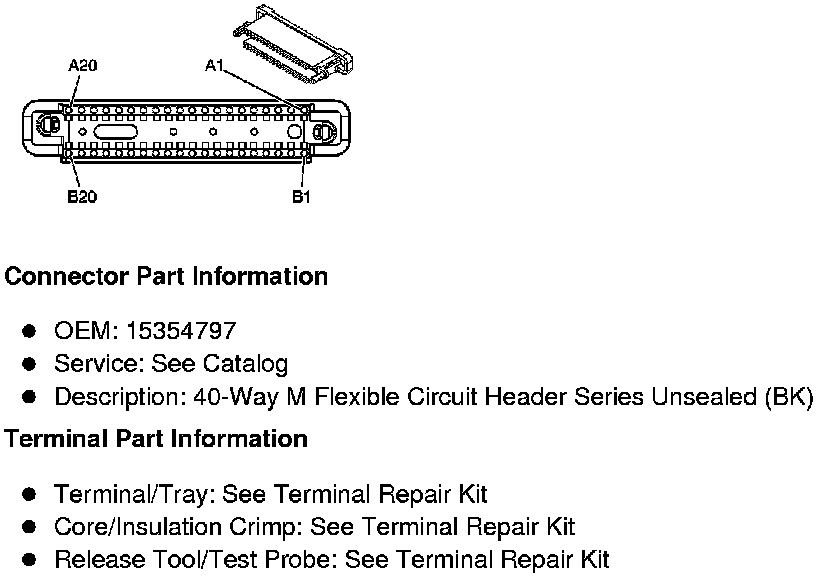

Body Control Module (BCM) X3
