Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Component Connector End Views

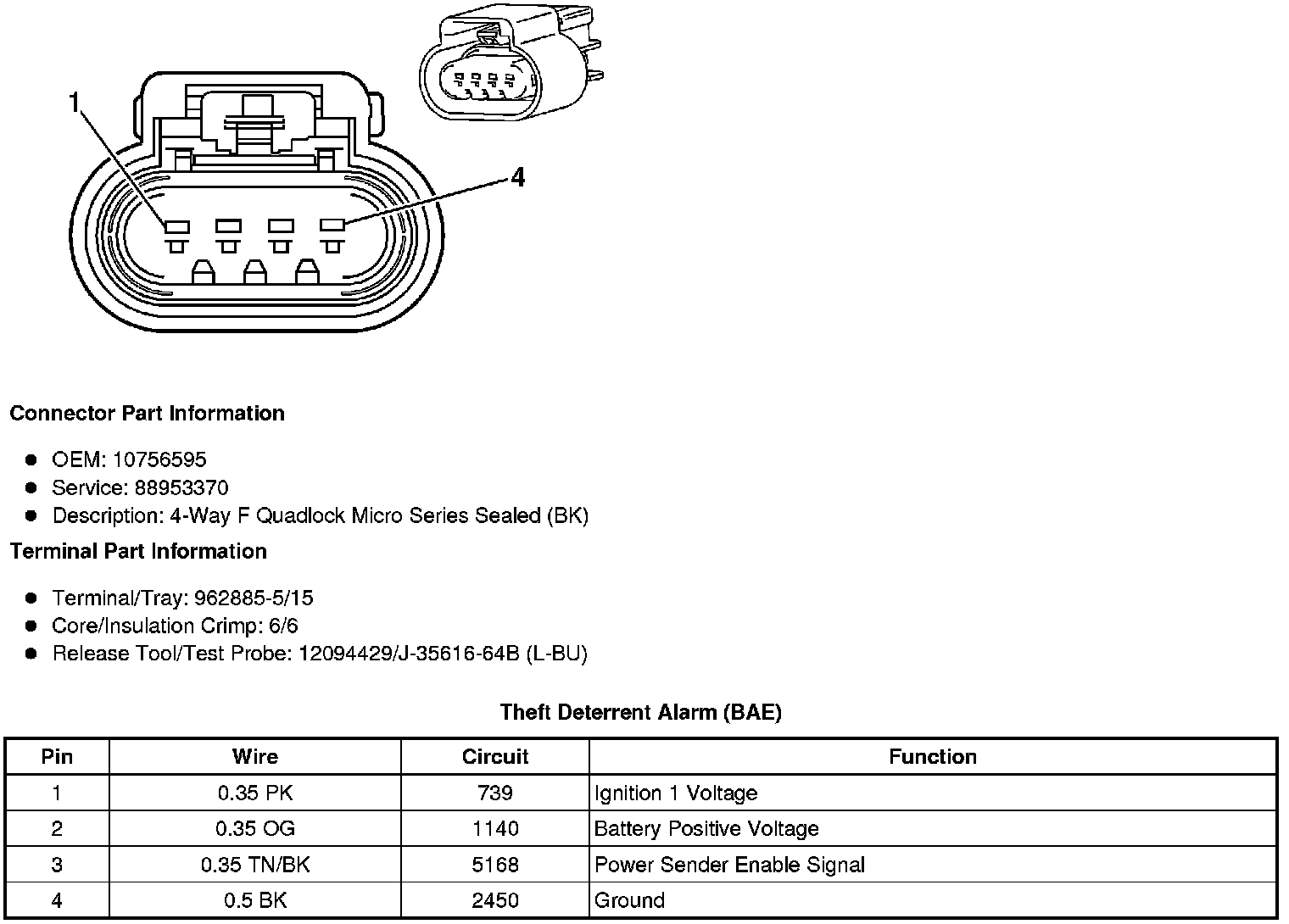

Theft Deterrent Alarm (BAE)

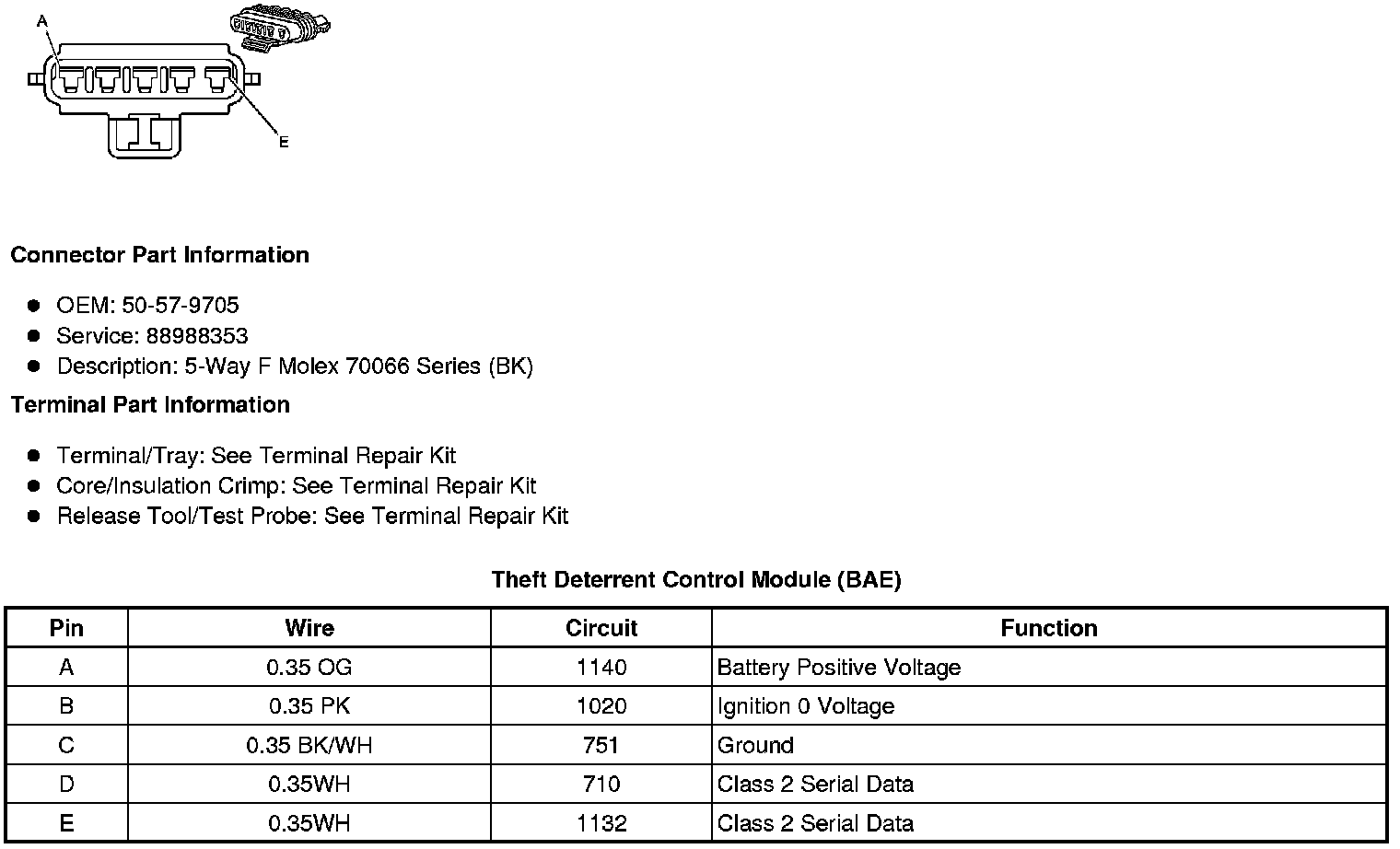

Theft Deterrent Control Module (BAE)
