Engine Control Module: Locations

Powertrain Component Views

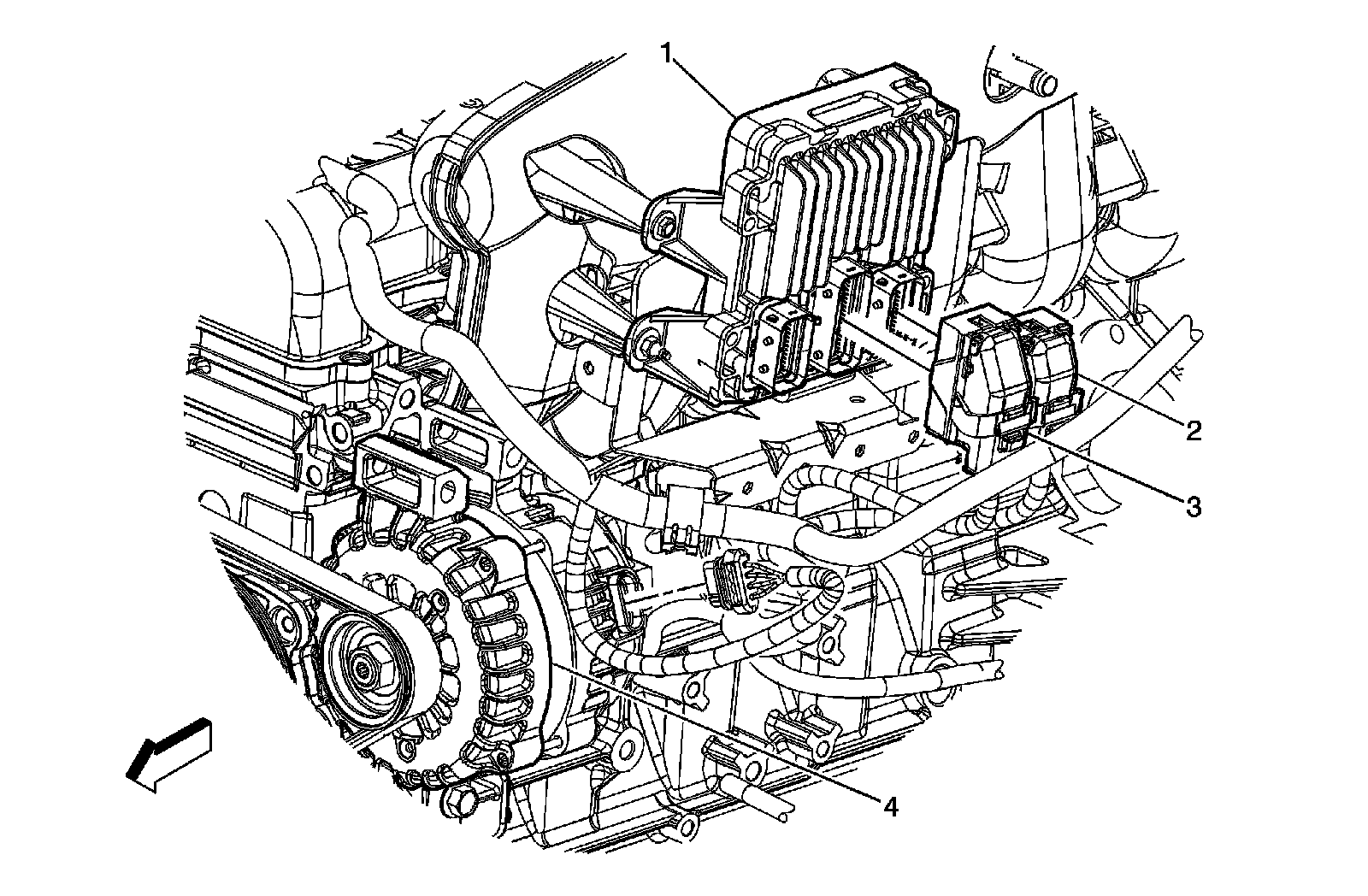

Upper Left Side of the Engine - Front (4.2L)




1 - Powertrain Control Module (PCM)
2 - Powertrain Control Module (PCM) C3
3 - Powertrain Control Module (PCM) C2
4 - Generator
