Power Trunk / Liftgate Control Module
Component Connector End Views - Continued

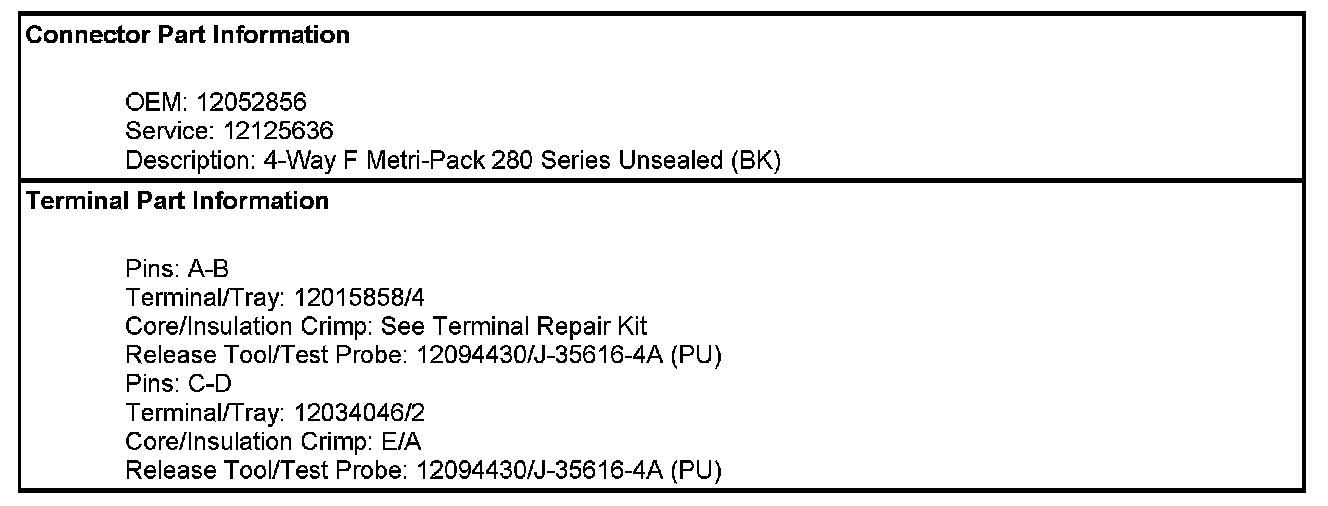

Liftgate Module (LGM) X1
Transfer Case Shift Control Module - C3:

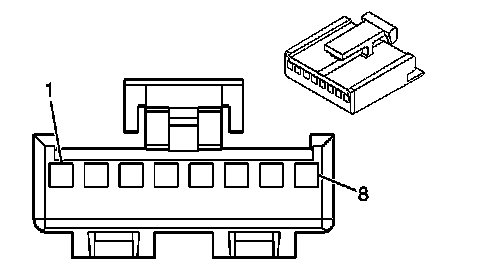

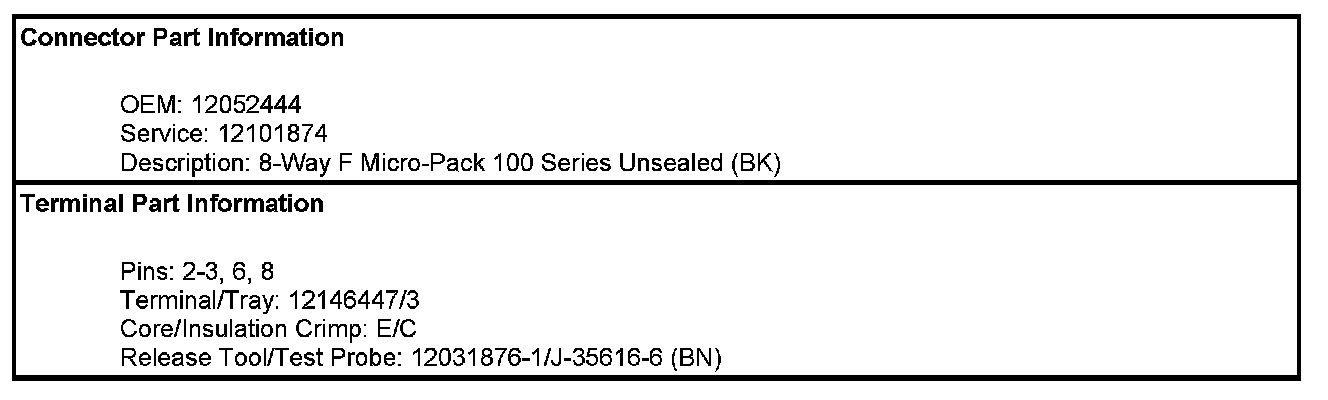

Liftgate Module (LGM) X2
Steering Wheel Speed/Position Sensor:

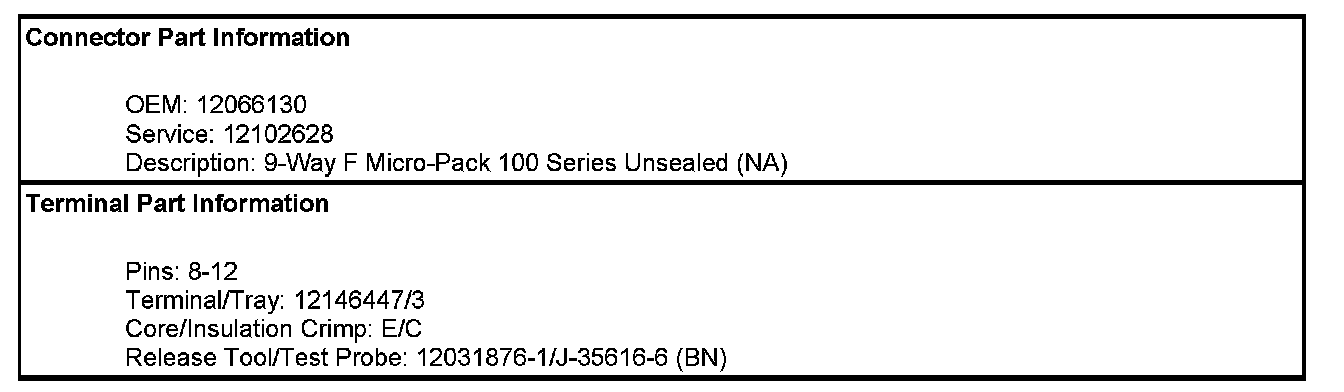

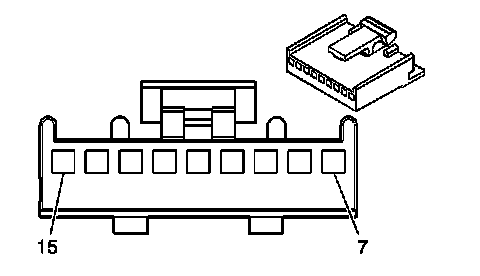

Liftgate Module (LGM) X3
Component Connector End Views - Continued

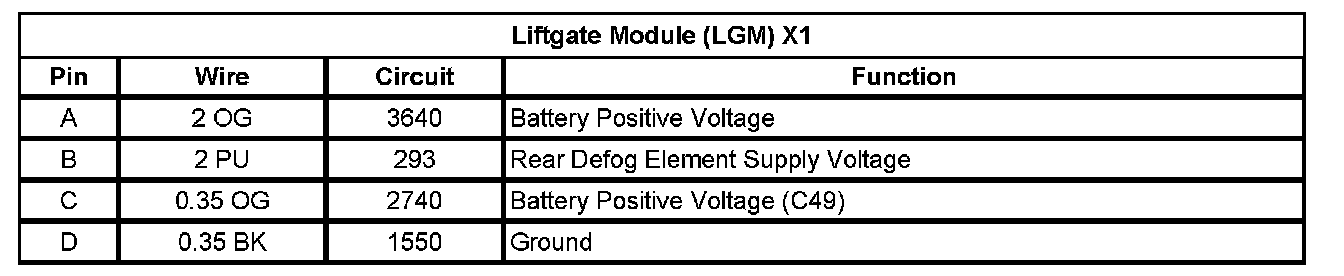

Liftgate Module (LGM) X1

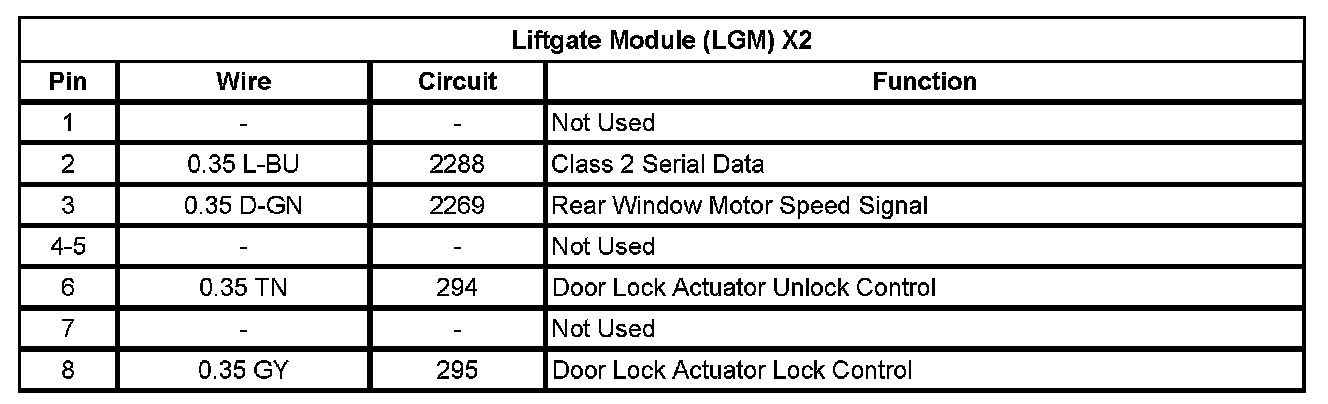

Liftgate Module (LGM) X2

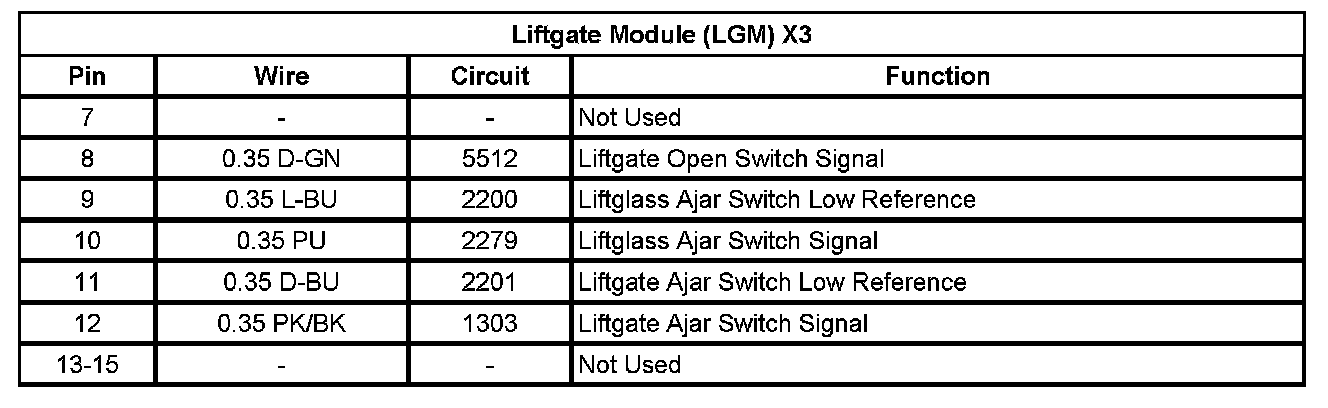

Liftgate Module (LGM) X3
