Home >> GMC >> 2008 >> Envoy 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

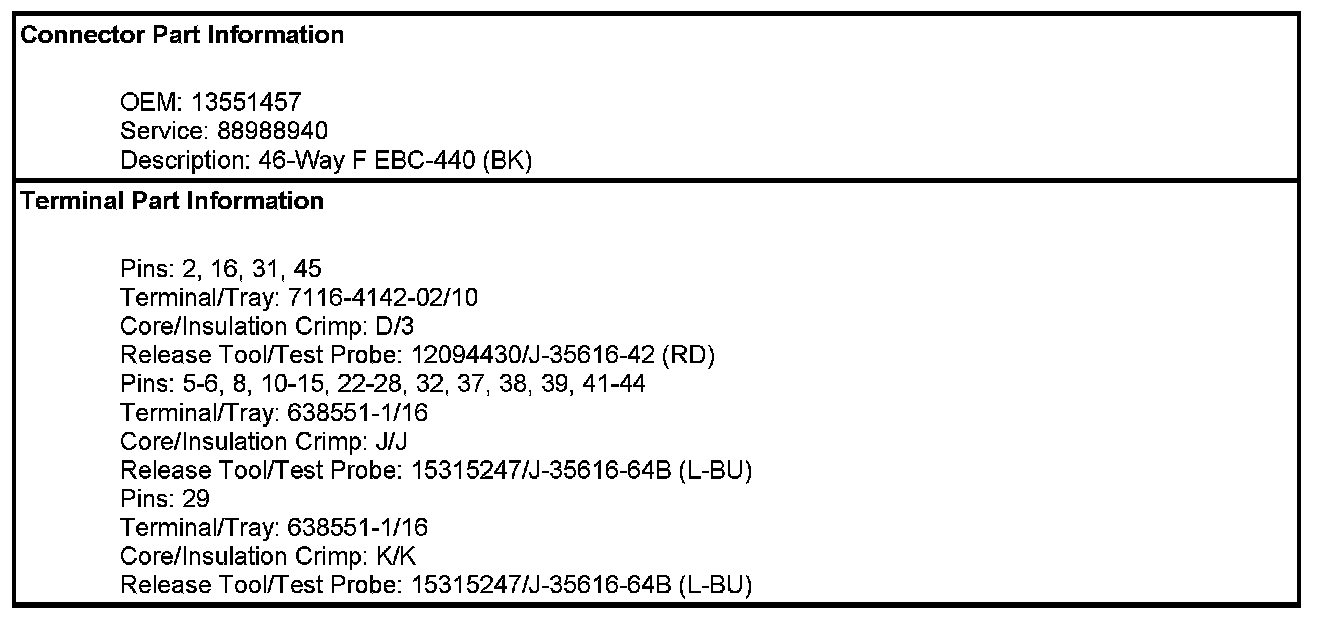

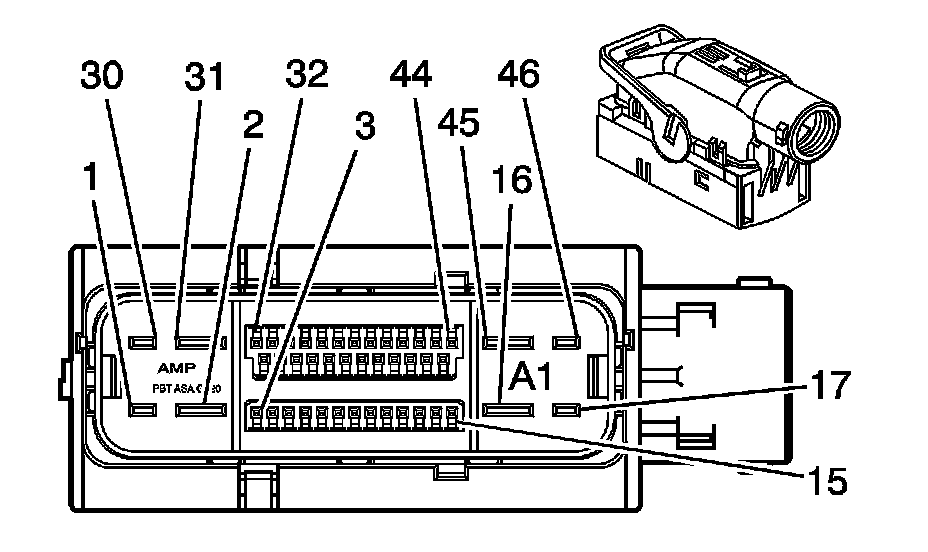

Component Connector End Views

Electronic Brake Control Module (EBCM)

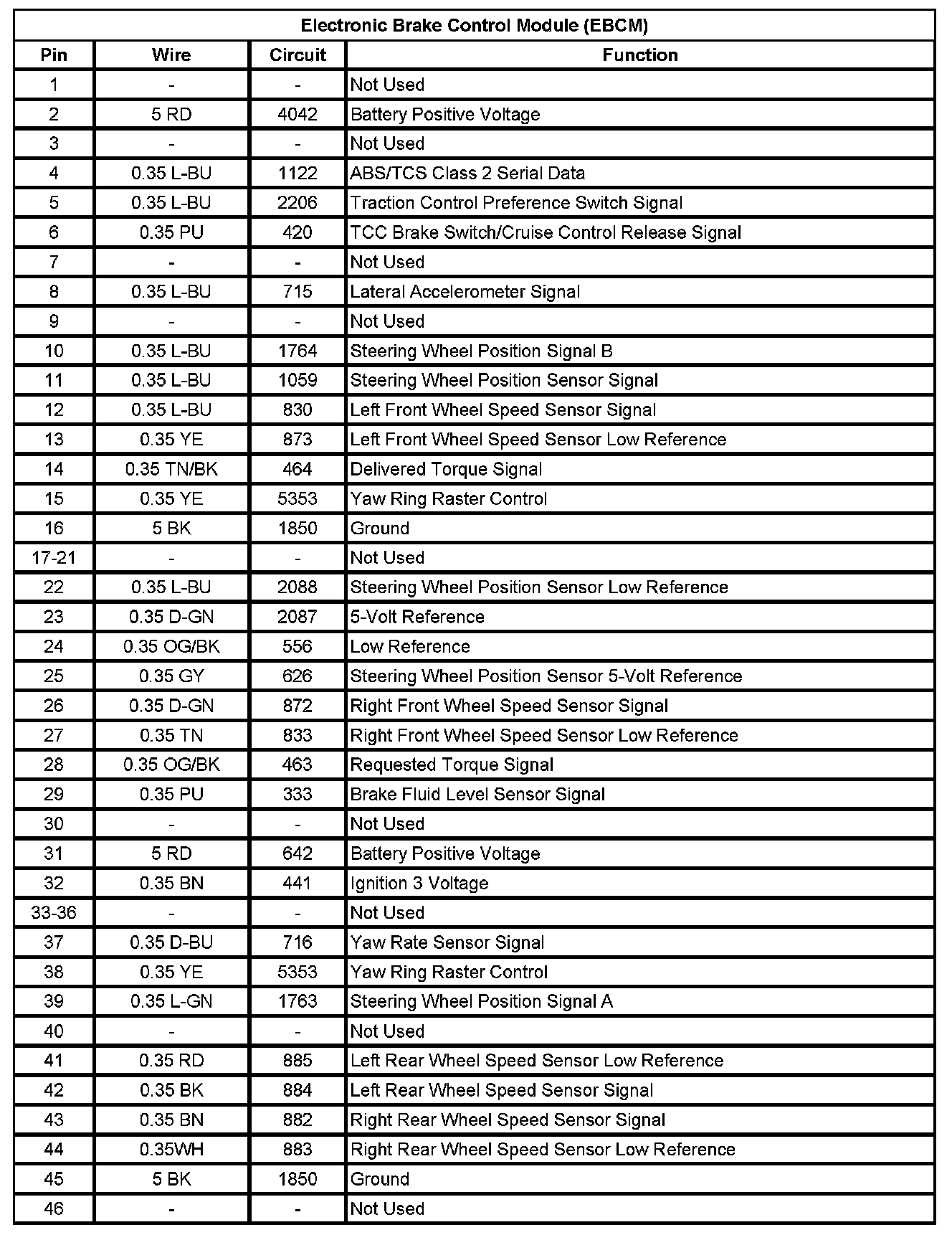

Electronic Brake Control Module (EBCM):
