Door Module
Component Connector End Views

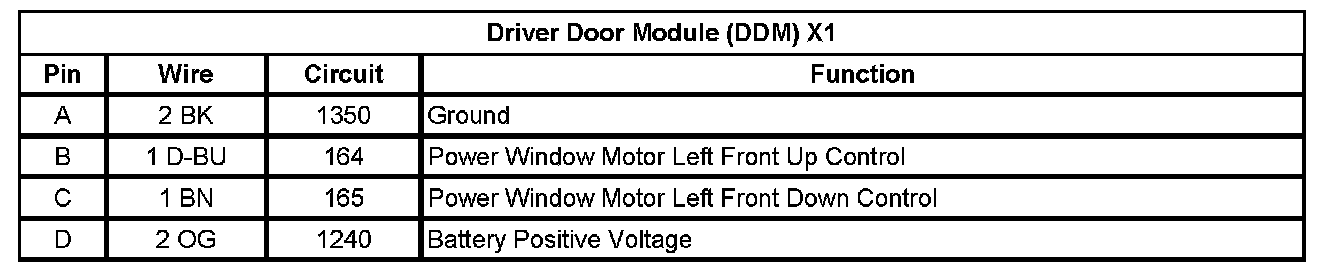

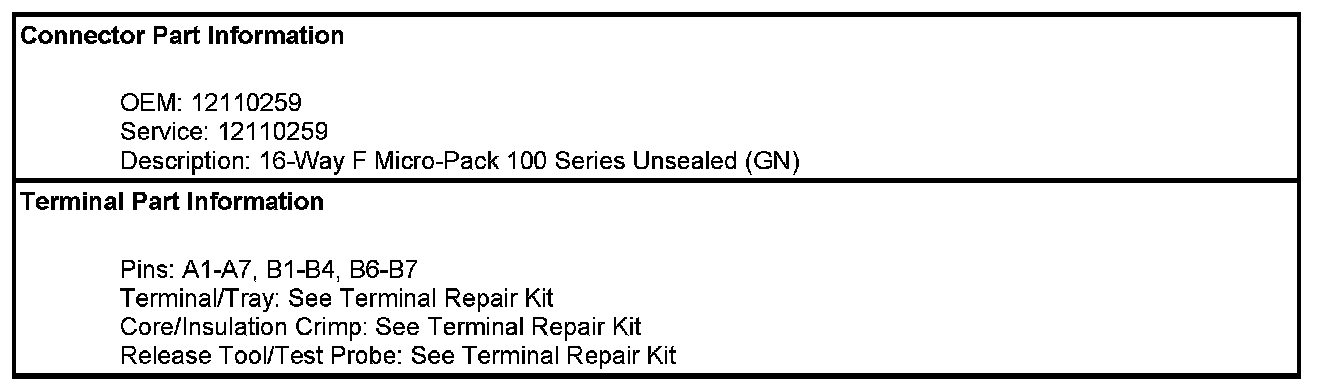

Driver Door Module (DDM) X1
Transfer Case Shift Control Module - C3:

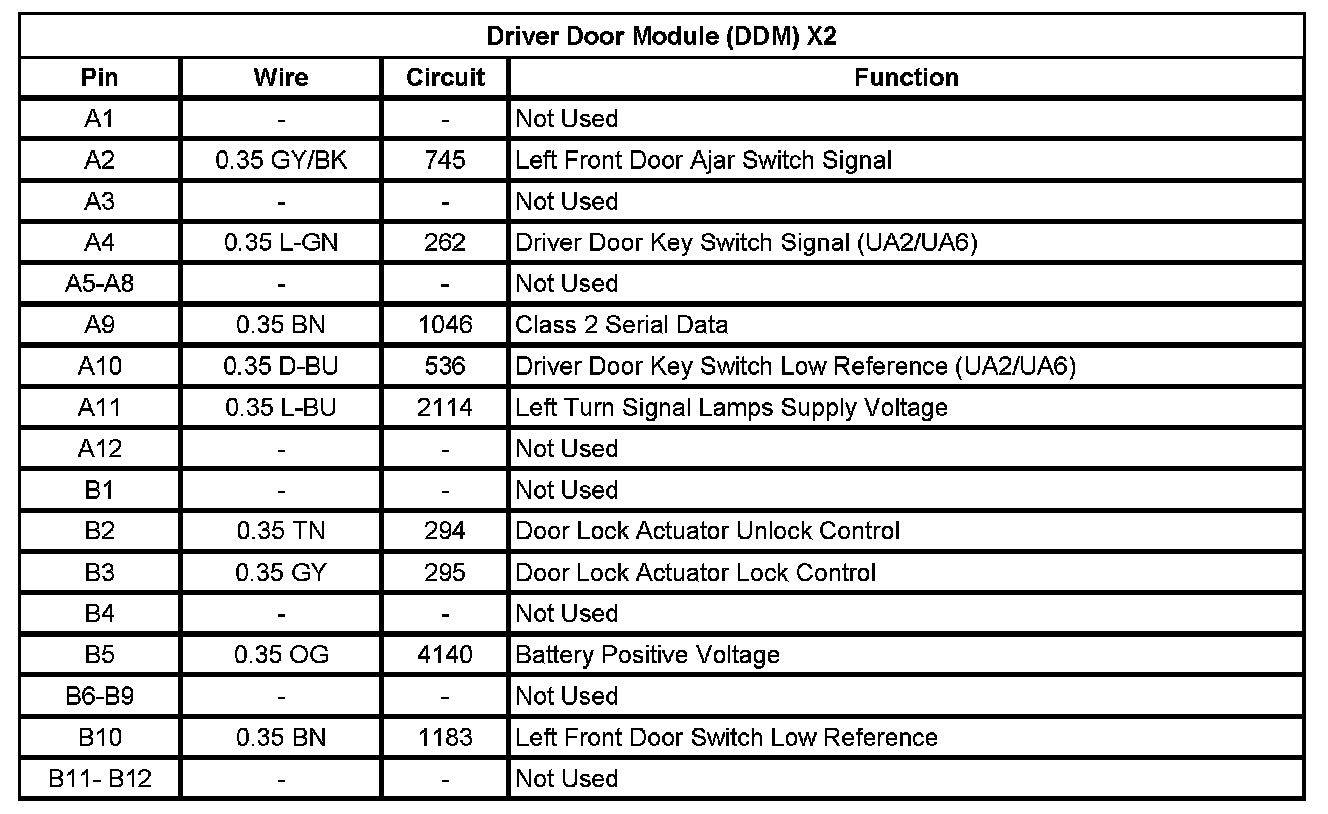

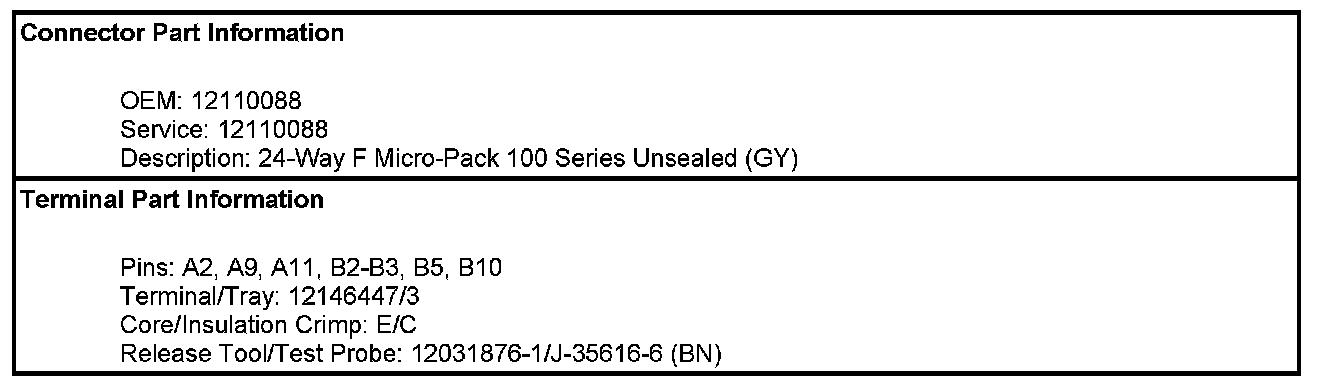

Driver Door Module (DDM) X2

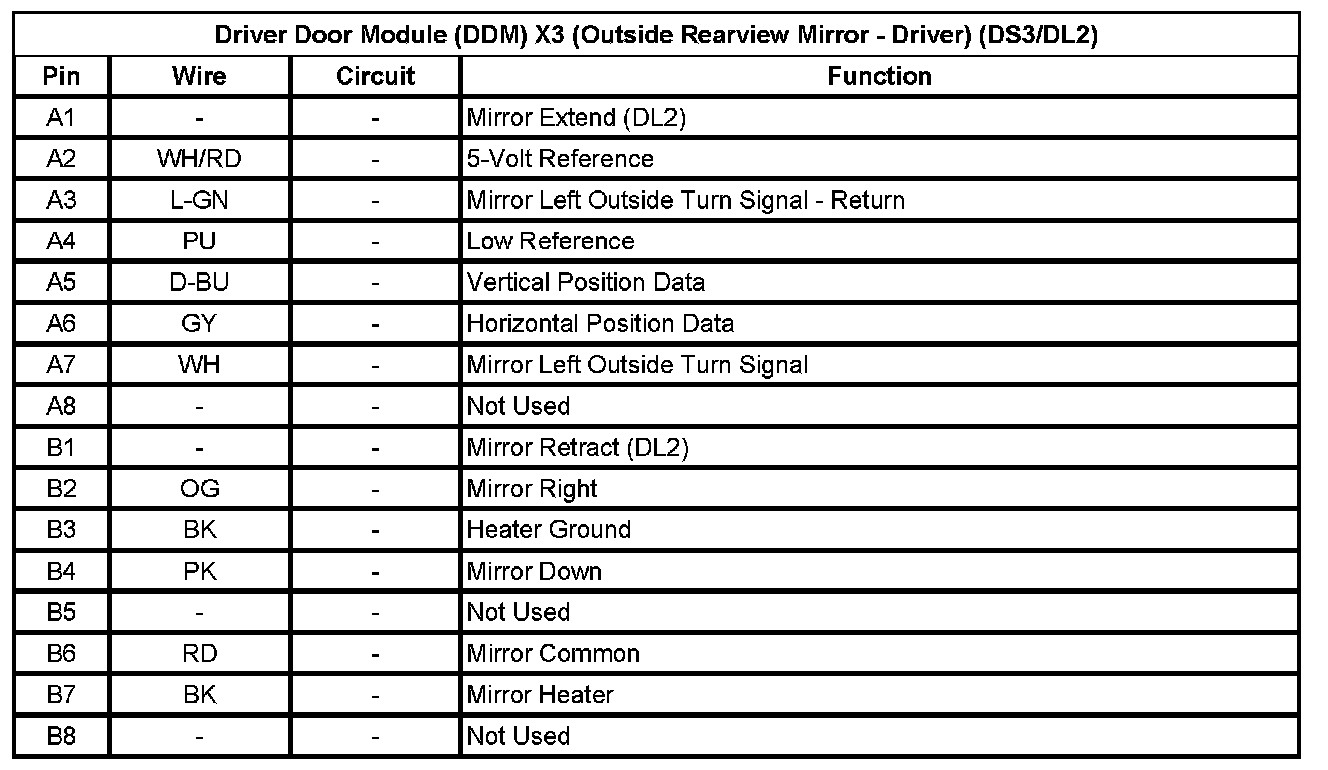

Driver Door Module (DDM) X3 (Outside Rearview Mirror - Driver) (DS3/DL2)

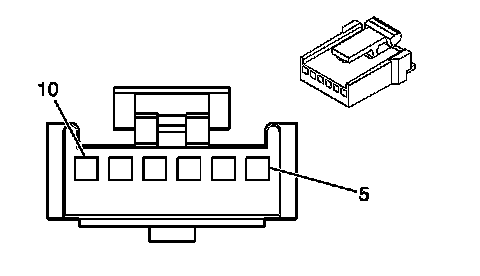

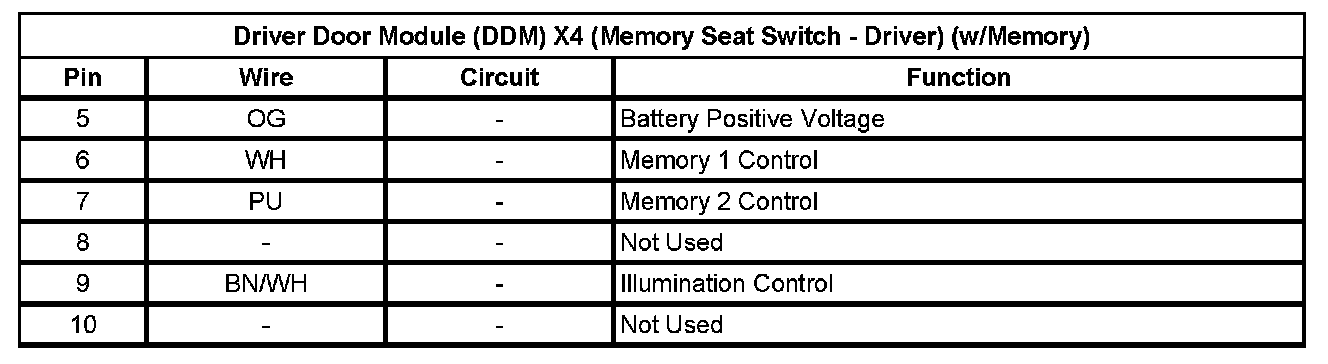

Driver Door Module (DDM) X4 (Memory Seat Switch - Driver) (w/Memory)

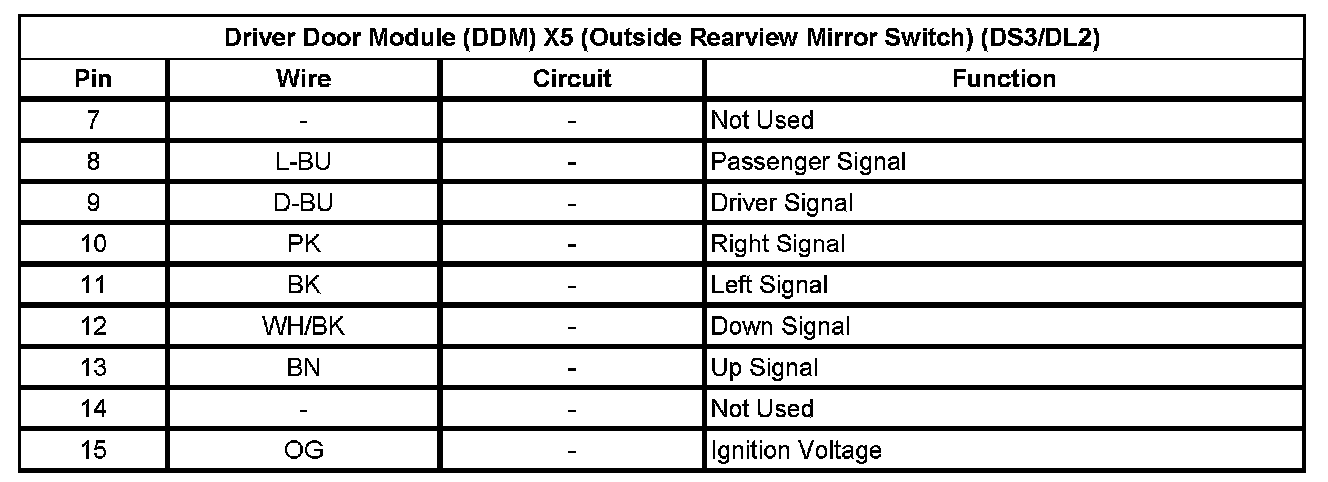

Driver Door Module (DDM) X5 (Outside Rearview Mirror Switch) (DS3/DL2)

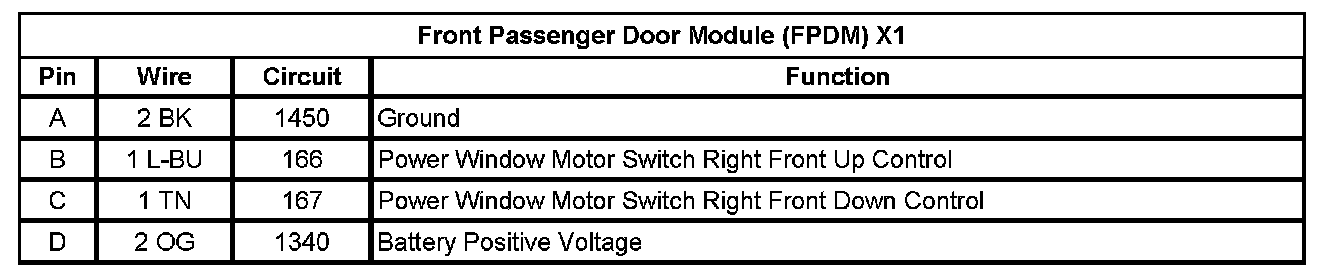

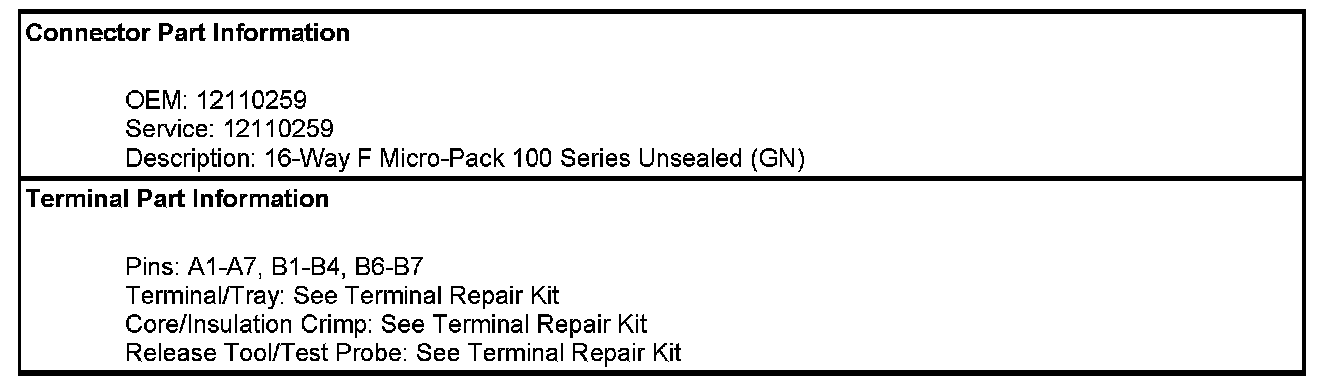

Front Passenger Door Module (FPDM) X1
Transfer Case Shift Control Module - C3:

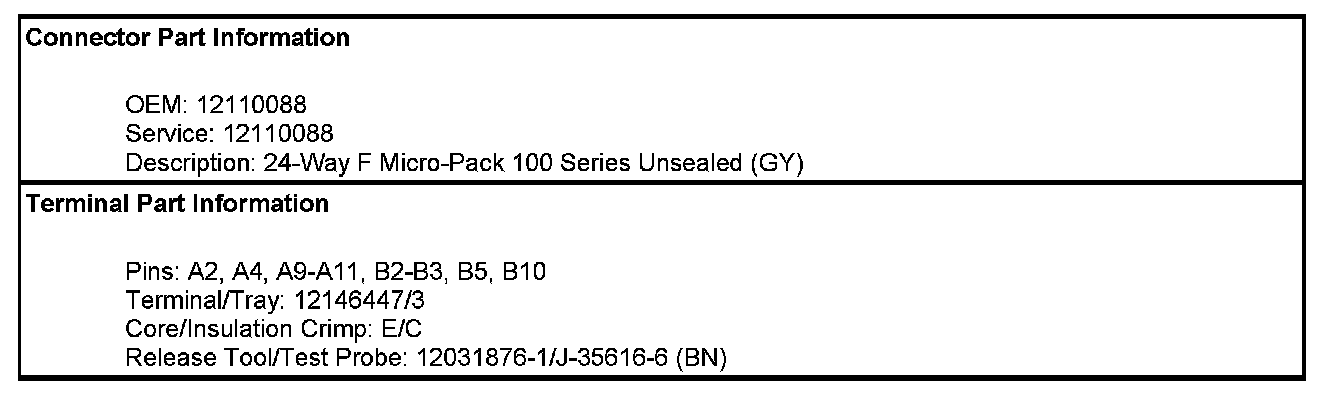

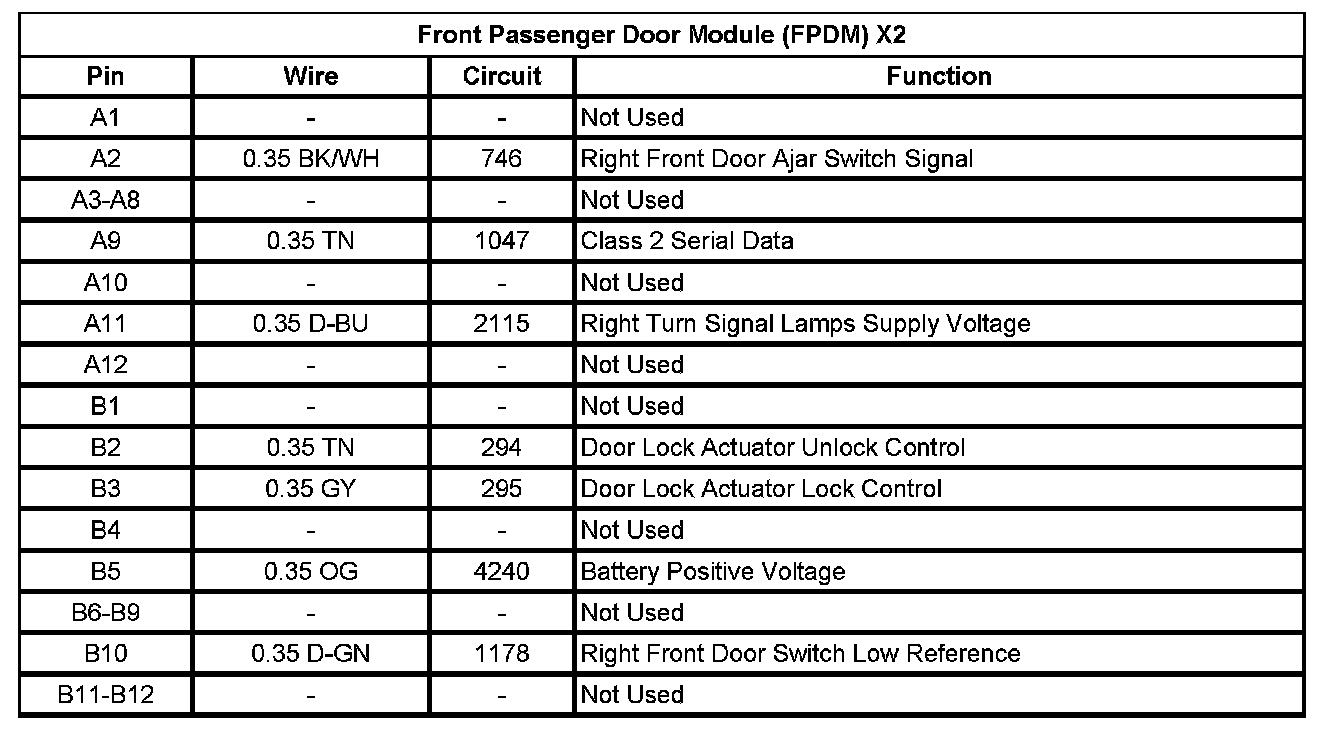

Front Passenger Door Module (FPDM) X2

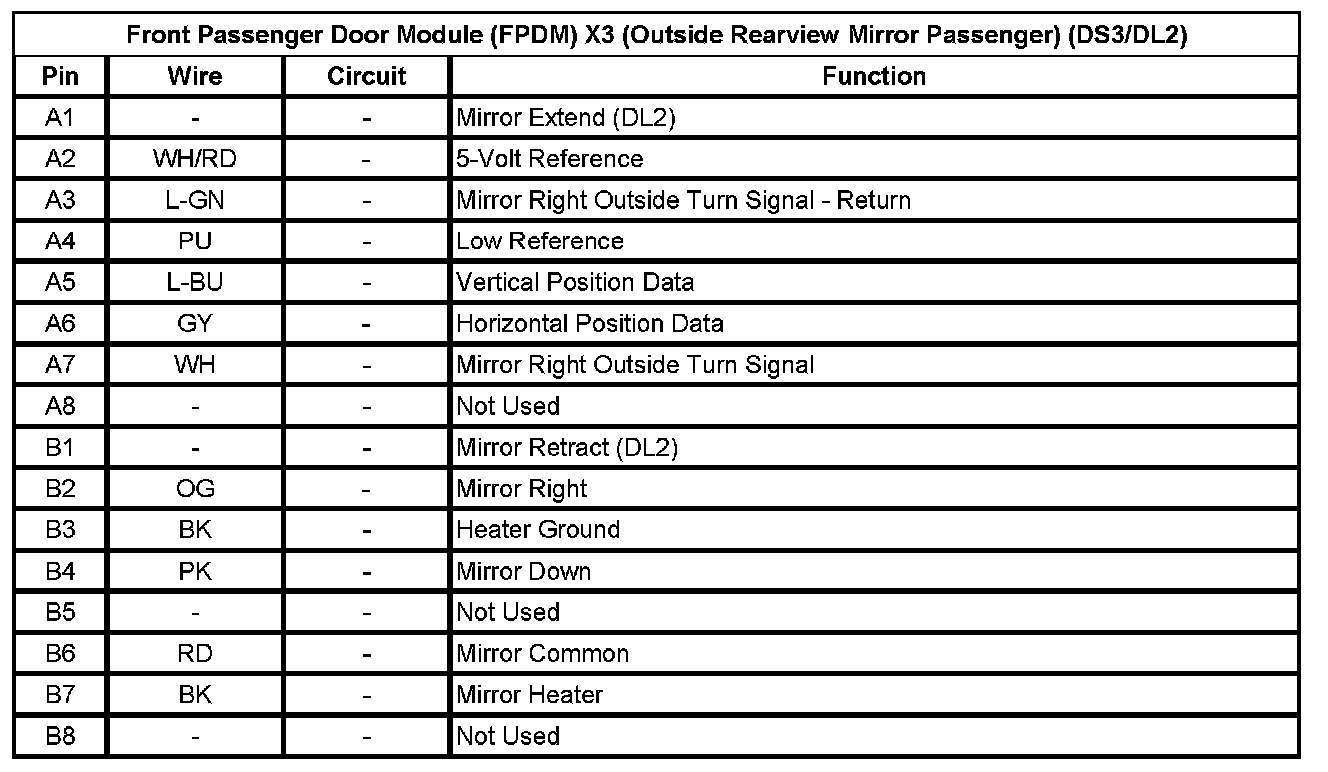

Front Passenger Door Module (FPDM) X3 (Outside Rearview Mirror Passenger) (DS3/DL2)
