Control Module, Transfer Case
Component Connector End Views - Continued

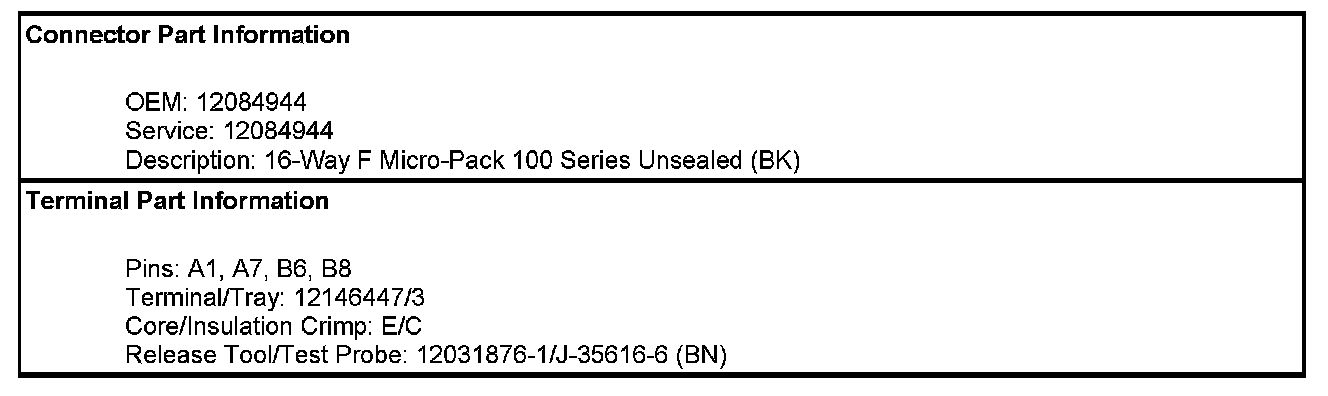

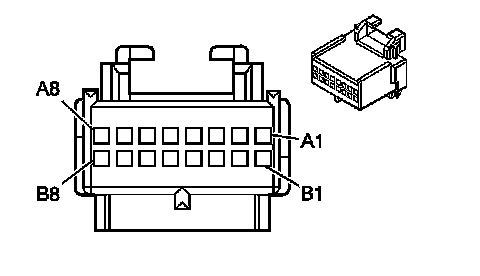

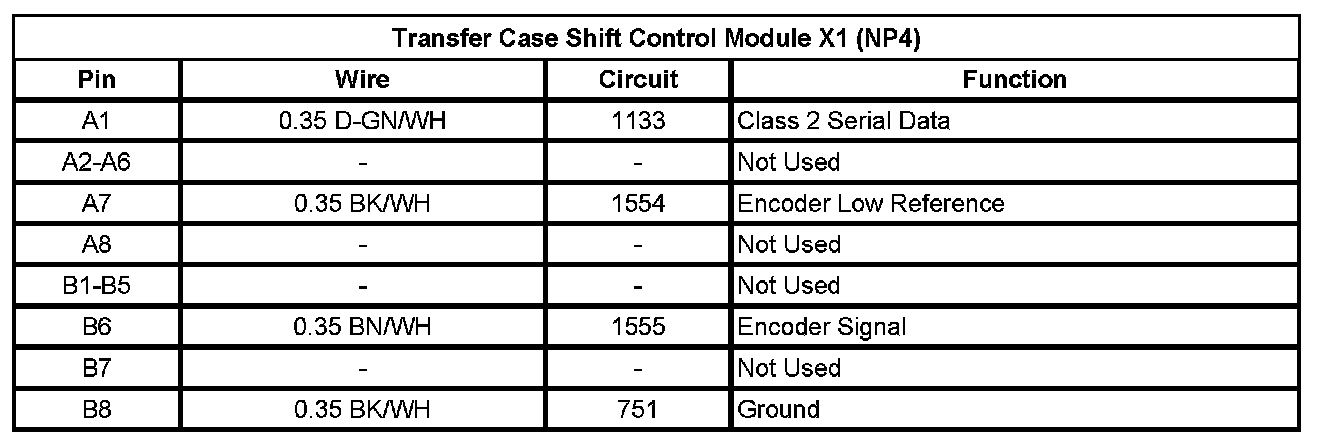

Transfer Case Shift Control Module X1 (NP4)
Transfer Case Shift Control Module - C1:
Transfer Case Shift Control Module X1 (NP8)
Transfer Case Shift Control Module - C1:

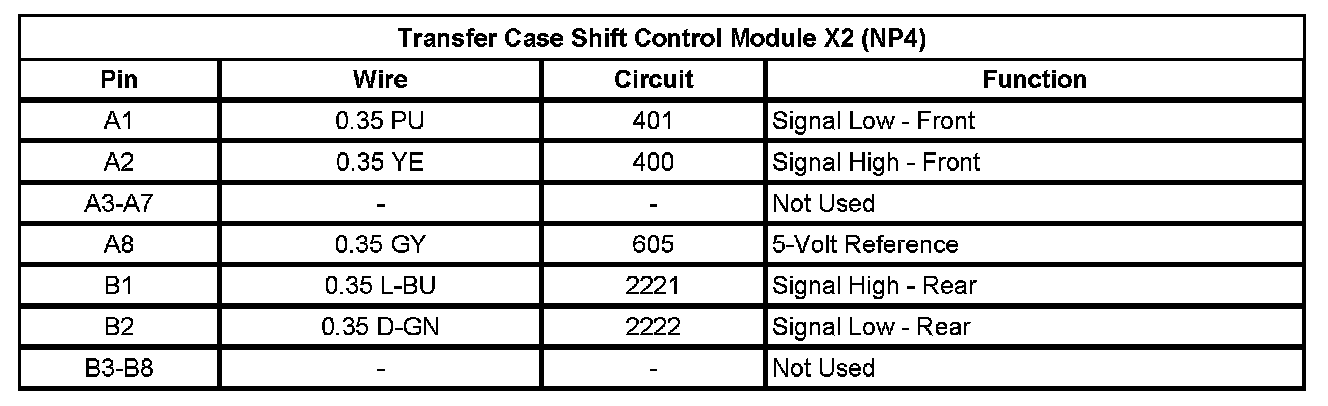

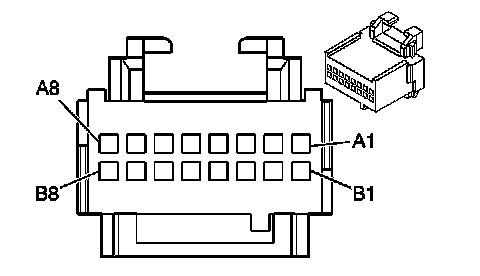

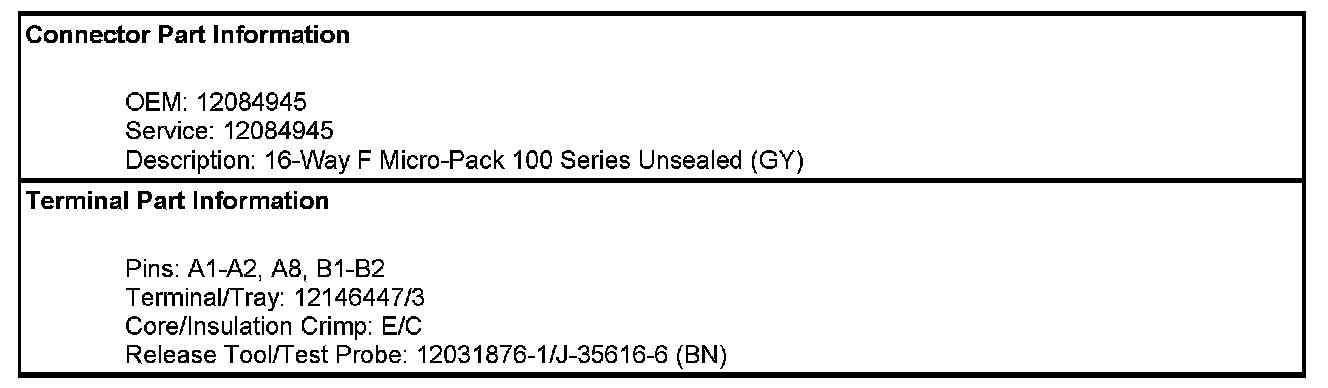

Transfer Case Shift Control Module X2 (NP4)

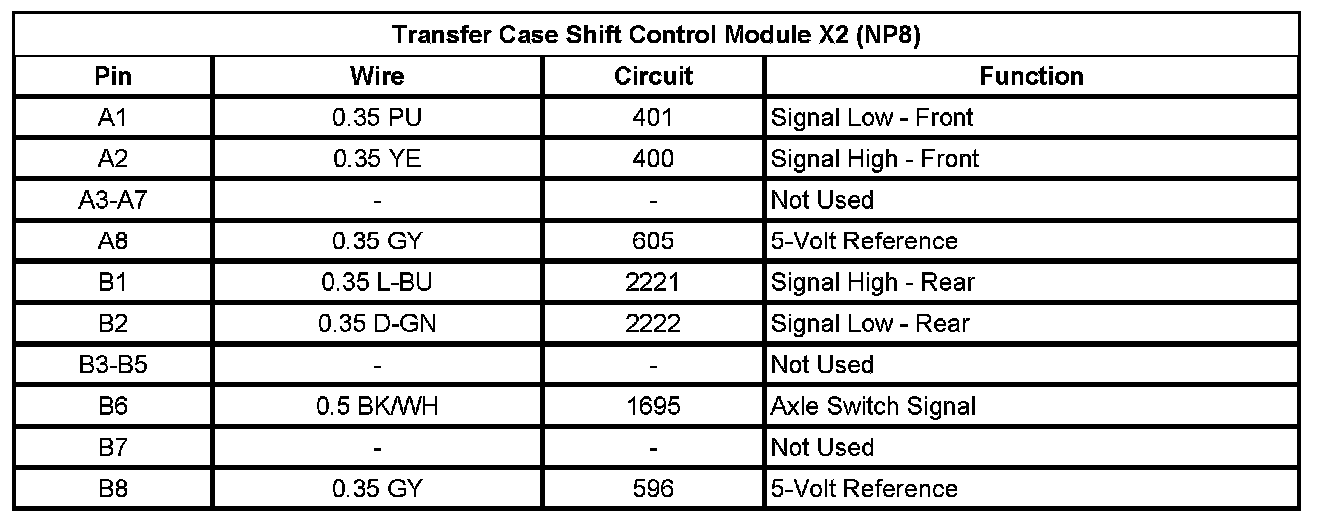

Transfer Case Shift Control Module X2 (NP8)

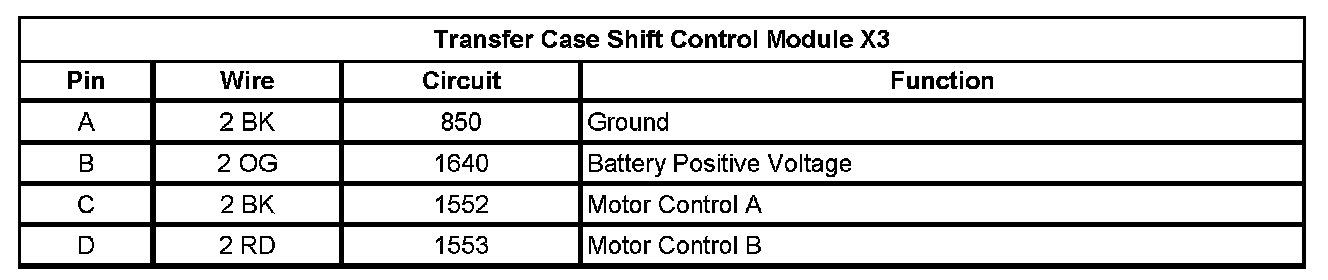

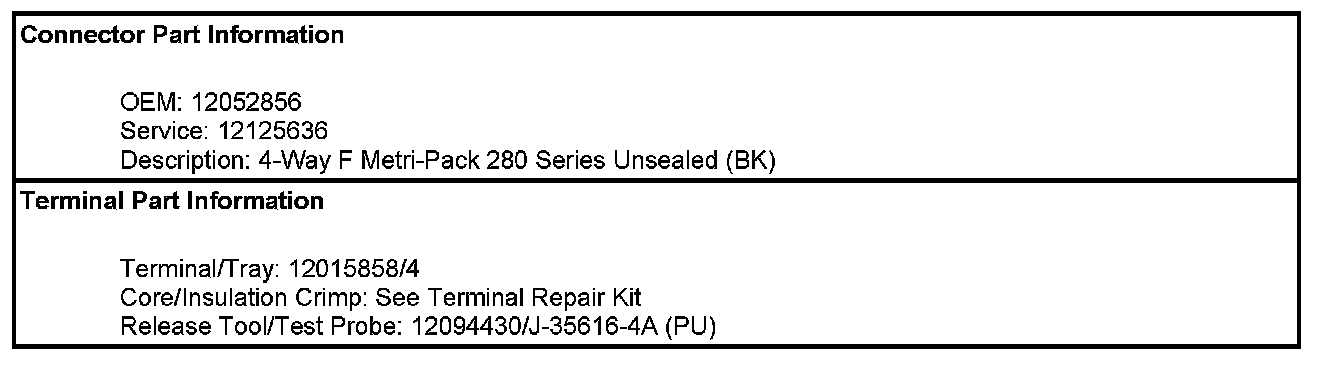

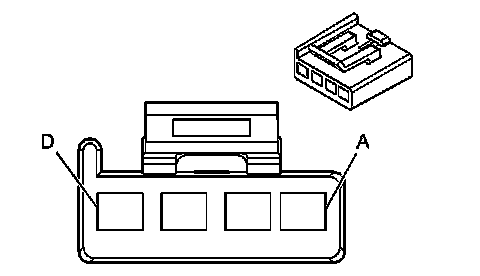

Transfer Case Shift Control Module X3
Transfer Case Shift Control Module - C3:
