Central Control Module



Component Connector End Views - Continued

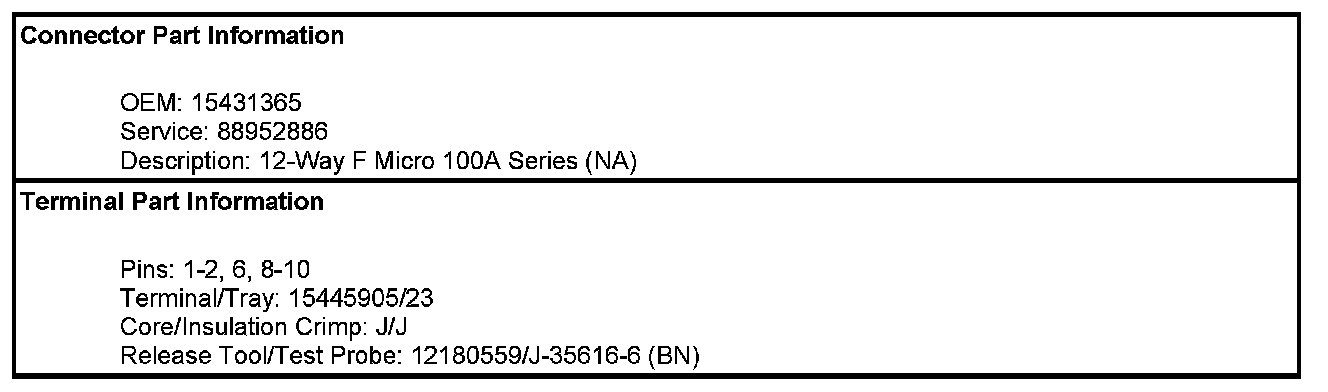

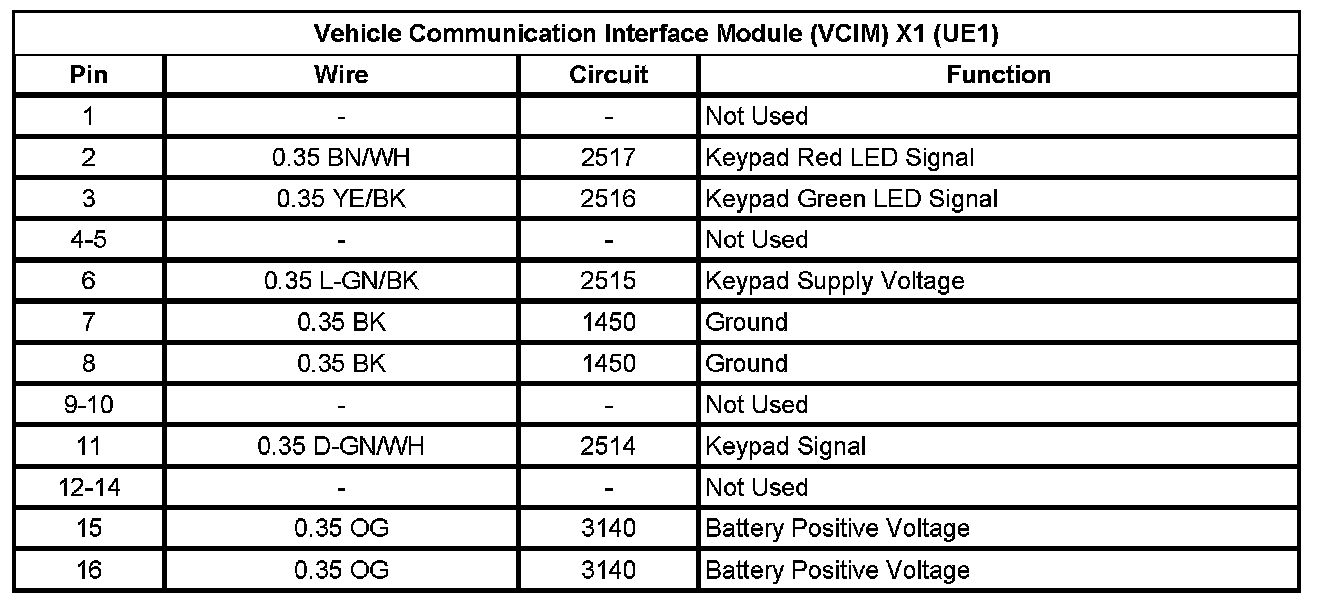

Vehicle Communication Interface Module (VCIM) X1 (UE1)

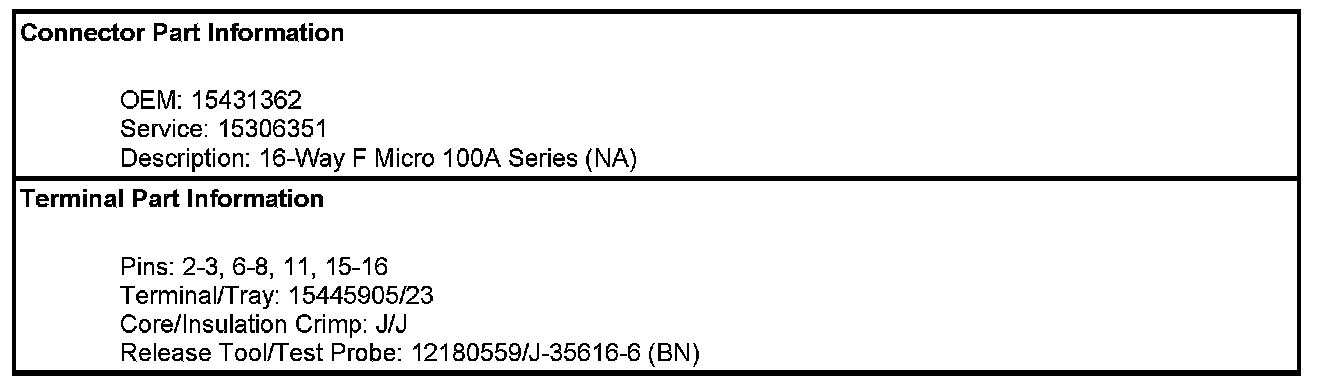

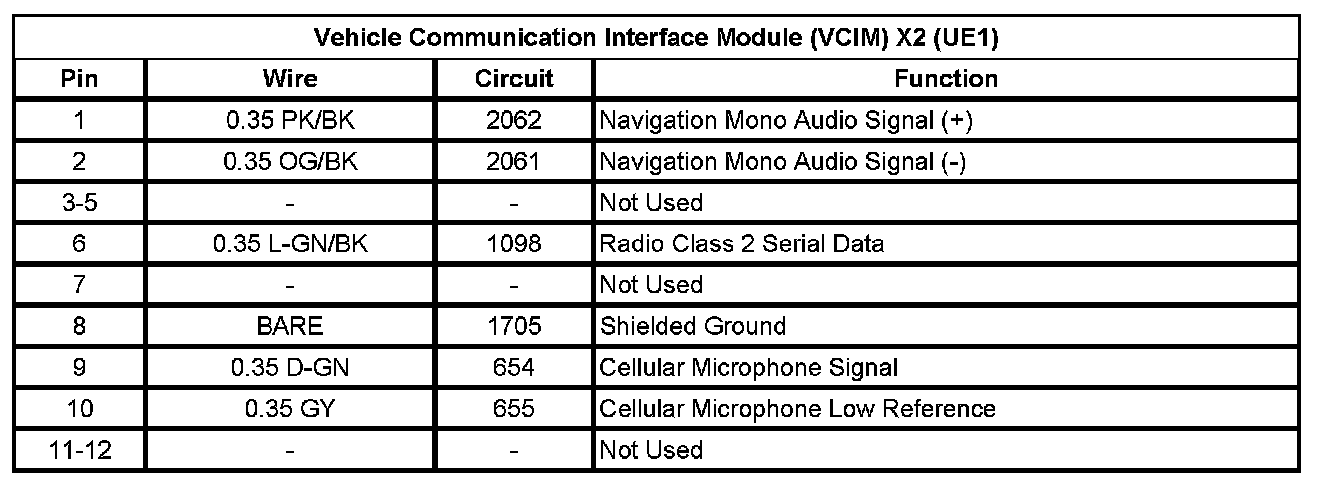

Vehicle Communication Interface Module (VCIM) X2 (UE1)
