Home >> GMC >> 2008 >> Envoy 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

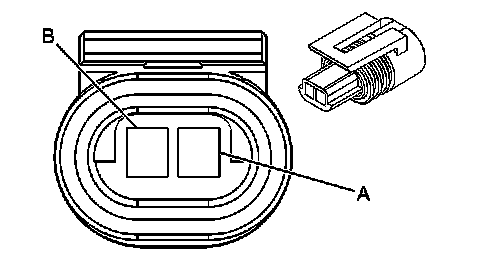

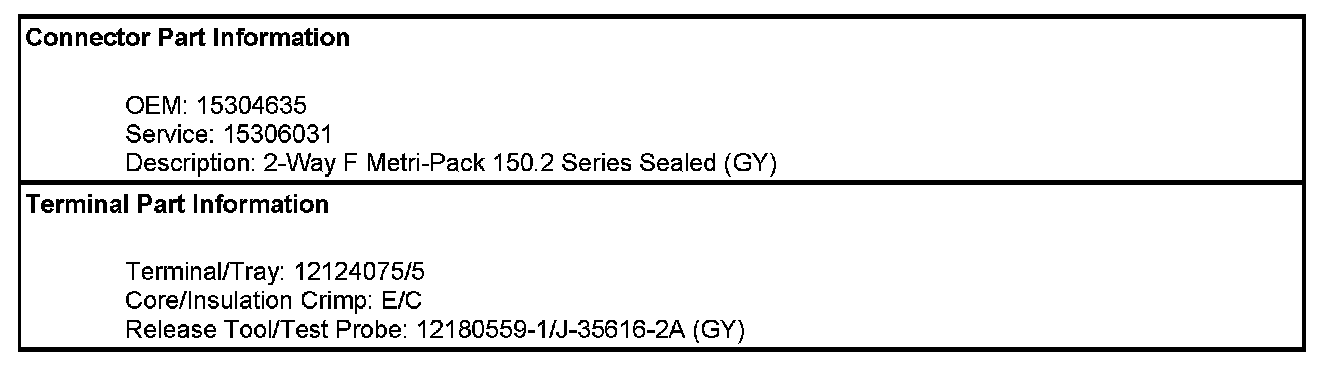

Component Connector End Views

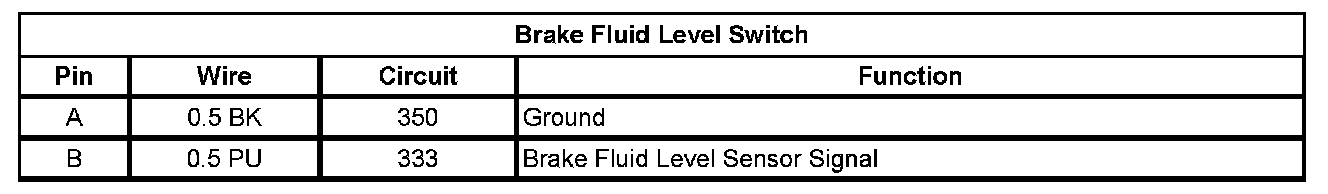

Brake Fluid Level Switch
