Alarm Module, (Vehicle Antitheft)

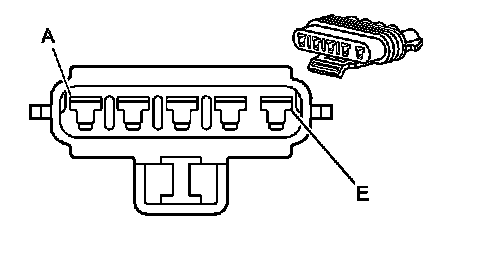

Component Connector End Views - Continued

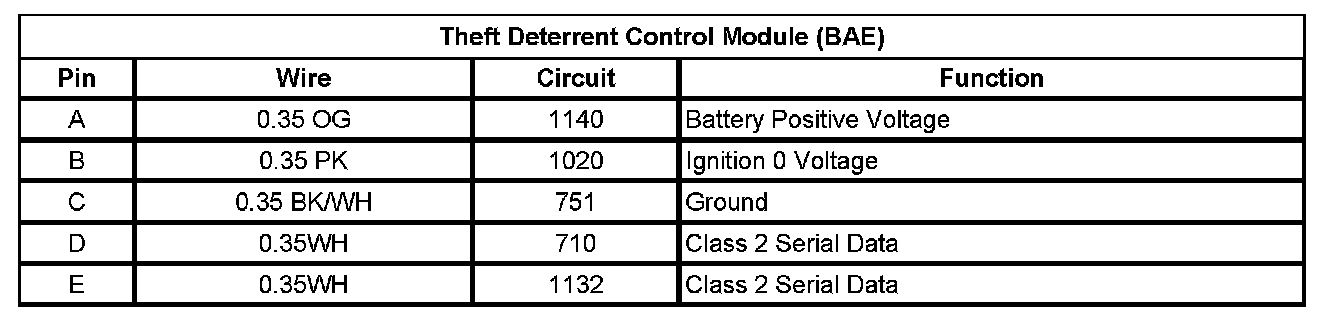

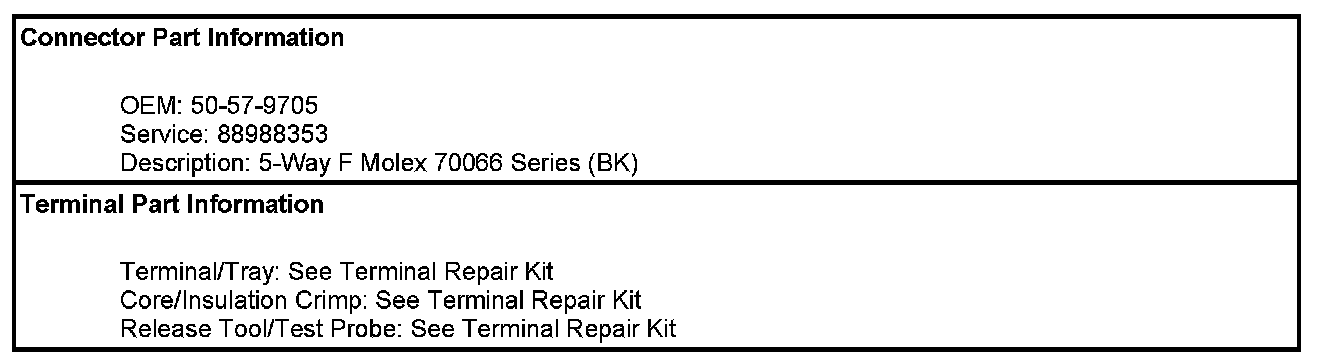

Theft Deterrent Control Module (BAE)
