Home >> GMC >> 2008 >> Envoy 4WD L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

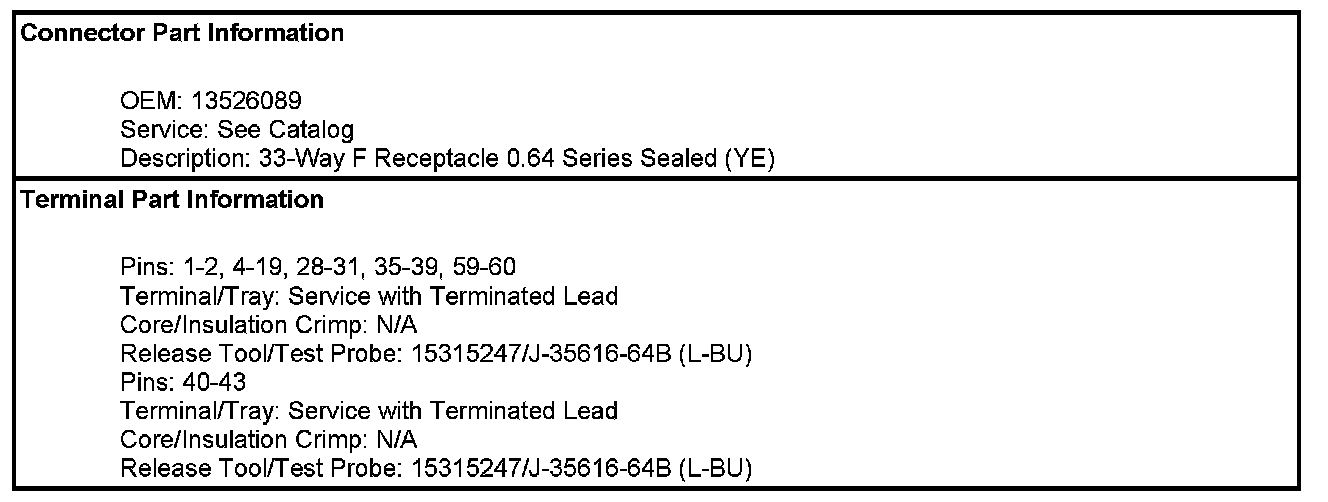

Component Connector End Views - Continued

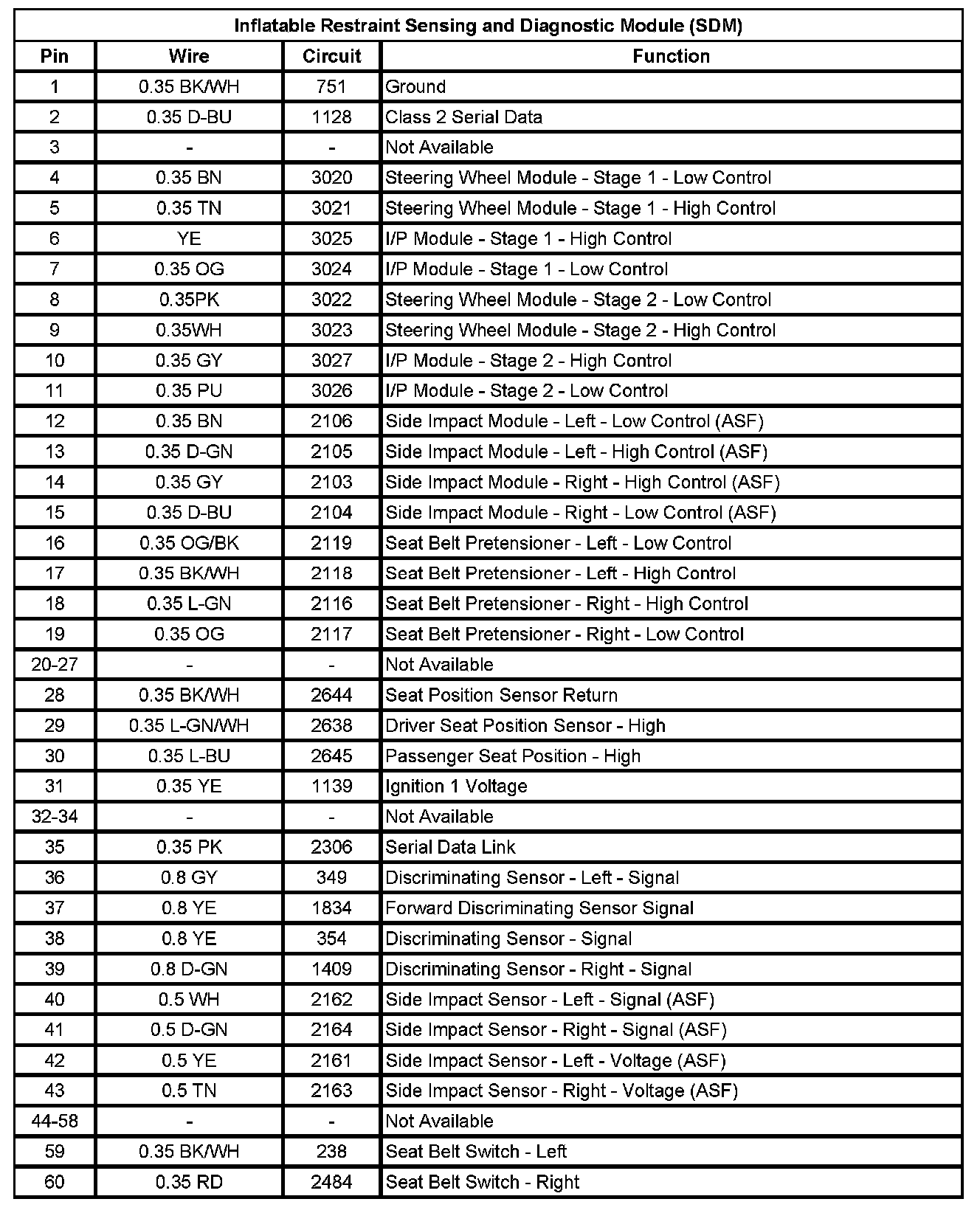

Inflatable Restraint Sensing and Diagnostic Module (SDM)
