Engine Control Module



Component Connector End Views

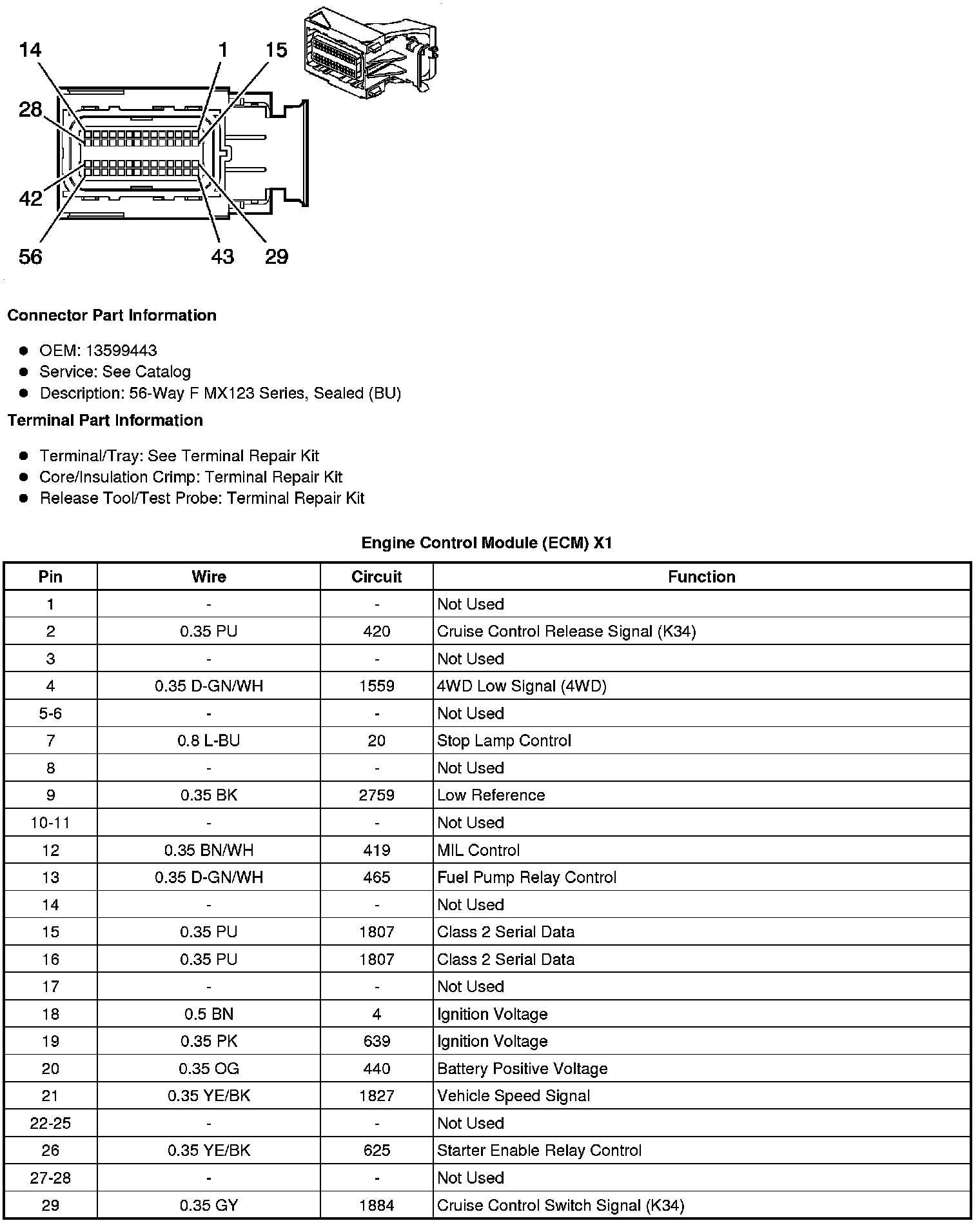

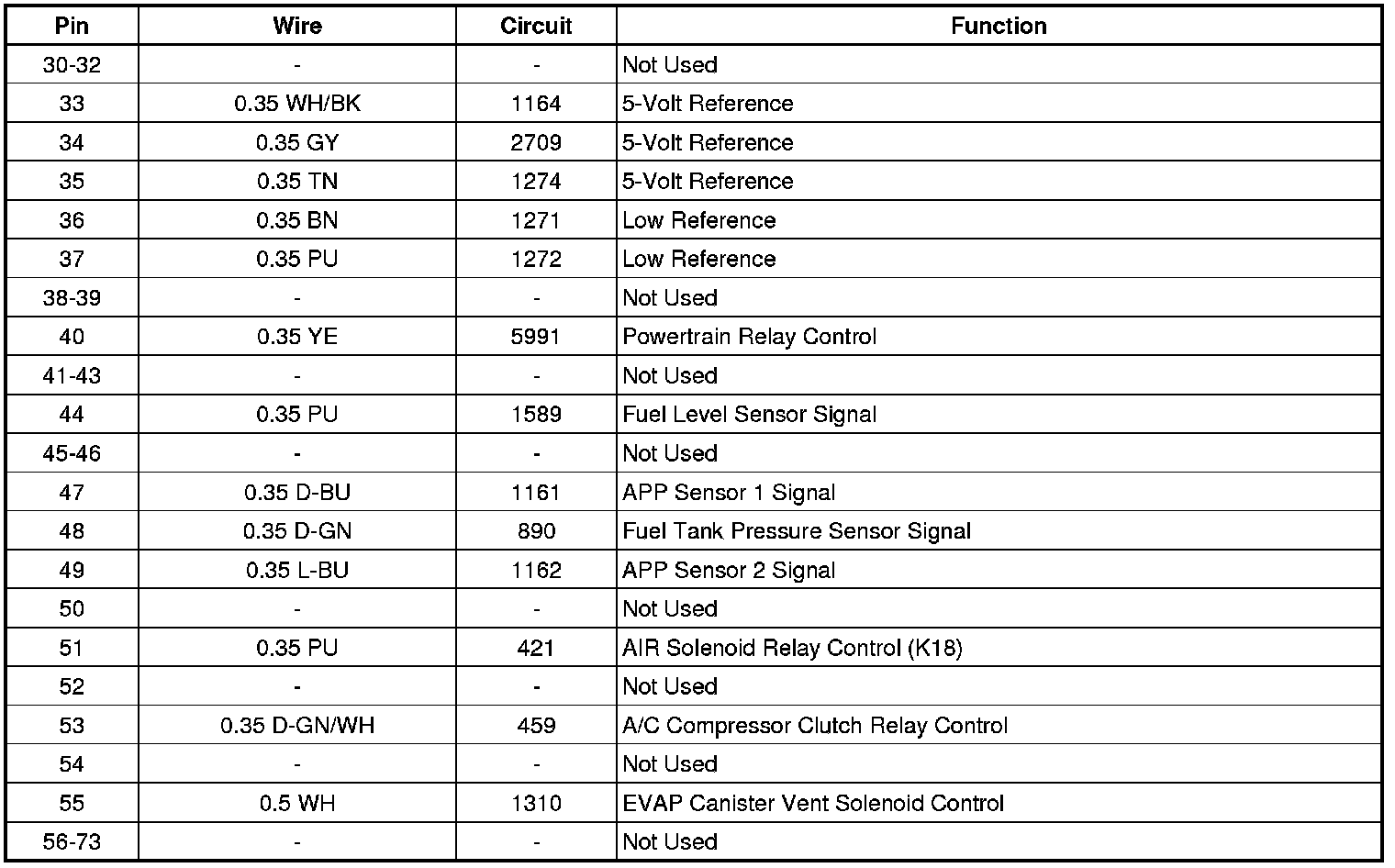

Engine Control Module (ECM) X1

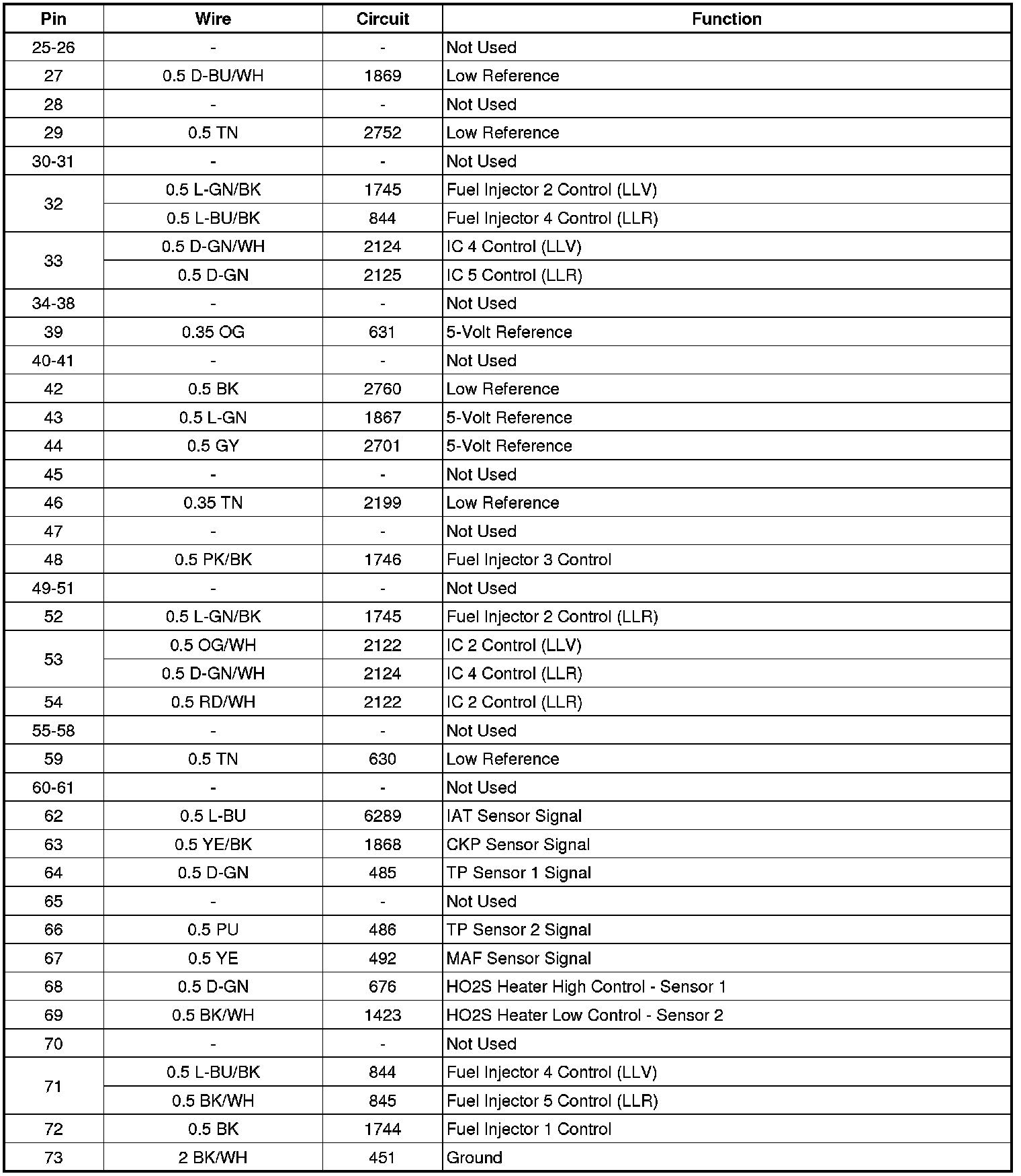

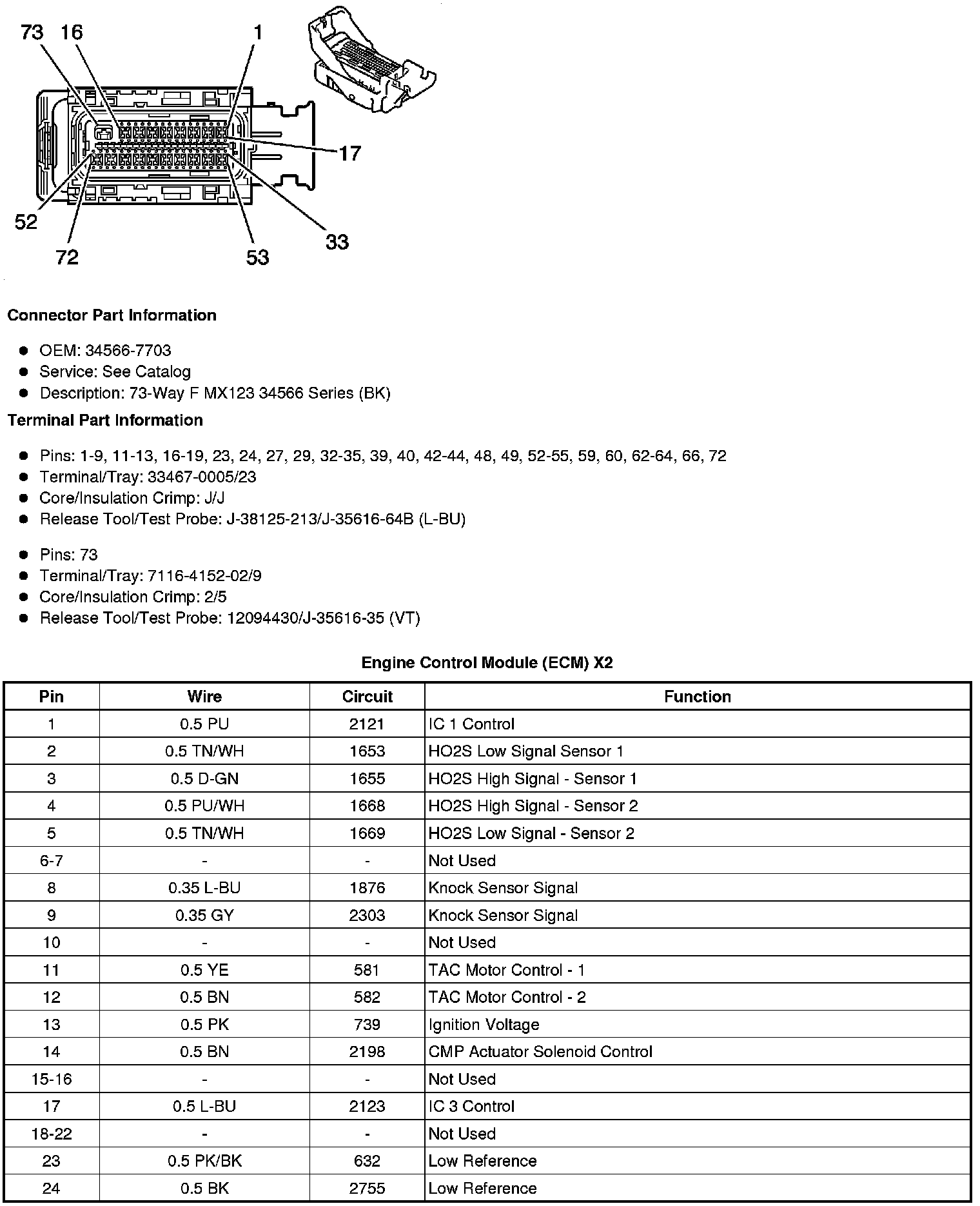

Engine Control Module (ECM) X2

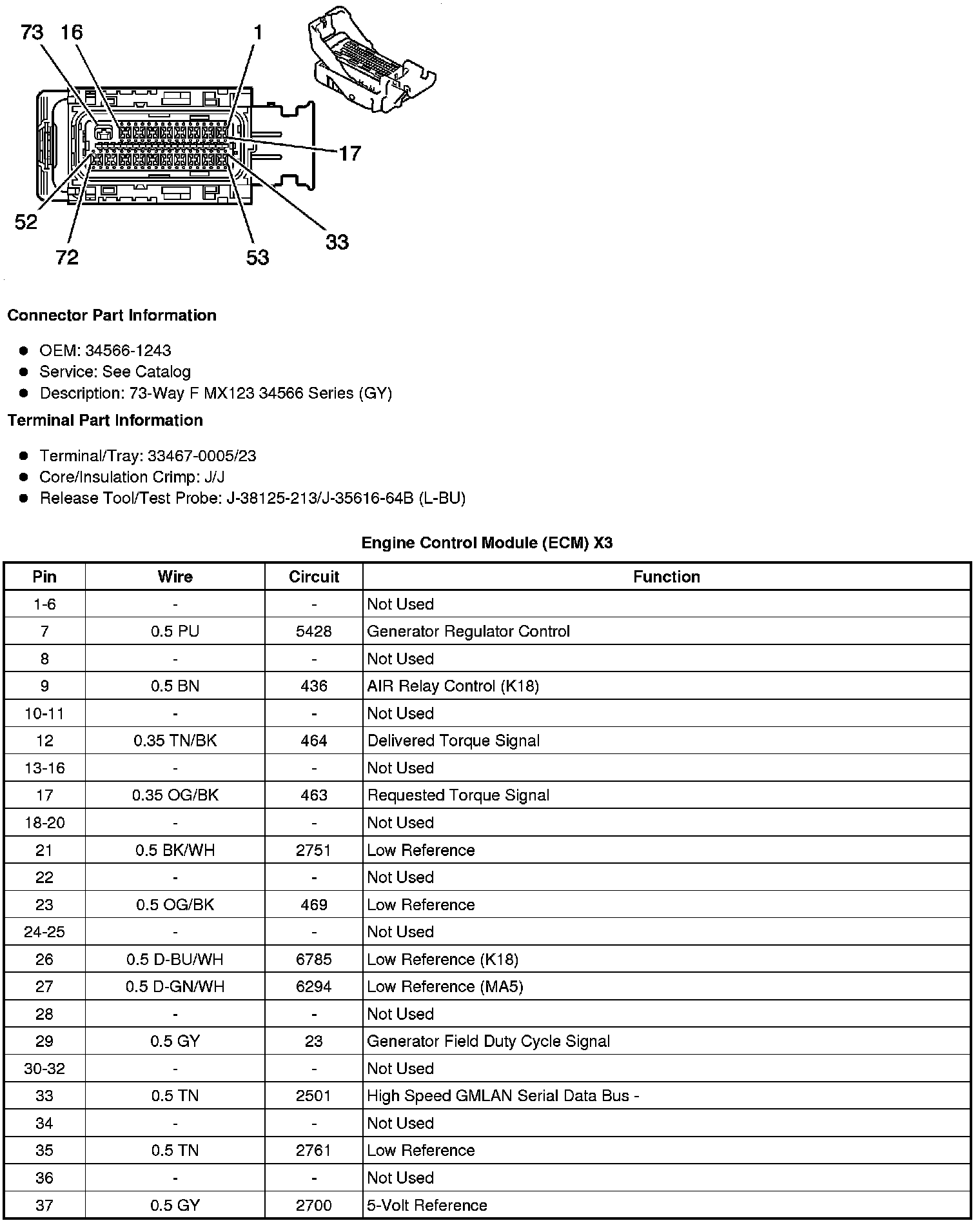

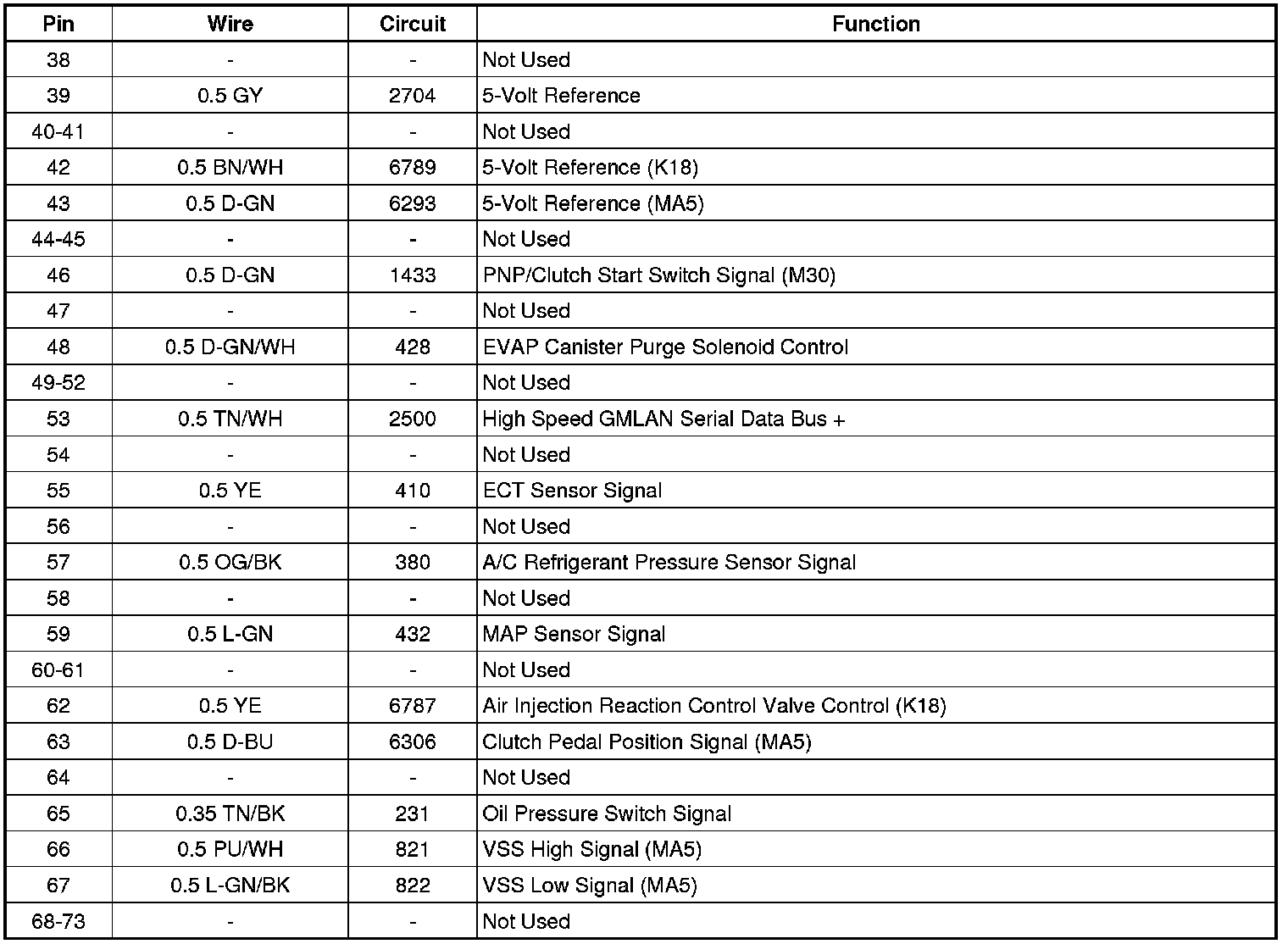

Engine Control Module (ECM) X3
