Communications Control Module



Component Connector End Views

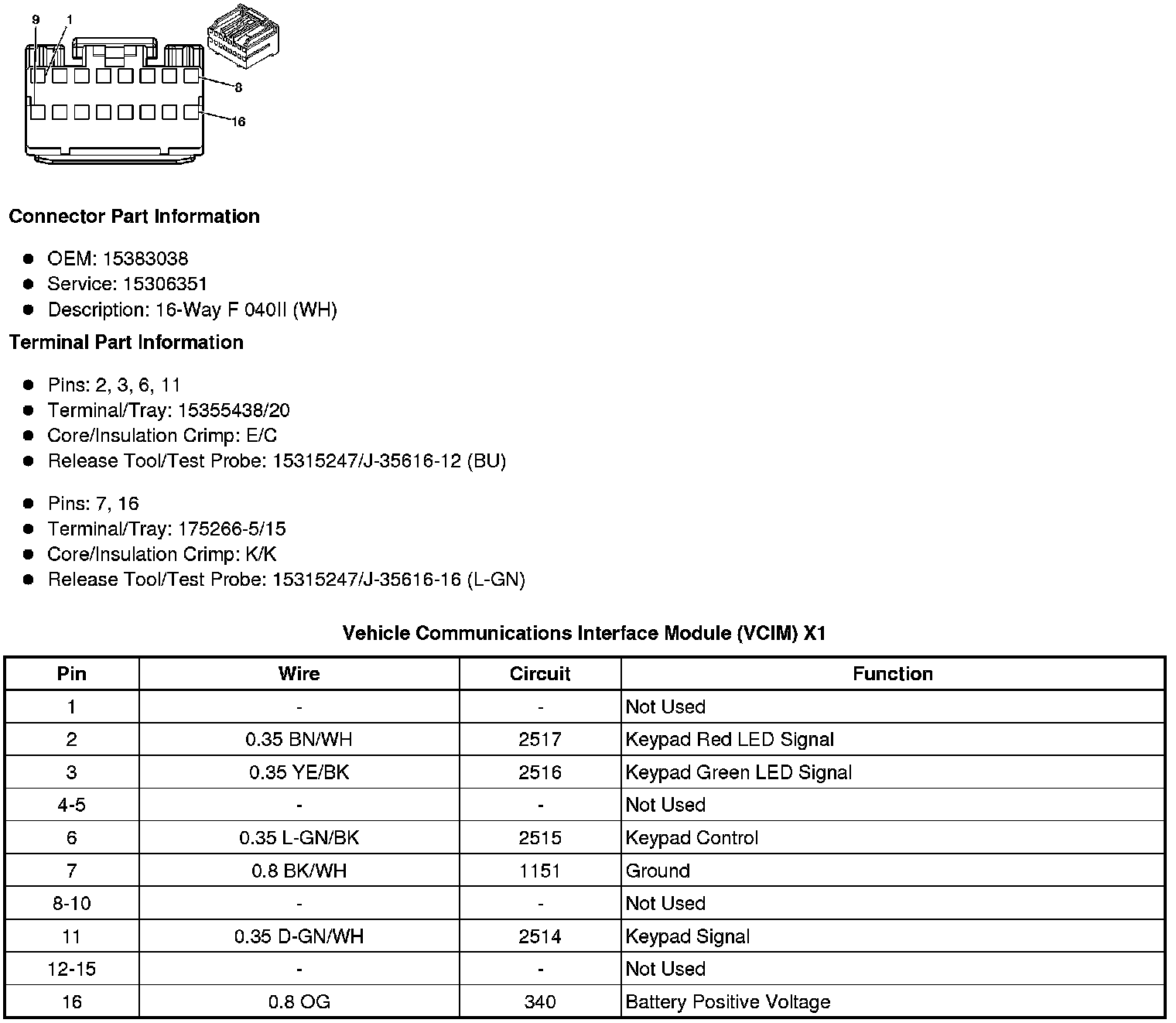

Vehicle Communications Interface Module (VCIM) X1

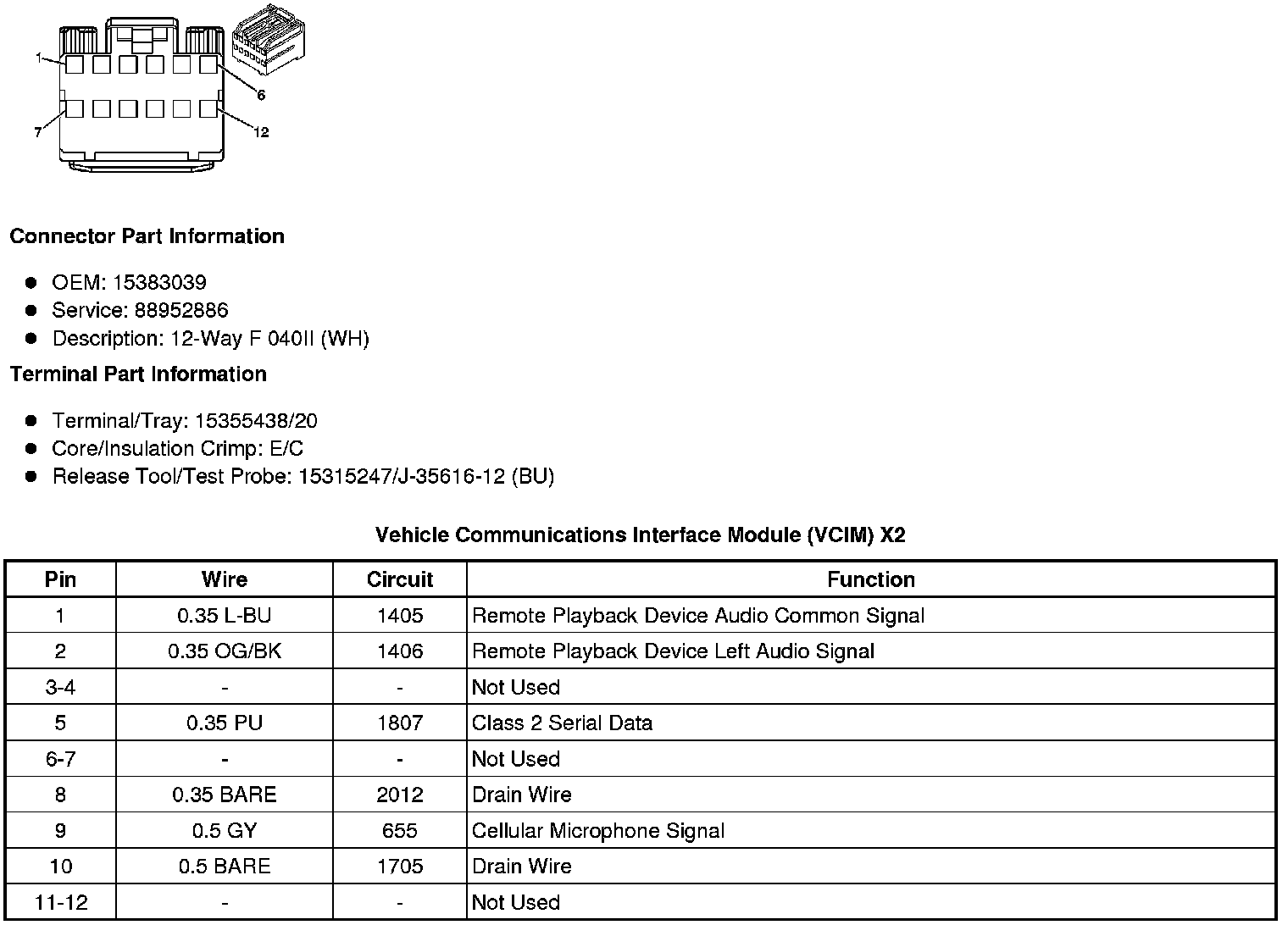

Vehicle Communications Interface Module (VCIM) X2
