Service Specifications

ENGINE SPECIFICATIONS

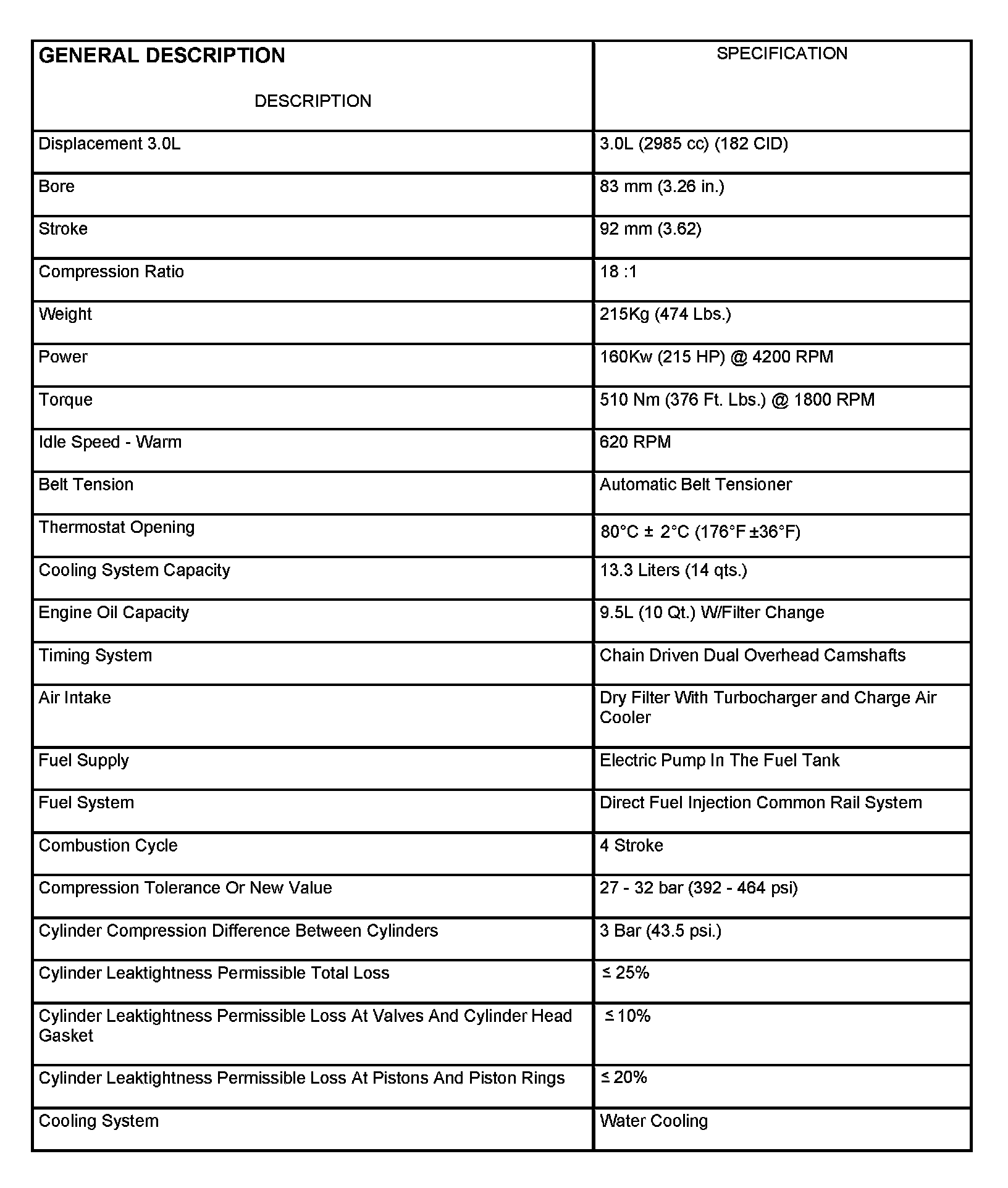

General Description (Part 1):

General Description (Part 1)

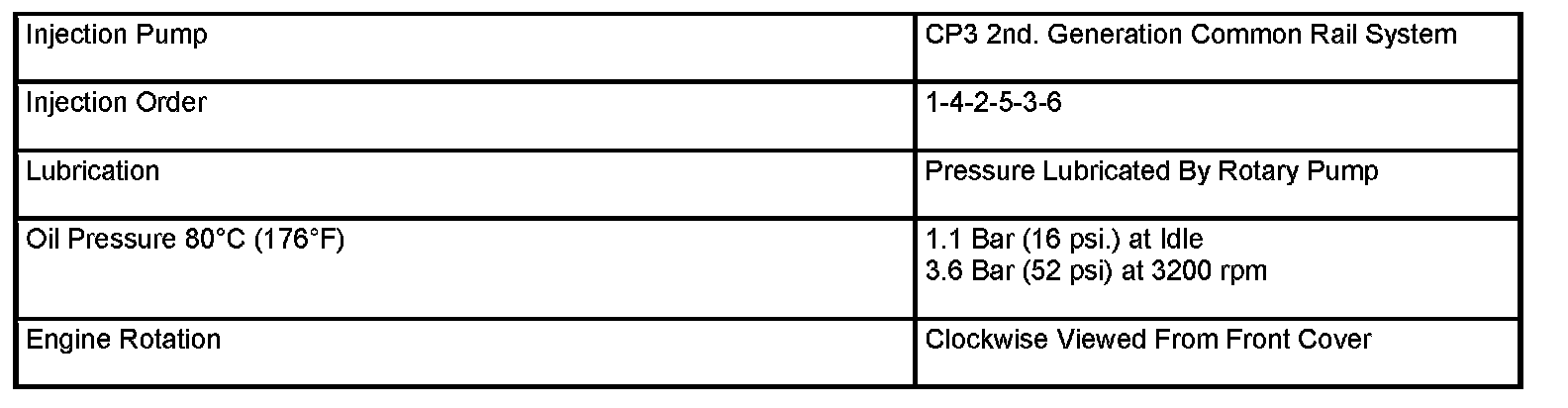

General Description (Part 2):

General Description (Part 2)

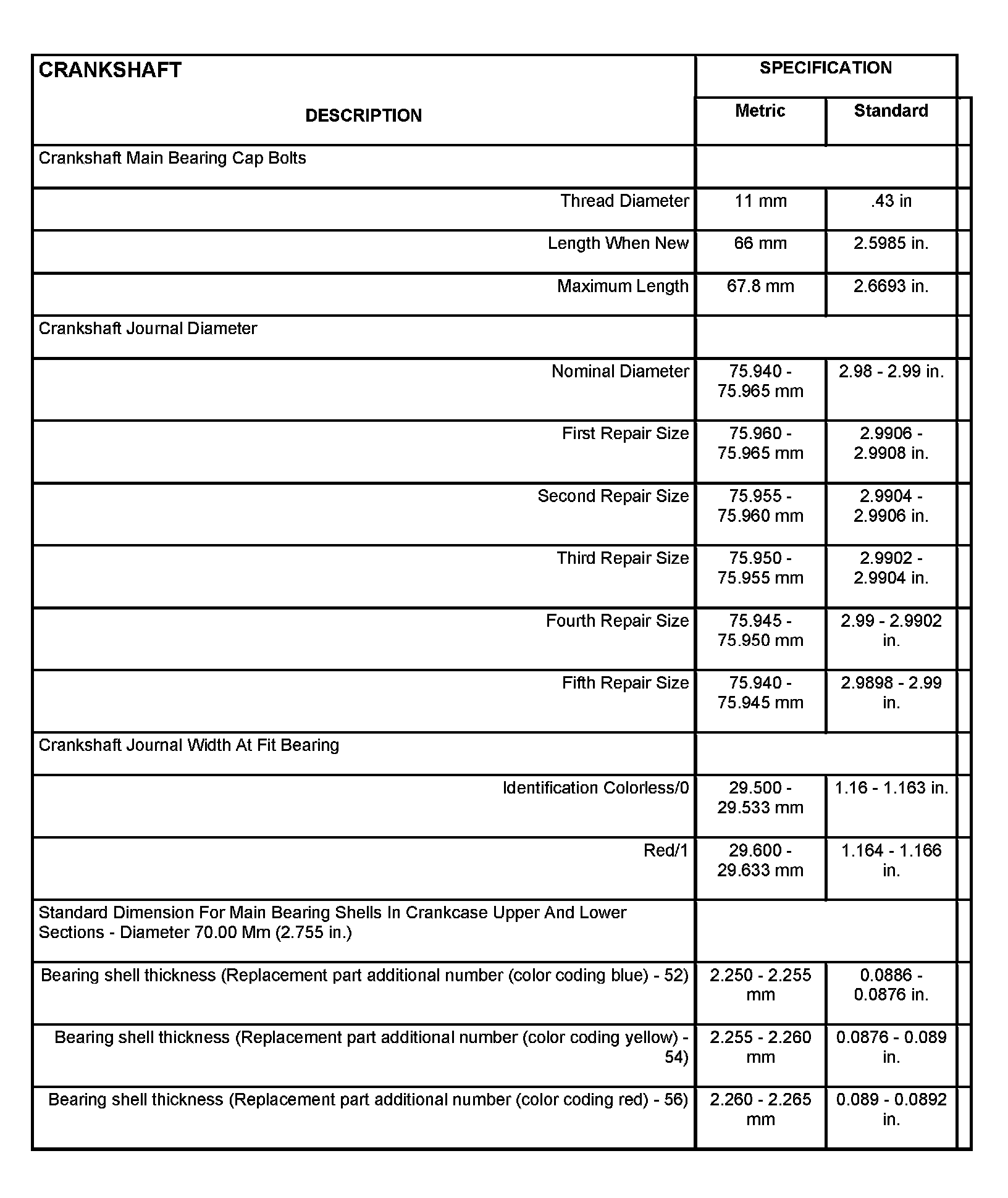

Crankshaft (Part 1):

Crankshaft (Part 1)

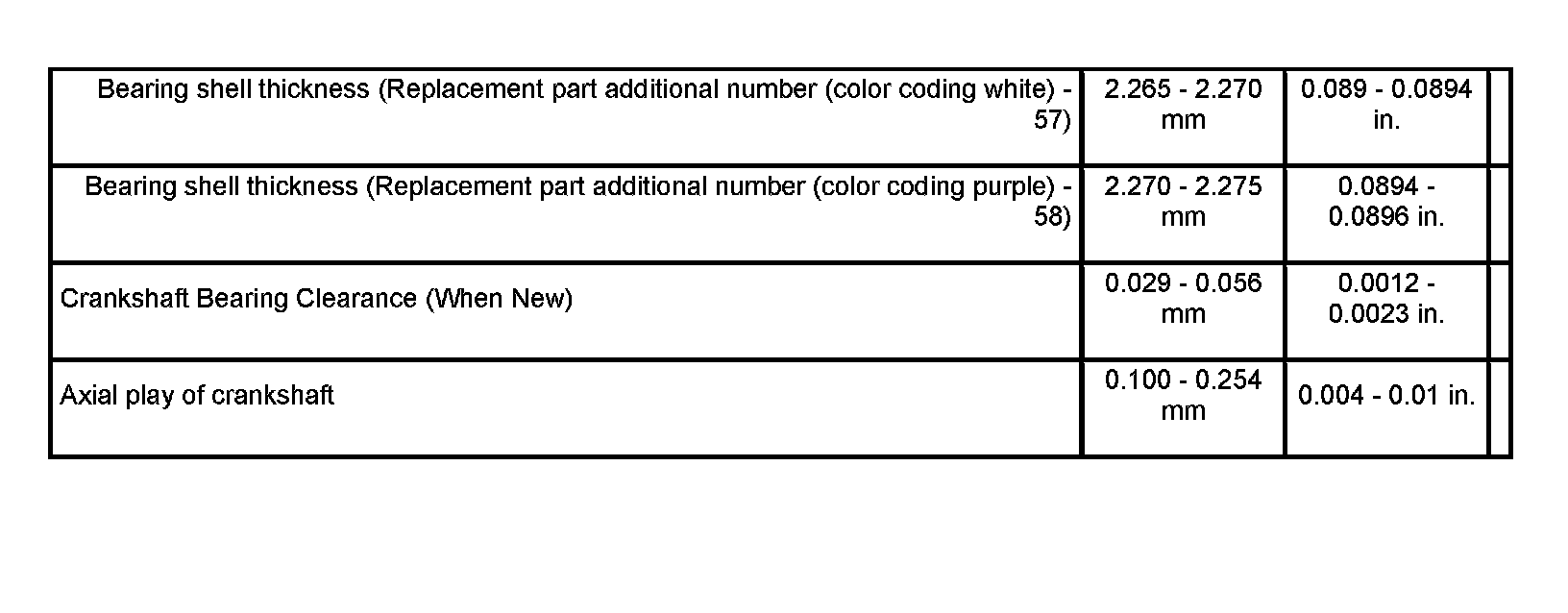

Crankshaft (Part 2):

Crankshaft (Part 2)

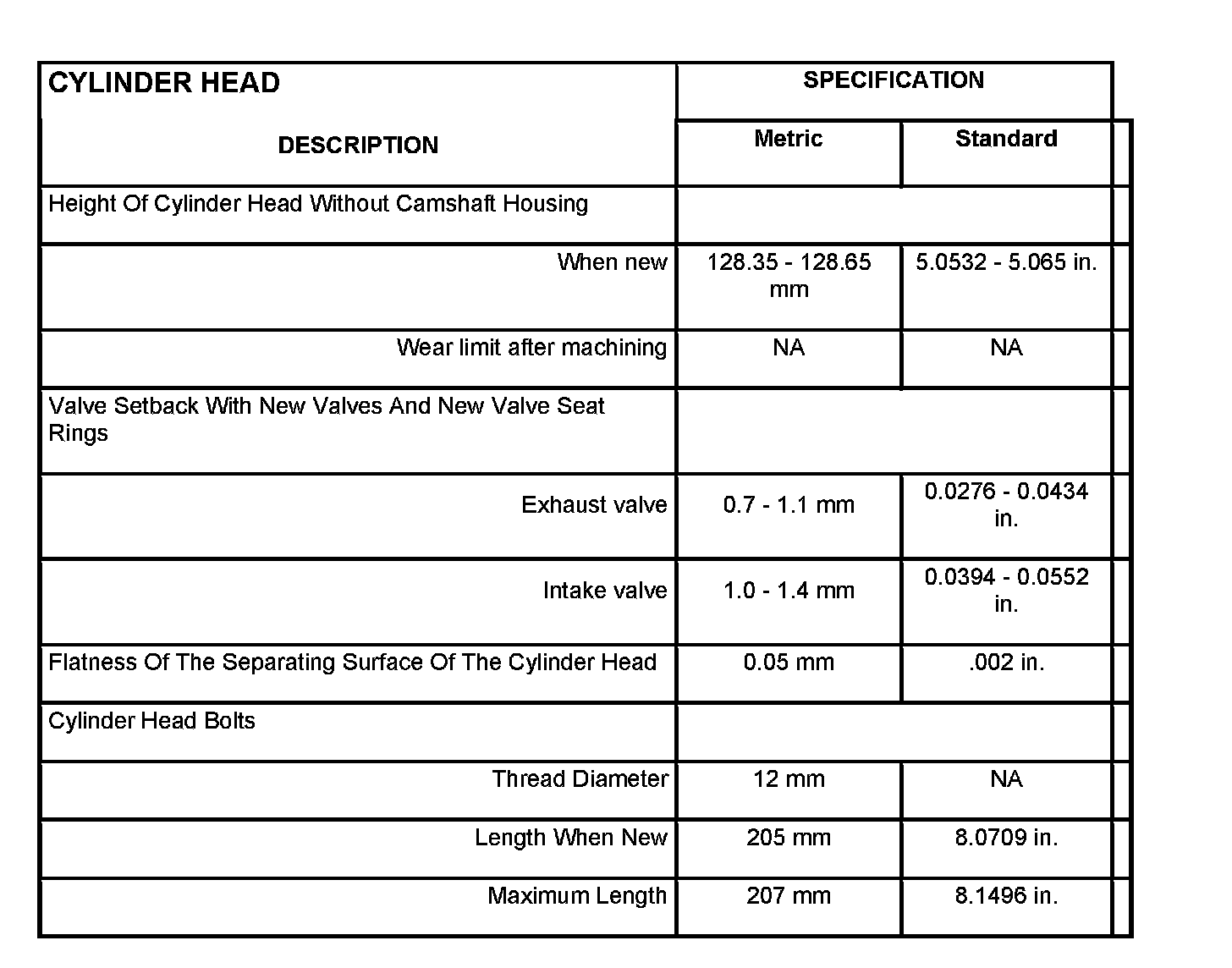

Cylinder Head:

Cylinder Head

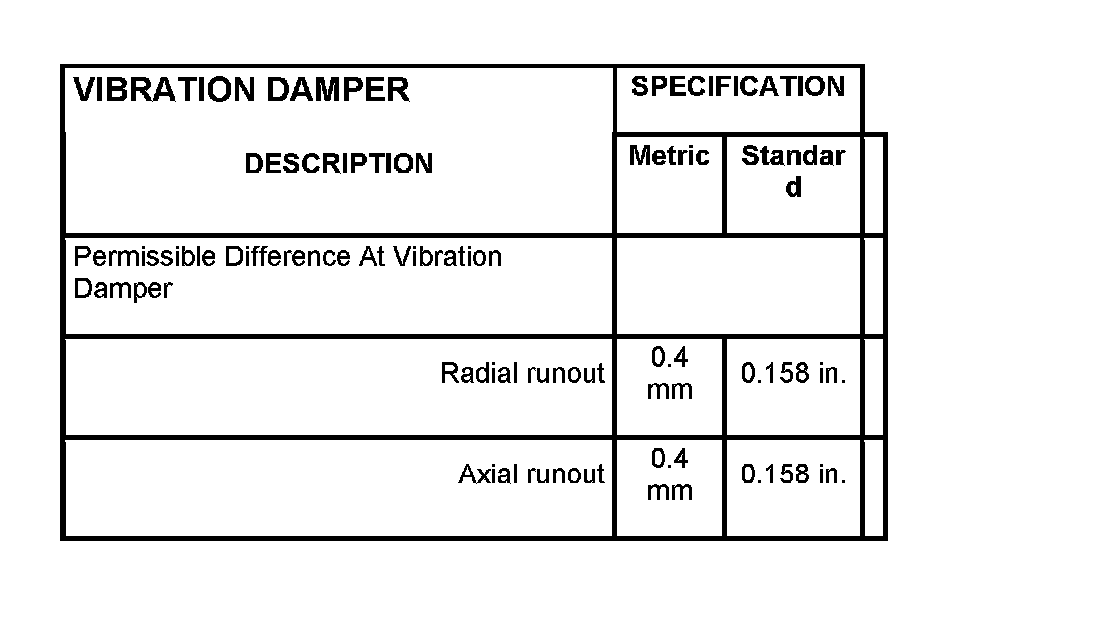

Vibration Damper:

Vibration Damper

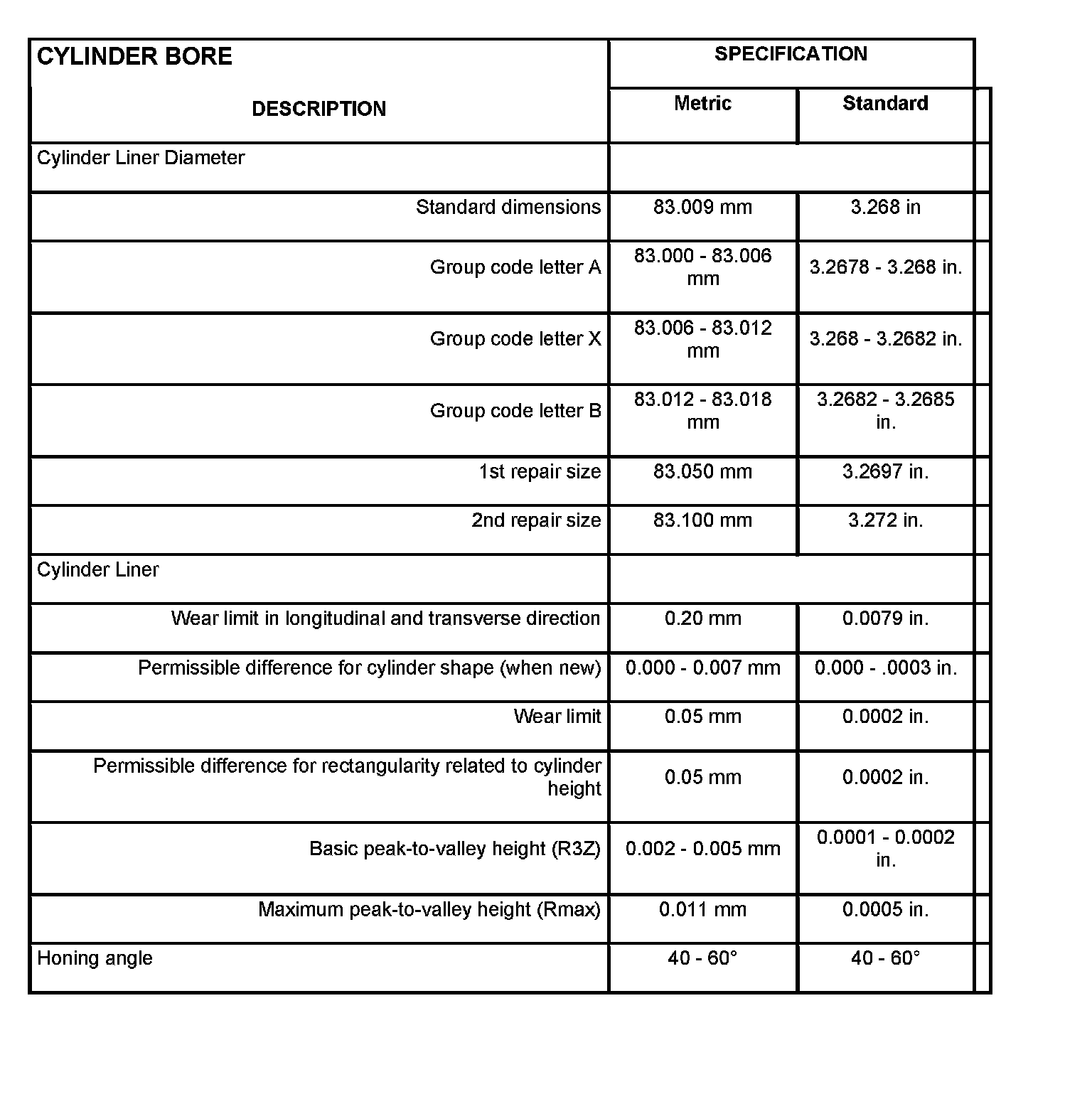

Cylinder Bore:

Cylinder Bore

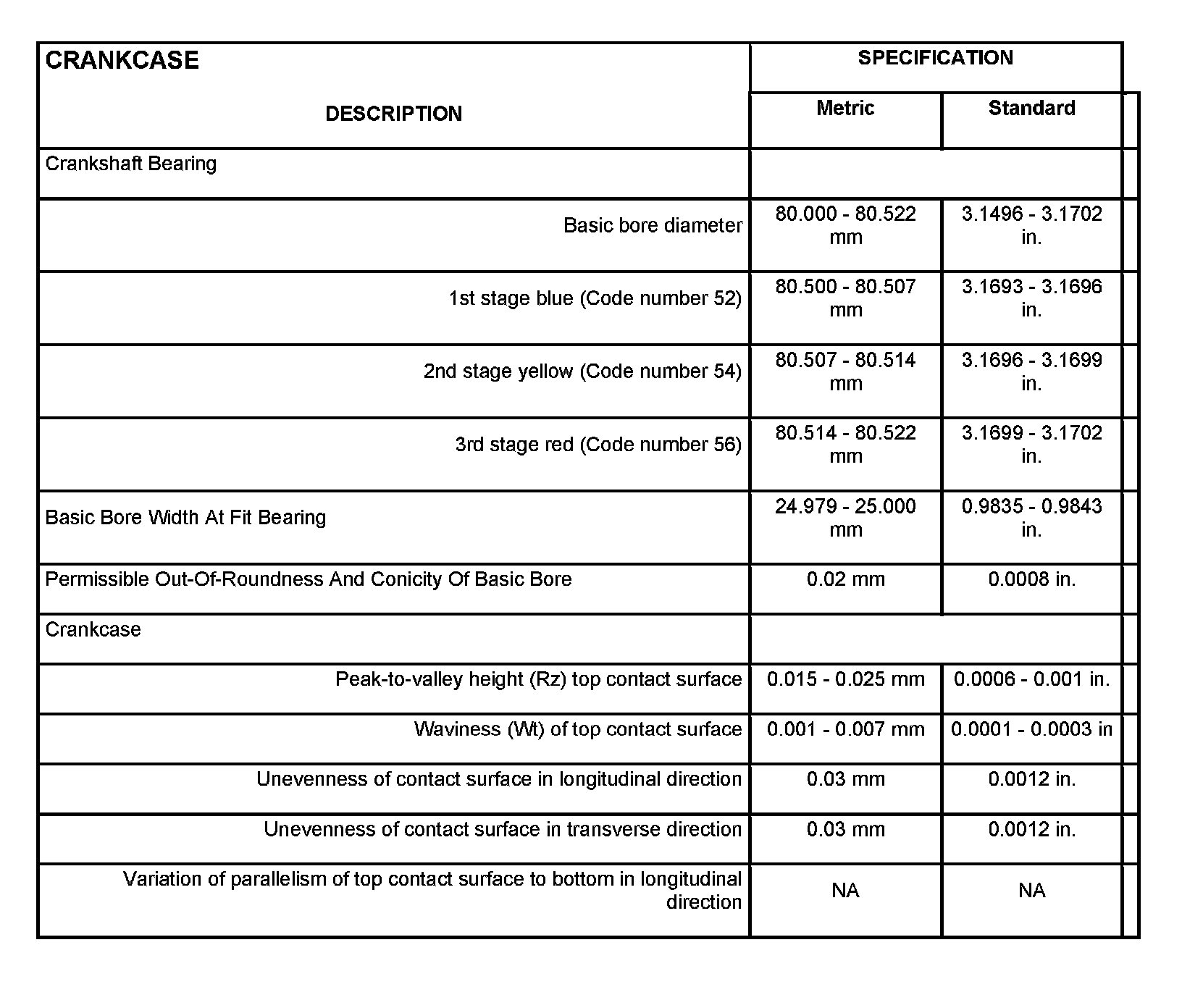

Crankcase:

Crankcase

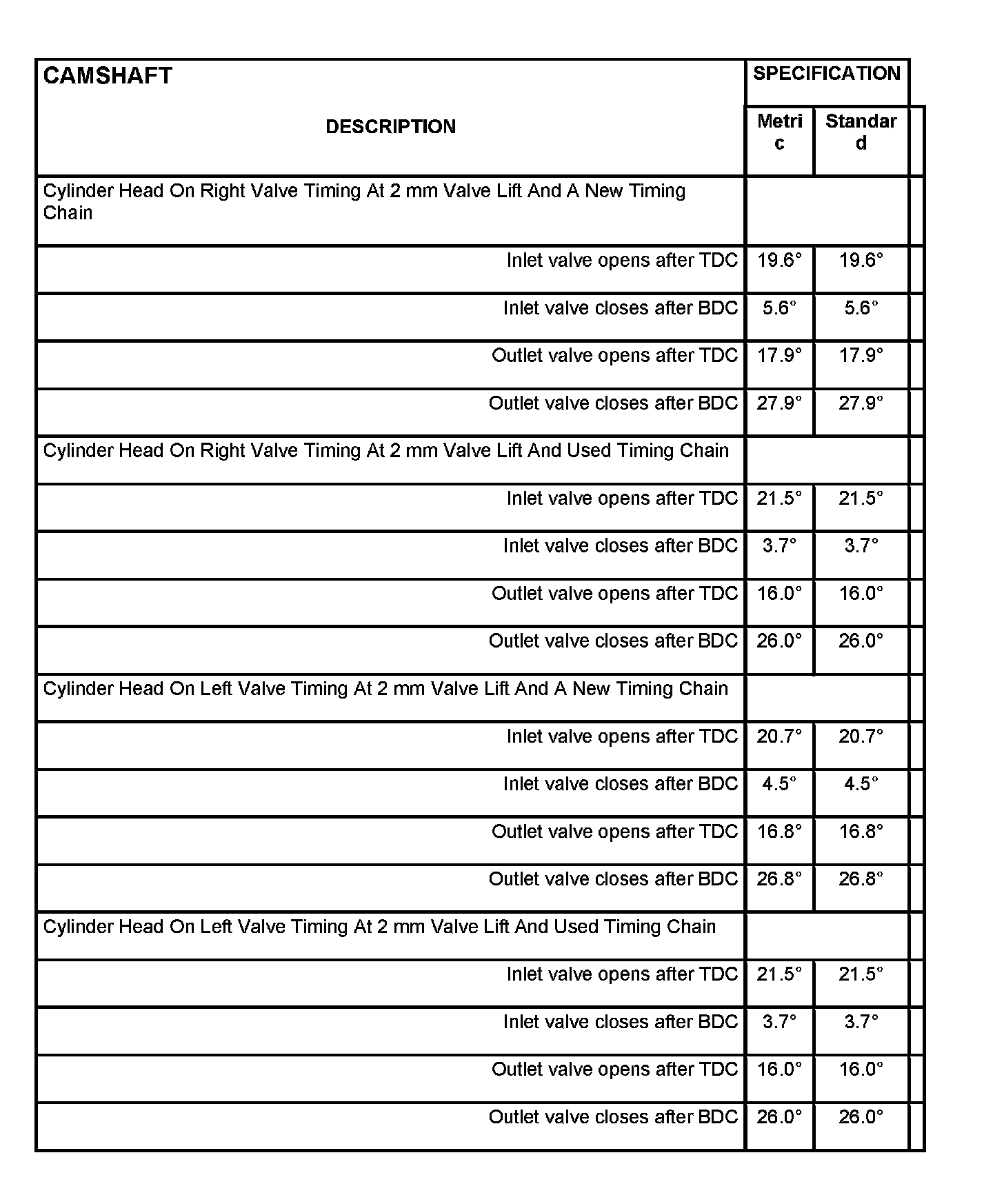

Camshaft:

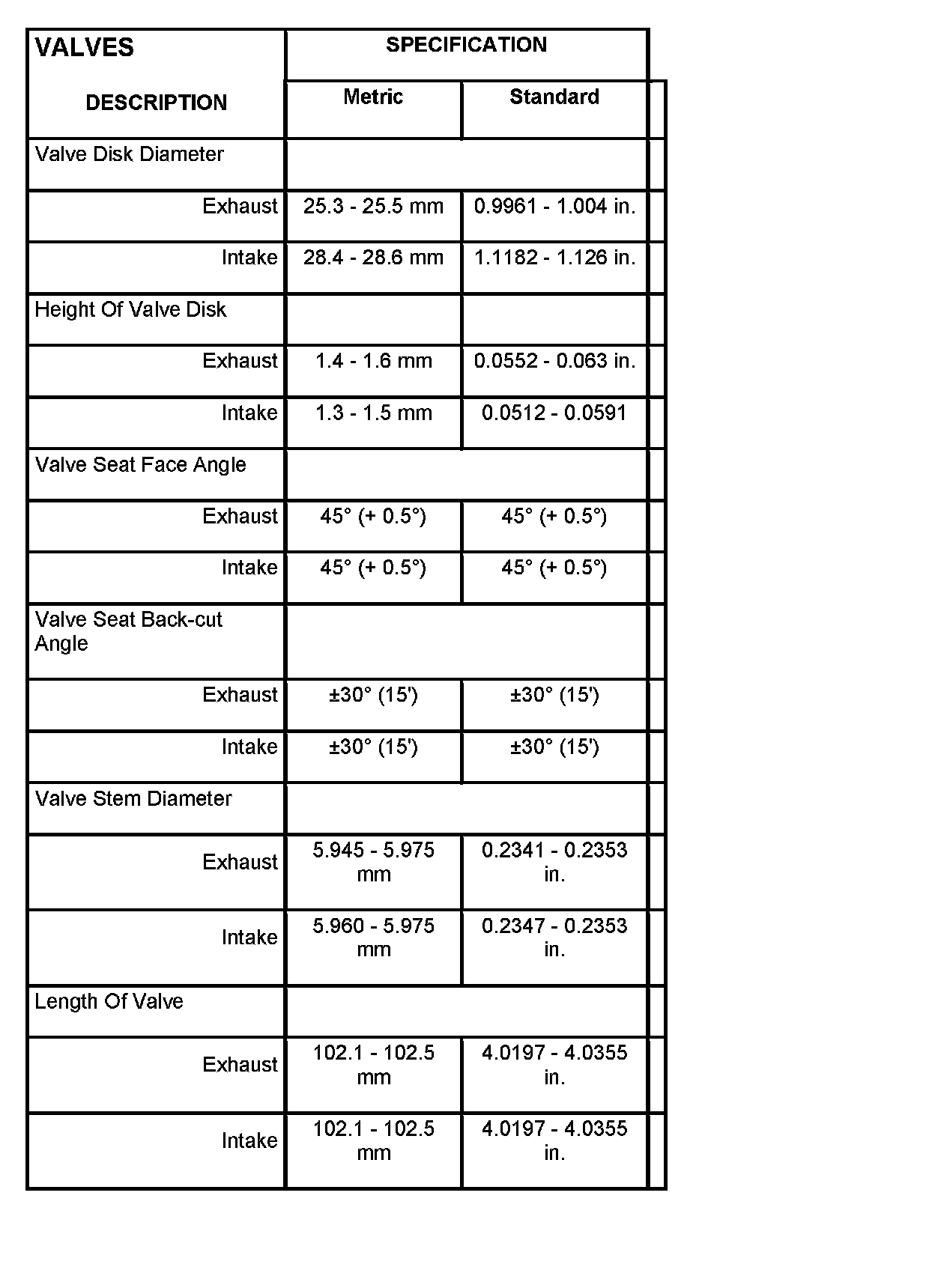

Valves:

Valves

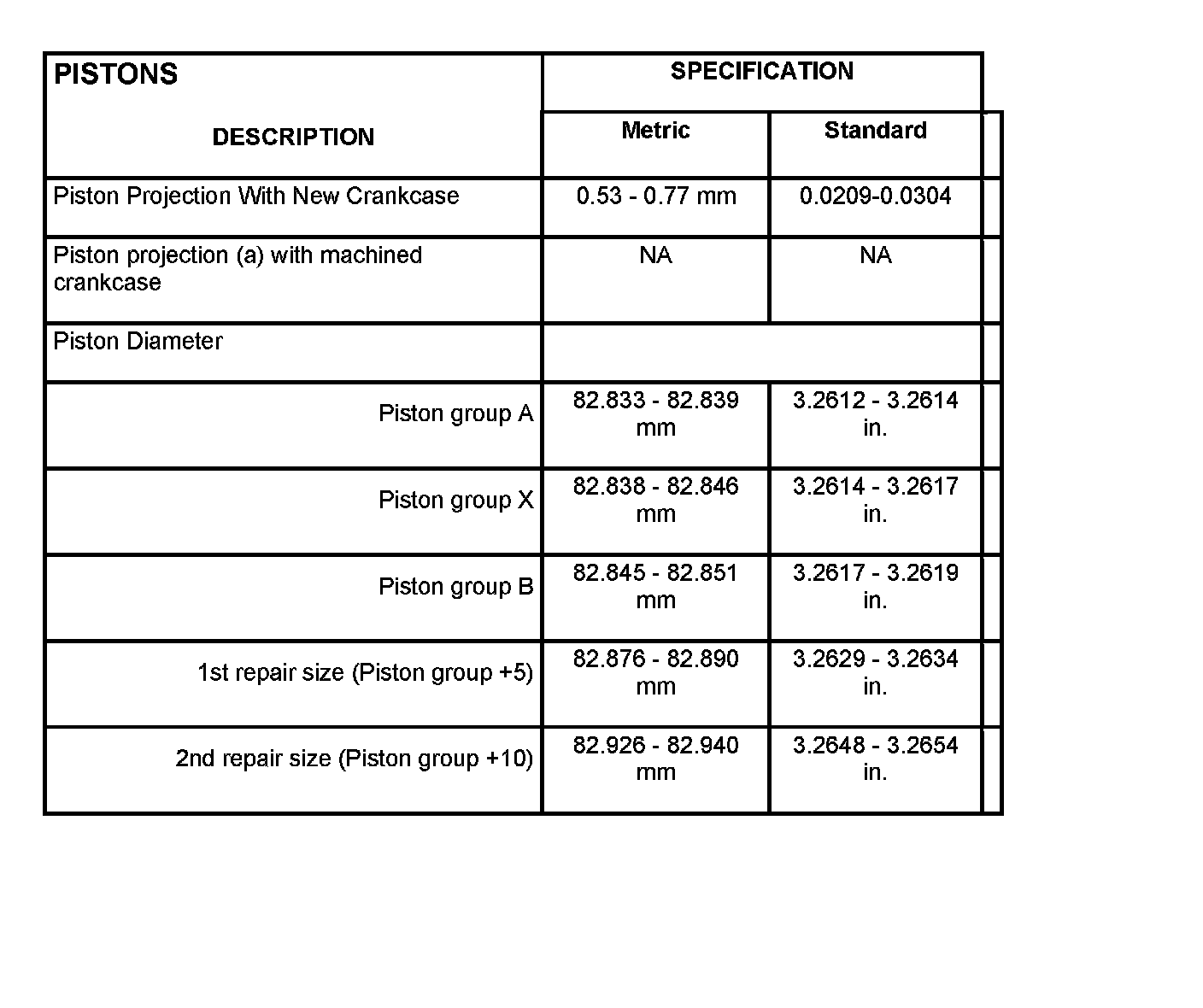

Pistons:

Pistons

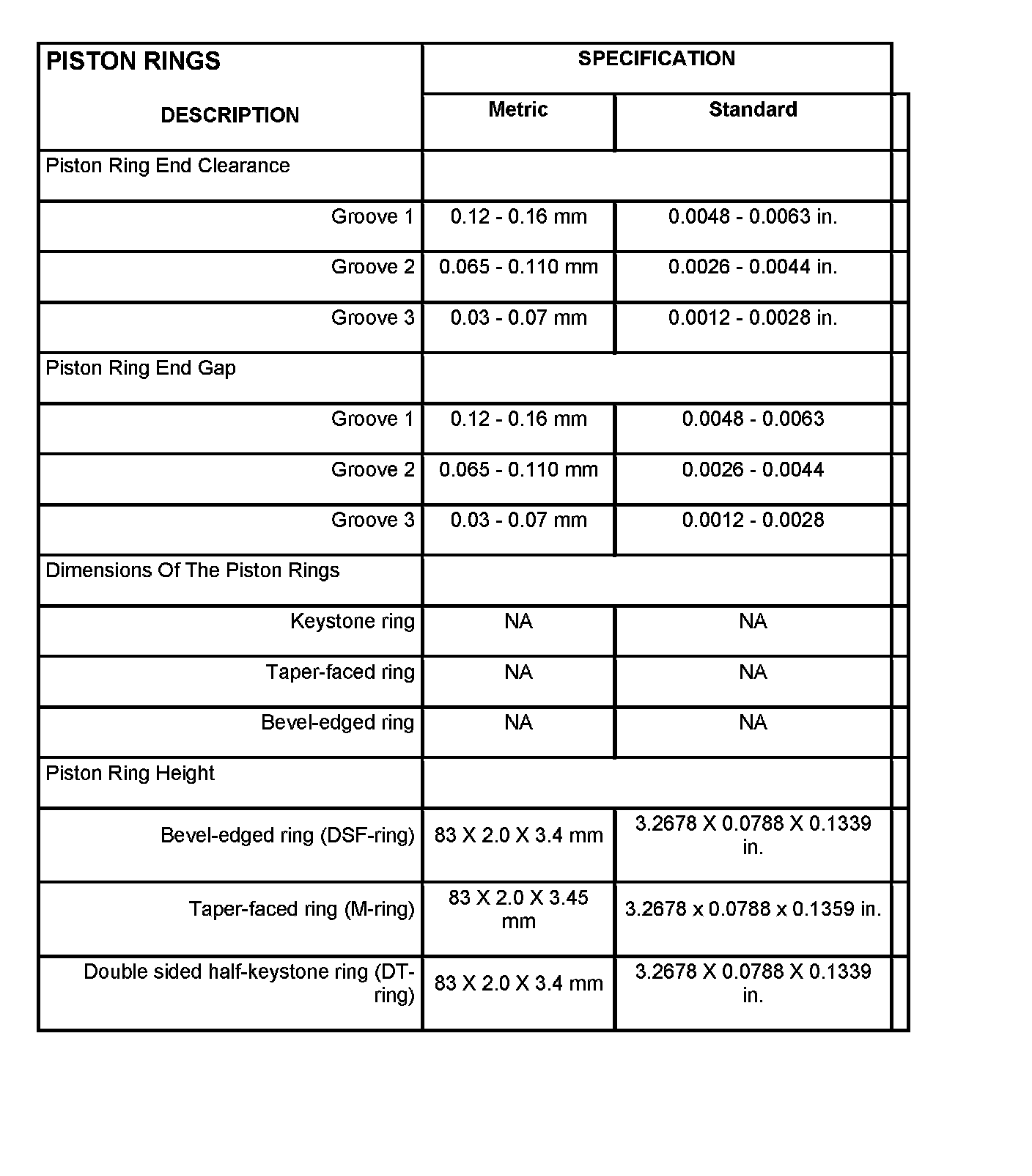

Piston Rings:

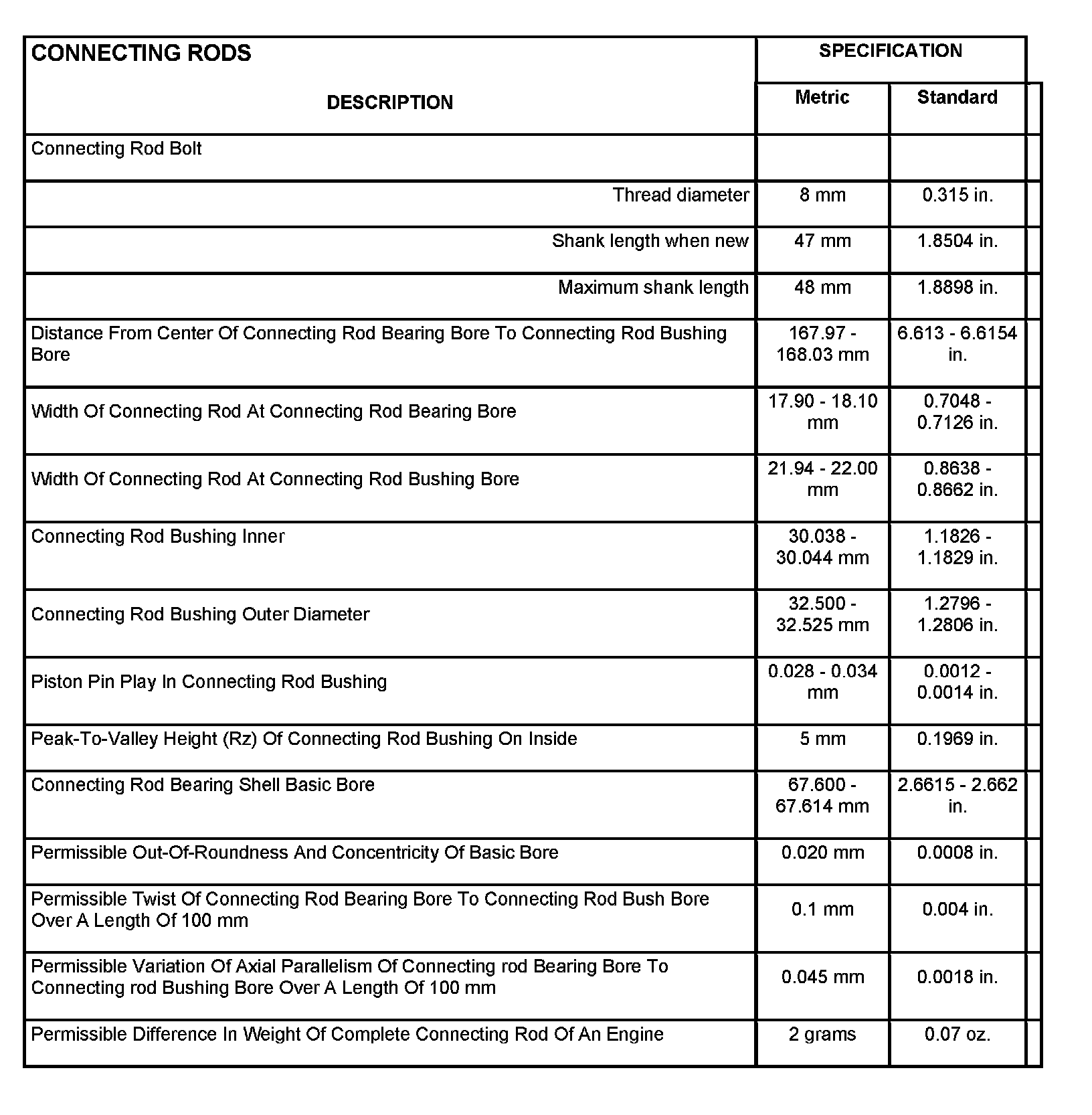

Connecting Rods:

Connecting Rods
