Home >> Freightliner >> 2007 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications






SPECIFICATIONS - NAG1 AUTOMATIC TRANSMISSION

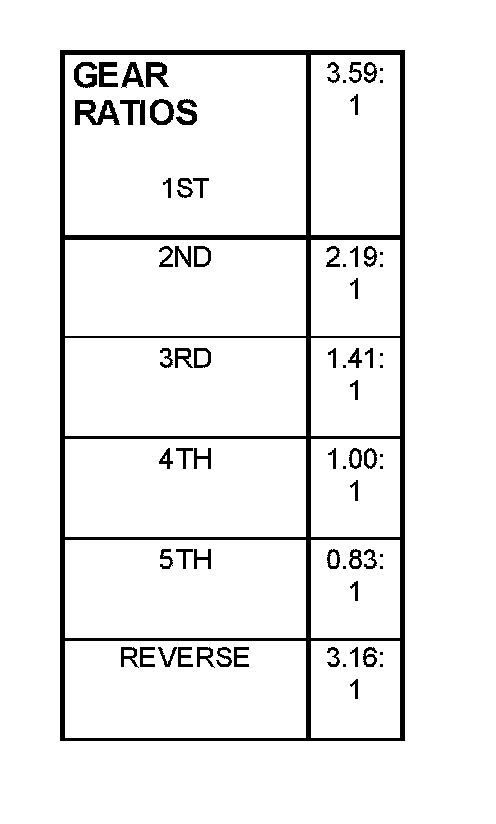

Gear Ratios:

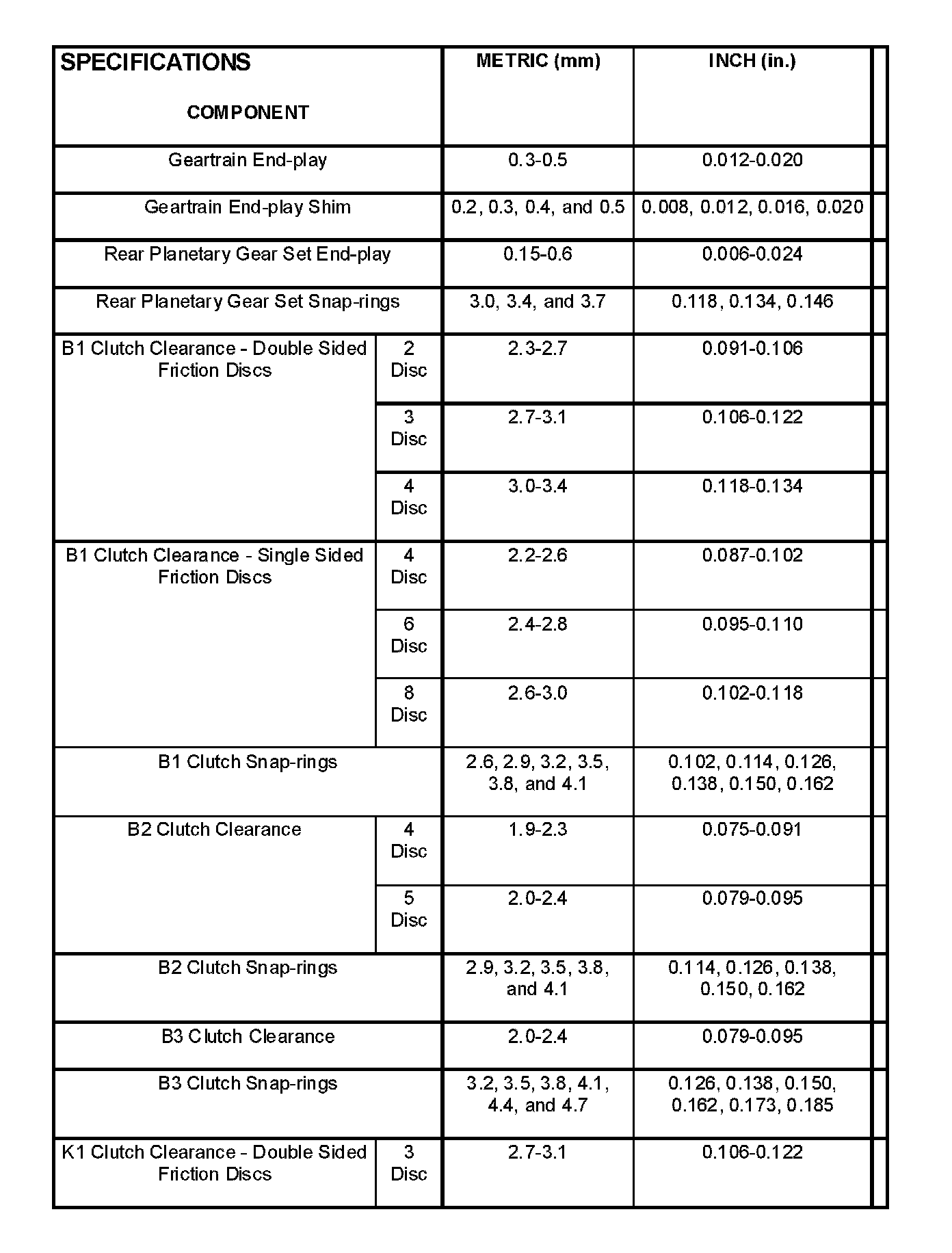

Specifications (Part 1):

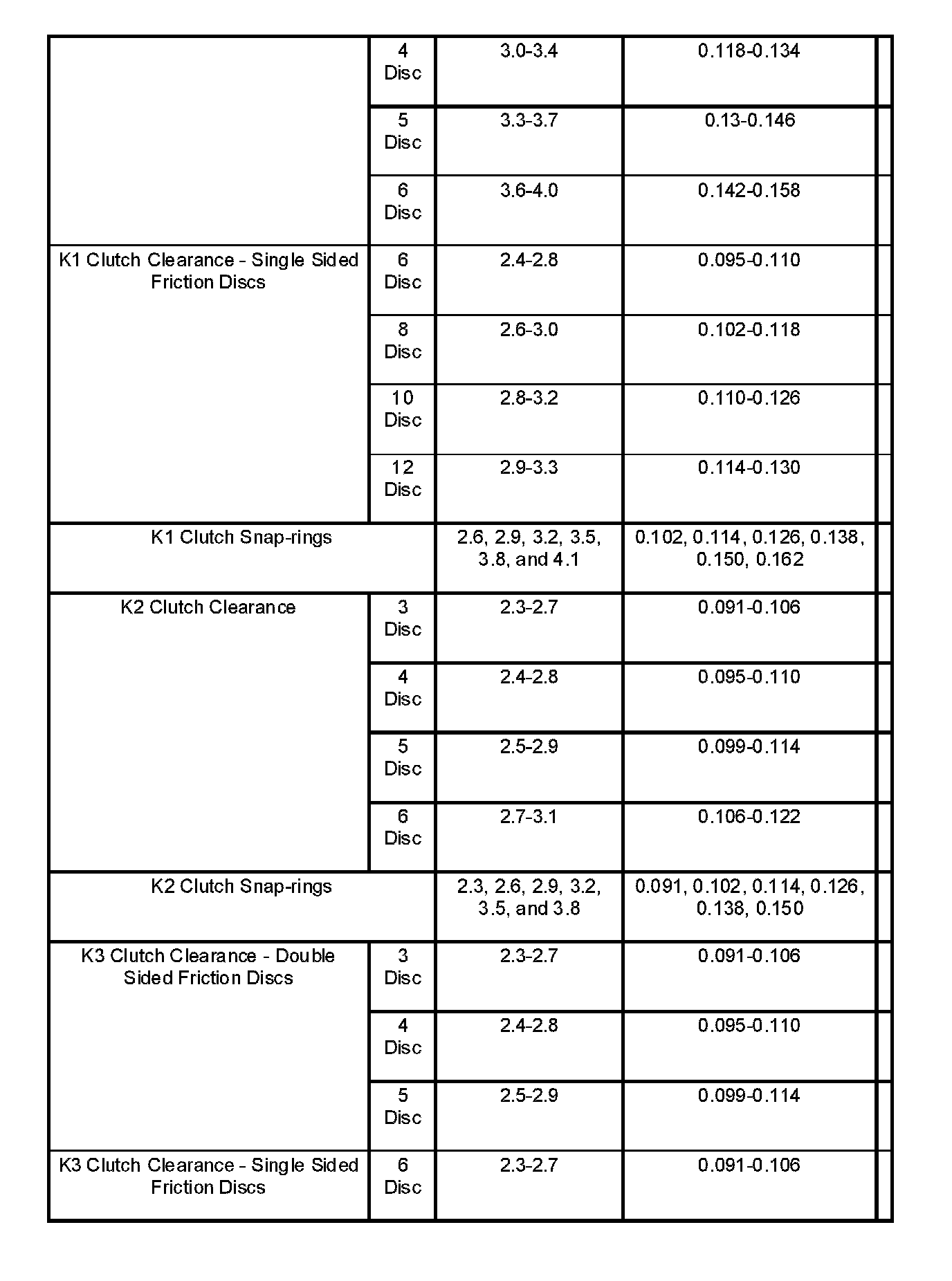

Specifications (Part 2):

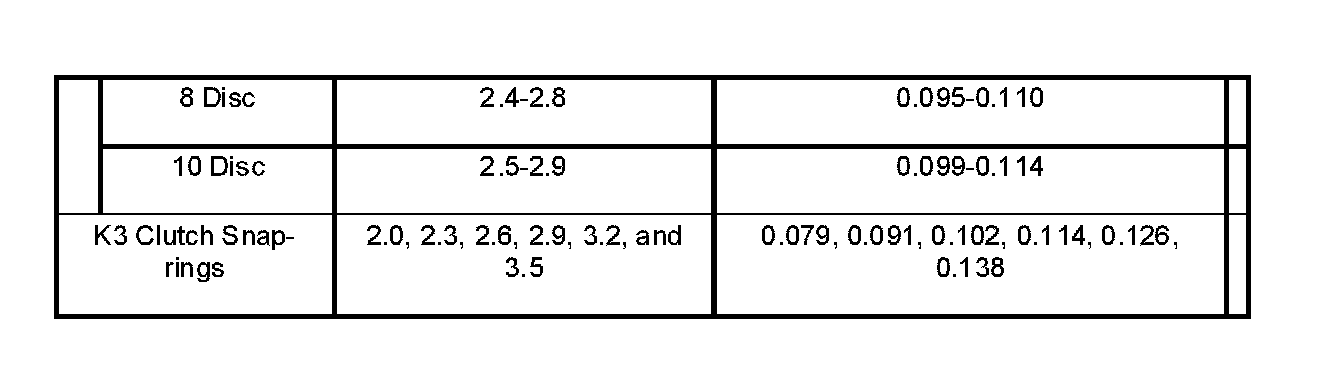

Specifications (Part 3):

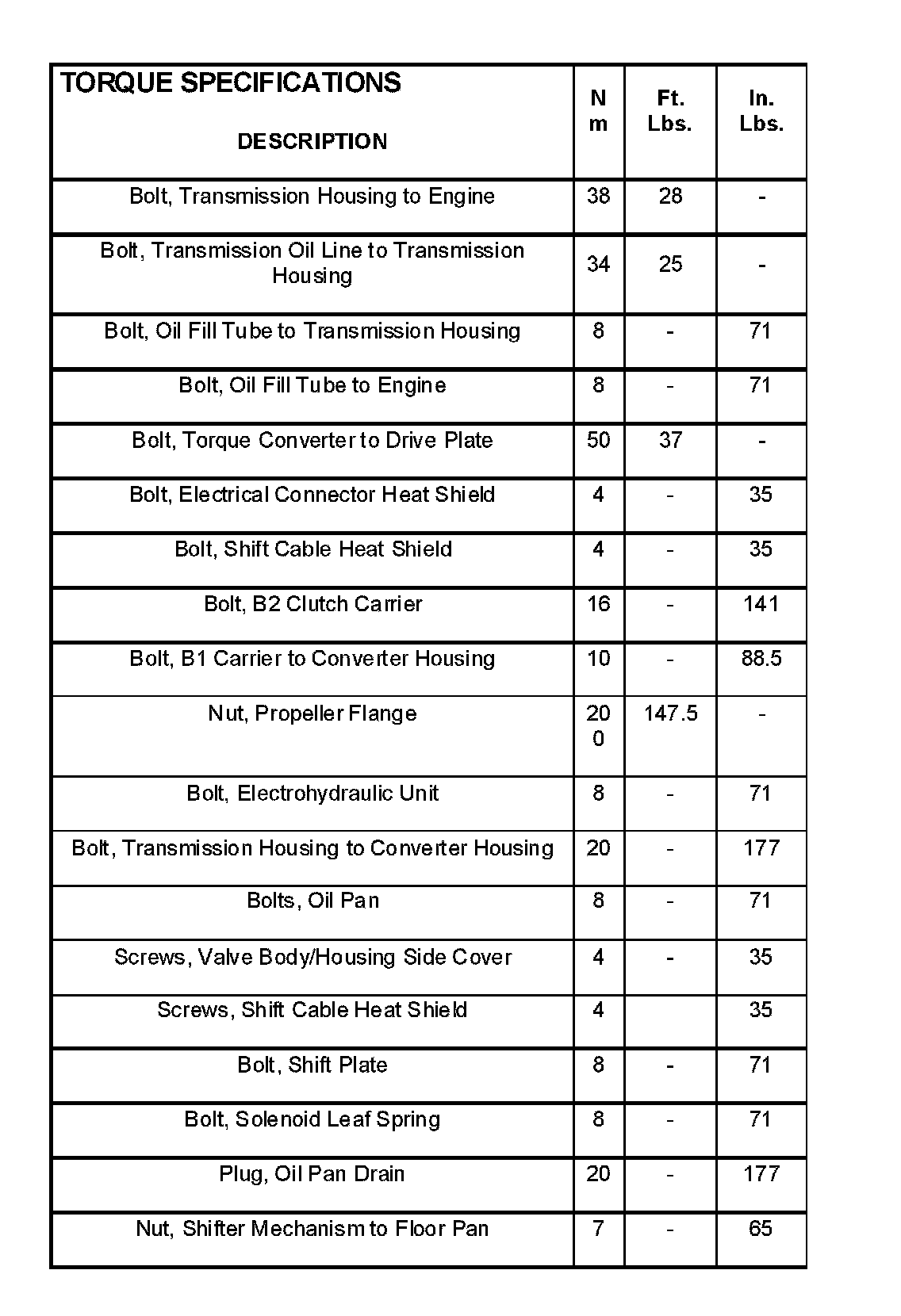

Torque Specifications:
