Home >> Freightliner >> 2007 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Glow Plug System >> Glow Plug Control Module >> Service and Repair >> Installation

Installation






INSTALLATION

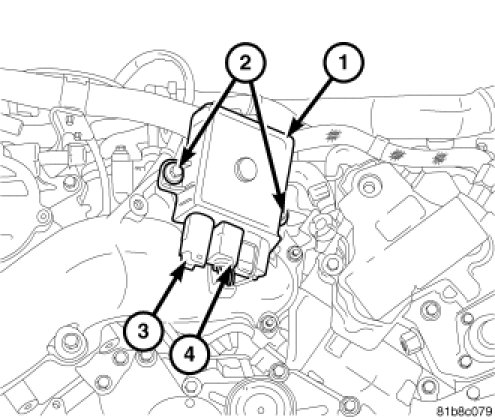

1. Install the Glow Plug Module.




2. Install the two Glow Plug Module bolts (2). Tighten to 8 Nm (6 ft.-lbs.).
3. Connect the battery positive harness connector (3) to the Glow Plug Module.
4. Connect the Glow Plug Module wiring harness connector (4).
5. Connect negative battery cable.
