Sensor-Wheel Speed-Left Front

Component ID: 502

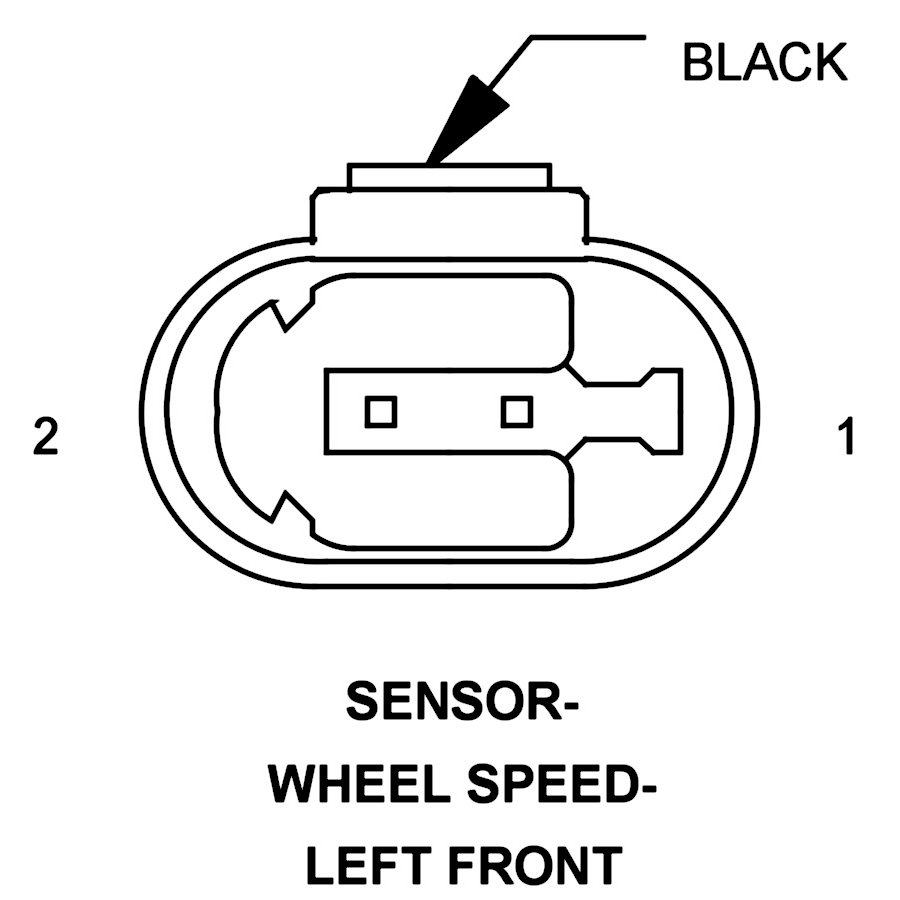

Component : SENSOR-WHEEL SPEED-LEFT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-LEFT FRONT
Color : BLACK
# of pins : 2




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR (+) 28 20BK
2 LEFT FRONT WHEEL SPEED SENSOR (-) 27 20BK/YL
