Lamp-Load Area-Rear

Component ID: 239
Component : LAMP-LOAD AREA-REAR

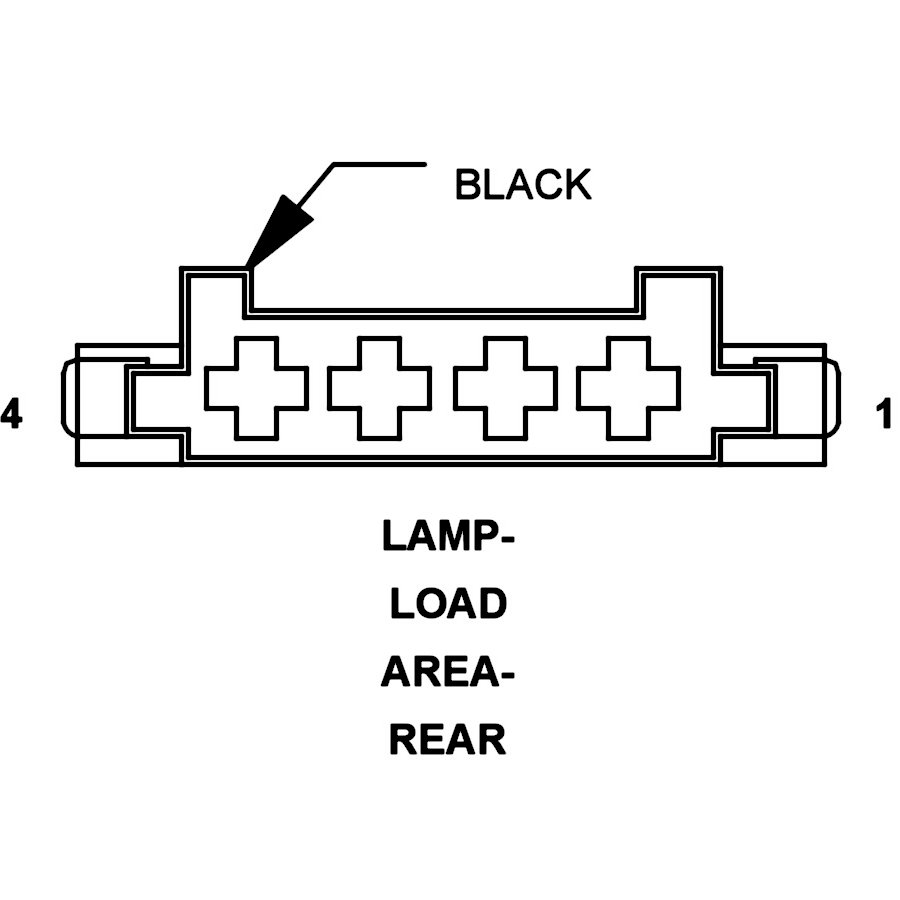

Connector:
Name : LAMP-LOAD AREA-REAR
Color : BLACK
# of pins : 4




Pin Description Circuit
1 GROUND U1036 18BR/DB
Pin Description Circuit
1 - 3436 18VT/DB
2 FUSED B(+) U41 18RD
3 DOOR AJAR SWITCH SENSE U1036 18BR/DB
3 - U41 18RD
4 - 3437 18VT/DG
4 - U6110 18GY/BR
