Installation

INSTALLATION

Two Passenger Bench




1. With seat facing forward, insert mounting legs (6) into the respective mounting cups.
2. Slide seat forwards with some force as far as it will go, until the release levers (3) are heard to engage and all release levers are parallel to the vehicle floor.

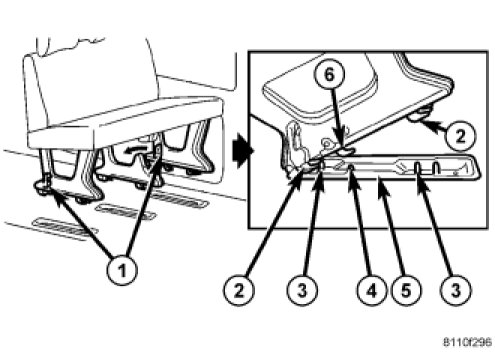

Three Passenger Bench




1. With seat facing forward, insert mounting legs (2) into the respective mounting cups.
2. Slide seat forwards with some force as far as it will go, until the release levers (1) are heard to engage and all release levers are parallel to the vehicle floor.
