Home >> Ford >> 2012 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test KF: Fan Control Relays

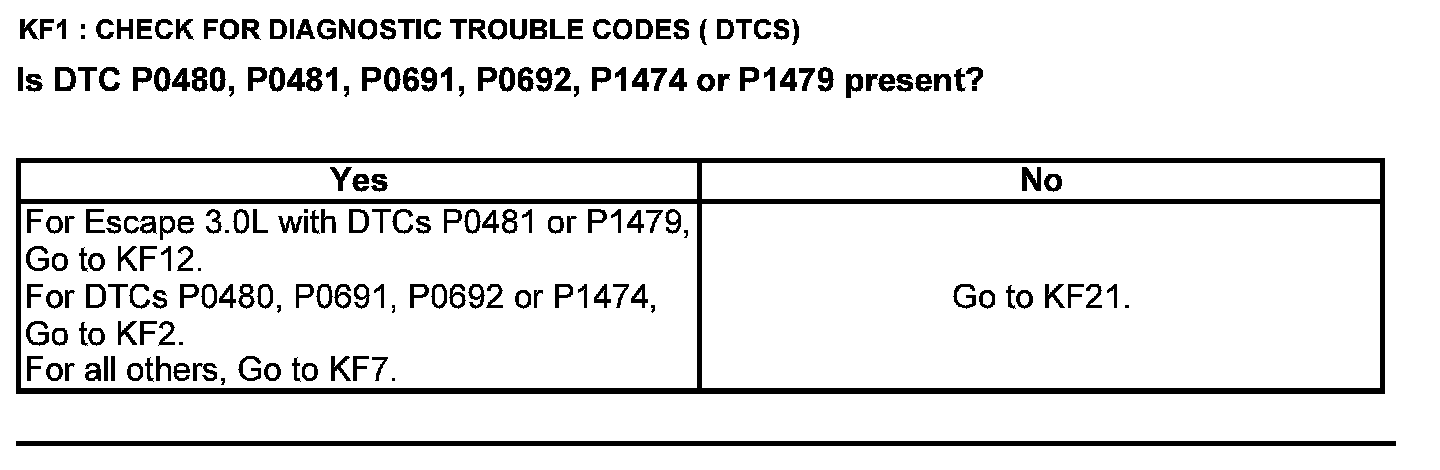

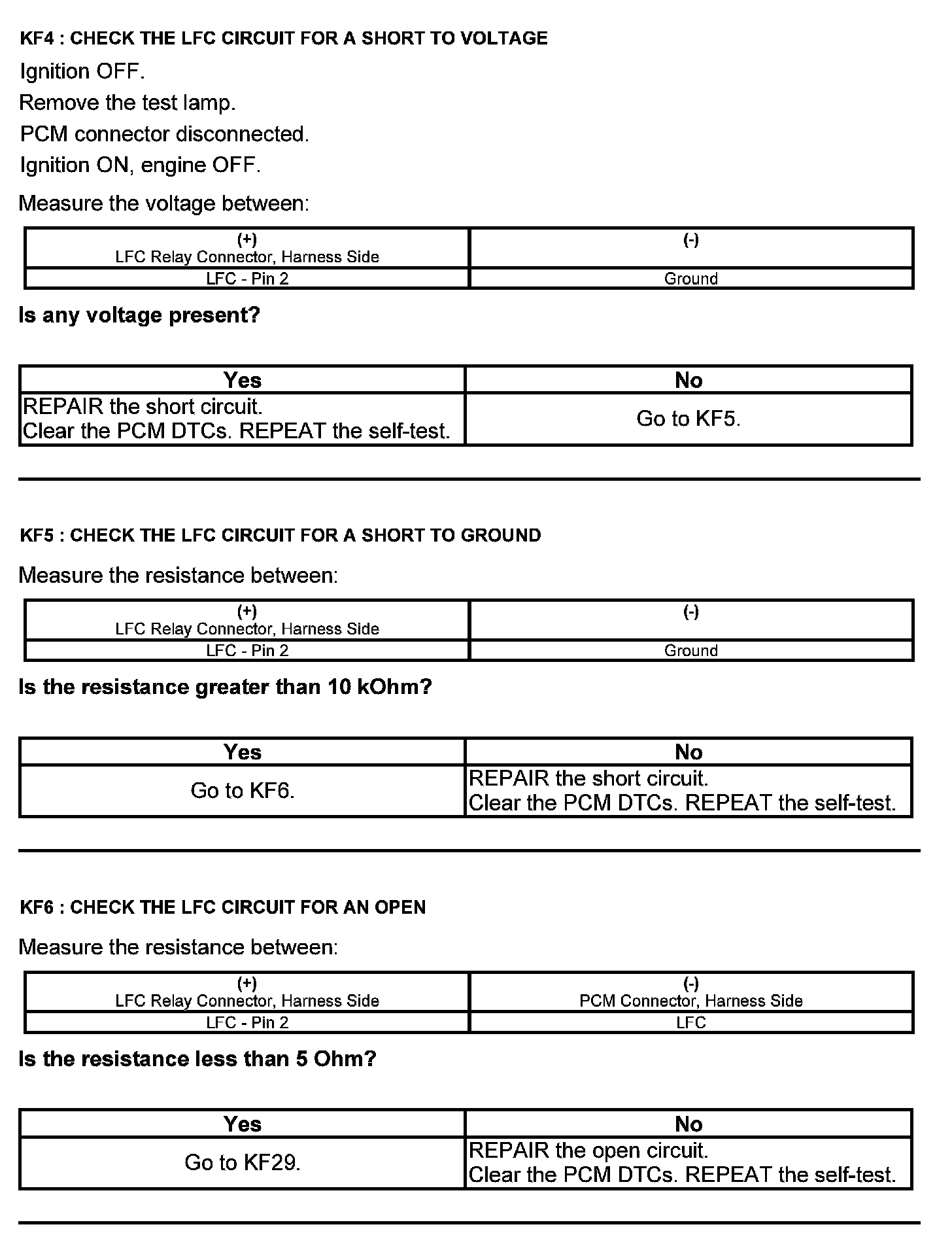

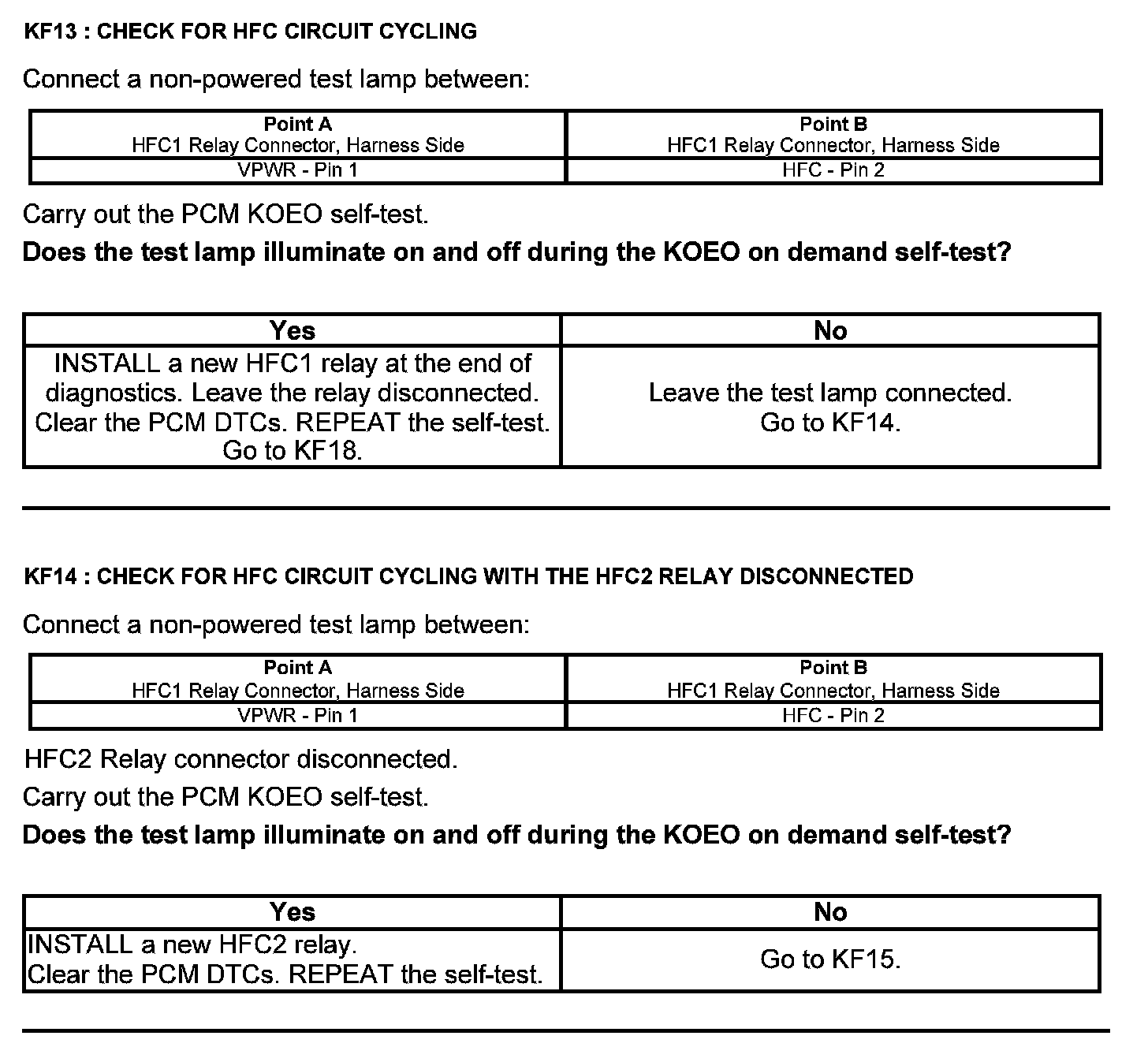

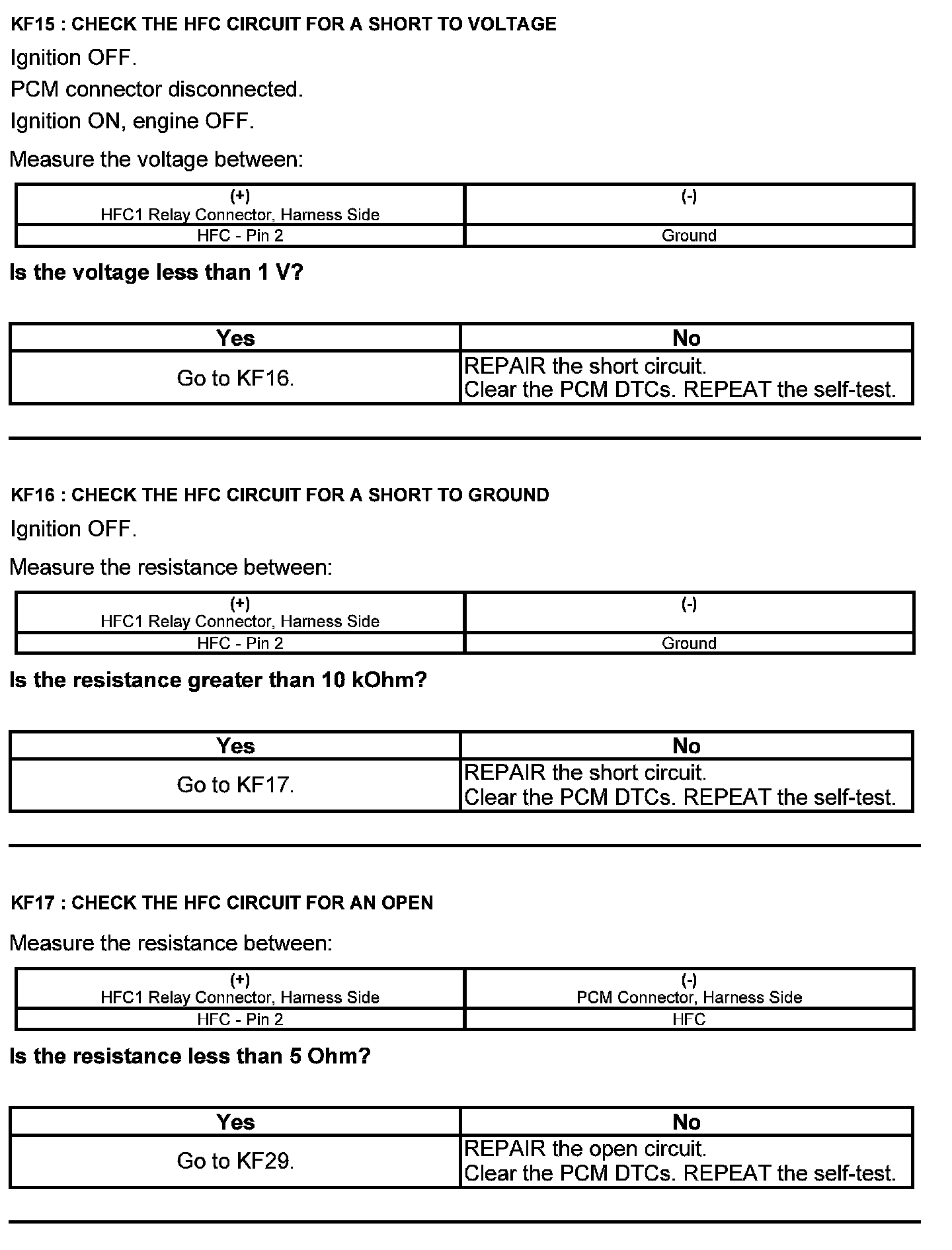

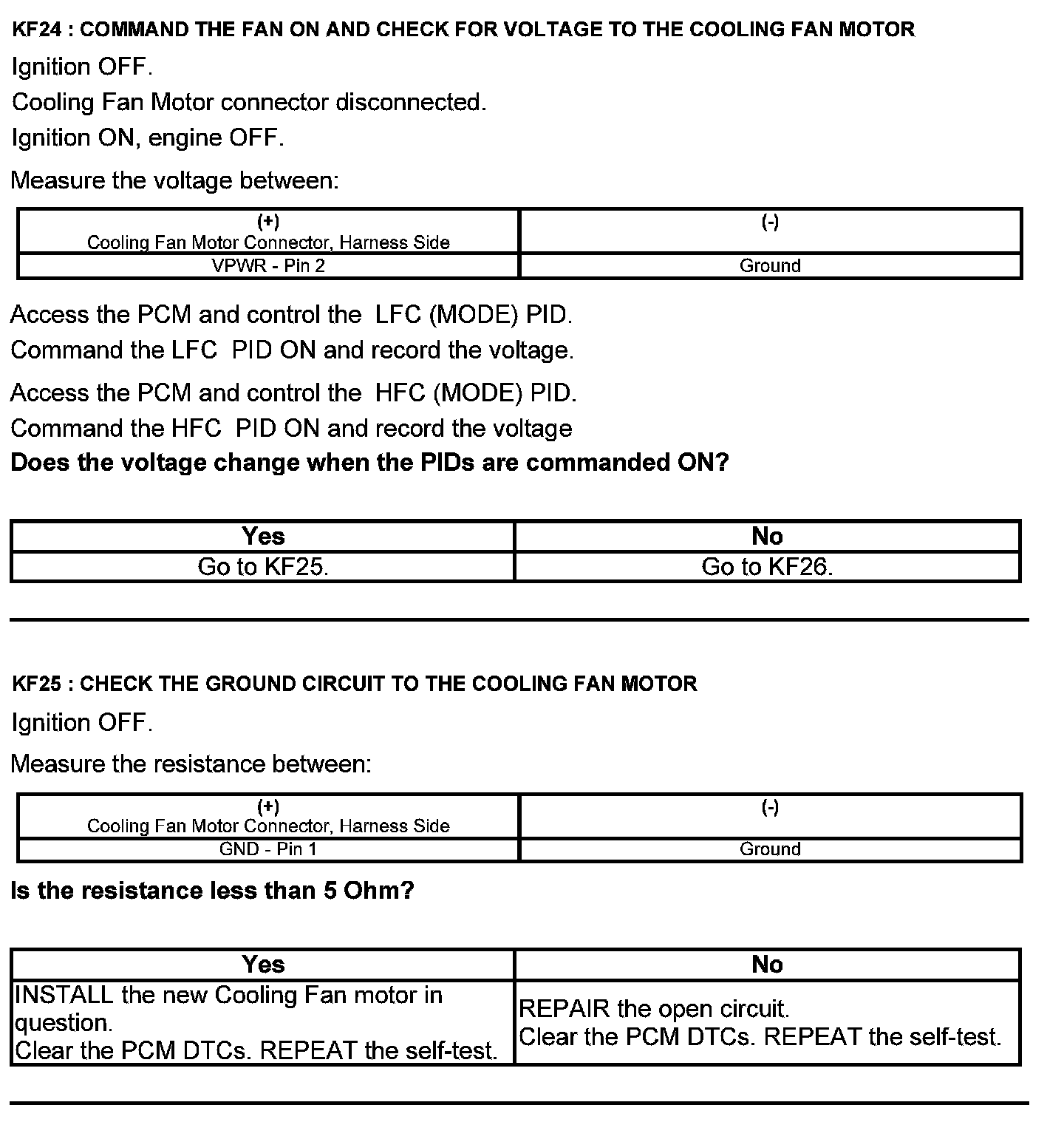

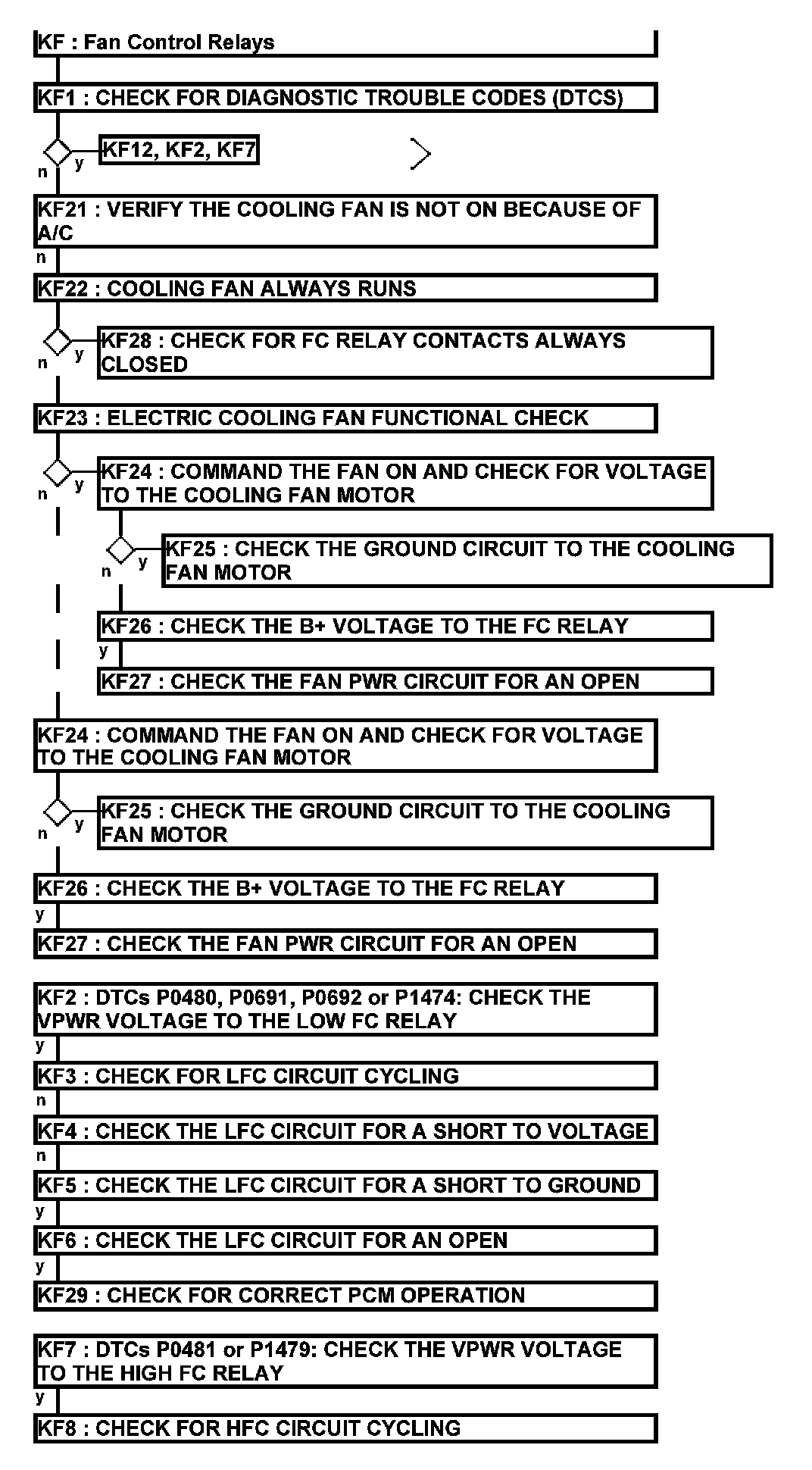

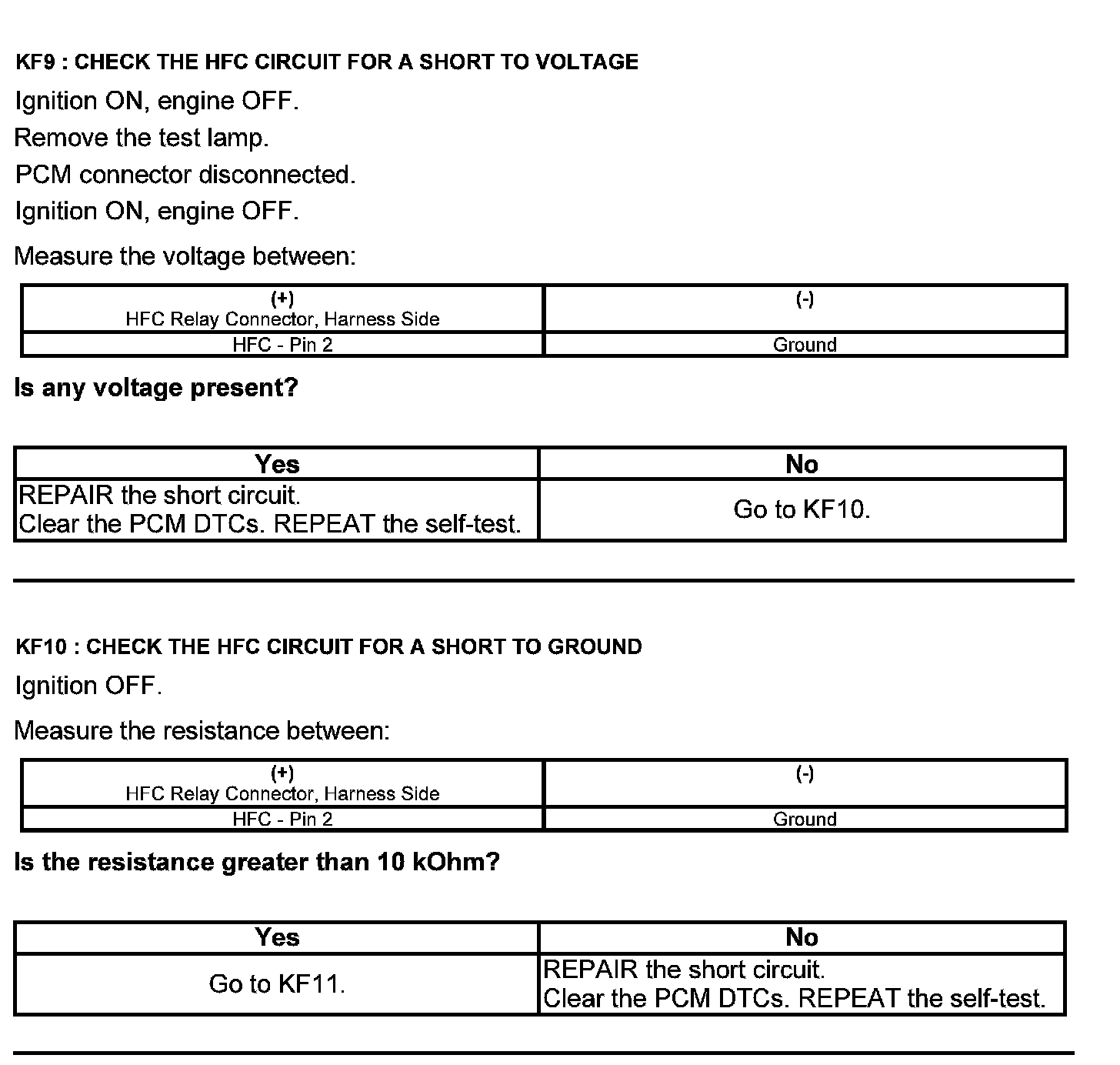

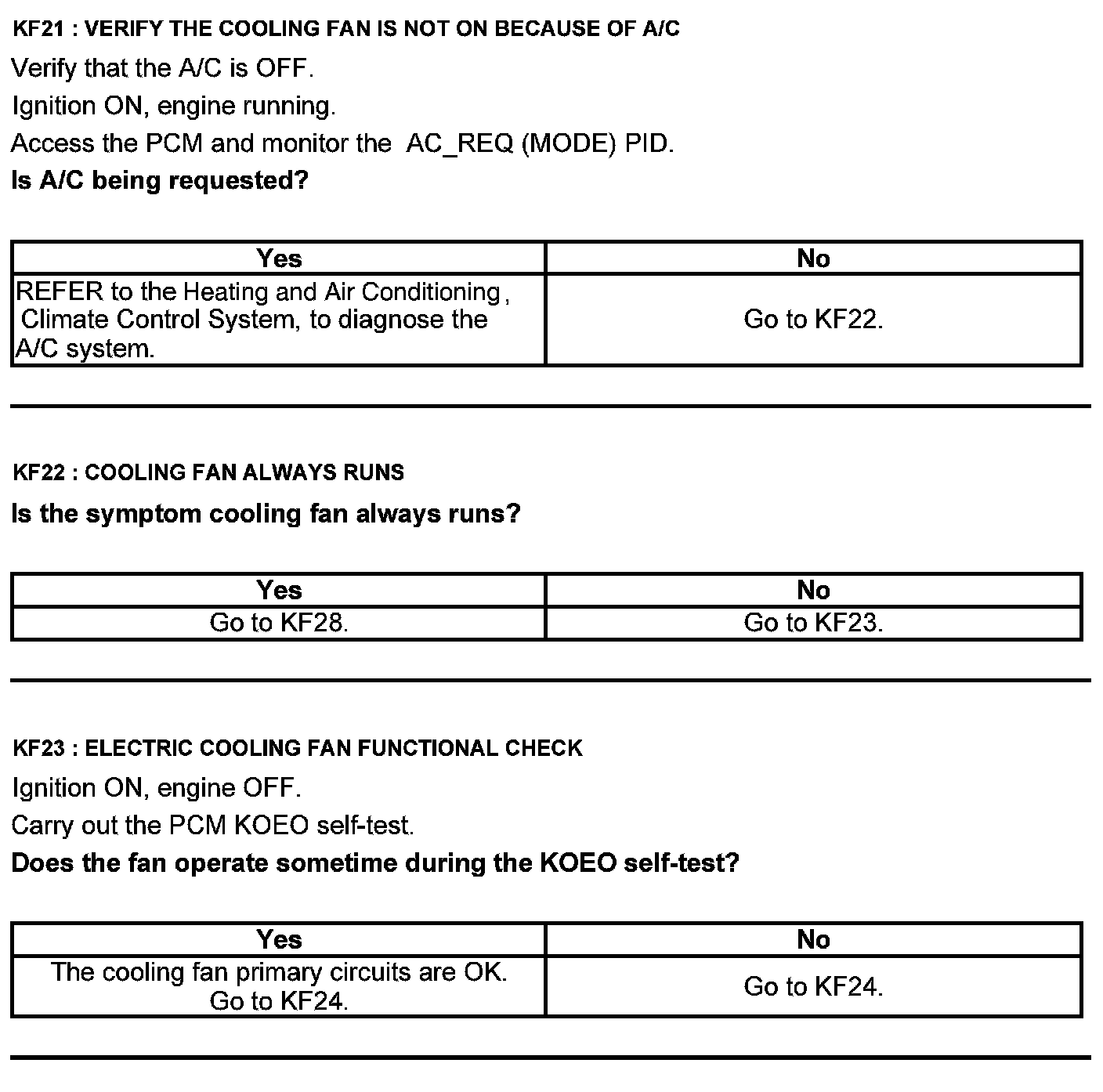

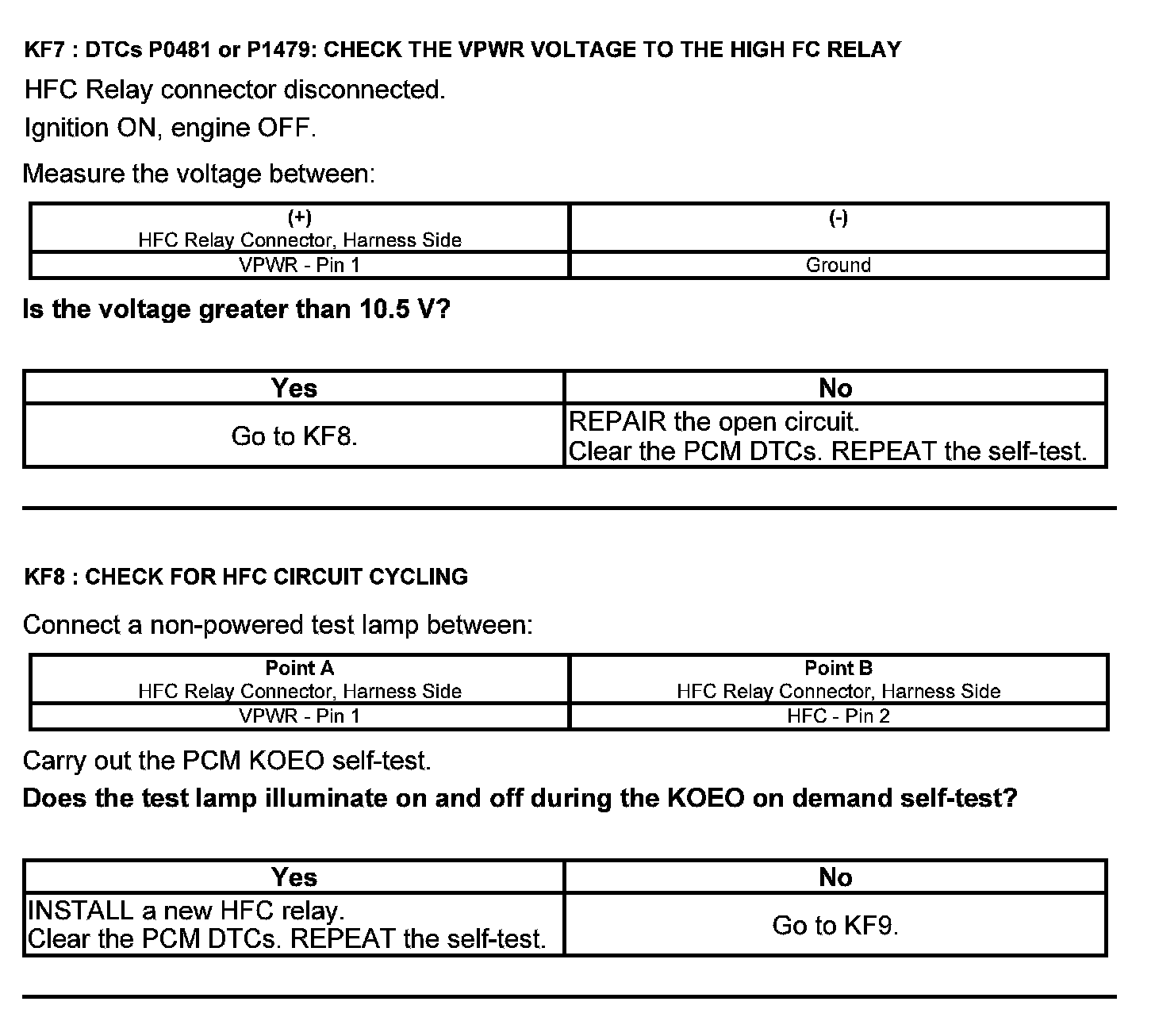

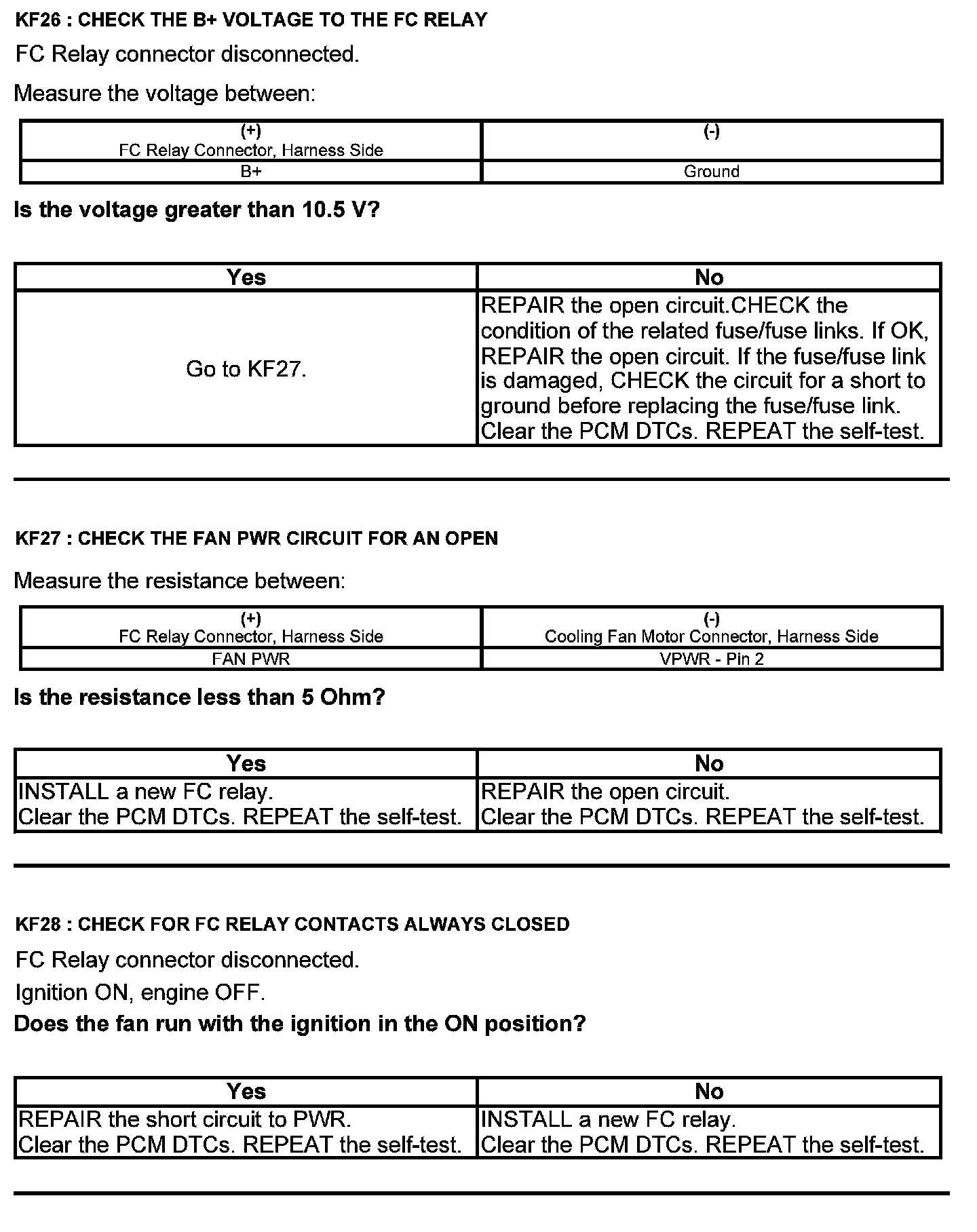

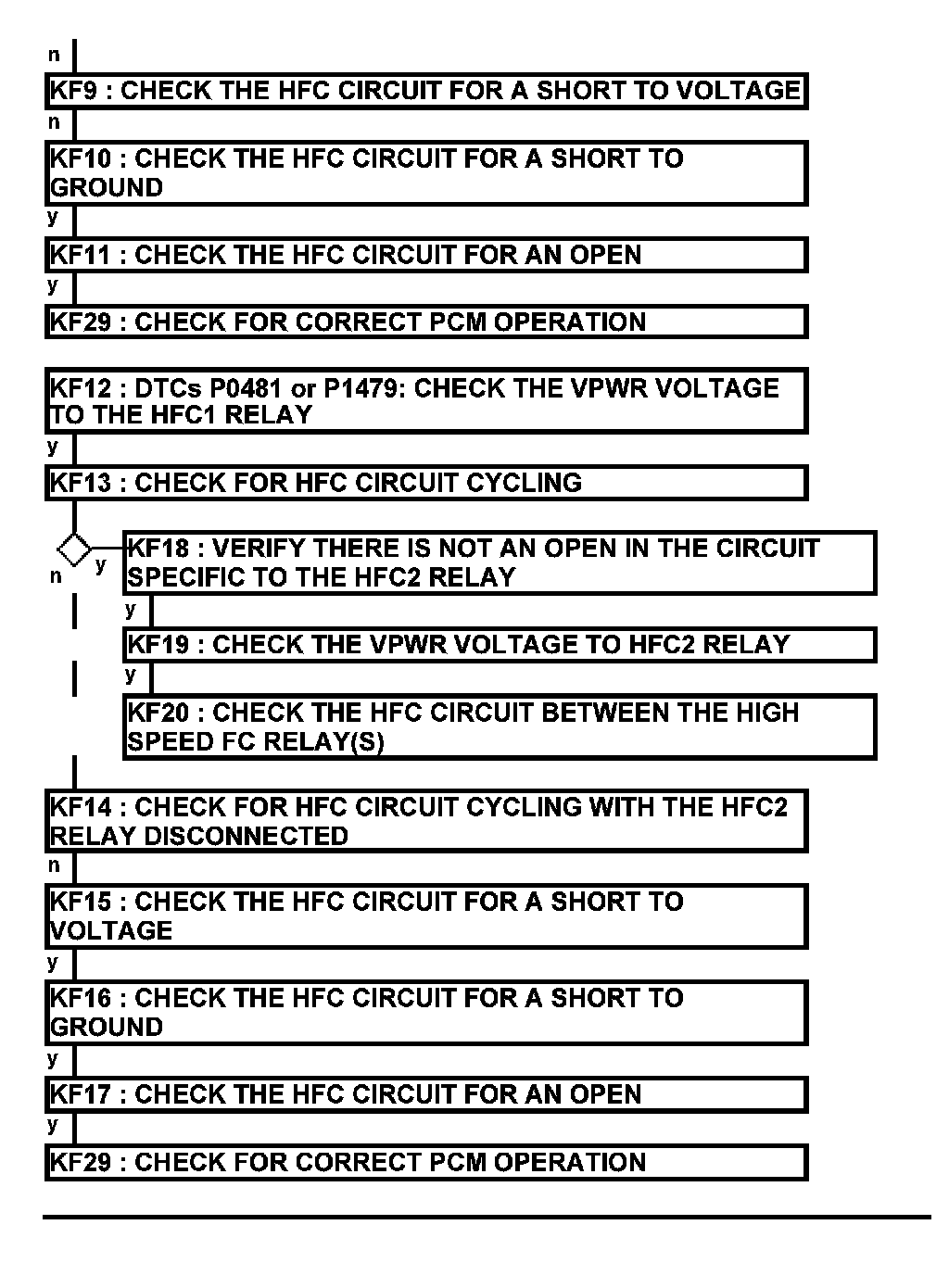

Test KF: Fan Control Relays

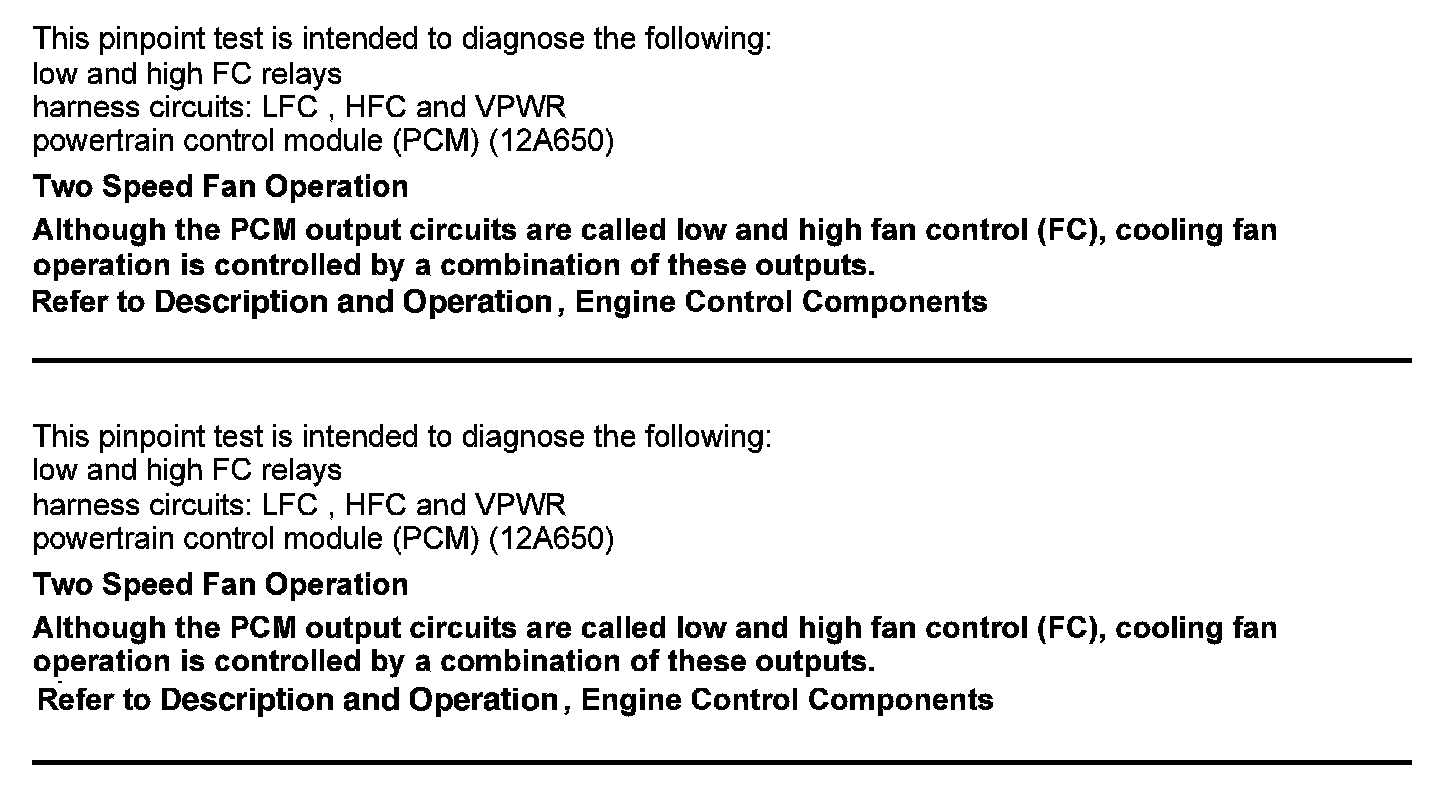

Fan Control Relays

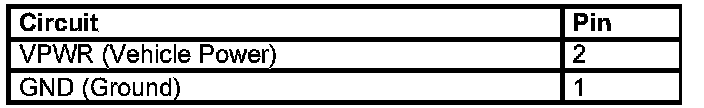

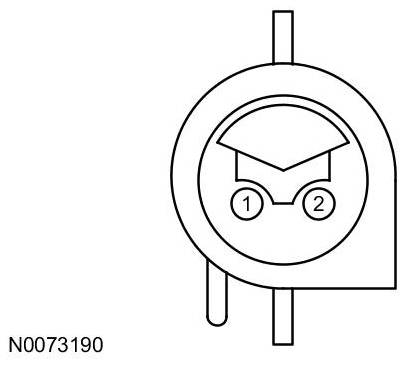

Cooling Fan Motor Connector





Harness Side

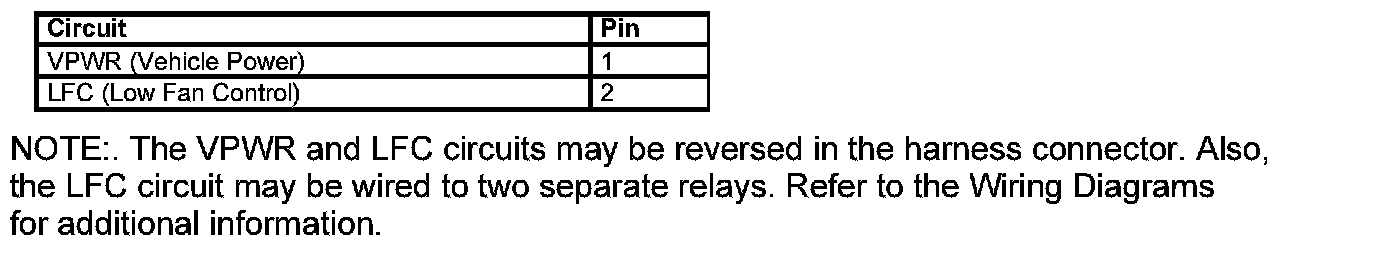

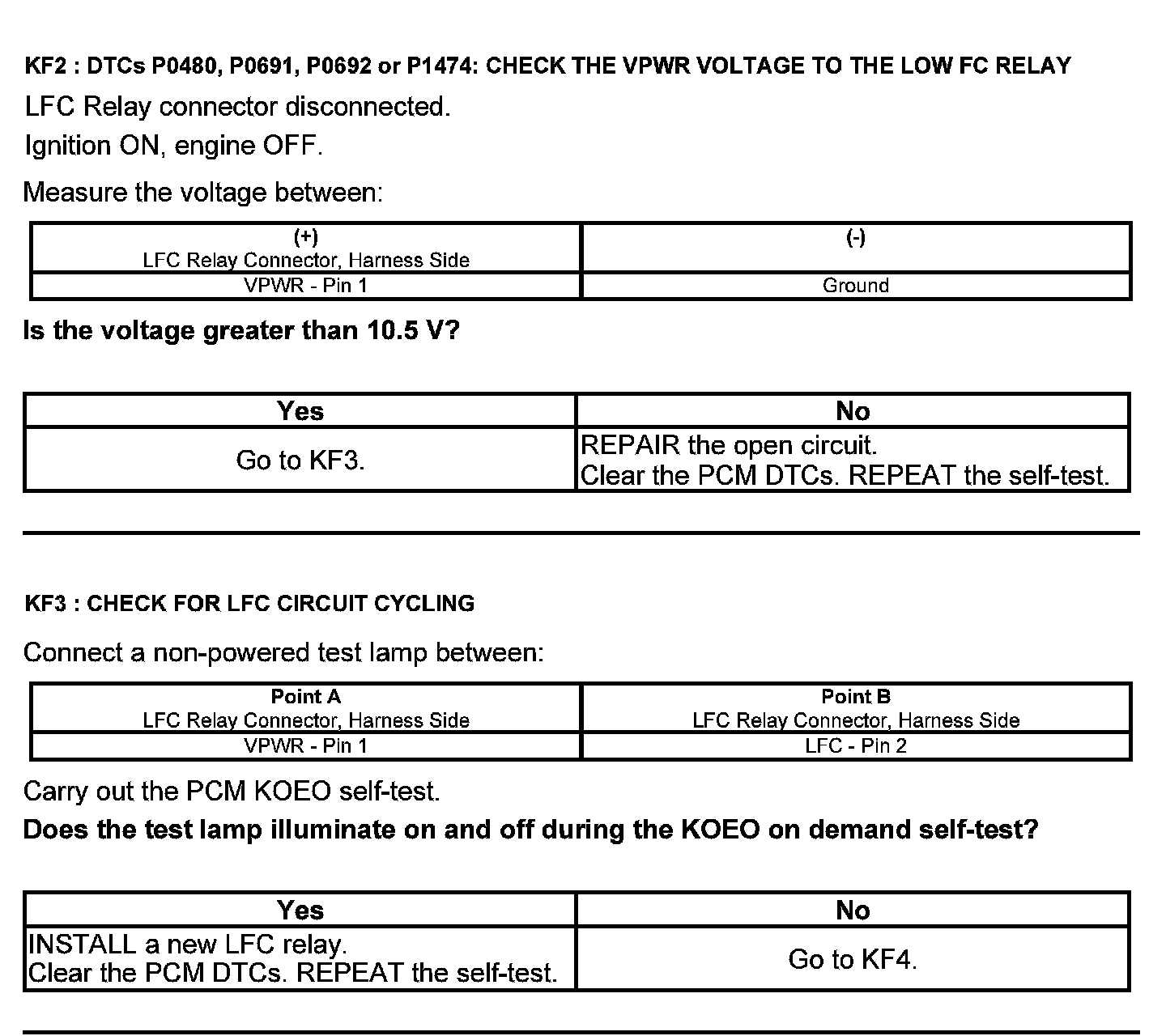

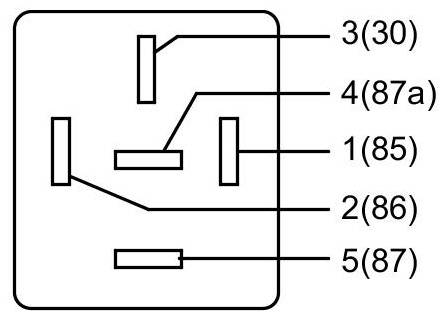

Low Fan Control (LFC) Relay Connector





Harness Side

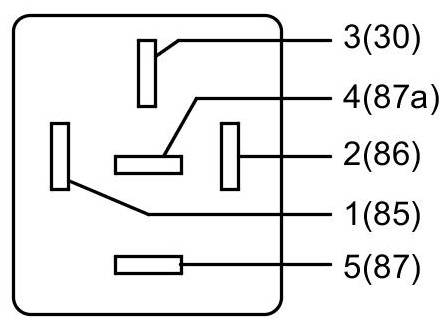

Component side

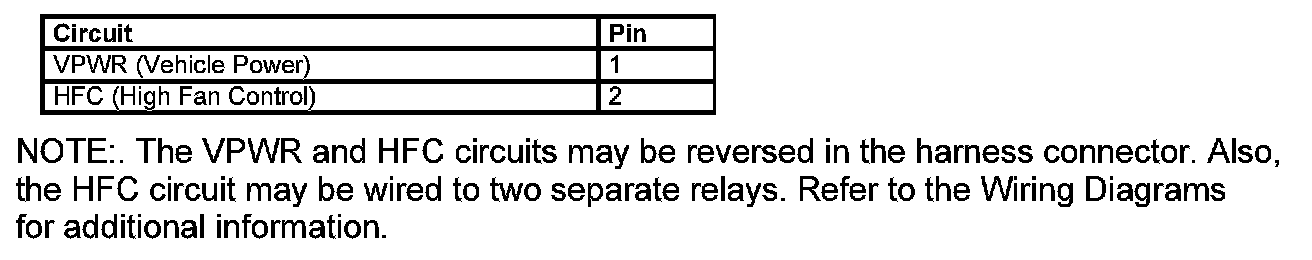

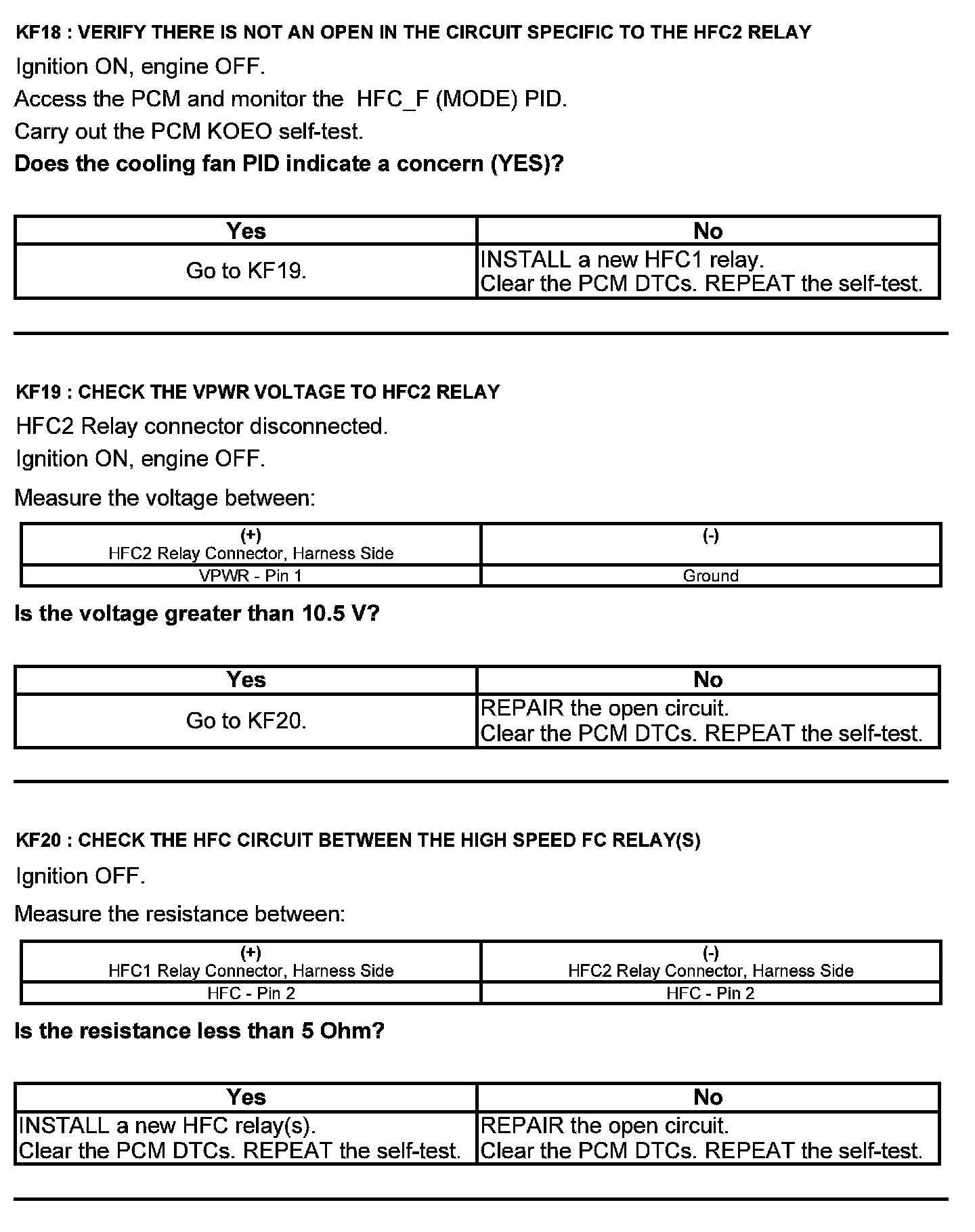

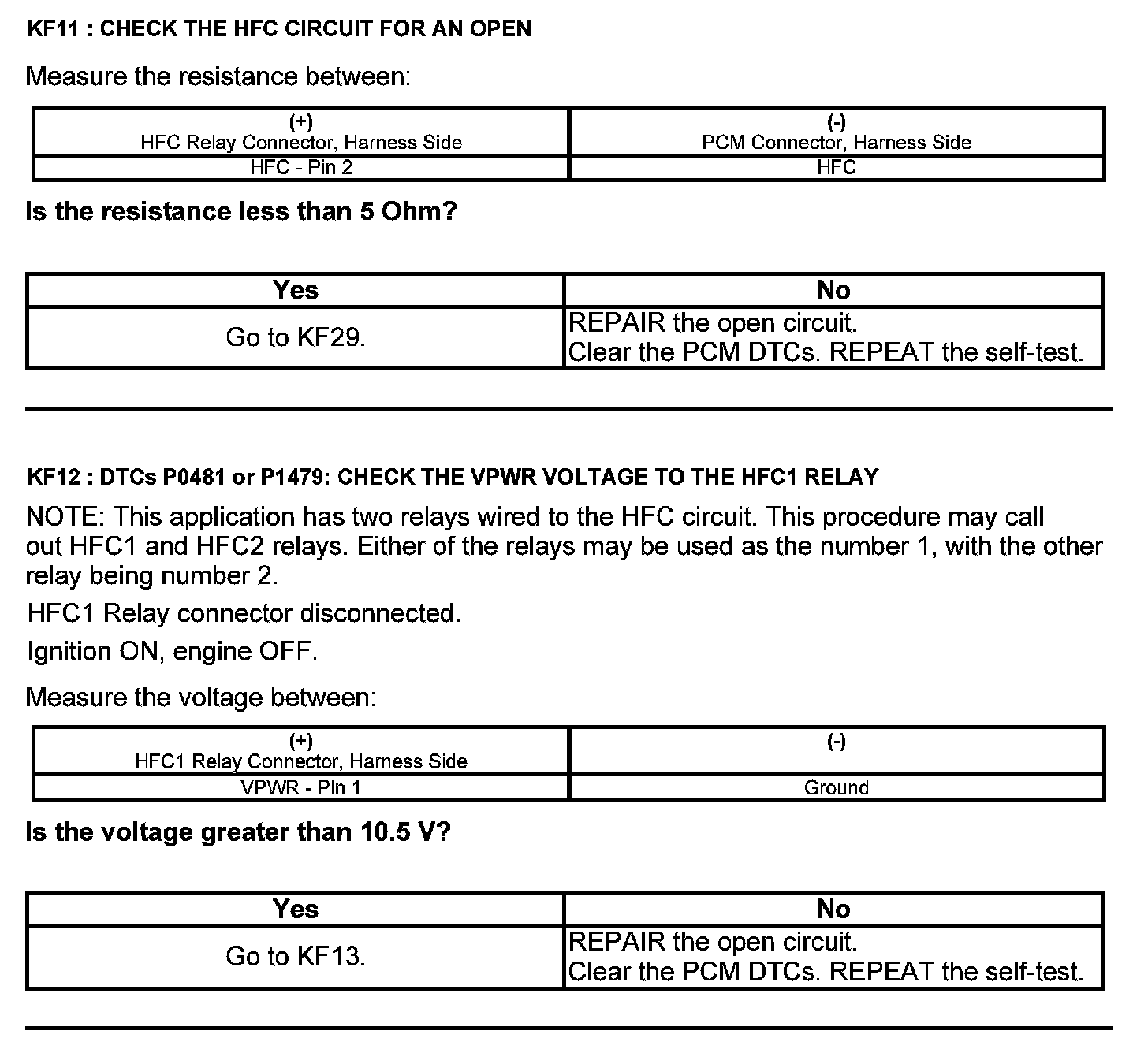

High Fan Control (HFC) Relay Connector





Harness Side





Component side

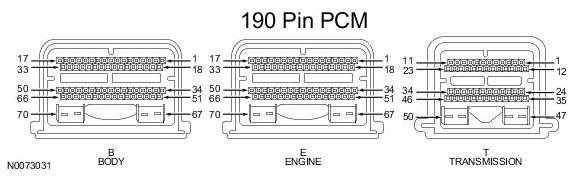

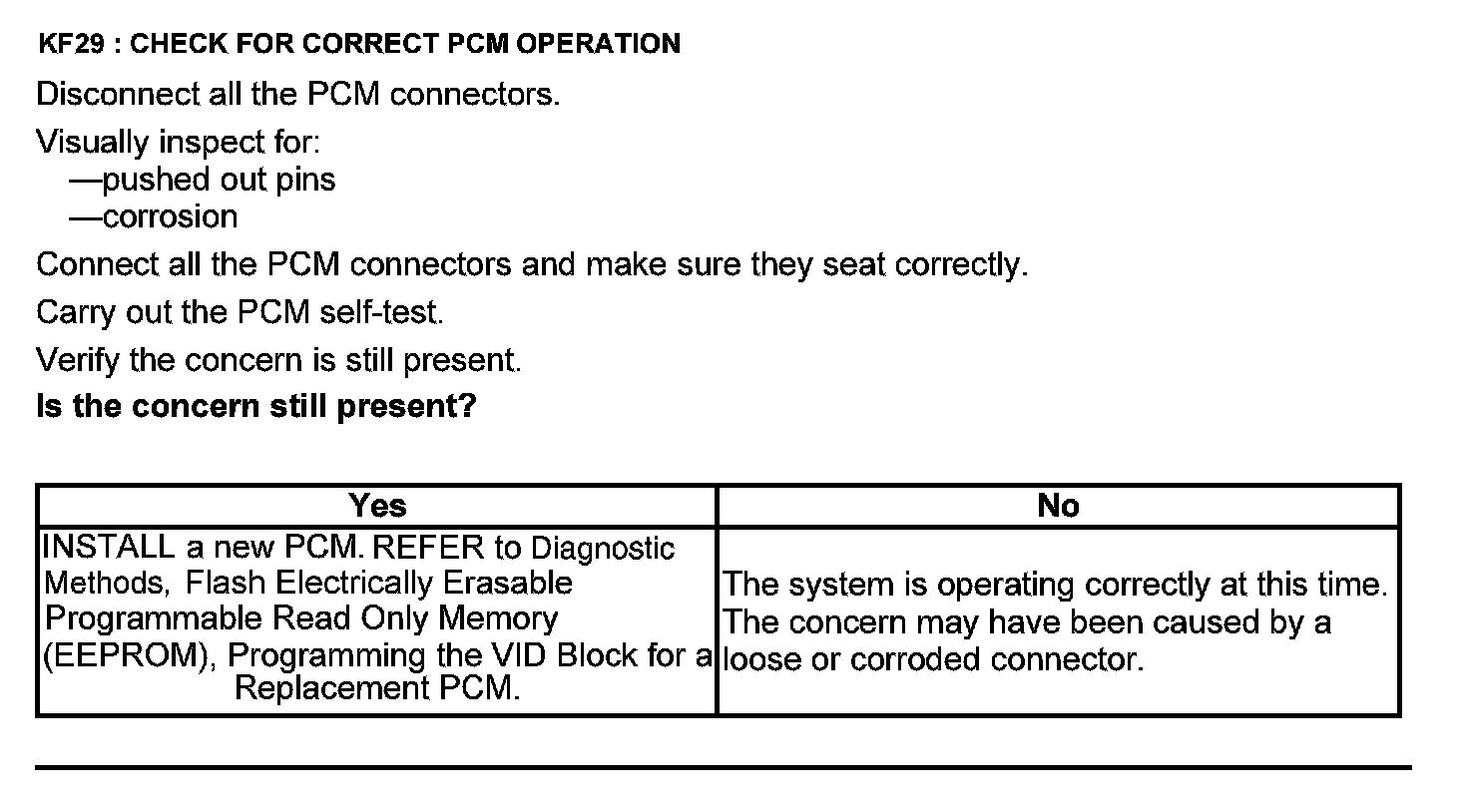

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
