Home >> Ford >> 2012 >> Taurus FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Splice Locations

Splice Locations

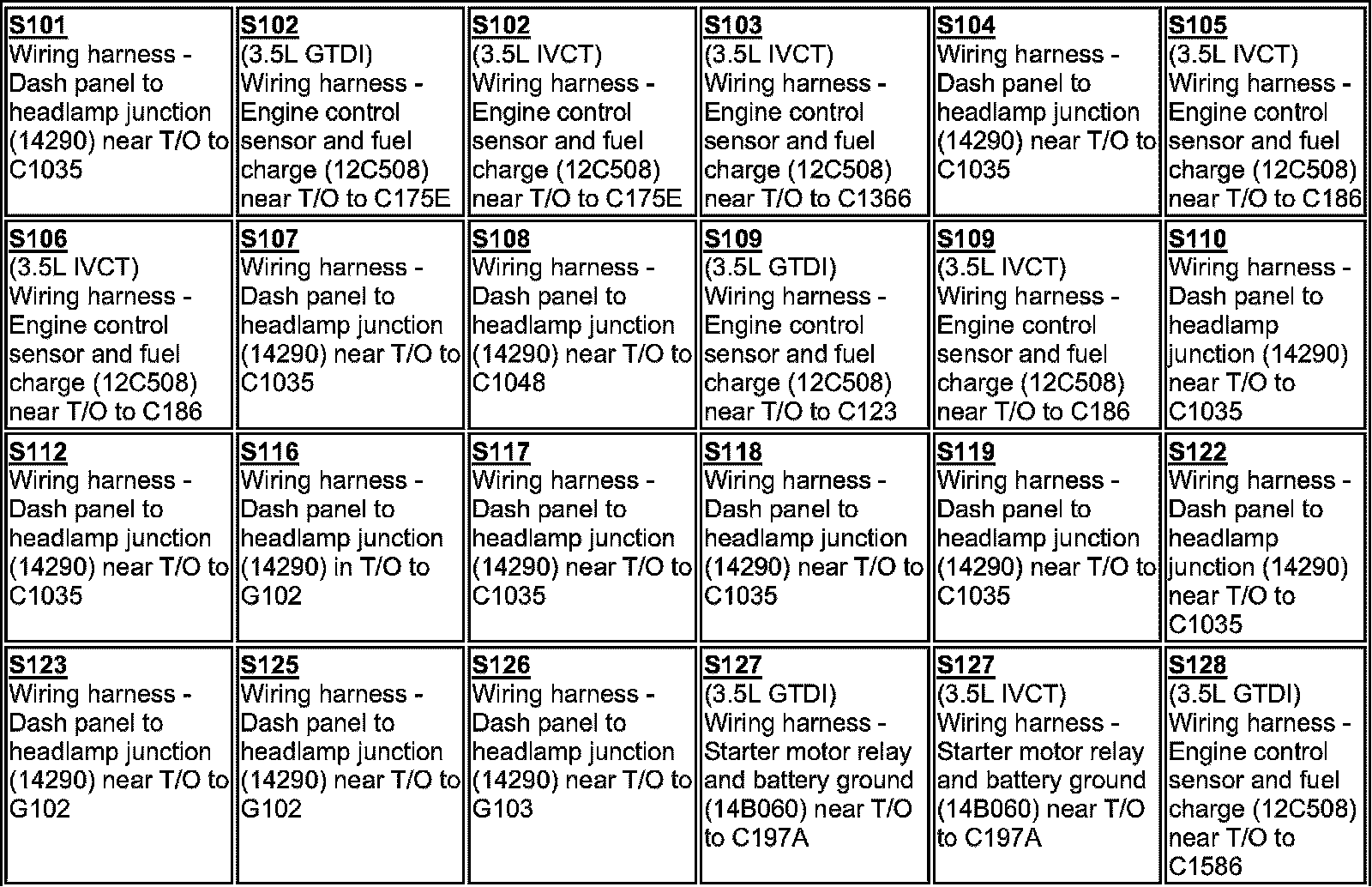

S101-S128:

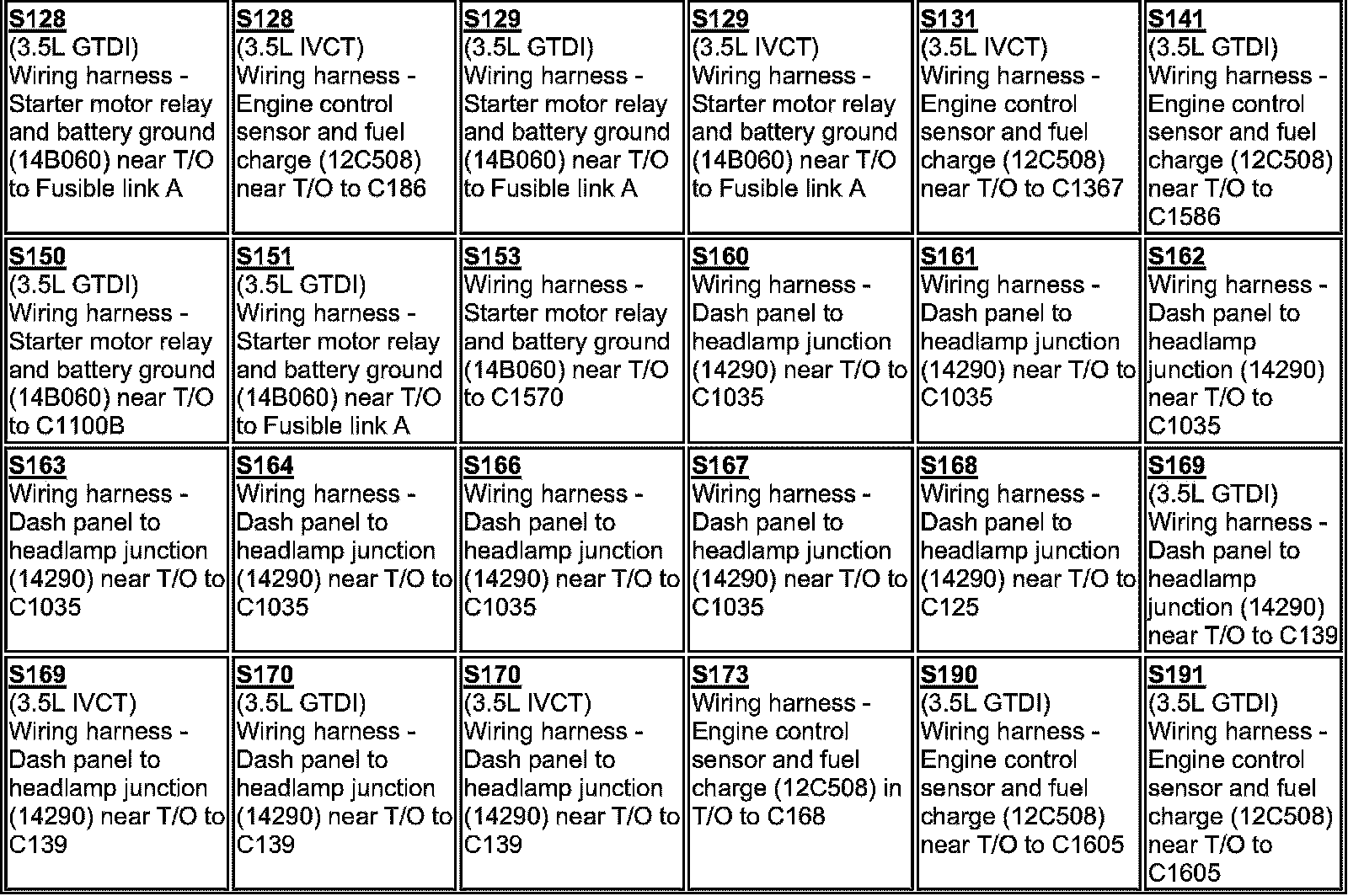

S128-S191:

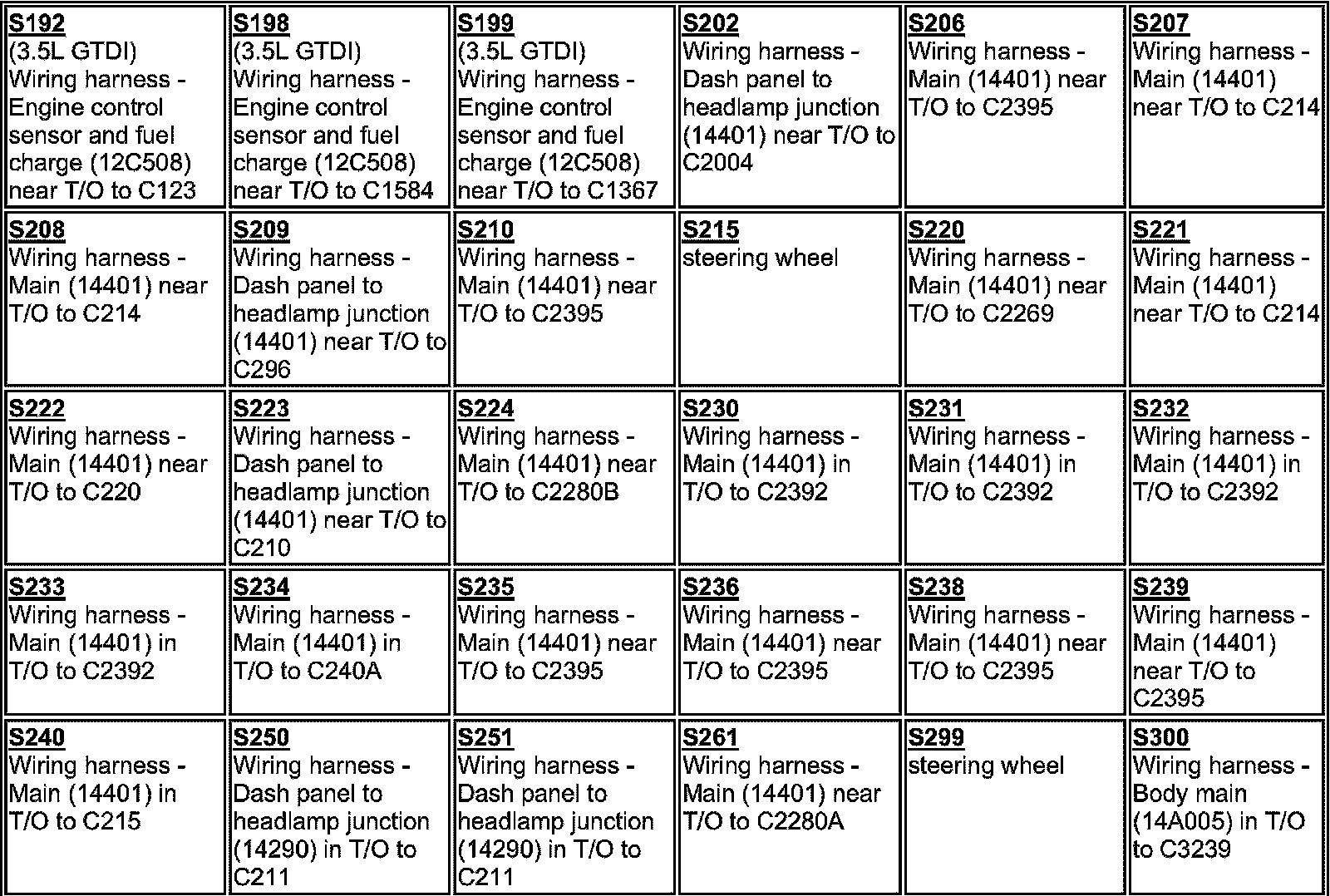

S192-S300:

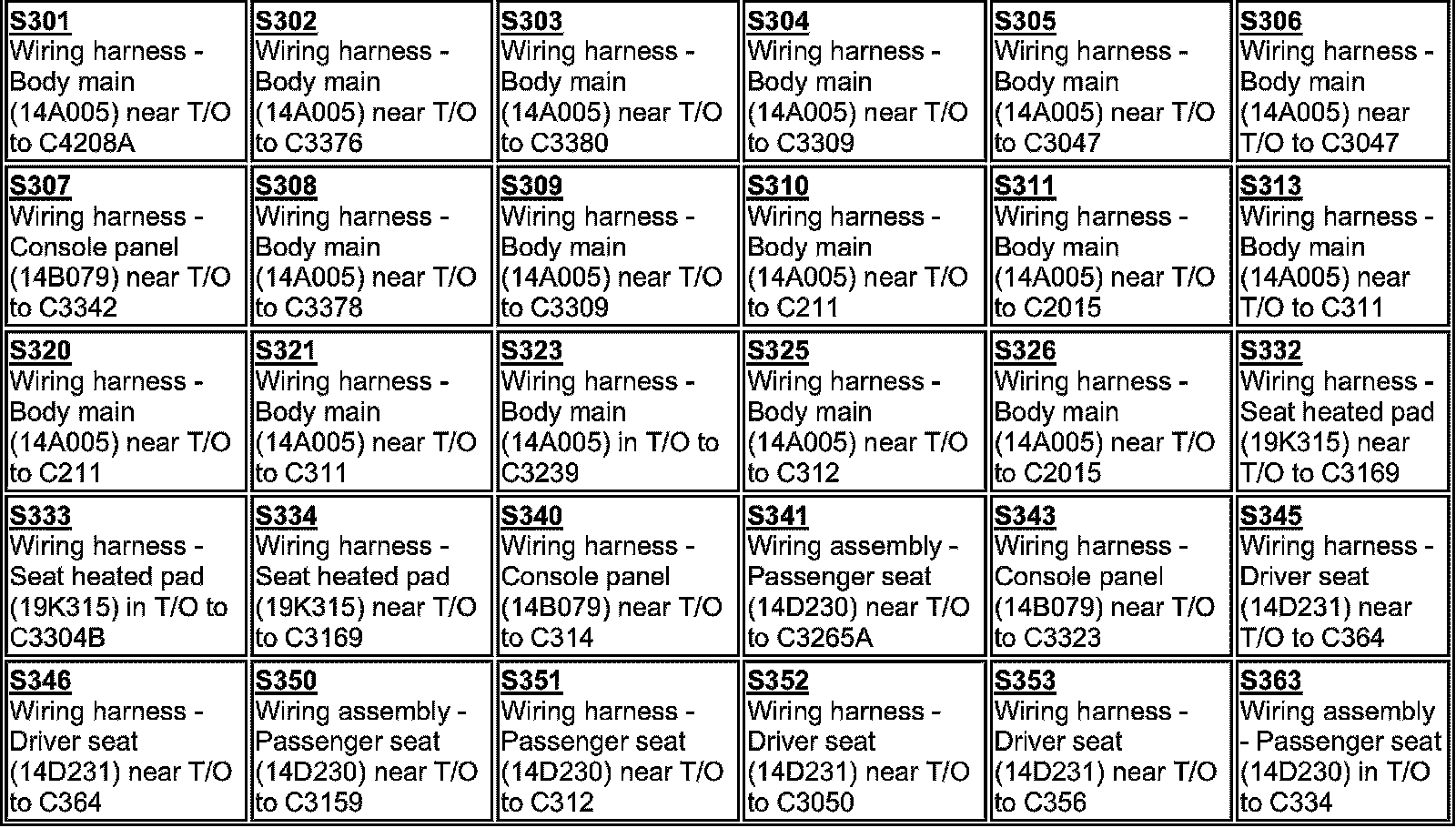

S301-S363:

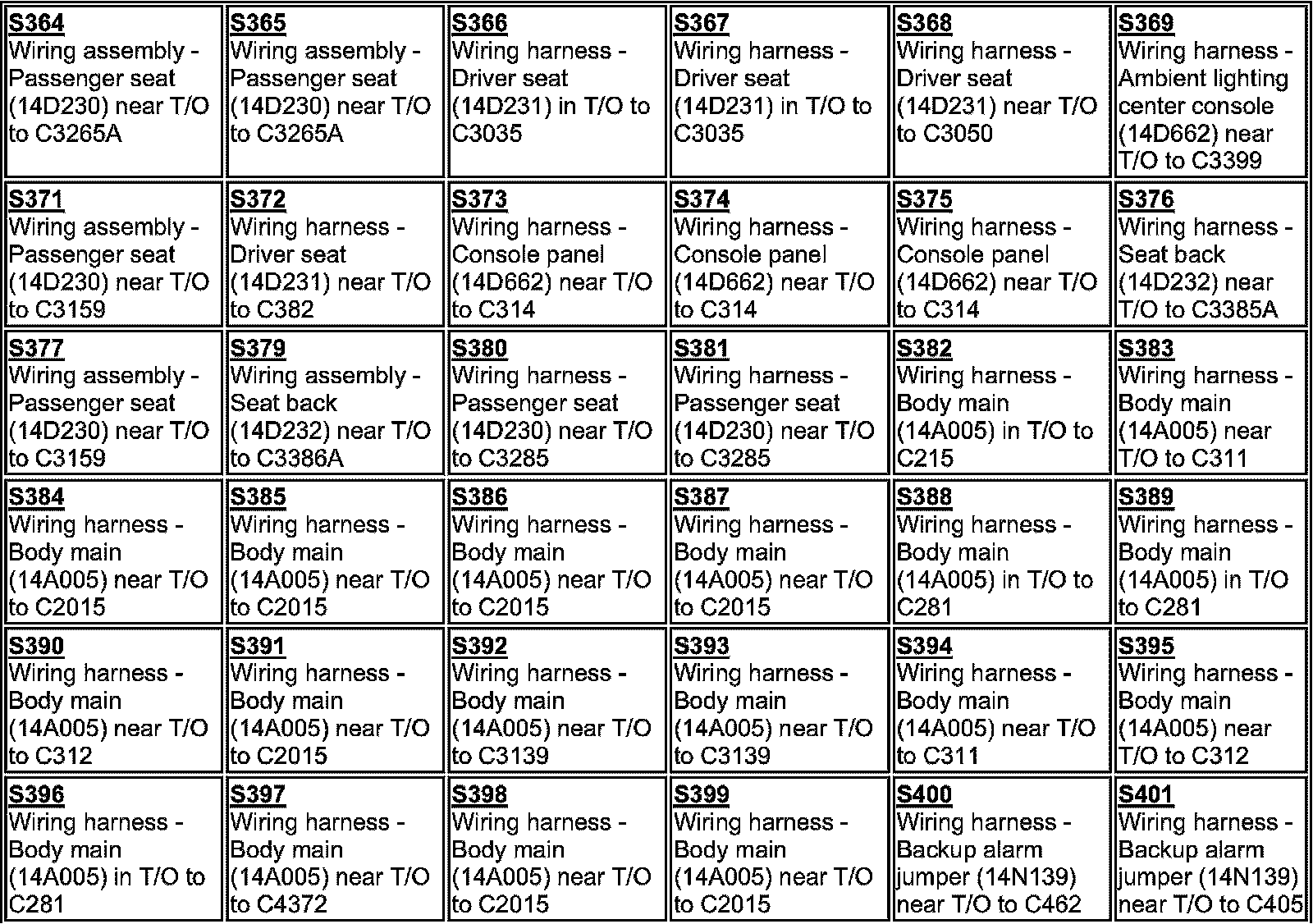

S364-S401:

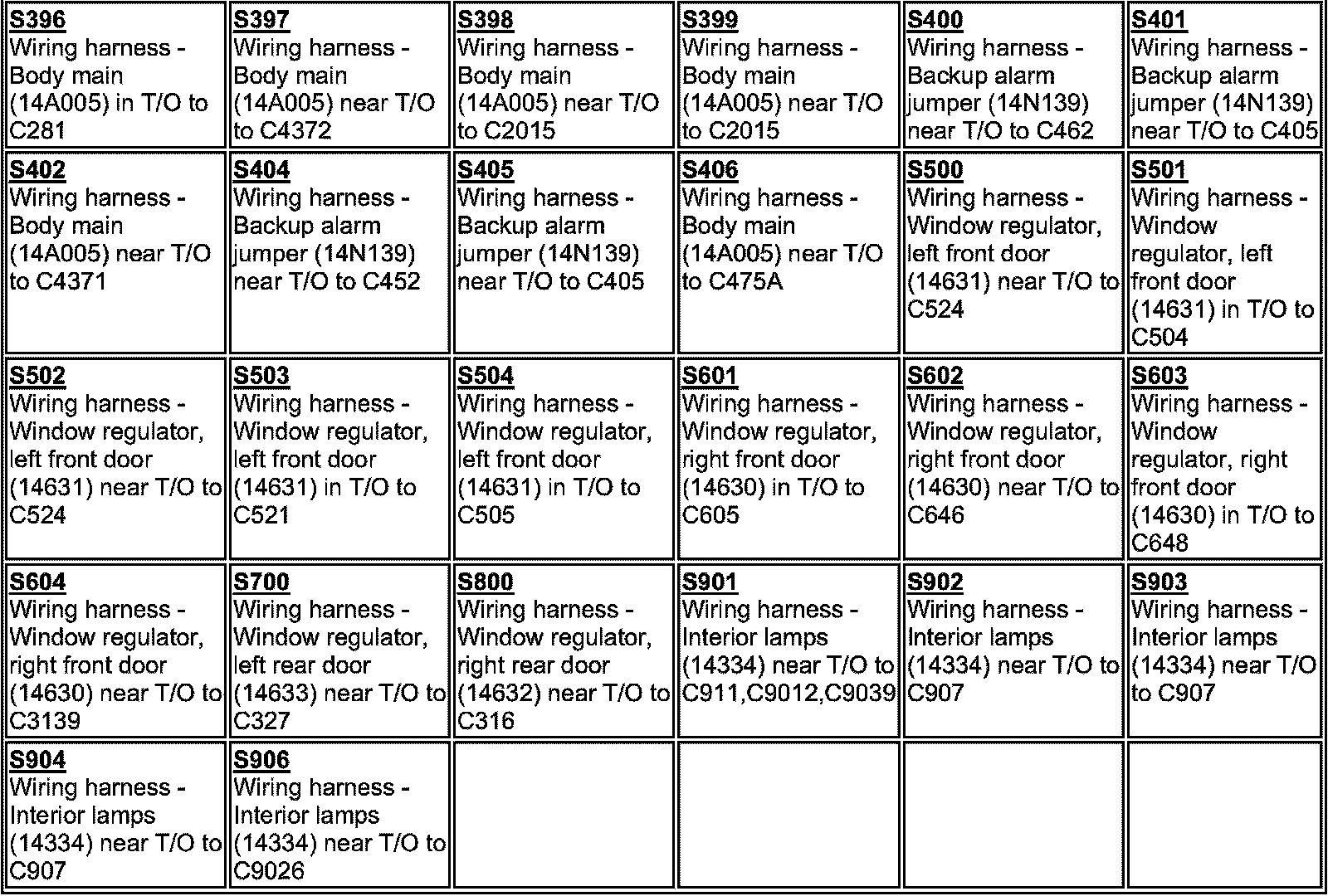

S396-S906:
