Connector Locations
Connector Locations

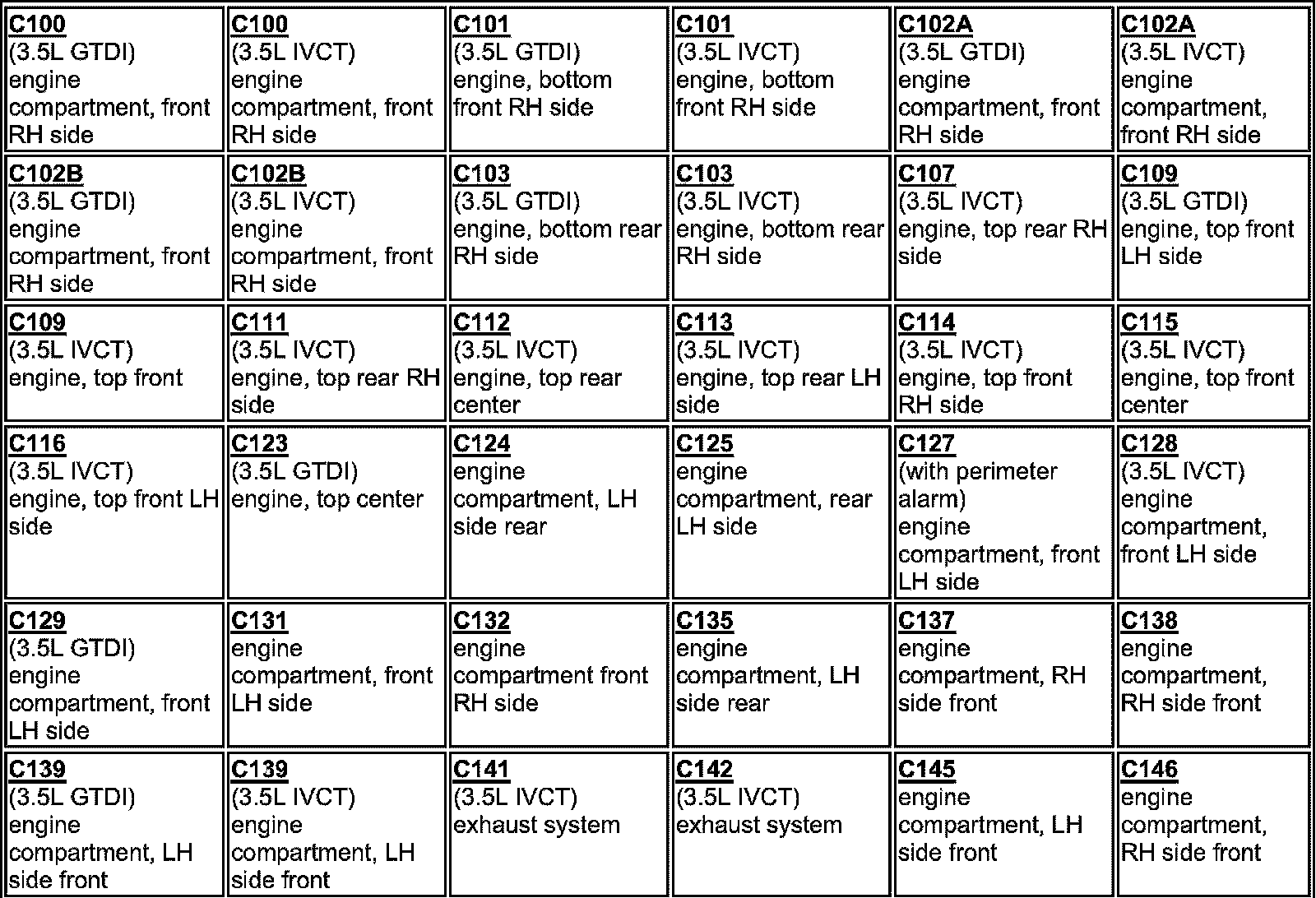

C100-C146:

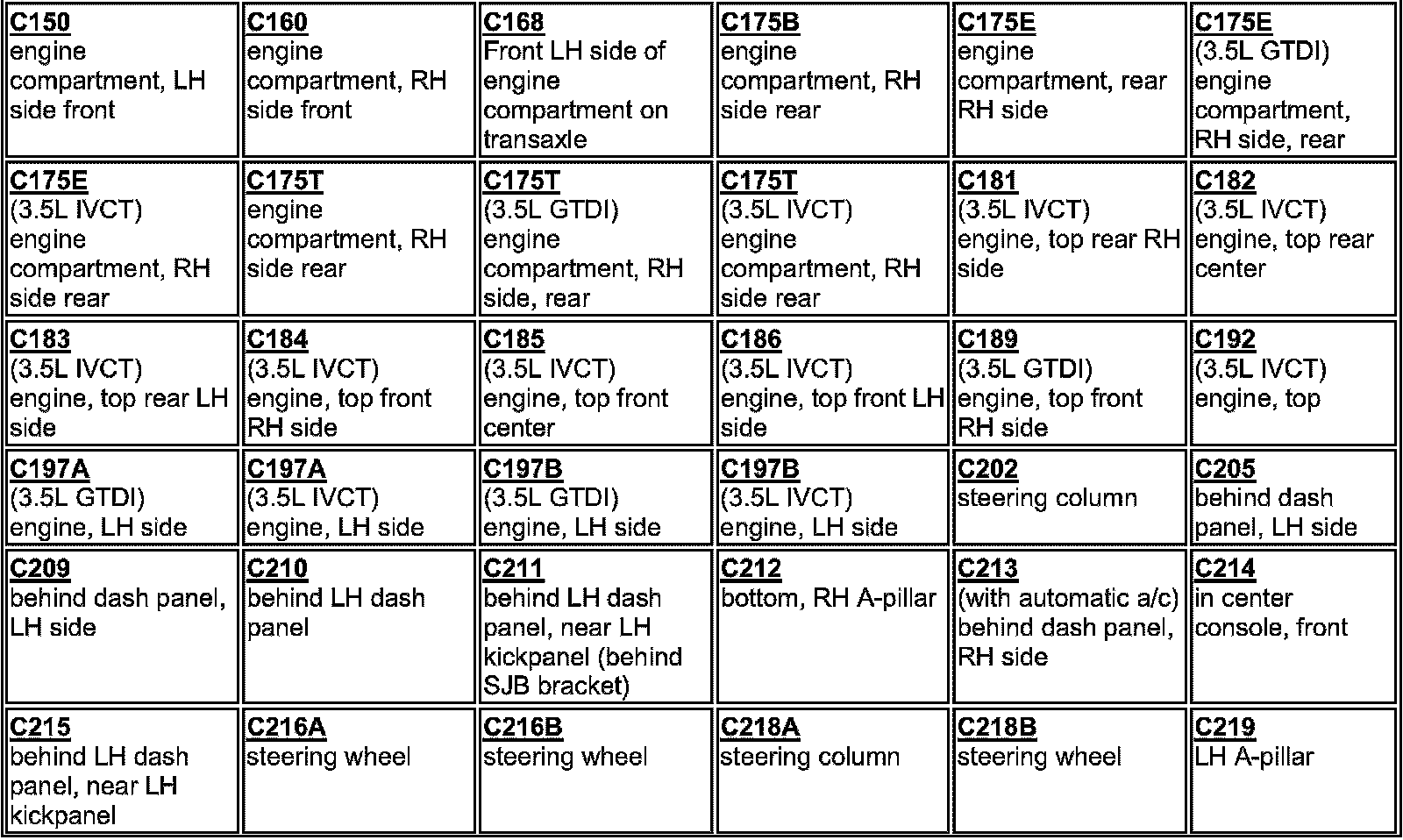

C150-C219:

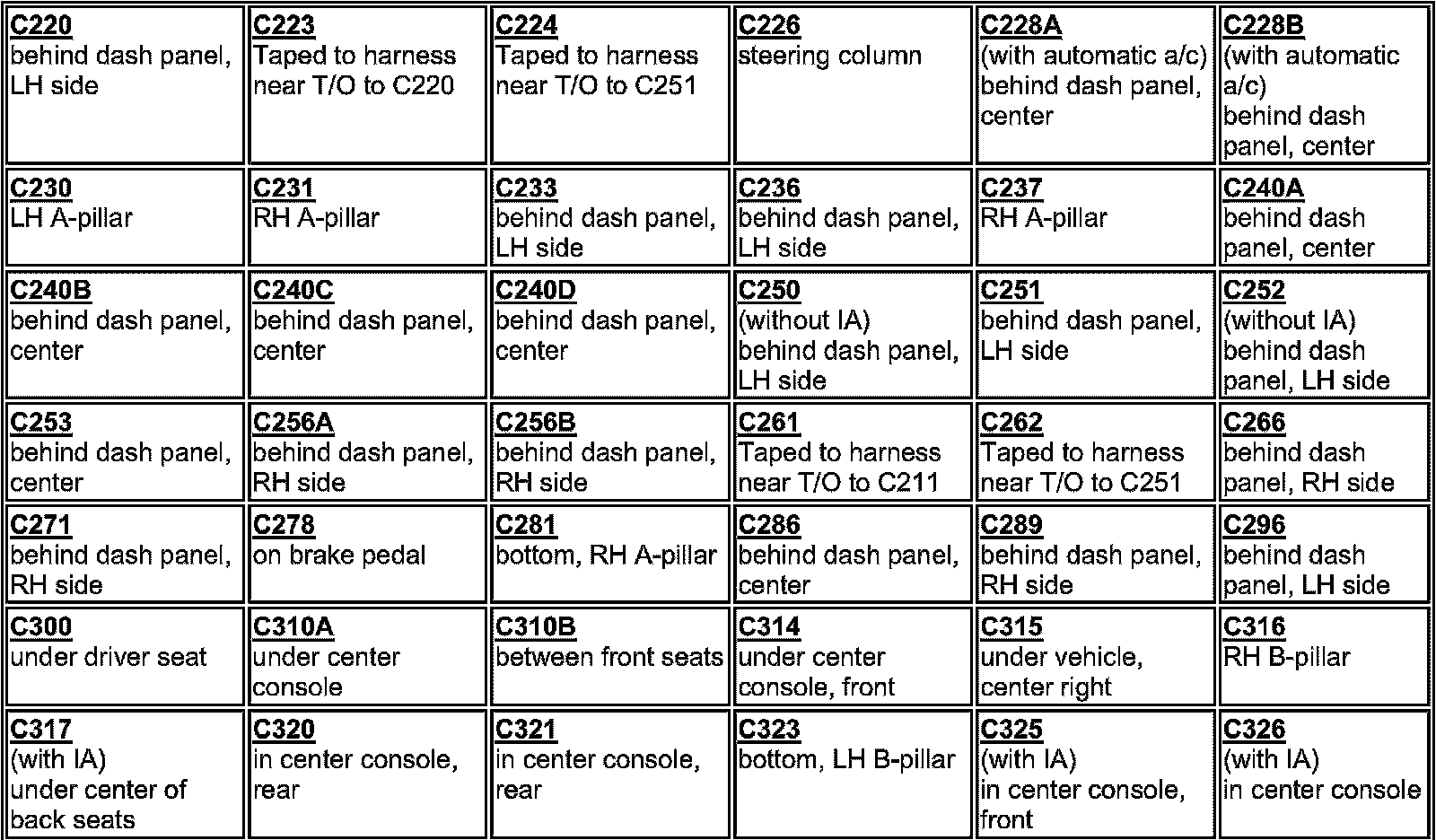

C220-C326:

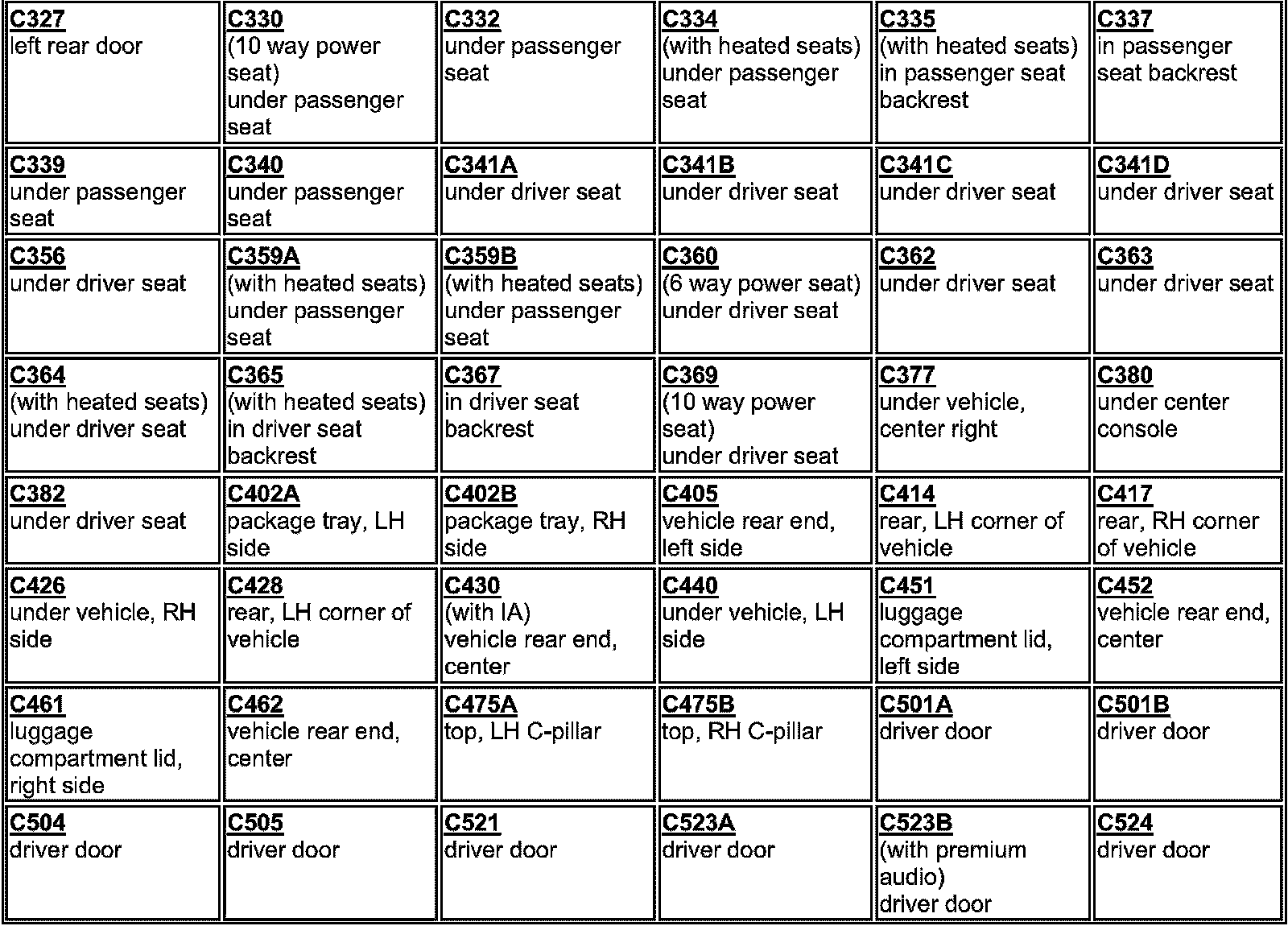

C327-C524:

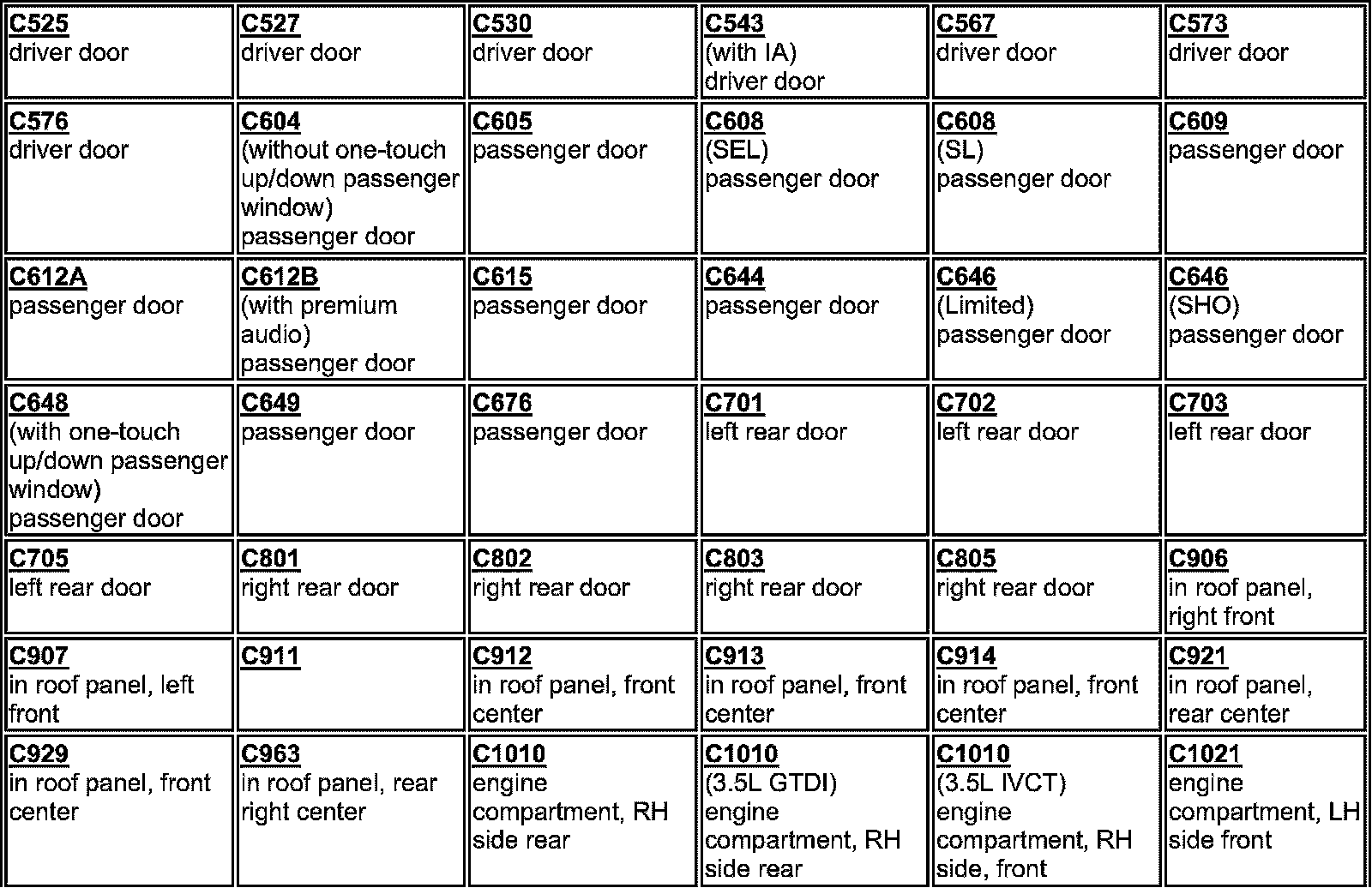

C525-C1021:

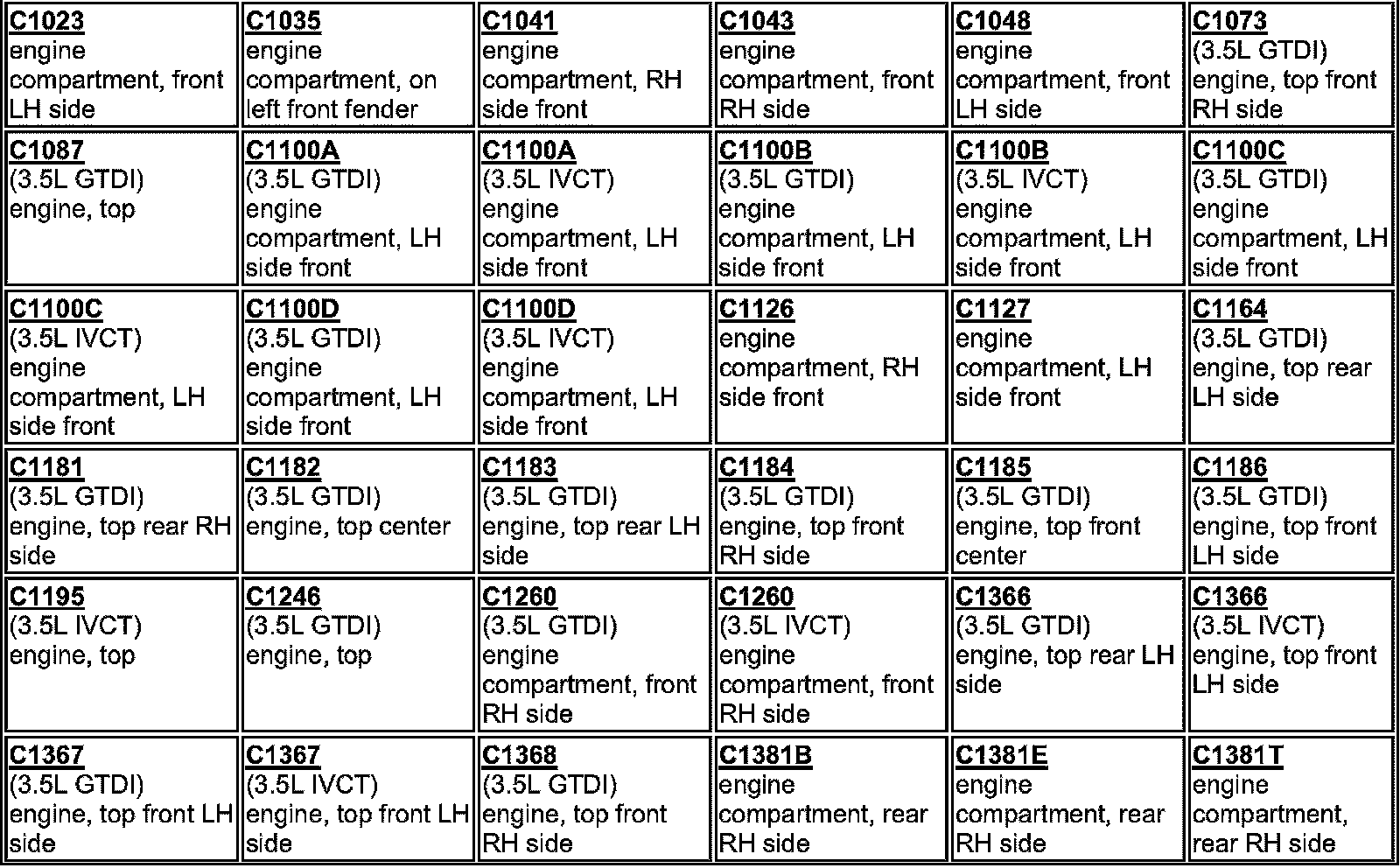

C1023-C1381T:

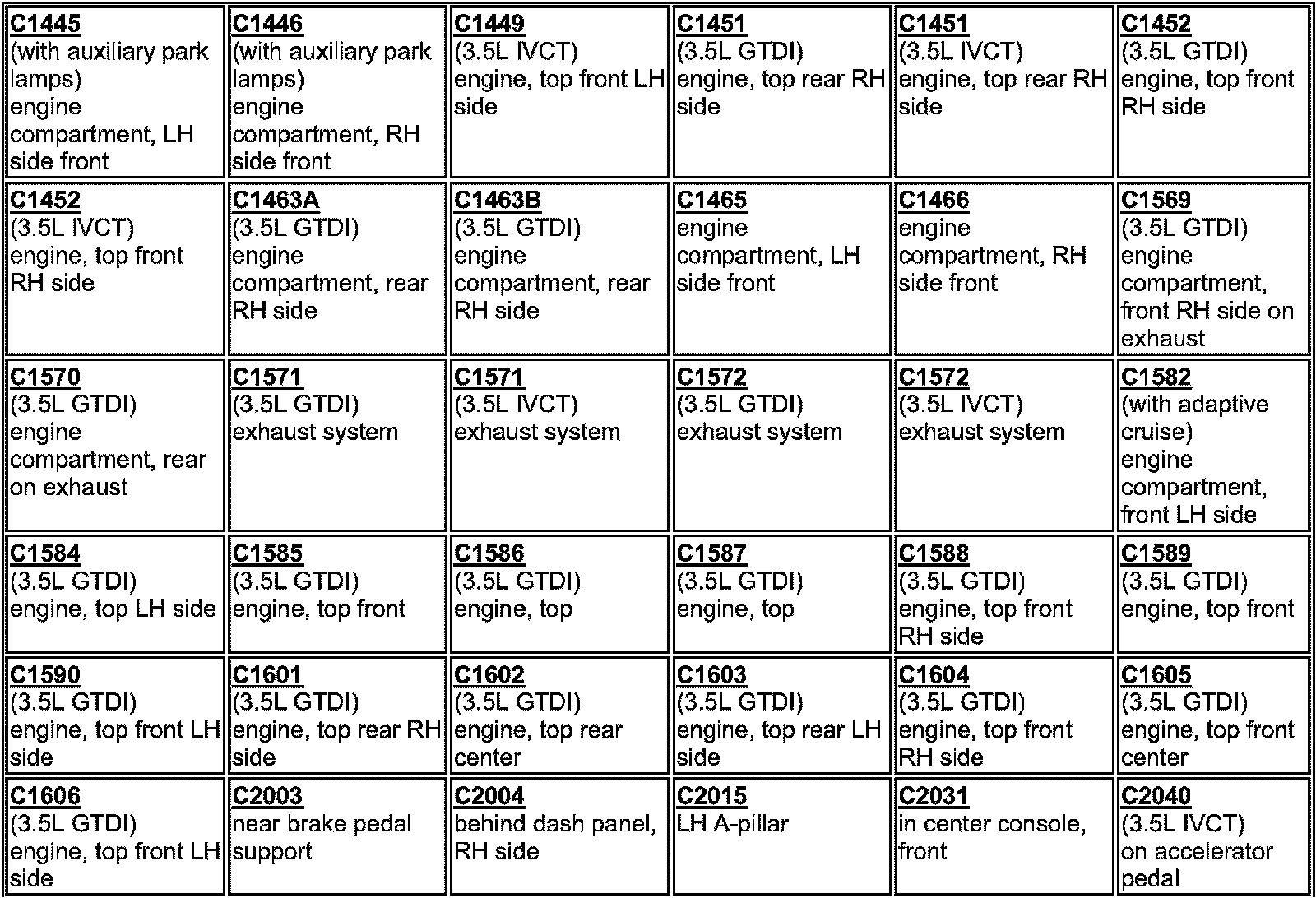

C1445-C2040:

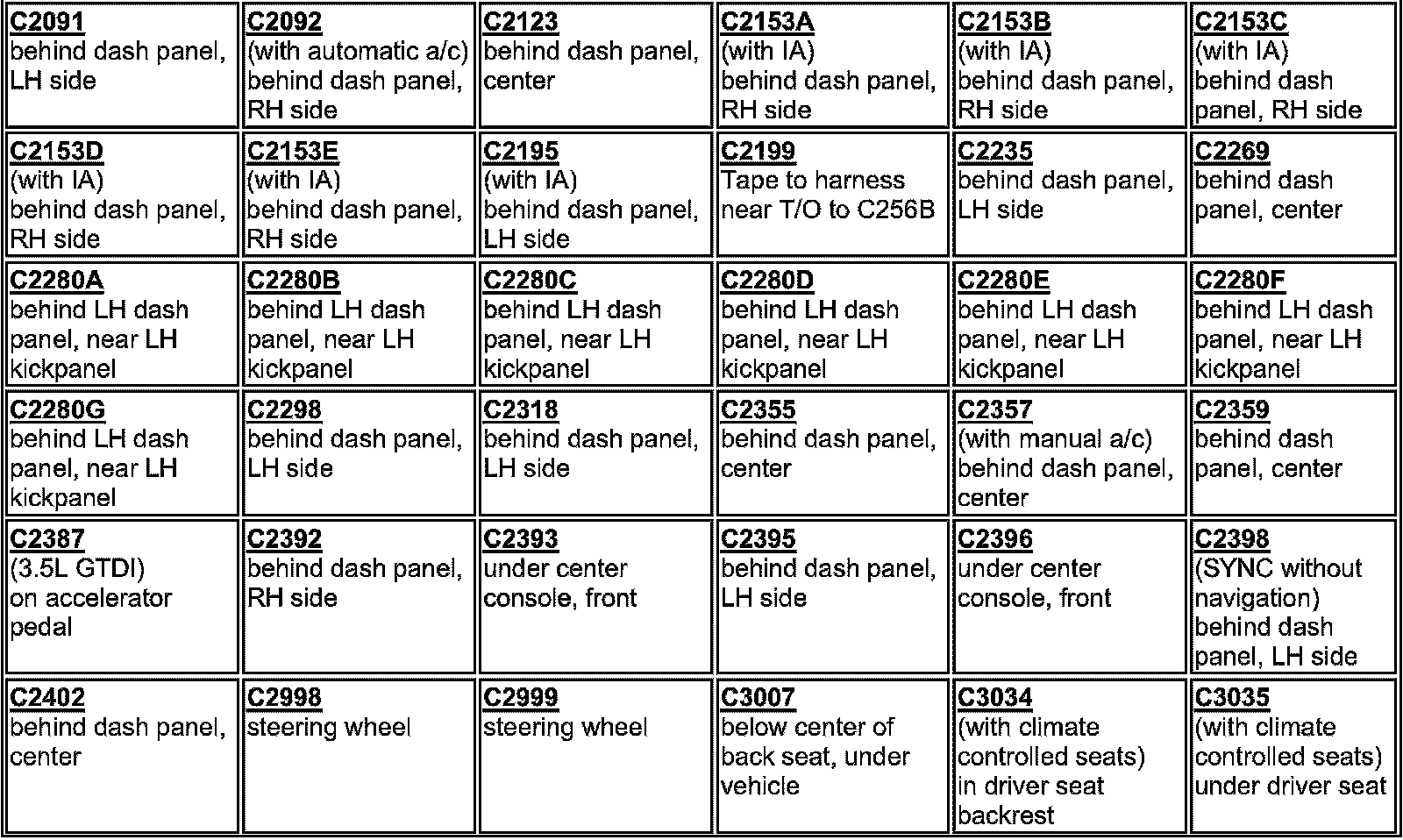

C2091-C3035:

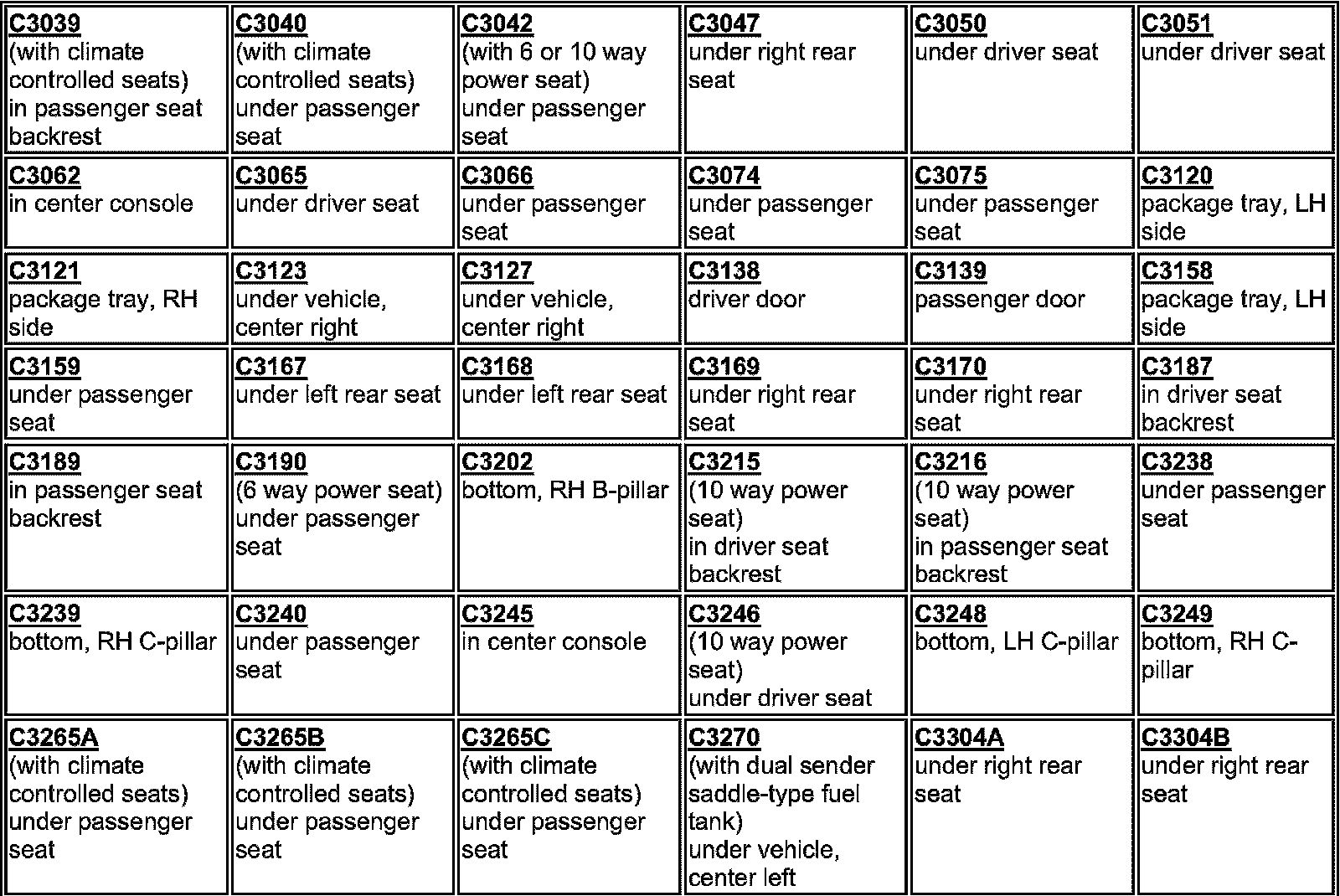

C3039-C3304B:

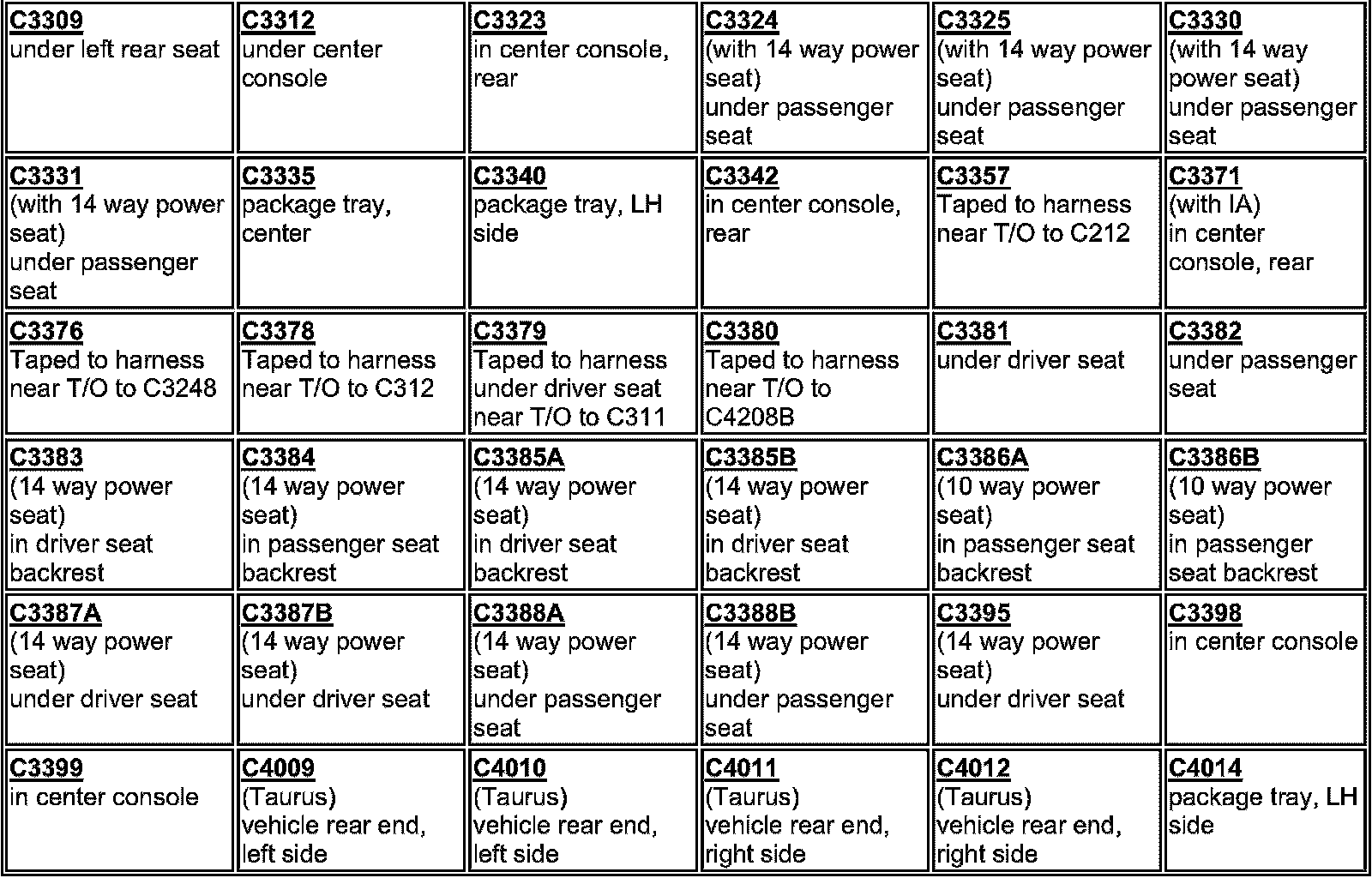

C3309-C4014:

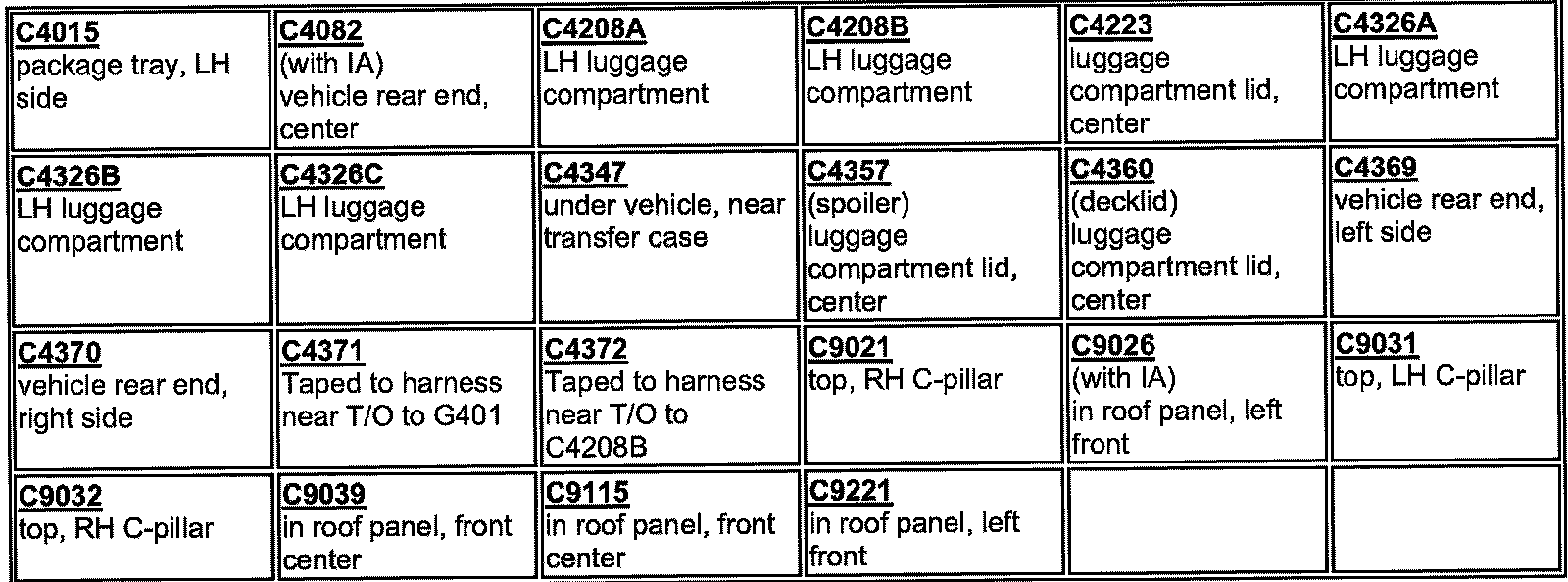

C4015-C9221:
