Evaporative Emissions System
Evaporative Emissions System

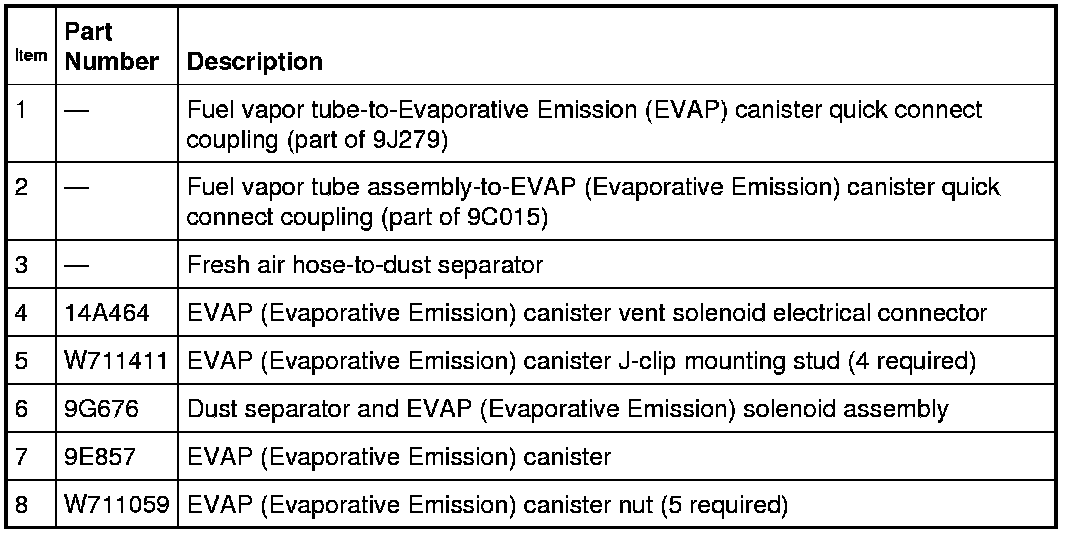

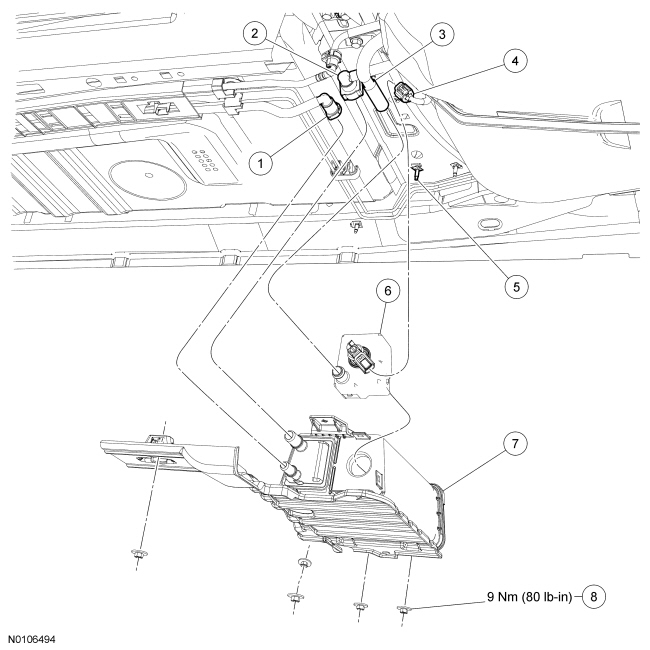

Evaporative Emission (
EVAP
) System Components - Exploded View
