Ford
>>
2012
>>
Taurus FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation System
>>

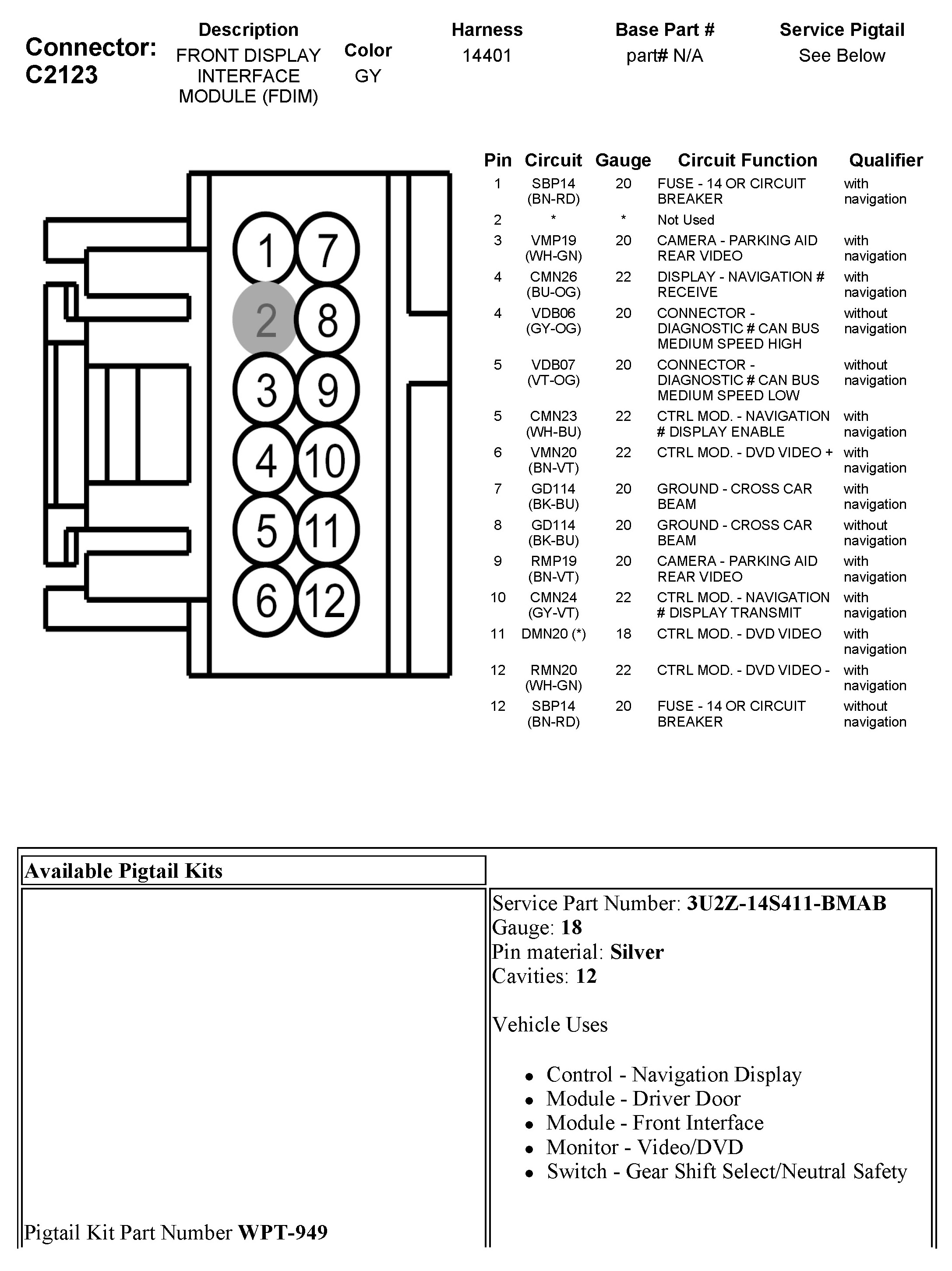

C2123 Front Display Interface Module (FDIM)
C2123 Front Display Interface Module (FDIM)
