Disc Brake System
>>

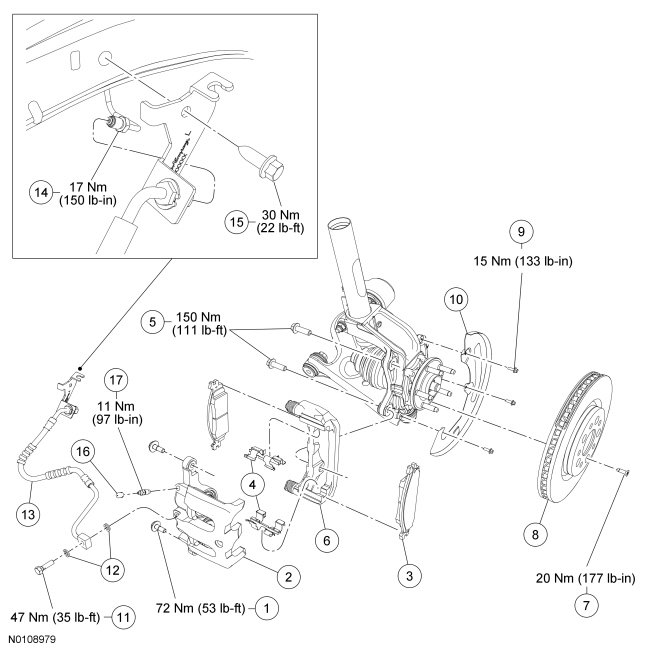

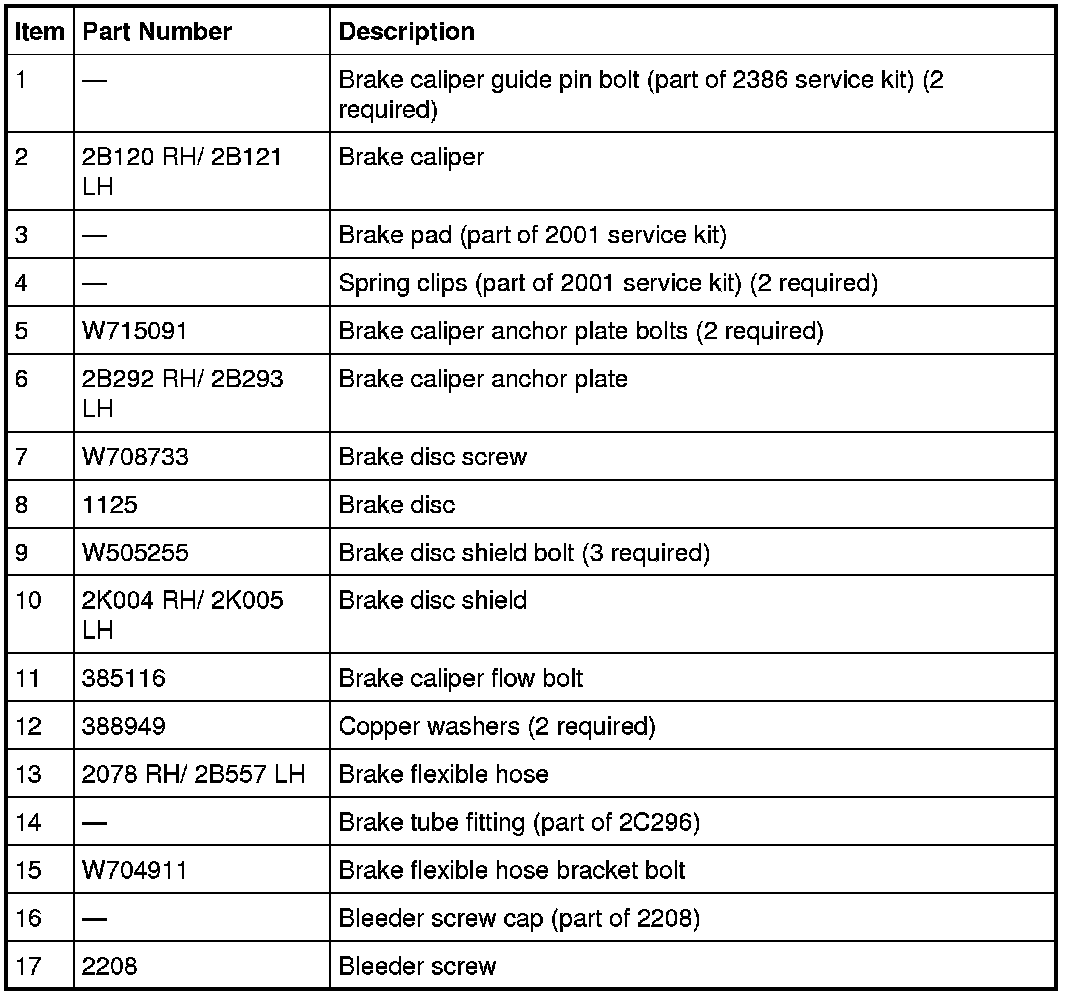

Disc Brake System - Exploded View
Disc Brake System - Exploded View
Disc Brake System
- Exploded View
